Bug 79322 - gnome-disks does not recognize LUKS volume on USB drive
Summary: gnome-disks does not recognize LUKS volume on USB drive
Status: NEW
Alias: None
Product: udisks
Classification: Unclassified
Component: luks (show other bugs)
Version: unspecified
Hardware: x86-64 (AMD64) Linux (All)
: medium major
Assignee: David Zeuthen (not reading bugmail)
QA Contact:
Depends on:
Reported: 2014-05-27 16:56 UTC by Michael Monreal
Modified: 2014-05-28 22:14 UTC (History)
0 users

See Also:
i915 platform:
i915 features:

Logs (175.46 KB, text/plain)
2014-05-27 17:00 UTC, Michael Monreal
Screenshot (824.94 KB, image/png)
2014-05-28 20:29 UTC, Michael Monreal

Description Michael Monreal 2014-05-27 16:56:24 UTC
I bought a WD My Book 4TB USB3 drive and deleted the NTFS partition it ships with. I then created a new GPT and added one LUKS/ext4 partition to it. I used gnome-disks for this, which uses udisks2 as far as I know. The partition was created and I was able to copy files to it.

When I connected the disk on the next day it showed up as unpartitioned space. I checked various CLI tools and was able to unlock the LUKS and mount the ext4 partition without a problem. Still, gnome-disks does not "see" the LUKS.

Using "udisksctl dump" I can see the device sdb but not the partitoion sdb1. However with "udevadm info --export-db" I see sdb1.

I will attach some logs and hope someone can make help solve the problem.
Comment 1 Michael Monreal 2014-05-27 17:00:45 UTC
Created attachment 99965 [details]

Here is some relevant output. Please tell me if you need anything else.

My system has the following packages btw:

Comment 2 Michael Monreal 2014-05-28 20:29:16 UTC
Created attachment 100057 [details]

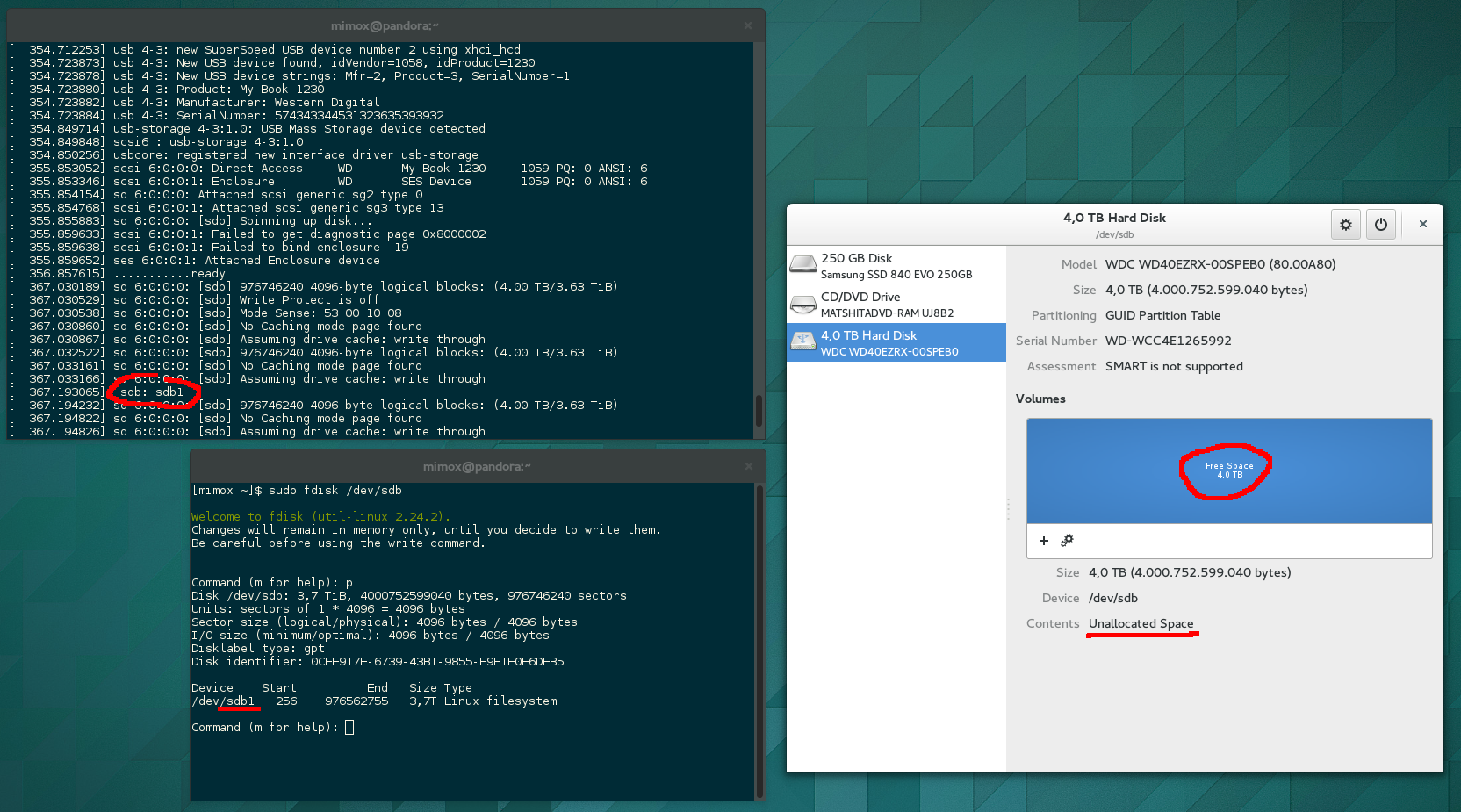

Here's a screenshot to better show the problem.
Comment 3 Michael Monreal 2014-05-28 20:31:09 UTC
I also found that udisksctl does not seem to "see" sdb1 (it sees sdb just fine):

$ udisksctl info -b /dev/sdb1
Error looking up object for device /dev/sdb1
Comment 4 Michael Monreal 2014-05-28 22:14:55 UTC
In order to test this further I deleted the partition, created a new GPT and recreated the partition with the same size: no change.

However I discovered that the LUKS volume shows up and works fine on older Fedora releases (tested with F17), so it looks like the disk and partitioning is actually totally fine and there is some regression in gnome-disks/udisk/kernel?

I will try again tomorrow with a more recent release (F19) to narrow down the regression window.
