Bug 80004 - Serious Sam 3 BFE - incorrect weapon rendering
Summary: Serious Sam 3 BFE - incorrect weapon rendering
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Gallium/r600 (show other bugs)
Version: git
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2014-06-13 21:23 UTC by Vitaliy Filippov
Modified: 2016-05-29 07:54 UTC (History)
2 users (show)

See Also:
i915 platform:
i915 features:

Attachments

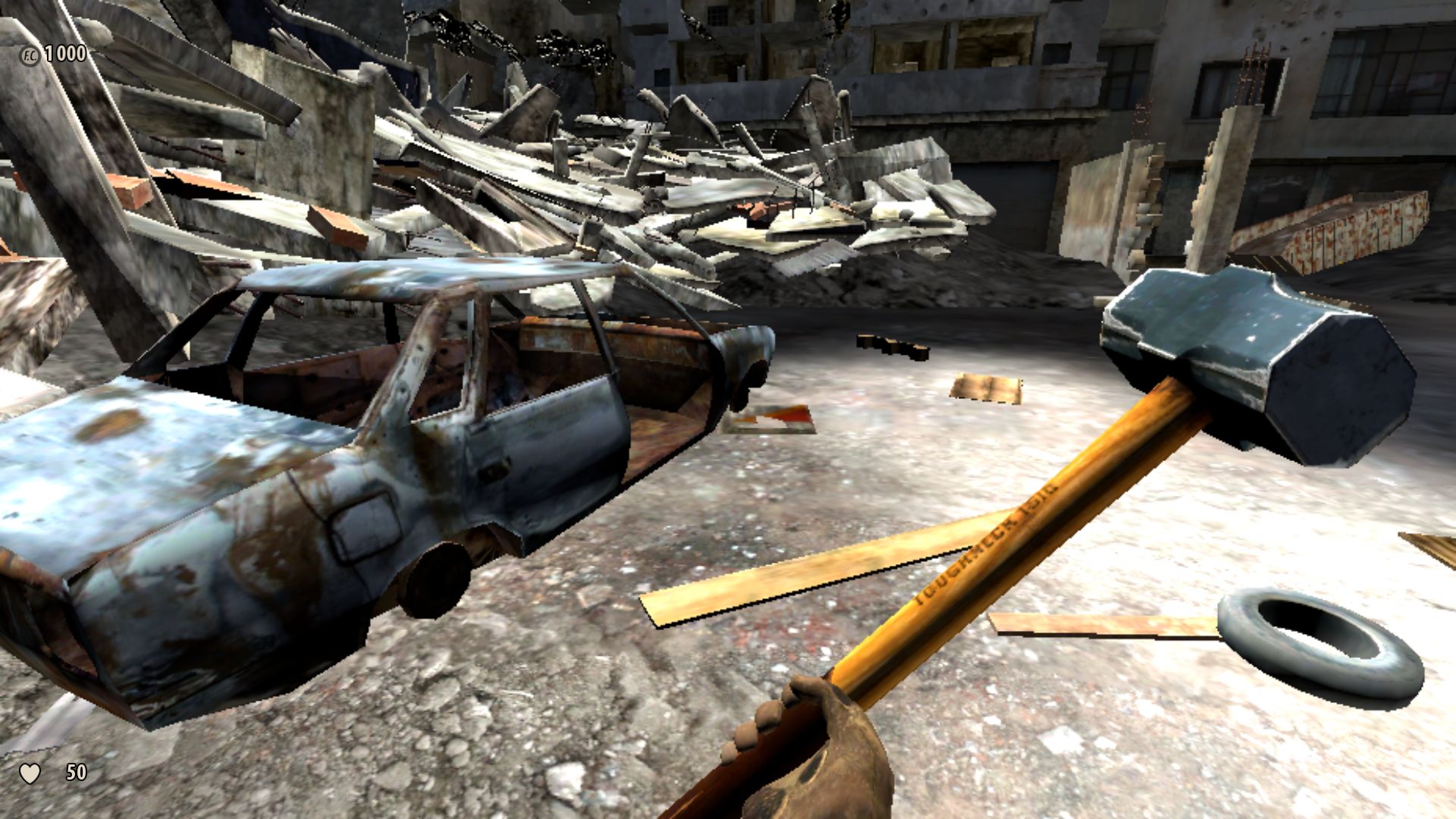

Incorrect weapon rendering (2.61 MB, image/png)
2014-06-13 21:23 UTC, Vitaliy Filippov 		Details

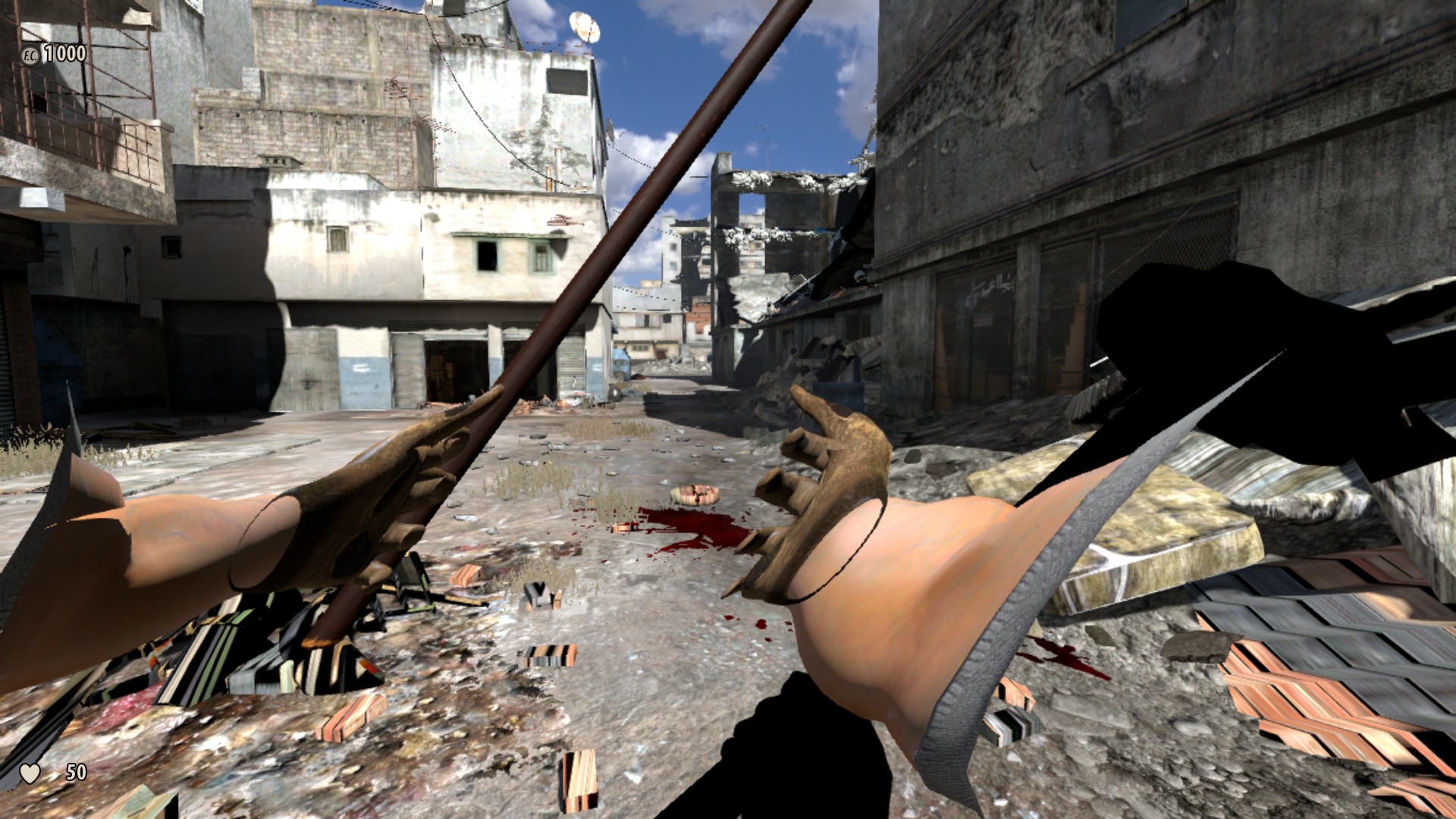

OK with R600_DEBUG=nosb (296.76 KB, image/jpeg)
2014-11-11 19:24 UTC, Vitaliy Filippov 		Details
View All

Description Vitaliy Filippov 2014-06-13 21:23:22 UTC
Created attachment 101017 [details]
Incorrect weapon rendering

Hi!

I try to play Serious Sam 3 BFE using Mesa and r600g driver, and I get incorrect rendering of the weapon - it's rendered "diagonal" (see the screenshot).

Linux kernel is Debian's 3.14.4-1.1, but most of the system is i386. Mesa is 10.1.2 from Debian repos.

Card is ATI Mobility Radeon HD 4670.

OpenGL renderer string: Gallium 0.4 on AMD RV730
OpenGL core profile version string: 3.3 (Core Profile) Mesa 10.1.2
OpenGL core profile shading language version string: 3.30
OpenGL core profile context flags: (none)
OpenGL core profile profile mask: core profile

Is it a known issue?
Comment 1 Vitaliy Filippov 2014-06-13 22:04:14 UTC
The bug also reproduces on newer mesa 10.1.4 (just updated).
Comment 2 Vitaliy Filippov 2014-06-15 14:21:59 UTC
Just built 10.2.1 - the bug also reproduces on it.
Comment 3 Vitaliy Filippov 2014-06-15 14:22:51 UTC
(In reply to comment #0)
> Linux kernel is Debian's 3.14.4-1.1, but most of the system is i386. Mesa is
> 10.1.2 from Debian repos.

I've meant "Linux is 3.14.4-1.1 amd64, but most of the system is i386"
Comment 4 Vitaliy Filippov 2014-06-16 20:59:06 UTC
Anyone?
Comment 5 Vitaliy Filippov 2014-11-04 22:36:00 UTC
Linux 3.16.5, Mesa 10.4.0-devel git, the bug still there.
Comment 6 Benjamin Bellec 2014-11-11 18:19:32 UTC
Can you try with sb disabled, set then envvar "R600_DEBUG=nosb".
Comment 7 Vitaliy Filippov 2014-11-11 19:24:47 UTC
Created attachment 109305 [details]
OK with R600_DEBUG=nosb

It seems it's OK with nosb (although the frame rate seems lower)
Comment 8 Benjamin Bellec 2014-11-11 19:33:27 UTC
(In reply to Vitaliy Filippov from comment #7)
> It seems it's OK with nosb

OK, this is maybe related to issue I have :
https://bugs.freedesktop.org/show_bug.cgi?id=86165

(In reply to Vitaliy Filippov from comment #7)
> although the frame rate seems lower

Yes, "sb" is the enhanced r600g GLSL compiler. So disabling it decrease the performance.
Comment 9 Vitaliy Filippov 2014-11-11 20:36:23 UTC
Maybe... so the only thing that is left is to get response from someone who can fix it? :)

It's also interesting that the same commit e9822f77a9cc024f528d30382fd5ad21c73a173b is also mentioned in bug 77288...
Comment 10 Benjamin Bellec 2014-11-12 18:09:01 UTC
(In reply to Vitaliy Filippov from comment #9)
> Maybe... so the only thing that is left is to get response from someone who
> can fix it? :)

Absolutely.
Comment 11 Vitaliy Filippov 2016-05-29 07:54:35 UTC
The bug does not reproduce anymore with current mesa 11.3
