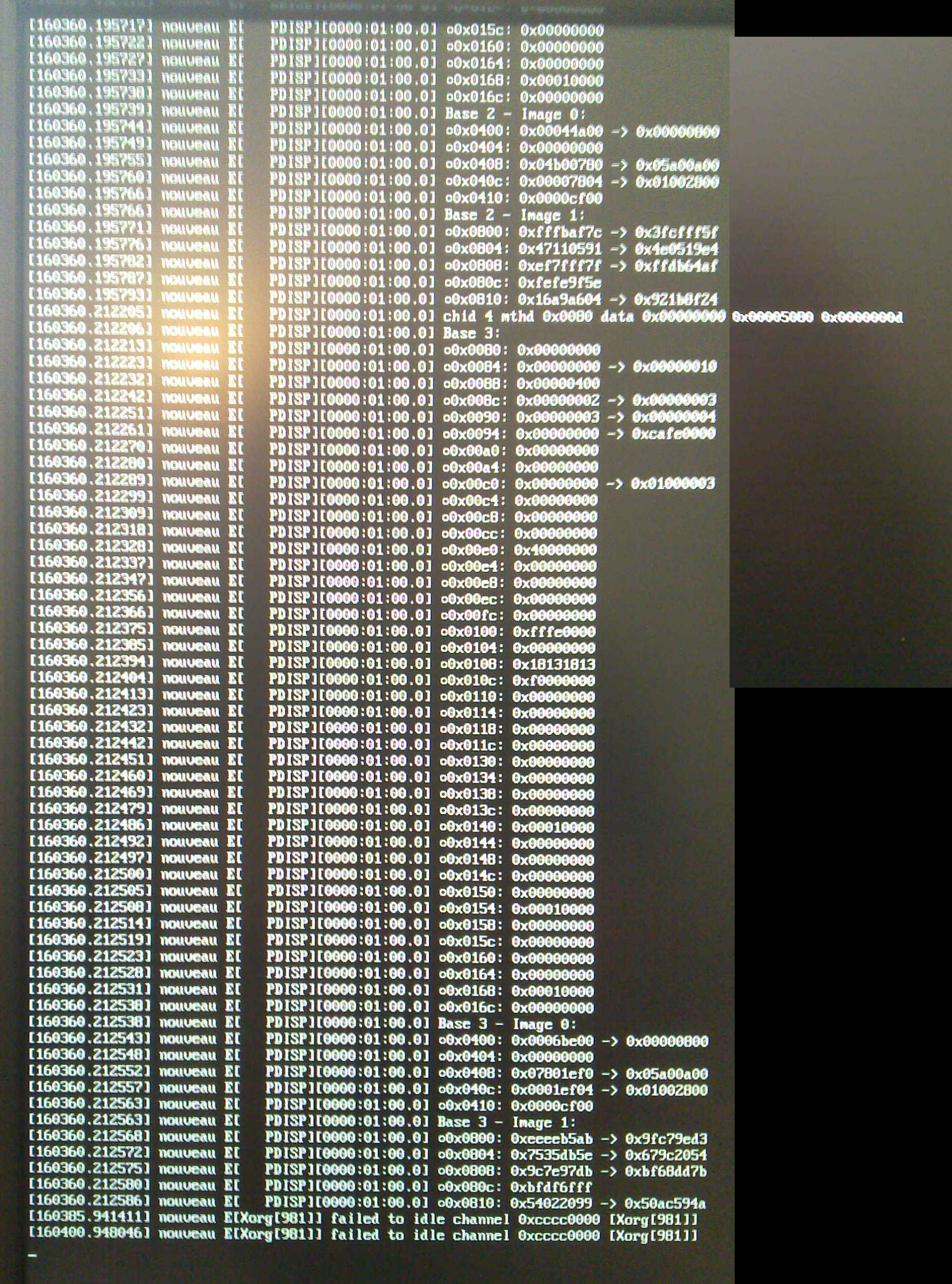

Created attachment 102212 [details] Screenshot of log output I came in to work this morning, to find two of my four monitors blank, and the other two showing the attached log output (screenshot only, because I can't find it in anywhere on the filesystem). /var/log/messages contains errors of the form: nouveau E[ PGRAPH][0000:01:00.0] TRAP ch 7 [0x007f730000 cubicgrid[18458]] nouveau E[ PGRAPH][0000:01:00.0] GPC0/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS cubicgrid is my screensaver (part of xscreensaver) Here's some more information that may or may not be useful. If you need any more, just ask and I'll see what I can do: localhost:~# uname -a Linux localhost.localdomain 3.16.0-rc2 #1 SMP Tue Jun 24 16:08:14 BST 2014 x86_64 x86_64 x86_64 GNU/Linux localhost:~# lspci | fgrep VGA 01:00.0 VGA compatible controller: NVIDIA Corporation GK107 [NVS 510] (rev a1) localhost:~# xrandr Screen 0: minimum 320 x 200, current 7920 x 1920, maximum 8192 x 8192 DP-1 connected 1600x1200+2560+0 (normal left inverted right x axis y axis) 408mm x 306mm 1600x1200 60.00*+ 1280x1024 60.02 1280x960 60.00 1024x768 60.00 800x600 60.32 640x480 60.00 720x400 70.08 DP-2 connected primary 2560x1440+4160+0 (normal left inverted right x axis y axis) 597mm x 336mm 2560x1440 59.95*+ 1920x1200 59.88 1920x1080 60.00 60.00 50.00 59.94 24.00 23.98 1920x1080i 60.00 50.00 59.94 1600x1200 60.00 1680x1050 59.95 1280x1024 75.02 60.02 1280x800 59.81 1152x864 75.00 1280x720 60.00 50.00 59.94 1440x576i 50.00 1024x768 75.08 60.00 1440x480i 60.00 59.94 800x600 75.00 60.32 720x576 50.00 720x480 60.00 59.94 640x480 75.00 60.00 59.94 720x400 70.08 DP-3 connected 1200x1920+6720+0 left (normal left inverted right x axis y axis) 518mm x 324mm 1920x1200 59.95*+ 1600x1200 60.00 1680x1050 59.88 1280x1024 60.02 1280x960 60.00 1024x768 60.00 800x600 60.32 640x480 60.00 720x400 70.08 DP-4 connected 2560x1440+0+0 (normal left inverted right x axis y axis) 597mm x 336mm 2560x1440 59.95*+ 1920x1200 59.88 1920x1080 60.00 60.00 50.00 59.94 24.00 23.98 1920x1080i 60.00 50.00 59.94 1600x1200 60.00 1680x1050 59.95 1280x1024 75.02 60.02 1280x800 59.81 1152x864 75.00 1280x720 60.00 50.00 59.94 1440x576i 50.00 1024x768 75.08 60.00 1440x480i 60.00 59.94 800x600 75.00 60.32 720x576 50.00 720x480 60.00 59.94 640x480 75.00 60.00 59.94 720x400 70.08 fgrep Monitor /var/log/Xorg.0.log [ 16.578] (**) | |-->Monitor "<default monitor>" [ 16.731] (II) NOUVEAU(0): Monitor name: SDM-S205F/K [ 16.737] (II) NOUVEAU(0): Monitor name: DELL U2711 [ 16.771] (II) NOUVEAU(0): Monitor name: DELL U2412M [ 16.777] (II) NOUVEAU(0): Monitor name: DELL U2713HM
Created attachment 102214 [details] Relevant parts of /var/log/messages
Created attachment 102215 [details] text/plain snippet of /var/log/messages The relevant parts of /var/log/messages were too big to attach uncompressed, but they appear to consist of repeated sections like this.
The machine was completely hung after this point, but did respond to Magic SysRq requests.
The two blank monitors were DP-1 and DP-2. The log output was visible on DP-3 and DP-4.
Those errors are most likely to happen when e.g. you're accessing a UBO out of its bounds. Or if the driver messed up binding said UBO... or some code generation error. However it should be ~harmless, except for the fact that the render in question will be messed up. BTW, what mesa version are you using? The DISP errors at the end are the reason (or at least a demonstration) that the GPU hung. I suspect the rest of the system was totally fine. This also looks worrying: [160330.118473] nouveau E[ PFIFO][0000:01:00.0] write fault at 0x00004d6000 [PTE] from GR/GPC0/PROP_0 on channel 0x007f971000 [Xorg[981]] [160330.118474] nouveau E[ PFIFO][0000:01:00.0] PGRAPH engine fault on channel 2, recovering... I'm guessing the errors stressed the ctxsw logic and it couldn't handle some condition.
localhost:~# rpm -qa | fgrep mesa mesa-libGL-10.1.5-1.20140607.fc20.i686 mesa-libglapi-10.1.5-1.20140607.fc20.x86_64 mesa-filesystem-10.1.5-1.20140607.fc20.x86_64 mesa-libglapi-10.1.5-1.20140607.fc20.i686 mesa-libGLU-9.0.0-5.fc20.x86_64 mesa-libgbm-10.1.5-1.20140607.fc20.x86_64 mesa-libwayland-egl-10.1.5-1.20140607.fc20.x86_64 mesa-dri-drivers-10.1.5-1.20140607.fc20.x86_64 mesa-libEGL-10.1.5-1.20140607.fc20.x86_64 mesa-libxatracker-10.1.5-1.20140607.fc20.x86_64 mesa-libGL-10.1.5-1.20140607.fc20.x86_64
This has been happening to me for a while, now it is more frequent, it happens even twice a day. Relevant parts of the log from my latest crash. Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] TRAP ch 6 [0x00bf556000 chromium[6894]] Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC0/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC0/TPC1/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC1/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC2/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC3/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] TRAP ch 6 [0x00bf556000 chromium[6894]] Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC0/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC0/TPC1/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC1/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:40 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC2/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:44 localhost kernel: nouveau E[ PFIFO][0000:01:00.0] SCHED_ERROR [ CTXSW_TIMEOUT ] Jun 22 15:12:44 localhost kernel: nouveau E[ PFIFO][0000:01:00.0] PGR engine fault on channel 5, recovering... Jun 22 15:12:44 localhost kernel: nouveau E[ PGR][0000:01:00.0] TRAP ch 6 [0x00bf556000 chromium[6894]] Jun 22 15:12:44 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC0/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:44 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC0/TPC1/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:44 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC1/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:44 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC2/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:12:44 localhost kernel: nouveau E[ PGR][0000:01:00.0] GPC3/TPC0/MP trap: MULTIPLE_WARP_ERRORS MEM_OUT_OF_BOUNDS Jun 22 15:13:19 localhost libvirtd[583]: No response from client 0x7faa4465af70 after 5 keepalive messages in 30 seconds Jun 22 15:13:19 localhost libvirtd[1206]: No response from client 0x7f37e7faea50 after 5 keepalive messages in 30 seconds -- Reboot --
-- GitLab Migration Automatic Message -- This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity. You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/xorg/driver/xf86-video-nouveau/issues/115.
