Bug 81546 - Radeon 7990: Output of most applications garbled, Gnome shell mosly fine
Summary: Radeon 7990: Output of most applications garbled, Gnome shell mosly fine
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Gallium/radeonsi (show other bugs)
Version: unspecified
Hardware: x86-64 (AMD64) Linux (All)
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2014-07-19 17:33 UTC by Marcel Schaal
Modified: 2014-10-10 14:30 UTC (History)
0 users

See Also:
i915 platform:
i915 features:

Attachments

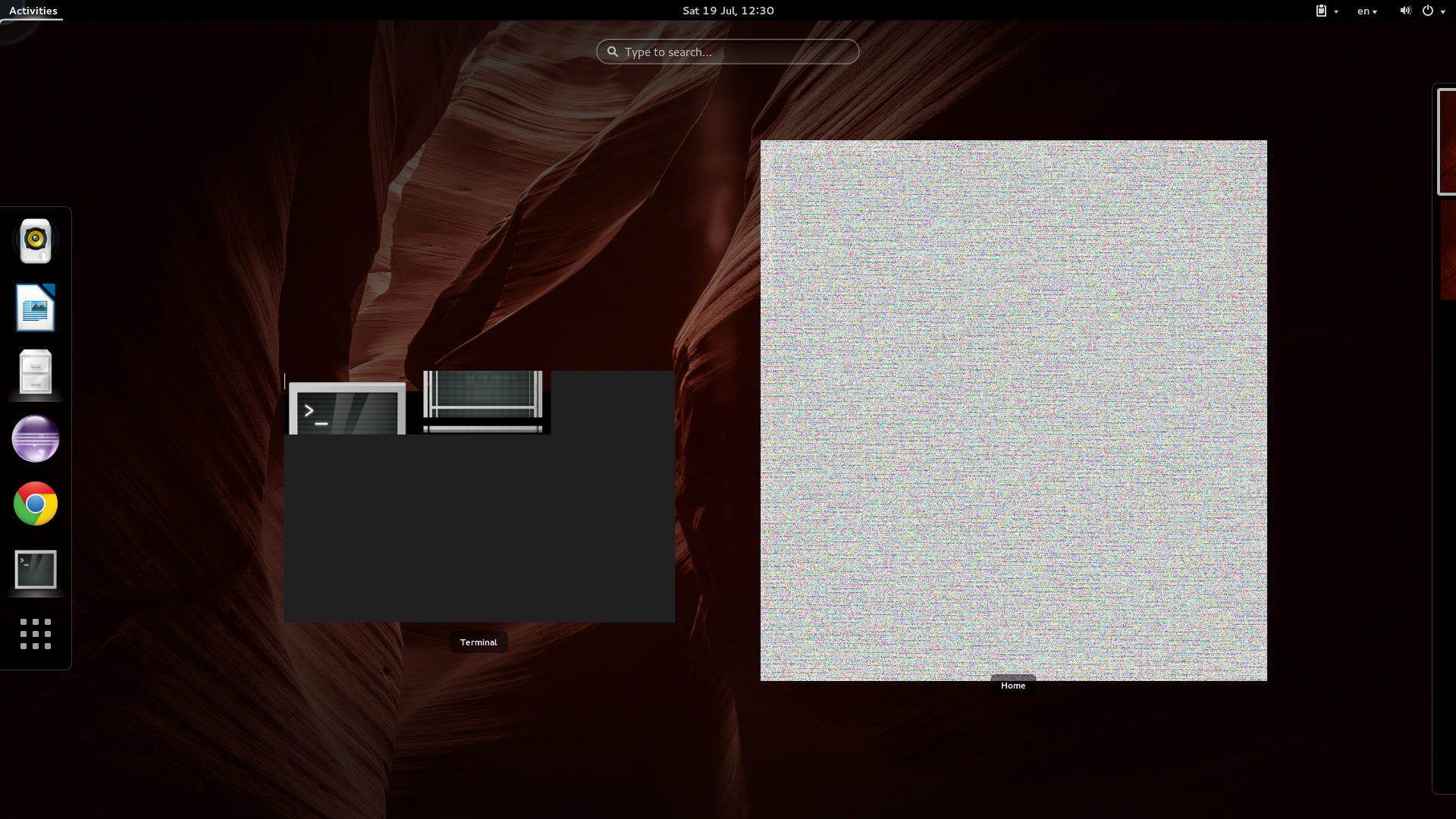

Screenshot of Gnome shell (2.89 MB, image/png)
2014-07-19 17:33 UTC, Marcel Schaal 		Details
Screenshot of KDE (707.52 KB, image/png)
2014-07-19 17:34 UTC, Marcel Schaal 		Details
Output of dmesg (85.84 KB, text/plain)
2014-07-19 17:34 UTC, Marcel Schaal 		Details
Output of lspci (2.56 KB, text/plain)
2014-07-19 17:35 UTC, Marcel Schaal 		Details
Logfile of xorg (79.67 KB, text/plain)
2014-07-19 17:35 UTC, Marcel Schaal 		Details
View All

Description Marcel Schaal 2014-07-19 17:33:35 UTC
Created attachment 103116 [details]
Screenshot of Gnome shell

Please have a look at the screenshots. Rendering of most windows is totally garbled including window decoration. This is not about Crossfire/SLI/Multi GPU rendering, just plain single GPU.

Gnome-shell's own rendering is mostly fine. Panel, lock screen animations, menus and dashboard don't show distortions.
KDE's/Kwin is worse, even the panel's are broken, but it's able to draw window decorations.
glxgears's rendering is fine.
Linux console (no X11) is also fine.


Hardware:
PowerColor AX7990 6GBD5-2DHJ, which is one of those fake 7990s that actually use 2x7970 Tahiti XT on a single PCB and not 2x Malta. Other GPUs (6950/7950) were working fine with that system.

Software:
Fedora 19/20 (From stock LiveCD image to current updates incl. Kernel 3.15.4)
There were no (drawing!) issues when I was using catalyst.
Comment 1 Marcel Schaal 2014-07-19 17:34:18 UTC
Created attachment 103117 [details]
Screenshot of KDE
Comment 2 Marcel Schaal 2014-07-19 17:34:38 UTC
Created attachment 103118 [details]
Output of dmesg
Comment 3 Marcel Schaal 2014-07-19 17:35:08 UTC
Created attachment 103119 [details]
Output of lspci
Comment 4 Marcel Schaal 2014-07-19 17:35:30 UTC
Created attachment 103120 [details]
Logfile of xorg
Comment 5 Michel Dänzer 2014-07-22 06:53:45 UTC
Bug 60879 has some patches trying to get Tahiti XT going properly.
Comment 6 Marcel Schaal 2014-10-10 14:30:56 UTC
Working with Fedora 21. Thanks
