At boot, I get only a striped screen, no decent picture. Kernel 3.13 dmesg http://paste.ubuntu.com/8019782/ Xorg.0.log http://paste.ubuntu.com/8019790/ Kernel 3.15 dmesg http://paste.ubuntu.com/8019797/ Xorg.0.log http://paste.ubuntu.com/8019803/ Kernel 3.16 dmesg http://paste.ubuntu.com/8019829/ Xorg.0.log http://paste.ubuntu.com/8019826/
Please attach your dmesg and xorg logs directly to the bug. Is this a regression? If so when was it last working? Can you get a picture of the screen? Does using a non-HDMI (e.g., DVI) connector help? Does booting with radeon.audio=0 on the kernel command line in grub help?

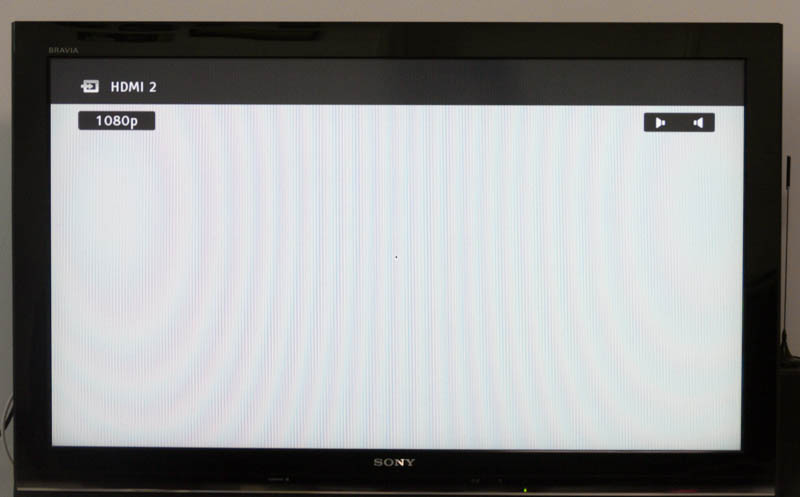

Created attachment 104476 [details] Picture of the screen Screen with black/grey stripes, mouse cursor on the middle.
Created attachment 104479 [details] dmesg 3.13
Created attachment 104480 [details] dmesg 3.15
Created attachment 104481 [details] dmesg 3.16
Created attachment 104482 [details] Xorg log
This has never worked. The HW works fine with older kernels and proprietary drivers. Tried with VGA connector, and with with the radeon.audio=0 without change in the behavior.
(In reply to comment #7) > This has never worked. The HW works fine with older kernels and proprietary > drivers. Tried with VGA connector, and with with the radeon.audio=0 without > change in the behavior. Which older kernels worked? Can you bisect?
(In reply to comment #8) > (In reply to comment #7) > > This has never worked. The HW works fine with older kernels and proprietary > > drivers. Tried with VGA connector, and with with the radeon.audio=0 without > > change in the behavior. > > Which older kernels worked? Can you bisect? 3.10.20, but like said it's with proprietary drivers. OpenELEC "distro" to be exact.
Just to be clear is it a problem specifically with HDMI or using any display? Also make sure you fully uninstalled fglrx. It overwrites some of the libs on your system with it's own versions. You can also try disabling acceleration. Add: Option "NoAccel" "true" to the device section of your xorg.conf
(In reply to comment #10) > Just to be clear is it a problem specifically with HDMI or using any > display? Also make sure you fully uninstalled fglrx. It overwrites some of > the libs on your system with it's own versions. You can also try disabling > acceleration. Add: > Option "NoAccel" "true" > to the device section of your xorg.conf It's a problem using any connector, VGA being another one I've tried. I did the installation by these instructions to the point, so I shouldn't have fglrx installed (http://forum.xbmc.org/showthread.php?tid=174854). I can try without acceleration if that's fruitful for debugging, but that's not a useful end result for me.
(In reply to comment #11) > It's a problem using any connector, VGA being another one I've tried. I did > the installation by these instructions to the point, so I shouldn't have > fglrx installed (http://forum.xbmc.org/showthread.php?tid=174854). > I can try without acceleration if that's fruitful for debugging, but that's > not a useful end result for me. Yes, it's useful for debugging.
(In reply to comment #10) > Just to be clear is it a problem specifically with HDMI or using any > display? Also make sure you fully uninstalled fglrx. It overwrites some of > the libs on your system with it's own versions. You can also try disabling > acceleration. Add: > Option "NoAccel" "true" > to the device section of your xorg.conf Disabling acceleration boots fine, and I get graphics as expected.
Created attachment 104552 [details] dmesg 3.13 no acceleration With xorg.conf "NoAccel" "true"
Created attachment 104553 [details] Xorg log with no acceleration
What version of mesa are you using? Does changing the mesa version help?
(In reply to comment #16) > What version of mesa are you using? Does changing the mesa version help? ii libegl1-mesa:amd64 10.1.3-0ubuntu0.1 amd64 free implementation of the EGL API -- runtime ii libegl1-mesa-drivers:amd64 10.1.3-0ubuntu0.1 amd64 free implementation of the EGL API -- hardware drivers ii libgl1-mesa-dri:amd64 10.1.3-0ubuntu0.1 amd64 free implementation of the OpenGL API -- DRI modules ii libgl1-mesa-glx:amd64 10.1.3-0ubuntu0.1 amd64 free implementation of the OpenGL API -- GLX runtime ii libglapi-mesa:amd64 10.1.3-0ubuntu0.1 amd64 free implementation of the GL API -- shared library ii libglu1-mesa:amd64 9.0.0-2 amd64 Mesa OpenGL utility library (GLU) ii libopenvg1-mesa:amd64 10.1.3-0ubuntu0.1 amd64 free implementation of the OpenVG API -- runtime ii libwayland-egl1-mesa:amd64 10.1.3-0ubuntu0.1 amd64 implementation of the Wayland EGL platform -- runtime ii mesa-utils 8.1.0-2 amd64 Miscellaneous Mesa GL utilities ii mesa-vdpau-drivers:amd64 10.1.3-0ubuntu0.1 amd64 Mesa VDPAU video acceleration drivers I will try to downgrade later today and report back.
(In reply to comment #16) > What version of mesa are you using? Does changing the mesa version help? Sorry, I'm bit of a noob here, but how do you replace mesa with an earlier version?
Created attachment 104582 [details] dmesg 3.13 mesa 10.3 I did sudo add-apt-repository ppa:xorg-edgers/ppa sudo apt-get update sudo apt-get dist-upgrade and I get ii libegl1-mesa:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 free implementation of the EGL API -- runtime ii libegl1-mesa-drivers:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 free implementation of the EGL API -- hardware drivers ii libgl1-mesa-dri:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 free implementation of the OpenGL API -- DRI modules ii libgl1-mesa-glx:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 free implementation of the OpenGL API -- GLX runtime ii libglapi-mesa:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 free implementation of the GL API -- shared library ii libglu1-mesa:amd64 9.0.0-2 amd64 Mesa OpenGL utility library (GLU) ii libopenvg1-mesa:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 free implementation of the OpenVG API -- runtime ii libwayland-egl1-mesa:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 implementation of the Wayland EGL platform -- runtime ii mesa-utils 8.1.0-2 amd64 Miscellaneous Mesa GL utilities ii mesa-vdpau-drivers:amd64 10.3.0~git20140812.fa5b76e3-0ubuntu0ricotz~trusty amd64 Mesa VDPAU video acceleration drivers

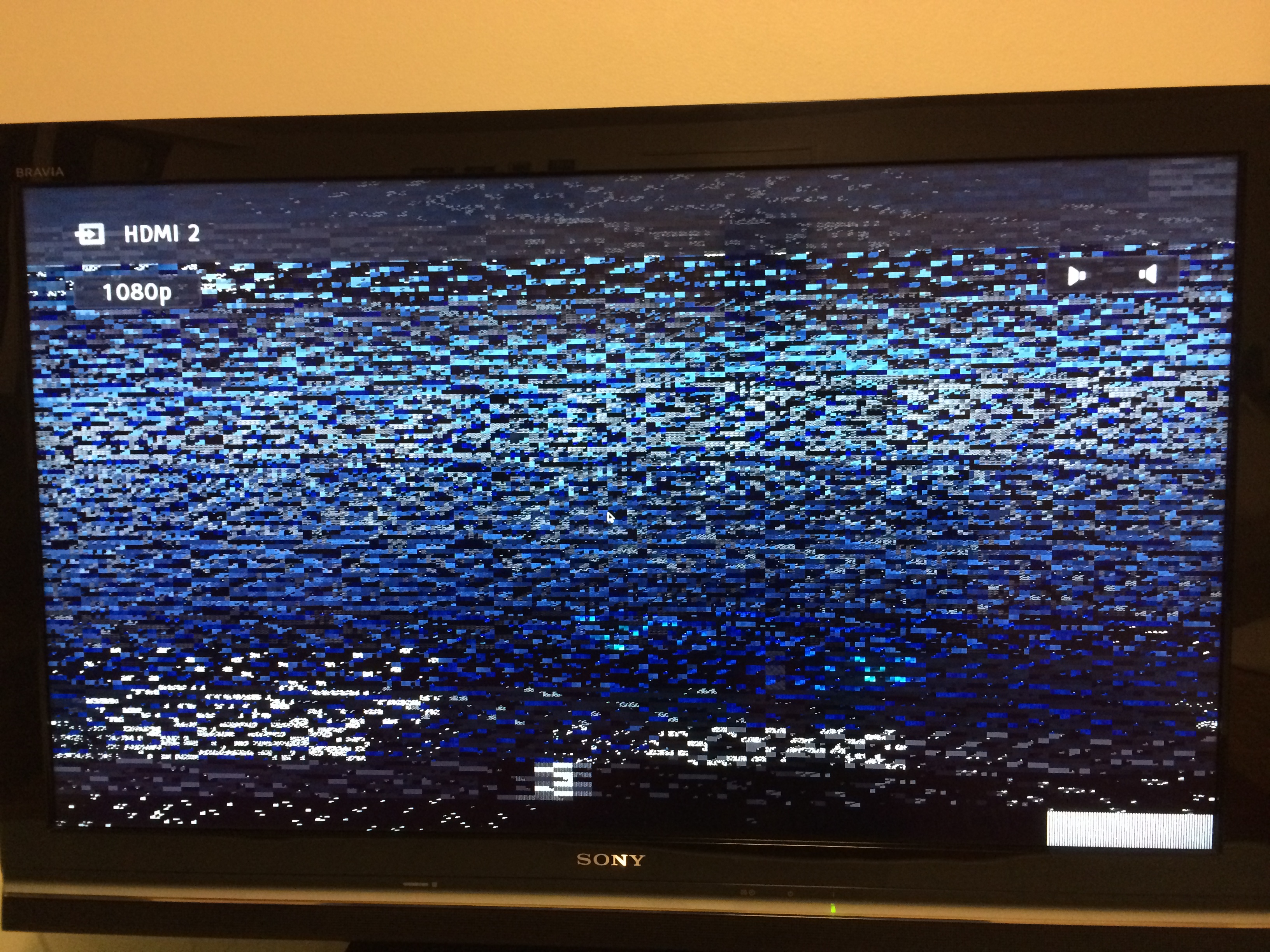

Created attachment 104583 [details] mesa 10.3 different kind of wrong display
Does disabling tiling help? Add: Option "ColorTiling" "false" Option "ColorTiling2D" "false" To the device section of your xorg config.
Also does the combination of a newer kernel with mesa 10.3 help?
(In reply to comment #21) > Does disabling tiling help? Add: > Option "ColorTiling" "false" > Option "ColorTiling2D" "false" > To the device section of your xorg config. Does not help. I get back to the orig. striped screen. Even after removing the new options from xorg.conf.
(In reply to comment #22) > Also does the combination of a newer kernel with mesa 10.3 help? Does not. Same results with kernel 3.16 and mesa 10.3.
Created attachment 104584 [details] dmesg 3.16 mesa 10.3
-- GitLab Migration Automatic Message -- This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity. You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/drm/amd/issues/513.
