I've seen this one come and go a couple of times over the past few months. In the spheremonics screensaver, from xscreensaver-4.24, the surface triangles are supposed to be smoothly shaded into adjacent triangles. With DRI turned off, things work as expected (see attachment: right-shading.jpg). However, with DRI turned on, the triangles are see-through, and the smooth shading is not done (see attachment: wrong-shading.jpg). My card is a FireGL X1-128. I'm running: xorg-server-1.1.1 today's git version of xf86-video-ati today's CVS HEAD version of mesa today's git versions of the drm modules today's git versions of libdrm james@Rainsong ~ $ uname -a Linux Rainsong 2.6.18-rc7 #1 SMP PREEMPT Thu Sep 14 08:41:23 EDT 2006 x86_64 AMD Opteron(tm) Processor 246 GNU/Linux james@Rainsong ~ $ glxinfo name of display: :0.0 display: :0 screen: 0 direct rendering: Yes server glx vendor string: SGI server glx version string: 1.2 server glx extensions: GLX_ARB_multisample, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_OML_swap_method, GLX_SGI_make_current_read, GLX_SGIS_multisample, GLX_SGIX_hyperpipe, GLX_SGIX_swap_barrier, GLX_SGIX_fbconfig client glx vendor string: SGI client glx version string: 1.4 client glx extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory, GLX_MESA_copy_sub_buffer, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_OML_sync_control, GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group, GLX_EXT_texture_from_pixmap GLX version: 1.2 GLX extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig OpenGL vendor string: Tungsten Graphics, Inc. OpenGL renderer string: Mesa DRI R300 20060815 AGP 8x TCL OpenGL version string: 1.3 Mesa 6.5.1 OpenGL extensions: GL_ARB_fragment_program, GL_ARB_imaging, GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_texture_border_clamp, GL_ARB_texture_compression, GL_ARB_texture_cube_map, GL_ARB_texture_env_add, GL_ARB_texture_env_combine, GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3, GL_MESAX_texture_float, GL_ARB_texture_mirrored_repeat, GL_ARB_texture_rectangle, GL_ARB_transpose_matrix, GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_window_pos, GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color, GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate, GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_clip_volume_hint, GL_EXT_compiled_vertex_array, GL_EXT_convolution, GL_EXT_copy_texture, GL_EXT_draw_range_elements, GL_EXT_gpu_program_parameters, GL_EXT_histogram, GL_EXT_packed_pixels, GL_EXT_polygon_offset, GL_EXT_rescale_normal, GL_EXT_secondary_color, GL_EXT_separate_specular_color, GL_EXT_stencil_wrap, GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D, GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add, GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3, GL_EXT_texture_filter_anisotropic, GL_EXT_texture_lod_bias, GL_EXT_texture_mirror_clamp, GL_EXT_texture_object, GL_EXT_texture_rectangle, GL_EXT_vertex_array, GL_APPLE_packed_pixels, GL_ATI_blend_equation_separate, GL_ATI_texture_env_combine3, GL_ATI_texture_mirror_once, GL_IBM_rasterpos_clip, GL_IBM_texture_mirrored_repeat, GL_INGR_blend_func_separate, GL_MESA_pack_invert, GL_MESA_ycbcr_texture, GL_MESA_window_pos, GL_NV_blend_square, GL_NV_light_max_exponent, GL_NV_texture_rectangle, GL_NV_texgen_reflection, GL_NV_vertex_program, GL_OES_read_format, GL_SGI_color_matrix, GL_SGI_color_table, GL_SGIS_generate_mipmap, GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp, GL_SGIS_texture_lod visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat ---------------------------------------------------------------------- 0x23 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x24 24 tc 0 32 0 r y . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x25 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x26 24 tc 0 32 0 r y . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x27 24 tc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x28 24 tc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x29 24 tc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x2a 24 tc 0 32 0 r . . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x2b 24 dc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x2c 24 dc 0 32 0 r y . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x2d 24 dc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x2e 24 dc 0 32 0 r y . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x2f 24 dc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x30 24 dc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x31 24 dc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x32 24 dc 0 32 0 r . . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow

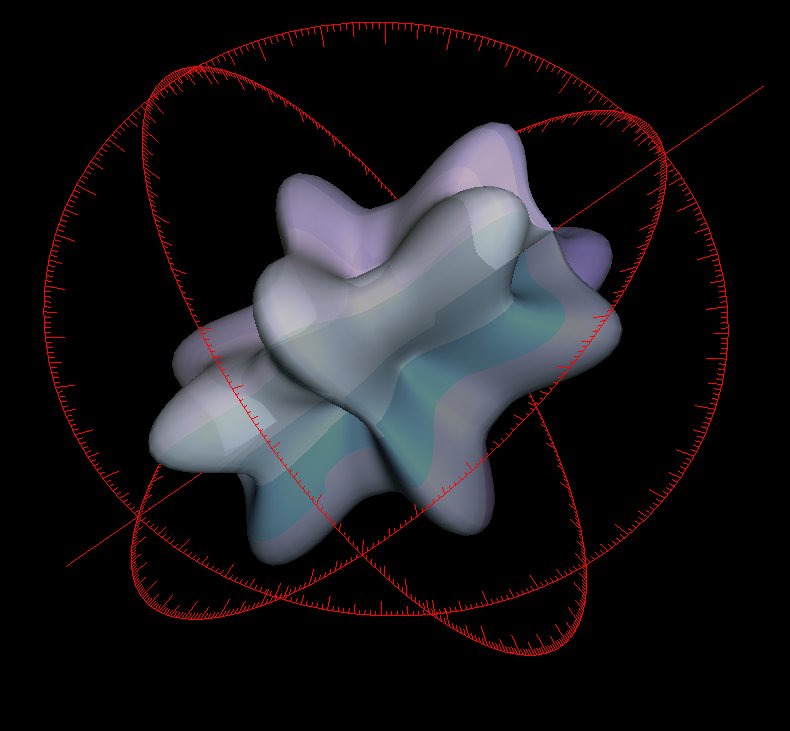

Created attachment 6976 [details] jpeg of expected correct rendering This is how I expected the rendering to be done. Works with software rendering.

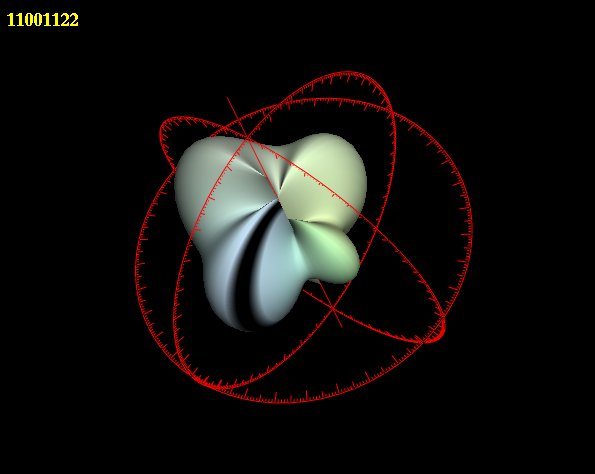

Created attachment 6977 [details] jpeg of incorrect rendering This is what I got with direct rendering enabled.
I'm seeing this as well.
I forgot to mention that I patched mesa to disable some software fallbacks for smooth shading. There's a comment in r300_render.c that says that the hardware doesn't appear to support smooth line shading. However, I have seen it work, so I believe that to be incorrect, at least for my hardware. Here's the mesa patch, from phoronix's gentoo overlay: --- Mesa.orig/src/mesa/drivers/dri/r300/r300_render.c +++ Mesa/src/mesa/drivers/dri/r300/r300_render.c @@ -397,18 +397,18 @@ int r300Fallback(GLcontext *ctx) #endif if(!r300->disable_lowimpact_fallback){ - FALLBACK_IF(ctx->Polygon.OffsetPoint); // GL_POLYGON_OFFSET_POINT - FALLBACK_IF(ctx->Polygon.OffsetLine); // GL_POLYGON_OFFSET_LINE + //FALLBACK_IF(ctx->Polygon.OffsetPoint); // GL_POLYGON_OFFSET_POINT + //FALLBACK_IF(ctx->Polygon.OffsetLine); // GL_POLYGON_OFFSET_LINE //FALLBACK_IF(ctx->Stencil.Enabled); // GL_STENCIL_TEST //FALLBACK_IF(ctx->Polygon.SmoothFlag); // GL_POLYGON_SMOOTH disabling to get blender going FALLBACK_IF(ctx->Polygon.StippleFlag); // GL_POLYGON_STIPPLE FALLBACK_IF(ctx->Multisample.Enabled); // GL_MULTISAMPLE_ARB - FALLBACK_IF(ctx->Line.StippleFlag); + //FALLBACK_IF(ctx->Line.StippleFlag); /* HW doesnt appear to directly support these */ - FALLBACK_IF(ctx->Line.SmoothFlag); // GL_LINE_SMOOTH + //FALLBACK_IF(ctx->Line.SmoothFlag); // GL_LINE_SMOOTH FALLBACK_IF(ctx->Point.SmoothFlag); // GL_POINT_SMOOTH }
Smooth line haven't yet been implemented in the driver.
Well something weird is going on then, because it was working for me a couple of weeks ago, with the fallbacks disabled. I can't think of any explanation.
Just to be orthodox, I removed the patch. My mesa now matches the CVS image, and I am using the "Disable Low-impact fallback" option in driconf to affect the same change.
EDIT: The gentoo portage overlay mentioned earlier was done by primozic of the gentoo forums, not by phoronix. The patch mentioned earlier was by FieserKiller of the gentoo forums, and incorporated by primozic, into his overlay. Sorry for the mis-attribution.
Where can I read about options like "Disable Low-impact fallback"? Is there any place with list of all of them?
If you wan't a list of DRI configuration options for your card Then driconf will list them along with a short description. Though a more descriptive list might be in order.
(In reply to comment #10) > Though a more descriptive list might be in order. If there's anything wrong with the built-in descriptions, I think it would be much better to fix it than to create a duplicated list.
I am observing a very similar behaviour. Using the r300 driver on an X700 in an Acer Ferrari laptop. I could swear I had this working but now smooth shading is broken for triangles and it appears that the colour is not changed for the triangle vertices. I am working on Avogadro which uses much of this. Tried git as of a few hours ago and still no smooth shading and observing similar artifacts. This is on an amd64 but it looks like it is not dependent upon that.
Can you reproduce it on current radeon-rewrite branch of mesa? It works for me.
Mass version move, cvs -> git
Closing due to lack of user input, also works for me on RV535 and RV380.
