I'm using a Radeon 7000 video card. I've always had little rendering problems with Xorg - in KDE, OpenOffice, wine, etc: 1) Dragging icons on KDE's desktop often leaves traces. (There's a KDE bug: http://bugs.kde.org/show_bug.cgi?id=84737. It mentions some PE_FocusRect code...) 2) When running Wine in an emulated desktop mode, dragging windows leaves traces, too. 3) In OpenOffice, the letter "r" is drawn incorrectly for certain font sizes. (Also, the Cyrillic letter "г" has the same problem - which is pretty interesting, since they have almost the same shape.) I will attach screenshots. I tried using EXA. All of the above problems were fixed... But new ones appeared. So I can't decide what to use.

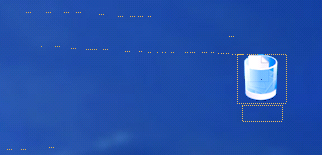

Created attachment 7101 [details] Dragging the trash icon leaves a trace

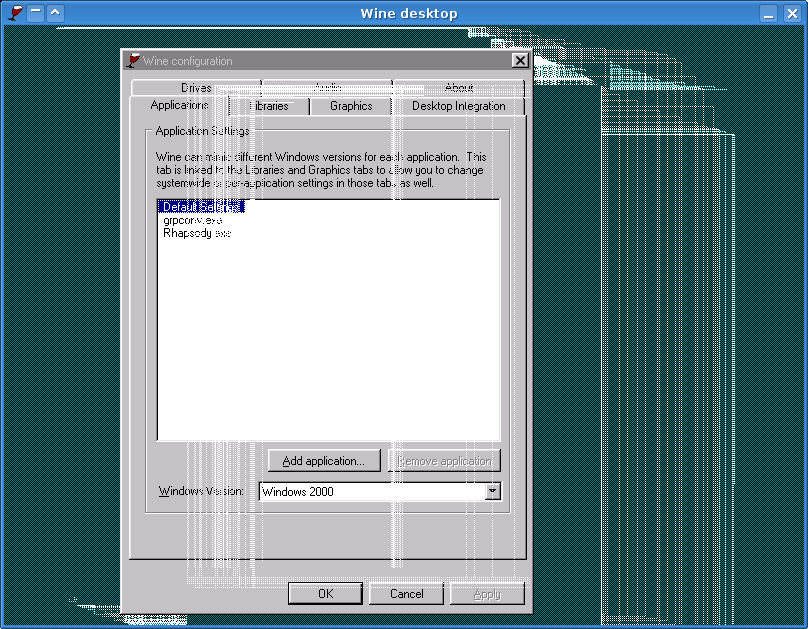

Created attachment 7102 [details] Dragging windows in Wine leaves traces

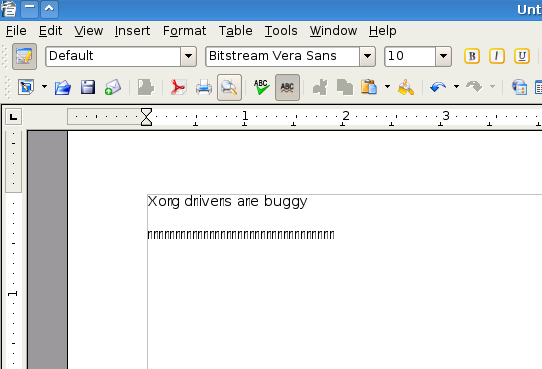

Created attachment 7103 [details] The letter "r" is rendered incorrectly at a certain font size / zoom

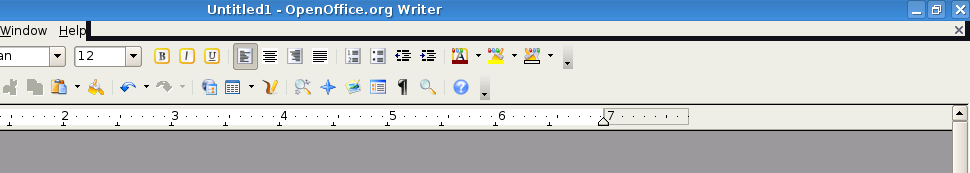

Created attachment 7104 [details] Occasional artifacts after dragging a toolbar
First of all, please don't mix several issues into a single report. Also, please attach full config and log files for all cases. > 1) Dragging icons on KDE's desktop often leaves traces. (There's a KDE bug: > http://bugs.kde.org/show_bug.cgi?id=84737. It mentions some PE_FocusRect > code...) > 2) When running Wine in an emulated desktop mode, dragging windows leaves > traces, too. Does this also happen with Option "XaaNoDashedBresenhamLine" Option "XaaNoDashedTwoPointLine" ? > 3) In OpenOffice, the letter "r" is drawn incorrectly for certain font sizes. See bug 1424.
Nice, the "XaaNoDashedBresenhamLine" and "XaaNoDashedTwoPointLine" options fixed dragging icons and (almost) fixed Wine. (That is, Wine still has some problems - but they also appear with EXA and without acceleration at all.)
Created attachment 7128 [details] /etc/X11/xorg.conf with the two XAA options
Created attachment 7129 [details] /var/log/Xorg.0.log with the two XAA options
Created attachment 7130 [details] /etc/X11/xorg.conf (normal)
Created attachment 7131 [details] /var/log/Xorg.0.log (normal)
Sorry about the phenomenal bug spam, guys. Adding xorg-team@ to the QA contact so bugs don't get lost in future.
Is this still an issue with the latest driver from ati git?
Yep... Same issues. (I tried wine and OpenOffice - KDE is not using PE_FocusRect anymore.)
dropping as a release blocker since exa has been the default for quite some time now.
Closing as WONTFIX; XAA is too far gone these days. If EXA does not work, file a new bug or attach yourself to an existing bug matching your issues.
