hi I am using ubuntu 14.10 with the oibaf ppa to use the latest intel driver. After the update from 2.99.917+git1502260732.53d804~gd~u to 2.99.917+git1502271932.9fb815~gd~u, the screen is now corrupted and partially frozen when waking up from sleep mode. I am using a 2 monitor set-up with the internal LDVS of the laptop and another one via HDMI. I have an inspiron 15 3521 with an HD 4000 The way the screen look corrupt is: At least 2 windows appear on 2 monitors but partially. the mouse cursor is visible and moving with the mouse. But the windows are unreponsive. I have to ssh into the laptop and run "DISPLAY:0 unity --replace" to partially fix the freeze I got no message in /var/log/syslog or Xorg.0.log I wonder if it is really related to the 2 monitor setup as I wake up the laptop with the external monitor shutdown and the screen was already corrupted. Please move the bug to the correct project if I made a mistake.
It's not only when waking up from sleep. If I disable HDMI screen from system settings, I got the same corrupt/freeze. It's the same as running "xrandr --ouput HDMI1 --off" the left screen, then, shows half a window that you can't move.
Could you add drm.debug=6 to your kernel command line (grub), reproduce the issue and attach your dmesg, Xorg.0.log, xrandr --verbose and a photograph would be really useful to see the type of corruption.
Created attachment 113890 [details] xrandr --verbose output
Created attachment 113891 [details] syslog
Created attachment 113892 [details] Xorg.0.log

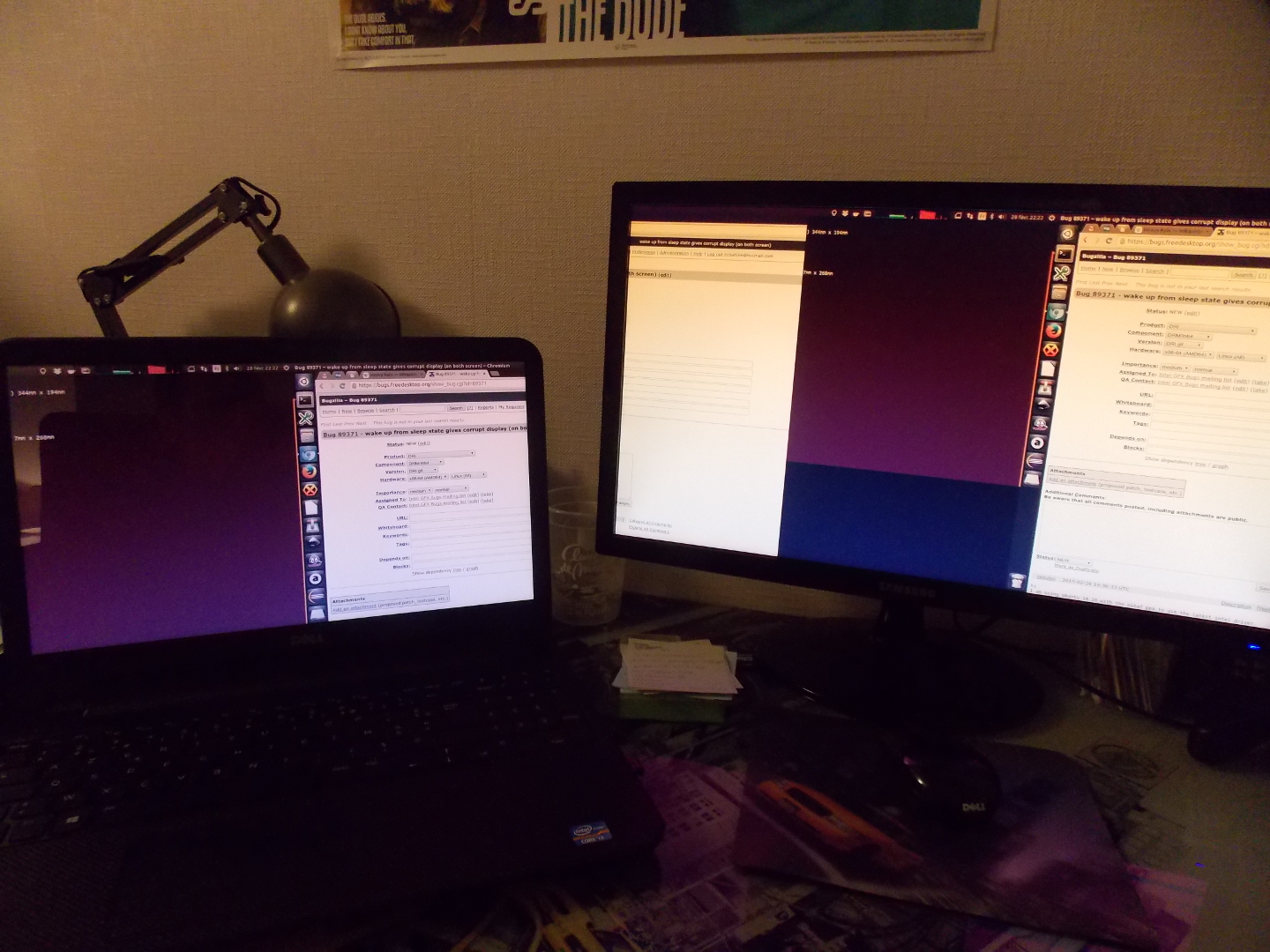

Created attachment 113893 [details] the way the desktop look like before sleep

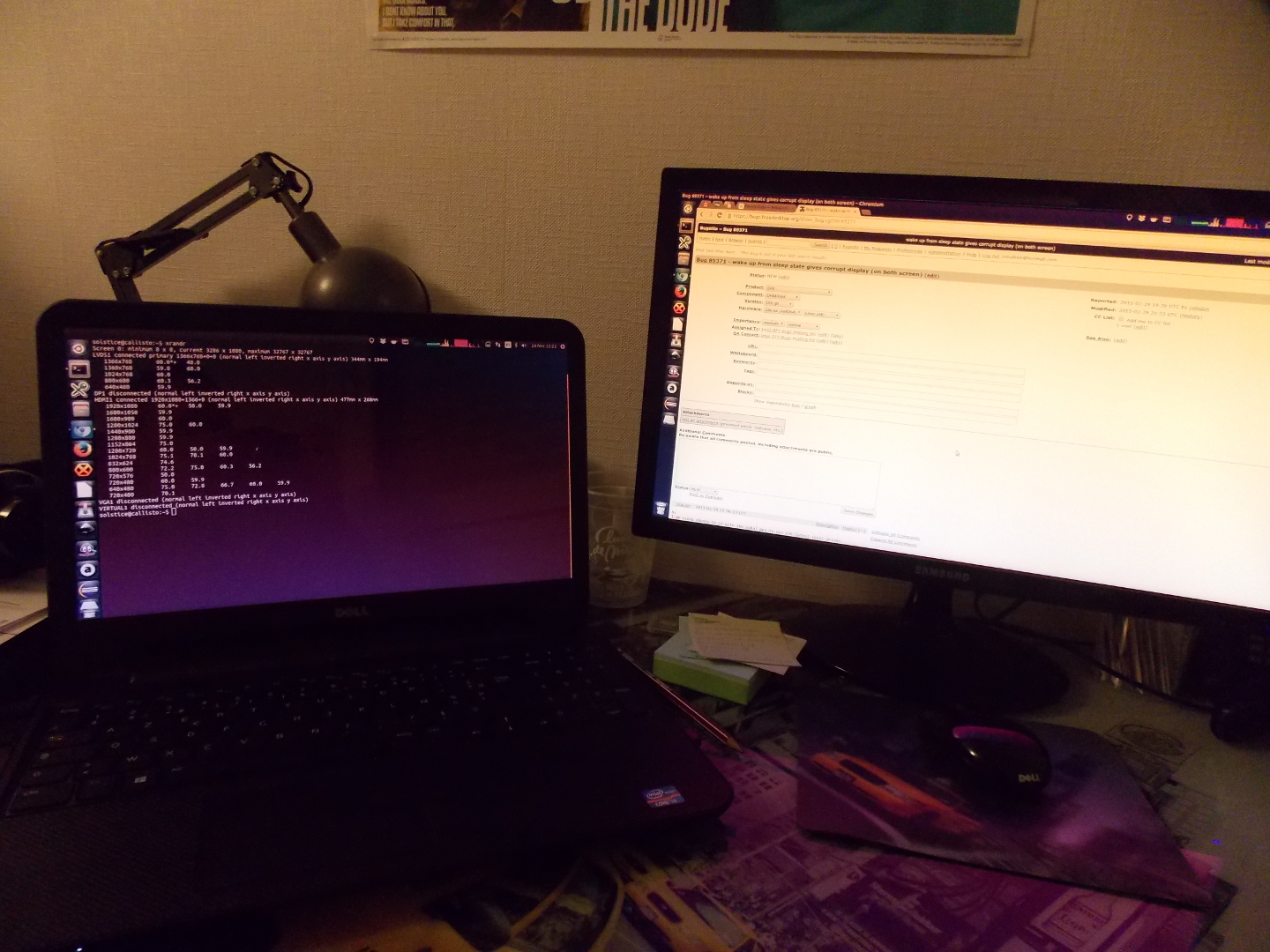

Created attachment 113894 [details] the way the desktop look like waking up from sleep
so I added drm.debug=6 booted, logged in, close the lid to make it sleep, open the slid, take picture, go to console to run "DISPLAY=:0 unity --replace"
Comment on attachment 113892 [details] Xorg.0.log >[ 38.355] >X.Org X Server 1.16.0 >Release Date: 2014-07-16 >[ 38.355] X Protocol Version 11, Revision 0 >[ 38.356] Build Operating System: Linux 3.2.0-70-generic x86_64 Ubuntu >[ 38.356] Current Operating System: Linux callisto 3.16.0-31-generic #41-Ubuntu SMP Tue Feb 10 15:24:04 UTC 2015 x86_64 >[ 38.356] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-3.16.0-31-generic.efi.signed root=UUID=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx ro quiet splash drm.debug=6 vt.handoff=7 >[ 38.356] Build Date: 12 February 2015 02:46:23PM >[ 38.356] xorg-server 2:1.16.0-1ubuntu1.3 (For technical support please see http://www.ubuntu.com/support) >[ 38.356] Current version of pixman: 0.32.4 >[ 38.356] Before reporting problems, check http://wiki.x.org > to make sure that you have the latest version. >[ 38.356] Markers: (--) probed, (**) from config file, (==) default setting, > (++) from command line, (!!) notice, (II) informational, > (WW) warning, (EE) error, (NI) not implemented, (??) unknown. >[ 38.356] (==) Log file: "/var/log/Xorg.0.log", Time: Sat Feb 28 22:19:35 2015 >[ 38.356] (==) Using system config directory "/usr/share/X11/xorg.conf.d" >[ 38.356] (==) No Layout section. Using the first Screen section. >[ 38.356] (==) No screen section available. Using defaults. >[ 38.356] (**) |-->Screen "Default Screen Section" (0) >[ 38.356] (**) | |-->Monitor "<default monitor>" >[ 38.369] (==) No monitor specified for screen "Default Screen Section". > Using a default monitor configuration. >[ 38.369] (==) Automatically adding devices >[ 38.369] (==) Automatically enabling devices >[ 38.369] (==) Automatically adding GPU devices >[ 38.369] (WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist. >[ 38.369] Entry deleted from font path. >[ 38.369] (WW) The directory "/usr/share/fonts/X11/100dpi/" does not exist. >[ 38.369] Entry deleted from font path. >[ 38.369] (WW) The directory "/usr/share/fonts/X11/75dpi/" does not exist. >[ 38.369] Entry deleted from font path. >[ 38.369] (WW) The directory "/usr/share/fonts/X11/100dpi" does not exist. >[ 38.369] Entry deleted from font path. >[ 38.369] (WW) The directory "/usr/share/fonts/X11/75dpi" does not exist. >[ 38.370] Entry deleted from font path. >[ 38.370] (==) FontPath set to: > /usr/share/fonts/X11/misc, > /usr/share/fonts/X11/Type1, > built-ins >[ 38.370] (==) ModulePath set to "/usr/lib/x86_64-linux-gnu/xorg/extra-modules,/usr/lib/xorg/extra-modules,/usr/lib/xorg/modules" >[ 38.370] (II) The server relies on udev to provide the list of input devices. > If no devices become available, reconfigure udev or disable AutoAddDevices. >[ 38.388] (II) Loader magic: 0x7f4d59b4dd80 >[ 38.388] (II) Module ABI versions: >[ 38.388] X.Org ANSI C Emulation: 0.4 >[ 38.388] X.Org Video Driver: 18.0 >[ 38.388] X.Org XInput driver : 21.0 >[ 38.388] X.Org Server Extension : 8.0 >[ 38.388] (II) xfree86: Adding drm device (/dev/dri/card0) >[ 38.389] (--) PCI:*(0:0:2:0) 8086:0166:1028:0597 rev 9, Mem @ 0xc0000000/4194304, 0xb0000000/268435456, I/O @ 0x00003000/64 >[ 38.412] (II) LoadModule: "glx" >[ 38.471] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so >[ 38.784] (II) Module glx: vendor="X.Org Foundation" >[ 38.784] compiled for 1.16.0, module version = 1.0.0 >[ 38.784] ABI class: X.Org Server Extension, version 8.0 >[ 38.784] (==) AIGLX enabled >[ 38.784] (==) Matched intel as autoconfigured driver 0 >[ 38.784] (==) Matched intel as autoconfigured driver 1 >[ 38.784] (==) Matched modesetting as autoconfigured driver 2 >[ 38.784] (==) Matched fbdev as autoconfigured driver 3 >[ 38.784] (==) Matched vesa as autoconfigured driver 4 >[ 38.784] (==) Assigned the driver to the xf86ConfigLayout >[ 38.784] (II) LoadModule: "intel" >[ 38.784] (II) Loading /usr/lib/xorg/modules/drivers/intel_drv.so >[ 38.810] (II) Module intel: vendor="X.Org Foundation" >[ 38.810] compiled for 1.16.0, module version = 2.99.917 >[ 38.810] Module class: X.Org Video Driver >[ 38.810] ABI class: X.Org Video Driver, version 18.0 >[ 38.810] (II) LoadModule: "modesetting" >[ 38.810] (II) Loading /usr/lib/xorg/modules/drivers/modesetting_drv.so >[ 38.810] (II) Module modesetting: vendor="X.Org Foundation" >[ 38.810] compiled for 1.16.0, module version = 0.9.0 >[ 38.810] Module class: X.Org Video Driver >[ 38.810] ABI class: X.Org Video Driver, version 18.0 >[ 38.810] (II) LoadModule: "fbdev" >[ 38.810] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so >[ 38.810] (II) Module fbdev: vendor="X.Org Foundation" >[ 38.810] compiled for 1.16.0, module version = 0.4.4 >[ 38.810] Module class: X.Org Video Driver >[ 38.810] ABI class: X.Org Video Driver, version 18.0 >[ 38.810] (II) LoadModule: "vesa" >[ 38.811] (II) Loading /usr/lib/xorg/modules/drivers/vesa_drv.so >[ 38.811] (II) Module vesa: vendor="X.Org Foundation" >[ 38.811] compiled for 1.16.0, module version = 2.3.3 >[ 38.811] Module class: X.Org Video Driver >[ 38.811] ABI class: X.Org Video Driver, version 18.0 >[ 38.811] (II) intel: Driver for Intel(R) Integrated Graphics Chipsets: > i810, i810-dc100, i810e, i815, i830M, 845G, 854, 852GM/855GM, 865G, > 915G, E7221 (i915), 915GM, 945G, 945GM, 945GME, Pineview GM, > Pineview G, 965G, G35, 965Q, 946GZ, 965GM, 965GME/GLE, G33, Q35, Q33, > GM45, 4 Series, G45/G43, Q45/Q43, G41, B43 >[ 38.811] (II) intel: Driver for Intel(R) HD Graphics: 2000-6000 >[ 38.811] (II) intel: Driver for Intel(R) Iris(TM) Graphics: 5100, 6100 >[ 38.811] (II) intel: Driver for Intel(R) Iris(TM) Pro Graphics: 5200, 6200, P6300 >[ 38.811] (II) modesetting: Driver for Modesetting Kernel Drivers: kms >[ 38.811] (II) FBDEV: driver for framebuffer: fbdev >[ 38.811] (II) VESA: driver for VESA chipsets: vesa >[ 38.811] (++) using VT number 7 > >[ 38.811] (II) intel(0): Using Kernel Mode Setting driver: i915, version 1.6.0 20080730 >[ 38.811] (II) intel(0): SNA compiled: xserver-xorg-video-intel 2:2.99.917+git1502271932.9fb815~gd~u (Oibaf <fmrummey@gmail.com>) >[ 38.811] (II) intel(0): SNA compiled for use with valgrind >[ 38.811] (WW) Falling back to old probe method for modesetting >[ 38.811] (WW) Falling back to old probe method for fbdev >[ 38.811] (II) Loading sub module "fbdevhw" >[ 38.812] (II) LoadModule: "fbdevhw" >[ 38.812] (II) Loading /usr/lib/xorg/modules/libfbdevhw.so >[ 38.812] (II) Module fbdevhw: vendor="X.Org Foundation" >[ 38.812] compiled for 1.16.0, module version = 0.0.2 >[ 38.812] ABI class: X.Org Video Driver, version 18.0 >[ 38.812] (WW) Falling back to old probe method for vesa >[ 38.812] (--) intel(0): Integrated Graphics Chipset: Intel(R) HD Graphics 4000 >[ 38.812] (--) intel(0): CPU: x86-64, sse2, sse3, ssse3, sse4.1, sse4.2, avx; using a maximum of 2 threads >[ 38.812] (II) intel(0): Creating default Display subsection in Screen section > "Default Screen Section" for depth/fbbpp 24/32 >[ 38.812] (==) intel(0): Depth 24, (--) framebuffer bpp 32 >[ 38.812] (==) intel(0): RGB weight 888 >[ 38.812] (==) intel(0): Default visual is TrueColor >[ 38.812] (II) intel(0): Output LVDS1 has no monitor section >[ 38.813] (--) intel(0): Found backlight control interface intel_backlight (type 'raw') for output LVDS1 >[ 38.813] (II) intel(0): Enabled output LVDS1 >[ 38.813] (II) intel(0): Output VGA1 has no monitor section >[ 38.813] (II) intel(0): Enabled output VGA1 >[ 38.813] (II) intel(0): Output HDMI1 has no monitor section >[ 38.813] (II) intel(0): Enabled output HDMI1 >[ 38.813] (II) intel(0): Output DP1 has no monitor section >[ 38.813] (II) intel(0): Enabled output DP1 >[ 38.813] (--) intel(0): Using a maximum size of 256x256 for hardware cursors >[ 38.813] (II) intel(0): Output VIRTUAL1 has no monitor section >[ 38.813] (II) intel(0): Enabled output VIRTUAL1 >[ 38.813] (--) intel(0): Output LVDS1 using initial mode 1366x768 on pipe 0 >[ 38.813] (==) intel(0): TearFree disabled >[ 38.813] (==) intel(0): DPI set to (96, 96) >[ 38.813] (II) Loading sub module "dri2" >[ 38.813] (II) LoadModule: "dri2" >[ 38.813] (II) Module "dri2" already built-in >[ 38.813] (II) Loading sub module "present" >[ 38.813] (II) LoadModule: "present" >[ 38.813] (II) Module "present" already built-in >[ 38.813] (II) UnloadModule: "modesetting" >[ 38.813] (II) Unloading modesetting >[ 38.813] (II) UnloadModule: "fbdev" >[ 38.813] (II) Unloading fbdev >[ 38.813] (II) UnloadSubModule: "fbdevhw" >[ 38.813] (II) Unloading fbdevhw >[ 38.813] (II) UnloadModule: "vesa" >[ 38.813] (II) Unloading vesa >[ 38.813] (==) Depth 24 pixmap format is 32 bpp >[ 38.889] (II) intel(0): SNA initialized with Ivybridge (gen7, gt2) backend >[ 38.889] (==) intel(0): Backing store enabled >[ 38.889] (==) intel(0): Silken mouse enabled >[ 38.889] (II) intel(0): HW Cursor enabled >[ 38.889] (II) intel(0): RandR 1.2 enabled, ignore the following RandR disabled message. >[ 38.890] (==) intel(0): DPMS enabled >[ 38.890] (==) intel(0): Display hotplug detection enabled >[ 38.890] (II) intel(0): [DRI2] Setup complete >[ 38.890] (II) intel(0): [DRI2] DRI driver: i965 >[ 38.890] (II) intel(0): [DRI2] VDPAU driver: va_gl >[ 38.890] (II) intel(0): direct rendering: DRI2 enabled >[ 38.890] (II) intel(0): hardware support for Present enabled >[ 38.890] (--) RandR disabled >[ 38.897] (II) SELinux: Disabled on system >[ 38.991] (II) AIGLX: enabled GLX_MESA_copy_sub_buffer >[ 38.991] (II) AIGLX: enabled GLX_ARB_create_context >[ 38.991] (II) AIGLX: enabled GLX_ARB_create_context_profile >[ 38.991] (II) AIGLX: enabled GLX_EXT_create_context_es2_profile >[ 38.991] (II) AIGLX: enabled GLX_INTEL_swap_event >[ 38.991] (II) AIGLX: enabled GLX_SGI_swap_control and GLX_MESA_swap_control >[ 38.991] (II) AIGLX: enabled GLX_EXT_framebuffer_sRGB >[ 38.991] (II) AIGLX: enabled GLX_ARB_fbconfig_float >[ 38.991] (II) AIGLX: GLX_EXT_texture_from_pixmap backed by buffer objects >[ 38.991] (II) AIGLX: enabled GLX_ARB_create_context_robustness >[ 38.991] (II) AIGLX: Loaded and initialized i965 >[ 38.991] (II) GLX: Initialized DRI2 GL provider for screen 0 >[ 38.993] (II) intel(0): switch to mode 1366x768@60.0 on LVDS1 using pipe 0, position (0, 0), rotation normal, reflection none >[ 38.993] (II) intel(0): Setting screen physical size to 361 x 203 >[ 39.014] (II) XKB: reuse xkmfile /var/lib/xkb/server-B20D7FC79C7F597315E3E501AEF10E0D866E8E92.xkm >[ 39.016] (II) config/udev: Adding input device Power Button (/dev/input/event2) >[ 39.016] (**) Power Button: Applying InputClass "evdev keyboard catchall" >[ 39.016] (II) LoadModule: "evdev" >[ 39.017] (II) Loading /usr/lib/xorg/modules/input/evdev_drv.so >[ 39.055] (II) Module evdev: vendor="X.Org Foundation" >[ 39.055] compiled for 1.16.0, module version = 2.9.0 >[ 39.055] Module class: X.Org XInput Driver >[ 39.055] ABI class: X.Org XInput driver, version 21.0 >[ 39.055] (II) Using input driver 'evdev' for 'Power Button' >[ 39.055] (**) Power Button: always reports core events >[ 39.055] (**) evdev: Power Button: Device: "/dev/input/event2" >[ 39.055] (--) evdev: Power Button: Vendor 0 Product 0x1 >[ 39.055] (--) evdev: Power Button: Found keys >[ 39.055] (II) evdev: Power Button: Configuring as keyboard >[ 39.055] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXPWRBN:00/input/input2/event2" >[ 39.055] (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD, id 6) >[ 39.055] (**) Option "xkb_rules" "evdev" >[ 39.055] (**) Option "xkb_model" "pc105" >[ 39.055] (**) Option "xkb_layout" "fr" >[ 39.055] (**) Option "xkb_variant" "latin9" >[ 39.058] (II) XKB: reuse xkmfile /var/lib/xkb/server-816A055A5FF7D63897839A4BDEDC3908551E49DA.xkm >[ 39.059] (II) config/udev: Adding input device Video Bus (/dev/input/event4) >[ 39.059] (**) Video Bus: Applying InputClass "evdev keyboard catchall" >[ 39.059] (II) Using input driver 'evdev' for 'Video Bus' >[ 39.059] (**) Video Bus: always reports core events >[ 39.059] (**) evdev: Video Bus: Device: "/dev/input/event4" >[ 39.059] (--) evdev: Video Bus: Vendor 0 Product 0x6 >[ 39.059] (--) evdev: Video Bus: Found keys >[ 39.059] (II) evdev: Video Bus: Configuring as keyboard >[ 39.059] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:01/input/input6/event4" >[ 39.059] (II) XINPUT: Adding extended input device "Video Bus" (type: KEYBOARD, id 7) >[ 39.059] (**) Option "xkb_rules" "evdev" >[ 39.059] (**) Option "xkb_model" "pc105" >[ 39.059] (**) Option "xkb_layout" "fr" >[ 39.059] (**) Option "xkb_variant" "latin9" >[ 39.060] (II) config/udev: Adding input device Power Button (/dev/input/event0) >[ 39.060] (**) Power Button: Applying InputClass "evdev keyboard catchall" >[ 39.060] (II) Using input driver 'evdev' for 'Power Button' >[ 39.060] (**) Power Button: always reports core events >[ 39.060] (**) evdev: Power Button: Device: "/dev/input/event0" >[ 39.060] (--) evdev: Power Button: Vendor 0 Product 0x1 >[ 39.060] (--) evdev: Power Button: Found keys >[ 39.060] (II) evdev: Power Button: Configuring as keyboard >[ 39.060] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/device:01/PNP0C0C:00/input/input0/event0" >[ 39.060] (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD, id 8) >[ 39.060] (**) Option "xkb_rules" "evdev" >[ 39.060] (**) Option "xkb_model" "pc105" >[ 39.060] (**) Option "xkb_layout" "fr" >[ 39.060] (**) Option "xkb_variant" "latin9" >[ 39.060] (II) config/udev: Adding input device Lid Switch (/dev/input/event1) >[ 39.060] (II) No input driver specified, ignoring this device. >[ 39.060] (II) This device may have been added with another device file. >[ 39.061] (II) config/udev: Adding input device Logitech HID-compliant mouse (/dev/input/event5) >[ 39.061] (**) Logitech HID-compliant mouse: Applying InputClass "evdev pointer catchall" >[ 39.061] (II) Using input driver 'evdev' for 'Logitech HID-compliant mouse' >[ 39.061] (**) Logitech HID-compliant mouse: always reports core events >[ 39.061] (**) evdev: Logitech HID-compliant mouse: Device: "/dev/input/event5" >[ 39.061] (--) evdev: Logitech HID-compliant mouse: Vendor 0x46d Product 0xc530 >[ 39.061] (--) evdev: Logitech HID-compliant mouse: Found 20 mouse buttons >[ 39.061] (--) evdev: Logitech HID-compliant mouse: Found scroll wheel(s) >[ 39.061] (--) evdev: Logitech HID-compliant mouse: Found relative axes >[ 39.061] (--) evdev: Logitech HID-compliant mouse: Found x and y relative axes >[ 39.061] (II) evdev: Logitech HID-compliant mouse: Configuring as mouse >[ 39.061] (II) evdev: Logitech HID-compliant mouse: Adding scrollwheel support >[ 39.061] (**) evdev: Logitech HID-compliant mouse: YAxisMapping: buttons 4 and 5 >[ 39.061] (**) evdev: Logitech HID-compliant mouse: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 >[ 39.061] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:14.0/usb3/3-4/3-4:1.0/0003:046D:C530.0001/input/input7/event5" >[ 39.061] (II) XINPUT: Adding extended input device "Logitech HID-compliant mouse" (type: MOUSE, id 9) >[ 39.061] (II) evdev: Logitech HID-compliant mouse: initialized for relative axes. >[ 39.061] (**) Logitech HID-compliant mouse: (accel) keeping acceleration scheme 1 >[ 39.061] (**) Logitech HID-compliant mouse: (accel) acceleration profile 0 >[ 39.061] (**) Logitech HID-compliant mouse: (accel) acceleration factor: 2.000 >[ 39.061] (**) Logitech HID-compliant mouse: (accel) acceleration threshold: 4 >[ 39.062] (II) config/udev: Adding input device Logitech HID-compliant mouse (/dev/input/mouse0) >[ 39.062] (II) No input driver specified, ignoring this device. >[ 39.062] (II) This device may have been added with another device file. >[ 39.062] (II) config/udev: Adding input device Logitech HID-compliant mouse (/dev/input/event6) >[ 39.062] (**) Logitech HID-compliant mouse: Applying InputClass "evdev keyboard catchall" >[ 39.062] (II) Using input driver 'evdev' for 'Logitech HID-compliant mouse' >[ 39.062] (**) Logitech HID-compliant mouse: always reports core events >[ 39.062] (**) evdev: Logitech HID-compliant mouse: Device: "/dev/input/event6" >[ 39.062] (--) evdev: Logitech HID-compliant mouse: Vendor 0x46d Product 0xc530 >[ 39.062] (--) evdev: Logitech HID-compliant mouse: Found 1 mouse buttons >[ 39.062] (--) evdev: Logitech HID-compliant mouse: Found scroll wheel(s) >[ 39.062] (--) evdev: Logitech HID-compliant mouse: Found relative axes >[ 39.062] (II) evdev: Logitech HID-compliant mouse: Forcing relative x/y axes to exist. >[ 39.062] (--) evdev: Logitech HID-compliant mouse: Found absolute axes >[ 39.062] (II) evdev: Logitech HID-compliant mouse: Forcing absolute x/y axes to exist. >[ 39.062] (--) evdev: Logitech HID-compliant mouse: Found keys >[ 39.062] (II) evdev: Logitech HID-compliant mouse: Configuring as mouse >[ 39.062] (II) evdev: Logitech HID-compliant mouse: Configuring as keyboard >[ 39.062] (II) evdev: Logitech HID-compliant mouse: Adding scrollwheel support >[ 39.062] (**) evdev: Logitech HID-compliant mouse: YAxisMapping: buttons 4 and 5 >[ 39.062] (**) evdev: Logitech HID-compliant mouse: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 >[ 39.062] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:14.0/usb3/3-4/3-4:1.1/0003:046D:C530.0002/input/input8/event6" >[ 39.062] (II) XINPUT: Adding extended input device "Logitech HID-compliant mouse" (type: KEYBOARD, id 10) >[ 39.062] (**) Option "xkb_rules" "evdev" >[ 39.062] (**) Option "xkb_model" "pc105" >[ 39.062] (**) Option "xkb_layout" "fr" >[ 39.062] (**) Option "xkb_variant" "latin9" >[ 39.063] (II) evdev: Logitech HID-compliant mouse: initialized for relative axes. >[ 39.063] (WW) evdev: Logitech HID-compliant mouse: ignoring absolute axes. >[ 39.063] (**) Logitech HID-compliant mouse: (accel) keeping acceleration scheme 1 >[ 39.063] (**) Logitech HID-compliant mouse: (accel) acceleration profile 0 >[ 39.063] (**) Logitech HID-compliant mouse: (accel) acceleration factor: 2.000 >[ 39.063] (**) Logitech HID-compliant mouse: (accel) acceleration threshold: 4 >[ 39.063] (II) config/udev: Adding input device Laptop_Integrated_Webcam_HD (/dev/input/event12) >[ 39.063] (**) Laptop_Integrated_Webcam_HD: Applying InputClass "evdev keyboard catchall" >[ 39.063] (II) Using input driver 'evdev' for 'Laptop_Integrated_Webcam_HD' >[ 39.063] (**) Laptop_Integrated_Webcam_HD: always reports core events >[ 39.063] (**) evdev: Laptop_Integrated_Webcam_HD: Device: "/dev/input/event12" >[ 39.063] (--) evdev: Laptop_Integrated_Webcam_HD: Vendor 0xc45 Product 0x64ad >[ 39.063] (--) evdev: Laptop_Integrated_Webcam_HD: Found keys >[ 39.063] (II) evdev: Laptop_Integrated_Webcam_HD: Configuring as keyboard >[ 39.063] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.4/1-1.4:1.0/input/input13/event12" >[ 39.063] (II) XINPUT: Adding extended input device "Laptop_Integrated_Webcam_HD" (type: KEYBOARD, id 11) >[ 39.063] (**) Option "xkb_rules" "evdev" >[ 39.063] (**) Option "xkb_model" "pc105" >[ 39.063] (**) Option "xkb_layout" "fr" >[ 39.063] (**) Option "xkb_variant" "latin9" >[ 39.064] (II) config/udev: Adding input device HDA Intel PCH Mic (/dev/input/event9) >[ 39.064] (II) No input driver specified, ignoring this device. >[ 39.064] (II) This device may have been added with another device file. >[ 39.064] (II) config/udev: Adding input device HDA Intel PCH Front Headphone (/dev/input/event10) >[ 39.064] (II) No input driver specified, ignoring this device. >[ 39.064] (II) This device may have been added with another device file. >[ 39.064] (II) config/udev: Adding input device HDA Intel PCH HDMI/DP,pcm=3 (/dev/input/event11) >[ 39.064] (II) No input driver specified, ignoring this device. >[ 39.064] (II) This device may have been added with another device file. >[ 39.065] (II) config/udev: Adding input device AT Translated Set 2 keyboard (/dev/input/event3) >[ 39.065] (**) AT Translated Set 2 keyboard: Applying InputClass "evdev keyboard catchall" >[ 39.065] (II) Using input driver 'evdev' for 'AT Translated Set 2 keyboard' >[ 39.065] (**) AT Translated Set 2 keyboard: always reports core events >[ 39.065] (**) evdev: AT Translated Set 2 keyboard: Device: "/dev/input/event3" >[ 39.065] (--) evdev: AT Translated Set 2 keyboard: Vendor 0x1 Product 0x1 >[ 39.065] (--) evdev: AT Translated Set 2 keyboard: Found keys >[ 39.065] (II) evdev: AT Translated Set 2 keyboard: Configuring as keyboard >[ 39.065] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio0/input/input3/event3" >[ 39.065] (II) XINPUT: Adding extended input device "AT Translated Set 2 keyboard" (type: KEYBOARD, id 12) >[ 39.065] (**) Option "xkb_rules" "evdev" >[ 39.065] (**) Option "xkb_model" "pc105" >[ 39.065] (**) Option "xkb_layout" "fr" >[ 39.065] (**) Option "xkb_variant" "latin9" >[ 39.065] (II) config/udev: Adding input device SynPS/2 Synaptics TouchPad (/dev/input/event7) >[ 39.066] (**) SynPS/2 Synaptics TouchPad: Applying InputClass "evdev touchpad catchall" >[ 39.066] (**) SynPS/2 Synaptics TouchPad: Applying InputClass "touchpad catchall" >[ 39.066] (**) SynPS/2 Synaptics TouchPad: Applying InputClass "Default clickpad buttons" >[ 39.066] (II) LoadModule: "synaptics" >[ 39.066] (II) Loading /usr/lib/xorg/modules/input/synaptics_drv.so >[ 39.066] (II) Module synaptics: vendor="X.Org Foundation" >[ 39.066] compiled for 1.16.0, module version = 1.8.99 >[ 39.066] Module class: X.Org XInput Driver >[ 39.066] ABI class: X.Org XInput driver, version 21.0 >[ 39.066] (II) Using input driver 'synaptics' for 'SynPS/2 Synaptics TouchPad' >[ 39.066] (**) SynPS/2 Synaptics TouchPad: always reports core events >[ 39.066] (**) Option "Device" "/dev/input/event7" >[ 39.092] (--) synaptics: SynPS/2 Synaptics TouchPad: x-axis range 1472 - 5674 (res 44) >[ 39.092] (--) synaptics: SynPS/2 Synaptics TouchPad: y-axis range 1408 - 4754 (res 68) >[ 39.092] (--) synaptics: SynPS/2 Synaptics TouchPad: pressure range 0 - 255 >[ 39.092] (--) synaptics: SynPS/2 Synaptics TouchPad: finger width range 0 - 15 >[ 39.092] (--) synaptics: SynPS/2 Synaptics TouchPad: buttons: left right double triple >[ 39.092] (--) synaptics: SynPS/2 Synaptics TouchPad: Vendor 0x2 Product 0x7 >[ 39.092] (--) synaptics: SynPS/2 Synaptics TouchPad: touchpad found >[ 39.092] (**) SynPS/2 Synaptics TouchPad: always reports core events >[ 39.108] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio1/input/input5/event7" >[ 39.108] (II) XINPUT: Adding extended input device "SynPS/2 Synaptics TouchPad" (type: TOUCHPAD, id 13) >[ 39.108] (**) synaptics: SynPS/2 Synaptics TouchPad: (accel) MinSpeed is now constant deceleration 2.5 >[ 39.108] (**) synaptics: SynPS/2 Synaptics TouchPad: (accel) MaxSpeed is now 1.75 >[ 39.108] (**) synaptics: SynPS/2 Synaptics TouchPad: (accel) AccelFactor is now 0.037 >[ 39.108] (**) SynPS/2 Synaptics TouchPad: (accel) keeping acceleration scheme 1 >[ 39.108] (**) SynPS/2 Synaptics TouchPad: (accel) acceleration profile 1 >[ 39.108] (**) SynPS/2 Synaptics TouchPad: (accel) acceleration factor: 2.000 >[ 39.108] (**) SynPS/2 Synaptics TouchPad: (accel) acceleration threshold: 4 >[ 39.108] (--) synaptics: SynPS/2 Synaptics TouchPad: touchpad found >[ 39.109] (II) config/udev: Adding input device SynPS/2 Synaptics TouchPad (/dev/input/mouse1) >[ 39.109] (**) SynPS/2 Synaptics TouchPad: Ignoring device from InputClass "touchpad ignore duplicates" >[ 39.112] (II) config/udev: Adding input device Dell WMI hotkeys (/dev/input/event8) >[ 39.112] (**) Dell WMI hotkeys: Applying InputClass "evdev keyboard catchall" >[ 39.112] (II) Using input driver 'evdev' for 'Dell WMI hotkeys' >[ 39.112] (**) Dell WMI hotkeys: always reports core events >[ 39.112] (**) evdev: Dell WMI hotkeys: Device: "/dev/input/event8" >[ 39.112] (--) evdev: Dell WMI hotkeys: Vendor 0 Product 0 >[ 39.112] (--) evdev: Dell WMI hotkeys: Found keys >[ 39.112] (II) evdev: Dell WMI hotkeys: Configuring as keyboard >[ 39.112] (**) Option "config_info" "udev:/sys/devices/virtual/input/input9/event8" >[ 39.112] (II) XINPUT: Adding extended input device "Dell WMI hotkeys" (type: KEYBOARD, id 14) >[ 39.112] (**) Option "xkb_rules" "evdev" >[ 39.112] (**) Option "xkb_model" "pc105" >[ 39.112] (**) Option "xkb_layout" "fr" >[ 39.112] (**) Option "xkb_variant" "latin9" >[ 46.062] (II) intel(0): EDID vendor "LGD", prod id 939 >[ 46.062] (II) intel(0): Printing DDC gathered Modelines: >[ 46.062] (II) intel(0): Modeline "1366x768"x0.0 76.75 1366 1414 1446 1618 768 771 776 790 +hsync -vsync (47.4 kHz eP) >[ 46.062] (II) intel(0): Modeline "1366x768"x0.0 51.16 1366 1414 1446 1618 768 771 776 790 +hsync -vsync (31.6 kHz e) >[ 46.695] (II) intel(0): resizing framebuffer to 3286x1080 >[ 46.716] (II) intel(0): switch to mode 1920x1080@60.0 on HDMI1 using pipe 1, position (1366, 0), rotation normal, reflection none >[ 93.476] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 93.503] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 93.780] (II) XKB: reuse xkmfile /var/lib/xkb/server-6CCE7350BC740BB33D520367F4A10E64192A358C.xkm >[ 99.234] (II) XKB: reuse xkmfile /var/lib/xkb/server-91C8E6AB87DC3A4599A4EAFEB0A438B7E6434FED.xkm >[ 238.818] (II) intel(0): resizing framebuffer to 1920x1080 >[ 238.837] (II) intel(0): switch to mode 1920x1080@60.0 on HDMI1 using pipe 0, position (0, 0), rotation normal, reflection none >[ 242.469] (II) intel(0): resizing framebuffer to 3286x1080 >[ 242.476] (II) intel(0): switch to mode 1920x1080@60.0 on HDMI1 using pipe 1, position (1366, 0), rotation normal, reflection none >[ 242.477] (II) intel(0): switch to mode 1366x768@60.0 on LVDS1 using pipe 0, position (0, 0), rotation normal, reflection none >[ 330.952] (II) AIGLX: Suspending AIGLX clients for VT switch >[ 354.501] (II) AIGLX: Resuming AIGLX clients after VT switch >[ 354.501] (II) intel(0): switch to mode 1366x768@60.0 on LVDS1 using pipe 0, position (0, 0), rotation normal, reflection none >[ 354.516] (II) intel(0): switch to mode 1920x1080@60.0 on HDMI1 using pipe 1, position (1366, 0), rotation normal, reflection none >[ 354.642] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 354.656] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 354.671] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 354.694] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 354.707] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 354.725] (II) XKB: reuse xkmfile /var/lib/xkb/server-4CCA0437B0B5529C7C44C7931A7373D005909F34.xkm >[ 355.842] (II) XKB: reuse xkmfile /var/lib/xkb/server-73D0E25D3468C4098BA236371E1B49C43C3A6CF5.xkm >[ 2177.493] (II) AIGLX: Suspending AIGLX clients for VT switch >[ 2201.855] (II) evdev: Dell WMI hotkeys: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) evdev: AT Translated Set 2 keyboard: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) evdev: Laptop_Integrated_Webcam_HD: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) evdev: Logitech HID-compliant mouse: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) evdev: Logitech HID-compliant mouse: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) evdev: Power Button: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) evdev: Video Bus: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) evdev: Power Button: Close >[ 2201.856] (II) UnloadModule: "evdev" >[ 2201.856] (II) UnloadModule: "synaptics" >[ 2201.879] (EE) Server terminated successfully (0). Closing log file.
sorry about the post above. So I have more news. I have set the screen to lock when it goes to sleep. So when it wakes up, it should display the login screen. And not the desktop. So the bug is strange. because it shows a corrupted version of the desktop instead of trying to show the login screen. If I let it go to sleep all by itself (1 hour), there is no problem when waking up. If I use the "cog" menu and choose "Go to sleep", then there is no problem when waking up. If I lock the screen with Windows+L and close the lid (or use Go to sleep), then there is no problem. So this seems to only happen when I close the lid directly. I thought that what happens should be the same than with the other method but apparently, no. So I wonder if it is really an intel driver bug ? and not unity or something But I still get a "corrupted" display when I plug off the external display (or use xrandr --output HDMI1 --off), and re-plug it in gives also the same kind of corrupted display as in photo (after.jpg)
After the corruption starts, if you ssh in and open a new terminal (e.g. xterm) where does it show? Is it shown? What happens if you revert to 2.99.917+git1502260732.53d804? If you don't have the package anymore, you can build it from git with: $ sudo apt-get build-dep xserver-xorg-video-intel $ git clone git://anongit.freedesktop.org/xorg/driver/xf86-video-intel $ cd xf86-video-intel $ git checkout 53d804b134494be8a324781283faecb2968f6511 $ ./autogen.sh --prefix=/usr $ make -j4 && sudo make install
If I switch to a console (it's working so I use it instead of remote login with ssh), and run DISPLAY=:0 xterm, the xterm is not shown on the corrupted screen. I downgraded to 2.99.917+git1502260732.53d804~gd~u, and I had the same problem on closing the lid. But I downgraded once more to the previous xserver-xorg-video-intel 2.99.917+git1502241642.12af8a~gd~u and this times it worked without problem. I can manually run xrandr --output HDMI --off without problem this time.
Can you try: diff --git a/src/sna/sna_dri2.c b/src/sna/sna_dri2.c index 32f65ca..ec6c0ad 100644 --- a/src/sna/sna_dri2.c +++ b/src/sna/sna_dri2.c @@ -1487,7 +1487,7 @@ void sna_dri2_decouple_window(WindowPtr win) priv->front = NULL; } - swap_limit(&win->drawable, 1); + //swap_limit(&win->drawable, 1); } void sna_dri2_destroy_window(WindowPtr win)
I have tried latest git version 78aaba45c9ccc56061597ee9c5e1c822566a0da3 with and without the patch AND the patch fixes the problem \o/
commit 3e390ec4110519746f2edbb3c38a40f0fc415430 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Tue Mar 3 12:59:52 2015 +0000 sna/dri2: Remove limiting pending swaps on redirection changes If we limit the swaps, then doing xrandr --output -off causes unity to misrender. Not quite sure why, but the revert is easy. Fixes regression from commit 88e84320a3a8b3faf20941d666ab846fe12b7a67 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Tue Feb 24 12:44:19 2015 +0000 sna/dri2: Flush triple buffer swap on [un]redirection but we still keep the async-swap fixes. Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=89371#c14 Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>
Created attachment 113954 [details] syslog
