GNOME's gdm 3.16 uses separate VTs for the login screen & user session. Somehow, when it switches the VTs, garbage is displayed on screen for a short while (instead of the expected gray gdm texture). It goes away as soon as gnome-shell begins its launch animation. At the same time, I get this in dmesg: [ 1294.609195] radeon 0000:01:00.0: evergreen_cs_track_validate_texture:851 texture bo too small (layer size 4325376, offset 0, max layer 1, depth 1, bo size 4227072) (1408 768) [ 1294.609247] [drm:radeon_cs_ioctl [radeon]] *ERROR* Invalid command stream ! Specifically, the "garbage" appears to be uninitialized memory, since after soft reboot I can still see shredded parts of my previous session. (Very similar to #72979, even though that one is for nouveau and I use radeon.) screen: LVDS at 1366x768 kernel 4.0, 4.1~rc3 gdm 3.16.1 xorg-server 1.17.1 xf86-video-ati 7.5.0

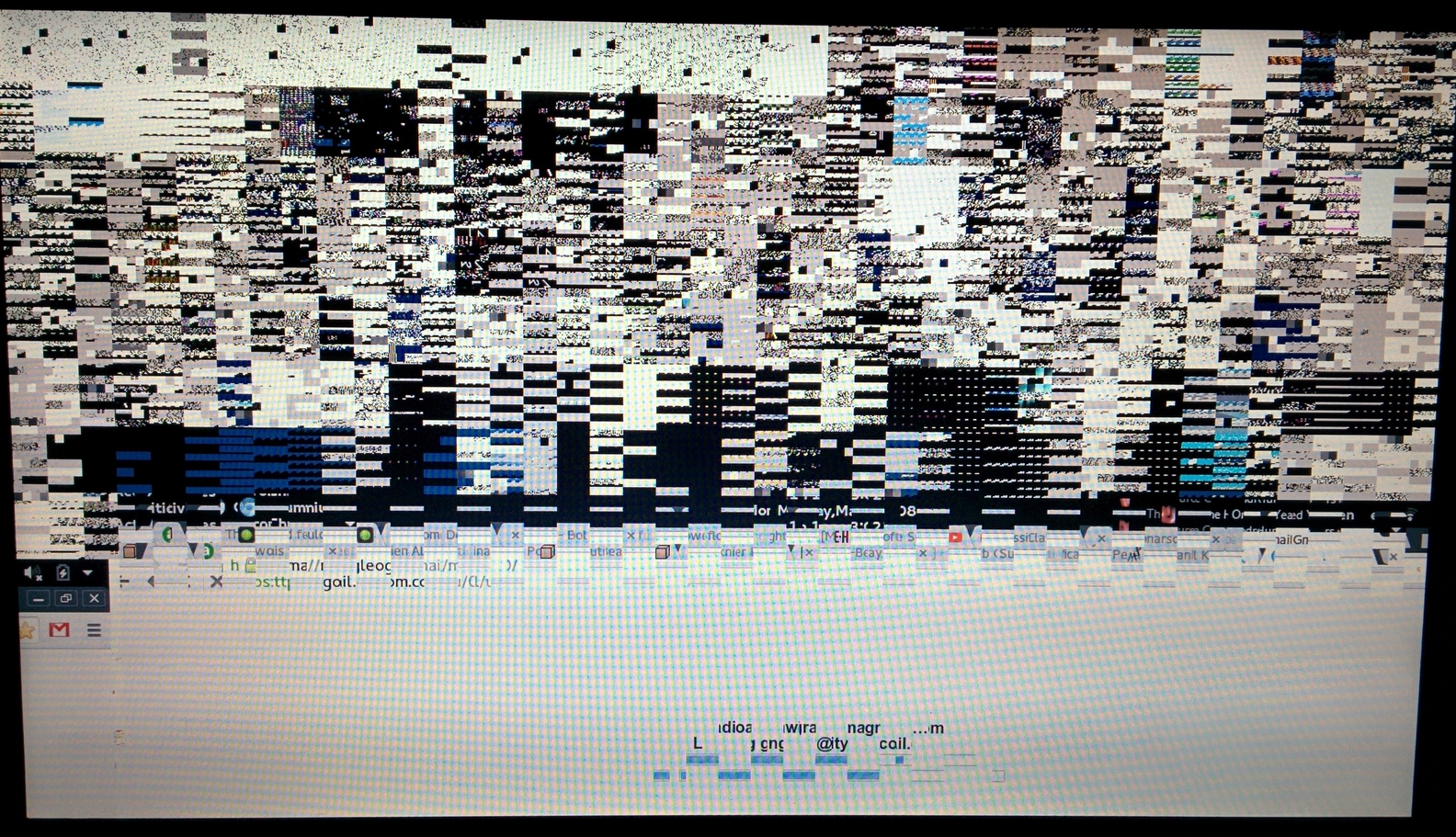

Created attachment 115703 [details] example after a soft reboot
Also: This also happens when gdm starts openbox (a simple non-compositing WM), not only with gnome-shell. In case that's relevant.
do you have DRI3 enabled?
Created attachment 116119 [details] Xorg log from journalctl Apparently no, I don't: (II) RADEON(0): [DRI2] Setup complete (II) RADEON(0): [DRI2] DRI driver: r600 (II) RADEON(0): [DRI2] VDPAU driver: r600 (II) RADEON(0): Front buffer size: 4128K (II) RADEON(0): VRAM usage limit set to 928386K (==) RADEON(0): DRI3 disabled (==) RADEON(0): Backing store enabled (II) RADEON(0): Direct rendering enabled
Created attachment 116135 [details] [review] EXA: Set pixmap pitch from BO Does this xf86-video-ati patch help?
(In reply to Michel Dänzer from comment #5) > Created attachment 116135 [details] [review] [review] > EXA: Set pixmap pitch from BO > > Does this xf86-video-ati patch help? No, I still see the same as before.
(In reply to Mantas Mikulėnas from comment #6) > No, I still see the same as before. Bummer, but I still think the problem is probably that the pitch of the pixmap created in create_pixmap_for_fbcon is getting over-aligned, most likely somewhere in EXA. Somebody "just" needs to isolate where and how to fix it. FWIW, this should work correctly with glamor and current xf86-video-ati Git.
(In reply to Michel Dänzer from comment #7) > (In reply to Mantas Mikulėnas from comment #6) > > No, I still see the same as before. > > Bummer, but I still think the problem is probably that the pitch of the > pixmap created in create_pixmap_for_fbcon is getting over-aligned, most > likely somewhere in EXA. Somebody "just" needs to isolate where and how to > fix it. > > FWIW, this should work correctly with glamor and current xf86-video-ati Git. Hmm, yes, it works fine after setting the AccelMethod. Should I just continue using that, with r600?
(In reply to Mantas Mikulėnas from comment #8) > > FWIW, this should work correctly with glamor and current xf86-video-ati Git. > > Hmm, yes, it works fine after setting the AccelMethod. Should I just > continue using that, with r600? Only you can decide which option is better overall for you.
This problem affects me too, and glamor doesn't really fix it, instead of garbage, a black screen is displayed, while it should still display grey GDM background, like on Intel devices for example.
(In reply to M132 from comment #10) > This problem affects me too, and glamor doesn't really fix it, instead of > garbage, a black screen is displayed, while it should still display grey GDM > background, like on Intel devices for example. Which commit of xf86-video-ati Git did you get that result with?
This might finally be fixed with https://cgit.freedesktop.org/xorg/driver/xf86-video-ati/commit/?id=2e0b458e747c7df81dd5f9579a762262af3350e1 .
Assuming this is fixed now.
