Bug 90441 - [bdw] X frontbuffer misaligned
Summary: [bdw] X frontbuffer misaligned
Status: CLOSED DUPLICATE of bug 85583
Alias: None
Product: DRI
Classification: Unclassified
Component: DRM/Intel (show other bugs)
Version: unspecified
Hardware: x86-64 (AMD64) Linux (All)
: medium normal
Assignee: Intel GFX Bugs mailing list
QA Contact: Intel GFX Bugs mailing list
Depends on:
Reported: 2015-05-13 22:46 UTC by graeber.manuel
Modified: 2017-07-24 22:47 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:

tty1 (720.75 KB, image/jpeg)
2015-05-13 22:46 UTC, graeber.manuel
no flags Details
X flickers (440.54 KB, image/jpeg)
2015-05-13 22:47 UTC, graeber.manuel
no flags Details
X fails to fit (445.54 KB, image/jpeg)
2015-05-13 22:48 UTC, graeber.manuel
no flags Details
xorg.0.log (22.56 KB, text/plain)
2015-05-13 22:48 UTC, graeber.manuel
no flags Details
xrandr --verbose (6.22 KB, text/plain)
2015-05-13 22:51 UTC, graeber.manuel
no flags Details

Description graeber.manuel 2015-05-13 22:46:25 UTC
Created attachment 115752 [details]

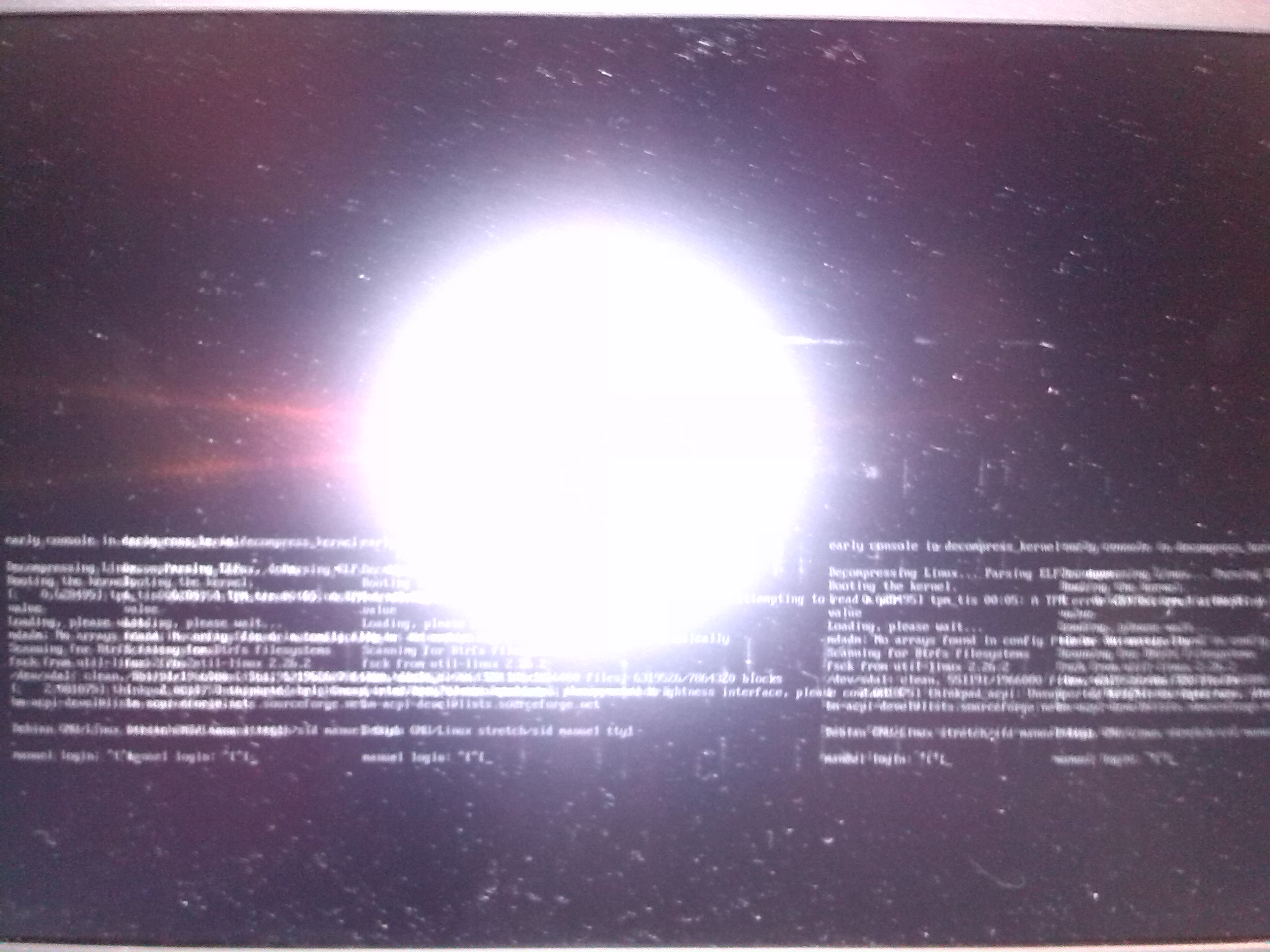

When X is running and I switch to tty1, the screen output constantly flickers around the screen. Switching back to X sometimes stops it, sometimes it just continues or it stops in a position, where the upper left corner is somewhere else. Left to it is the upper right and on top of it the lower left part of the screen.

Lenovo Thinkpad L450
Intel i5-5200U
Comment 1 graeber.manuel 2015-05-13 22:47:37 UTC
Created attachment 115753 [details]

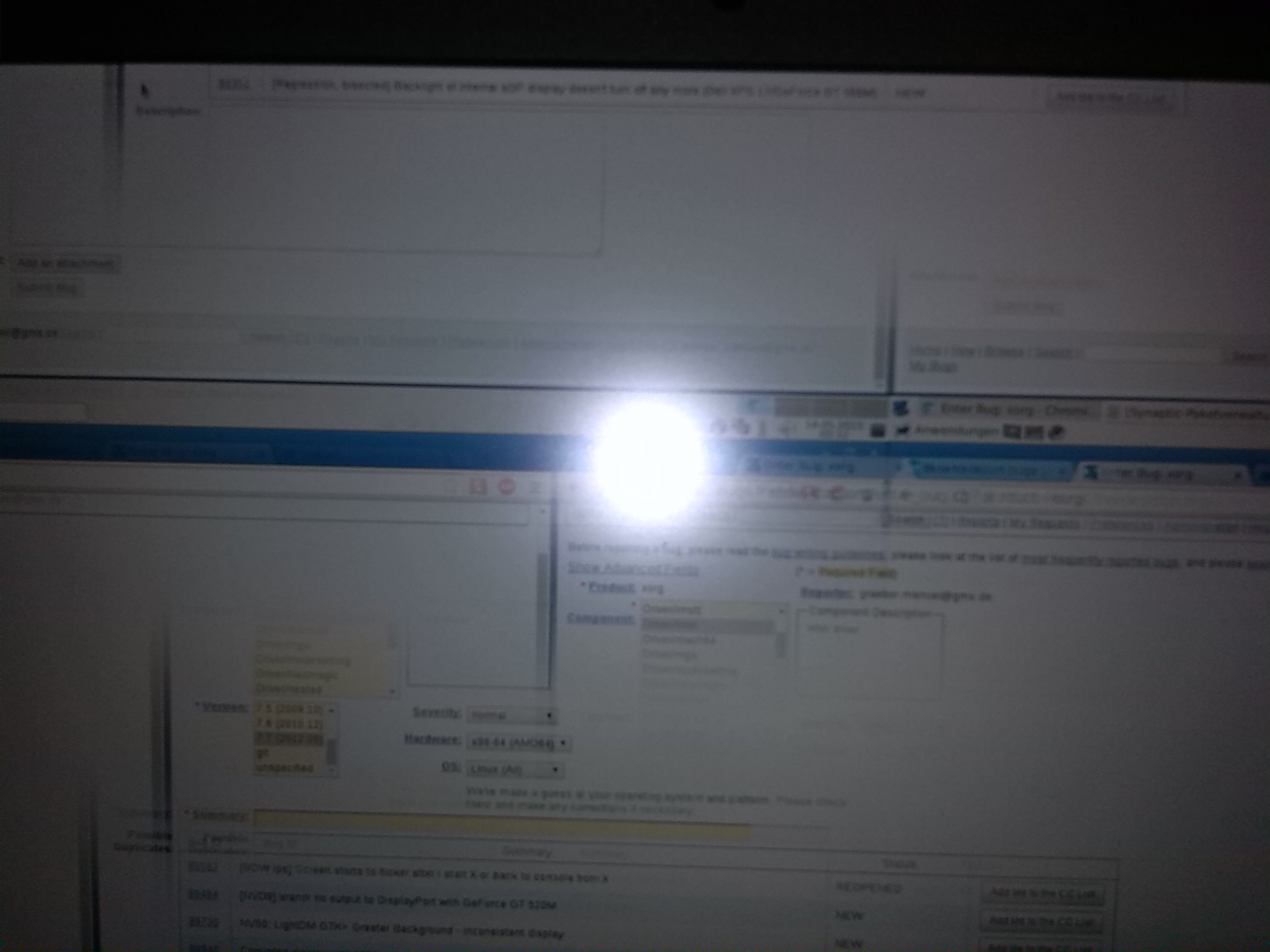

X flickers
Comment 2 graeber.manuel 2015-05-13 22:48:06 UTC
Created attachment 115754 [details]

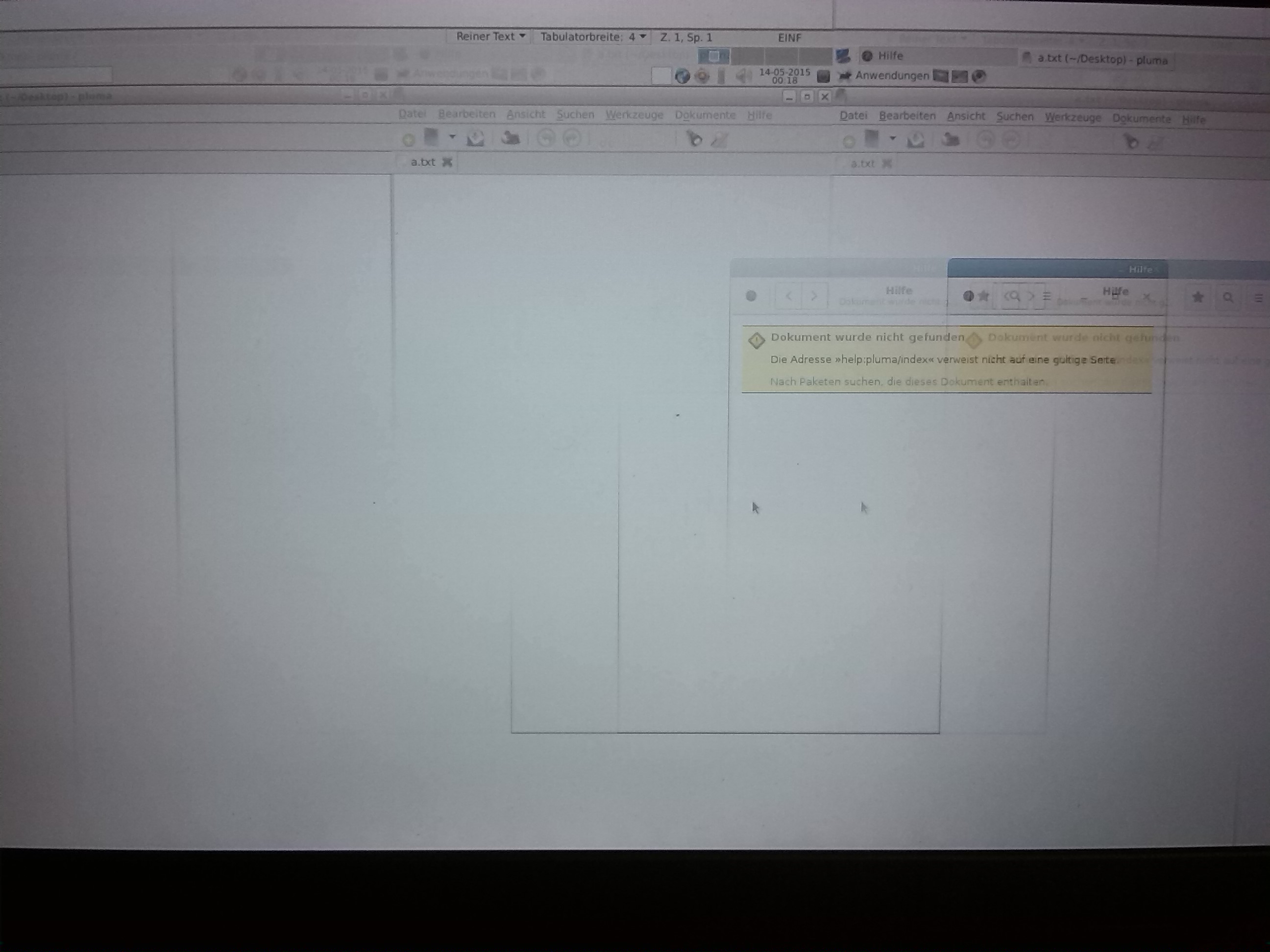

X fails to fit
Comment 3 graeber.manuel 2015-05-13 22:48:38 UTC
Created attachment 115755 [details]
Comment 4 graeber.manuel 2015-05-13 22:51:01 UTC
Created attachment 115756 [details]
xrandr --verbose
Comment 5 Chris Wilson 2015-05-15 09:25:01 UTC
The flicker is an ips bug, the misalignment novel.
Comment 6 Ander Conselvan de Oliveira 2015-06-18 11:01:07 UTC
Is this the same as bug 85583? Anyway, probably worth trying the following patch:

Comment 7 graeber.manuel 2015-06-19 11:02:32 UTC
That patch fixed it

*** This bug has been marked as a duplicate of bug 85583 ***
