After upgrading from PulseAudio 5.0 to PulseAudio 6.0 on Fedora 21, our notebook can no longer play audio from headphones/speakers. Integrated speakers work fine. After playing for a while with alsamixer, I figured out that every time I connect headphones/speakers, "Speaker+LO" bar is lowered to zero volume. If I manually increase it, headphones/speakers start to play fine. But I need to make this adjustment every single time I plug in headphones/speakers. working configuration: alsa-plugins-pulseaudio-1.0.28-3.fc21.x86_64 pulseaudio-gdm-hooks-5.0-25.fc21.x86_64 pulseaudio-libs-glib2-5.0-25.fc21.x86_64 pulseaudio-libs-5.0-25.fc21.x86_64 pulseaudio-module-bluetooth-5.0-25.fc21.x86_64 pulseaudio-module-x11-5.0-25.fc21.x86_64 pulseaudio-utils-5.0-25.fc21.x86_64 pulseaudio-5.0-25.fc21.x86_64 broken configuration: alsa-plugins-pulseaudio-1.0.28-3.fc21.x86_64 pulseaudio-gdm-hooks-6.0-2.fc21.1.x86_64 pulseaudio-libs-glib2-6.0-2.fc21.1.x86_64 pulseaudio-libs-6.0-2.fc21.1.x86_64 pulseaudio-module-bluetooth-6.0-2.fc21.1.x86_64 pulseaudio-module-x11-6.0-2.fc21.1.x86_64 pulseaudio-utils-6.0-2.fc21.1.x86_64 pulseaudio-6.0-2.fc21.1.x86_64

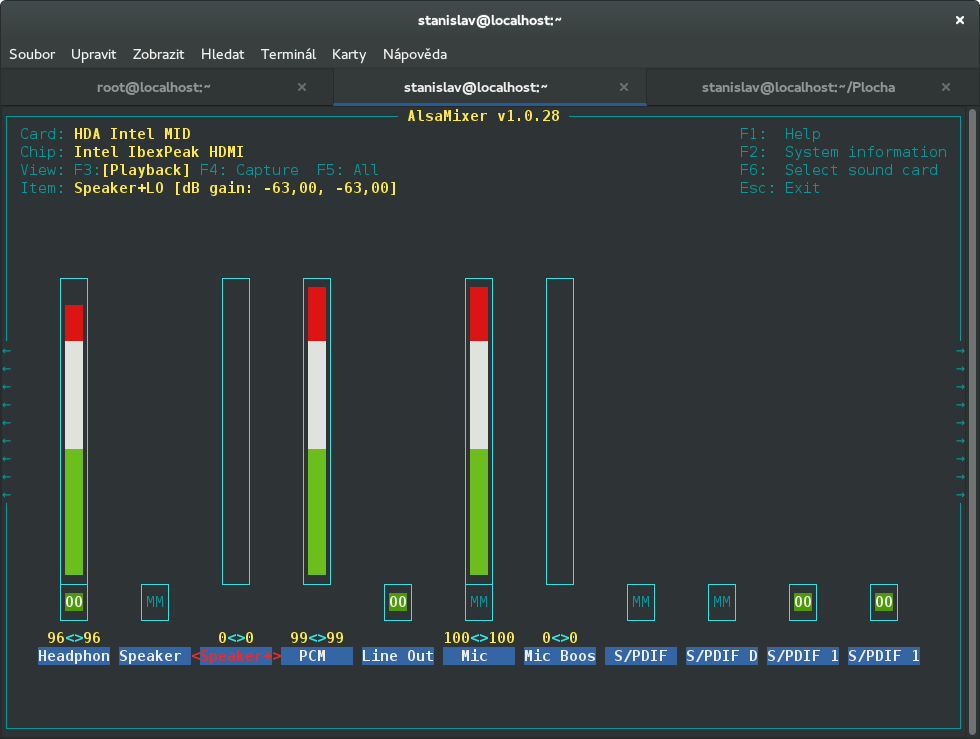

Created attachment 115847 [details] no headphones This is how alsamixer looks like before connecting headphones (internal speakers are playing fine).

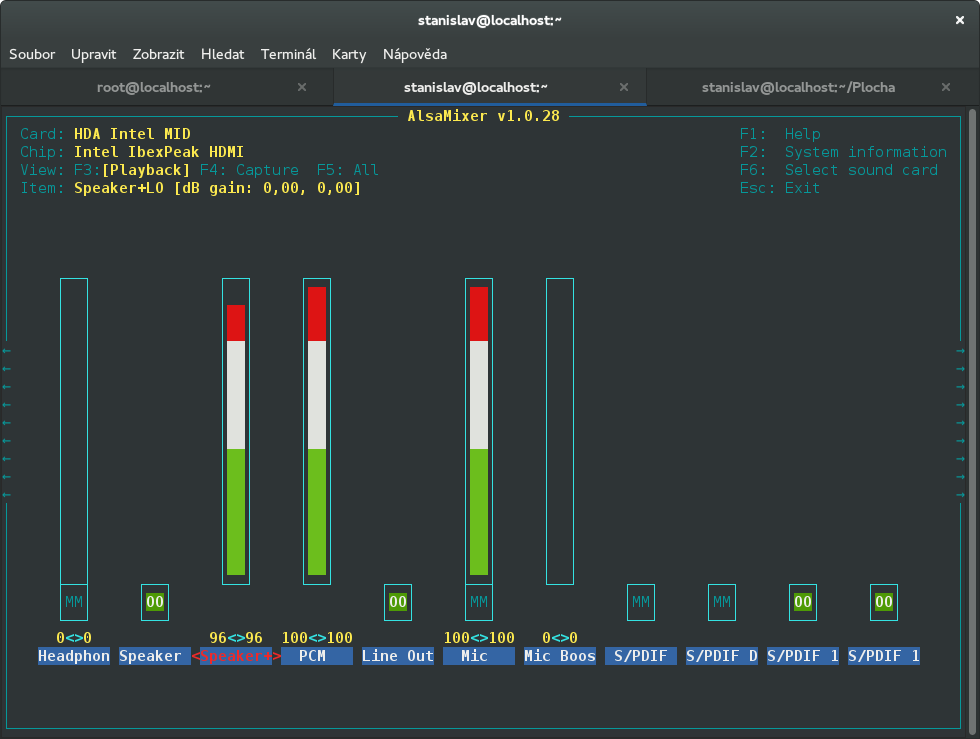

Created attachment 115848 [details] headphones This is how alsamixer looks like after connecting headphones (no sound can be heard).

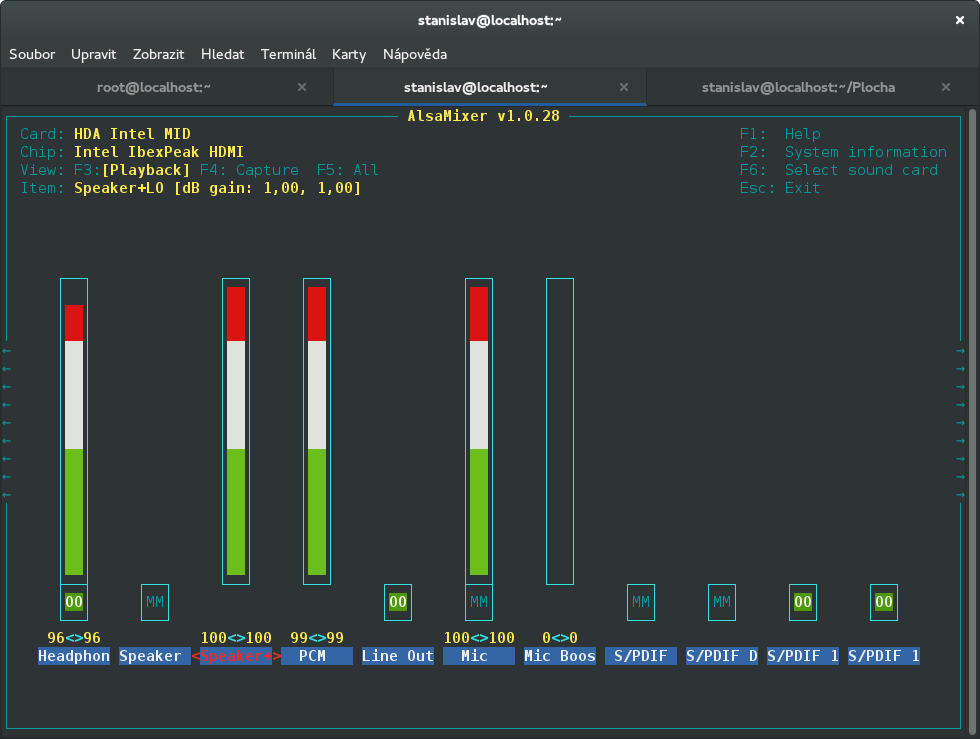

Created attachment 115849 [details] headphones fixed This is how alsamixer looks like after I fix the "Speaker+LO" bar (increase the volume, and finally hear headphones to produce sound).
Created attachment 115850 [details] alsa-info output
Created attachment 115851 [details] lspci output
Created attachment 115852 [details] pulseaudio log from PA 5 This is a debug log of pulseaudio 5.0, where everything works correctly. What I did: 1. Clicked twice on a gnome volume slider (top right screen corner) to hear 'pop' sound twice, to ensure sound is working. 2. Plugged in headphones. 3. Clicked twice again on the volume slider. There seem to be some Czech messages inside, I guess I forgot to run it with LC_ALL=en_US, I'm sorry. I can re-create that file using English if needed.
Created attachment 115853 [details] pulseaudio log from PA 6 This is a debug log of pulseaudio 6.0, affected by this issue. What I did: 1. Clicked twice on a gnome volume slider (top right screen corner) to hear 'pop' sound twice, to ensure sound is working. 2. Plugged in headphones. 3. Clicked twice again on the gnome volume slider, but did not hear any sound. 4. Bumped "Speaker+LO" volume bar to 100% in alsamixer. 5. Clicked twice again on the gnome volume slider, heard sound correctly.
Seem headphone and dock headohone but driver change to Line Out Node 0x15 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out Control: name="Line Out Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Headphone Jack", index=0, device=0 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0001001c: OUT HP EAPD Detect EAPD 0x2: EAPD Pin Default 0x03211020: [Jack] HP Out at Ext Left Conn = 1/8, Color = Black DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0x40: OUT Unsolicited: tag=02, enabled=1 Connection: 2 0x0c* 0x0d Node 0x1a [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Dock Headphone Jack", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0000373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x2121101f: [Jack] HP Out at Sep Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0xc0: OUT HP VREF_HIZ Unsolicited: tag=01, enabled=1 Connection: 2 0x0c 0x0d*
https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/commit/sound/pci/hda?id=3abb4f4d0e7aaad0d12004b5057f4486a688752b http://cgit.freedesktop.org/pulseaudio/pulseaudio/tree/src/modules/alsa/mixer/paths/analog-output-lineout.conf [Element Line Out] not present in lineout.conf
the patch was supposed to fix "PCM" for OptiPlex 745 with ad1983 https://bugs.launchpad.net/ubuntu/+source/pulseaudio/+bug/1436252 autoconfig: line_outs=1 (0x5/0x0/0x0/0x0/0x0) type:line speaker_outs=1 (0x7/0x0/0x0/0x0/0x0) hp_outs=1 (0x6/0x0/0x0/0x0/0x0) mono: mono_out=0x0 inputs: Mic=0x8 Line=0x9
(In reply to Kamil Páral from comment #4) > Created attachment 115850 [details] > alsa-info output only codec info is not enough for debugging you have to post the output of alsa-info.sh
https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/commit/sound/pci/hda?id=cc7016ab1a22fb26f388c2fb2b692b89897cbc3e seem you need similar quirk
https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/commit/sound/pci/hda/hda_codec.c?id=5832fcf8b55cfdbd7d8511f747d15fd20ed4703d why not using Ext and Sep to differentiate dock hp and hp instead of using special sequence number ?
Thanks, Raymond, for looking into this. I'm not sure which comments are targeted at me :-) I'll gather full alsa-info.sh output. Anything else I can supply?
https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/log/sound/pci/hda/patch_realtek.c?qt=grep&q=lifebook ALC269_FIXUP_LIFEBOOK_HP_PIN 00:1b.0 0403: 8086:3b56 (rev 05) Subsystem: 10cf:159f you need to add snd pci quirk for your lifebook since the driver expect /* The real HPs should have the sequence 0x0f */ When multiple HPs are defined and no line-outs is found, the configurator tries to re-assign some pins from HP list to line-out, judging from the sequence number. you can try hdajackretask advanced override http://git.alsa-project.org/?p=alsa-tools.git;a=blob;f=hdajackretask/README;hb=HEAD
http://support.fujitsupc.com/CS/Portal/supportsearch.do?srch=TECHSPECS LIFEBOOK E780 Notebook PC Technical Specifications LifeBook® E780 Notebook Realtek™ codec ALC269 with 2-channel High Definition (HD) audio Headphone: Stereo headphone/line-out/SPDIF jack Microphone: Stereo microphone/line-in jack built-in stereo digital array microphone built-in stereo speakers, 20 mm diameter
(In reply to Raymond from comment #11) > (In reply to Kamil Páral from comment #4) > > Created attachment 115850 [details] > > alsa-info output > > only codec info is not enough for debugging > > you have to post the output of alsa-info.sh This seems to be the full output when running `alsa-info --output file` and saying "no" to uploading. What exactly would you like to see in addition? Thanks.
Headphone: Stereo headphone/line-out/SPDIF jack Microphone: Stereo microphone/line-in jack https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/plain/Documentation/sound/alsa/HD-Audio-Controls.txt * Mic Jack Mode, Line Jack Mode, etc These enum controls the direction and the bias of the input jack pins. Depending on the jack type, it can set as "Mic In" and "Line In", https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/plain/Documentation/sound/alsa/HD-Audio.txt - add_jack_modes (bool): add "xxx Jack Mode" enum controls to each I/O jack for allowing to change the headphone amp and mic bias VREF capabilities
it is driver bug which change HP at Ext Left to Line Out as HP should not share volume control with Speaker for notebook Node 0x15 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out Control: name="Line Out Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Headphone Jack", index=0, device=0 Pin Default 0x03211020: [Jack] HP Out at Ext Left Conn = 1/8, Color = Black DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0x40: OUT Unsolicited: tag=02, enabled=1 Connection: 2 0x0c* 0x0d Node 0x1a [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Dock Headphone Jack", index=0, device=0 Pin Default 0x2121101f: [Jack] HP Out at Sep Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf
https://bugzilla.kernel.org/enter_bug.cgi?product=Drivers you should file bug report (Sound/ALSA)
(In reply to Raymond from comment #20) > https://bugzilla.kernel.org/enter_bug.cgi?product=Drivers > > you should file bug report (Sound/ALSA) OK, so it's an ALSA bug. Thank you for debugging. I'll file it in the kernel bugzilla. Should this be closed?
it depens on whether driver create Dock Headphone Playback Switch Node 0x1a [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Dock Headphone Jack", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0000373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x2121101f: [Jack] HP Out at Sep Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0xc0: OUT HP VREF_HIZ Unsolicited: tag=01, enabled=1 Connection: 2 0x0c 0x0d* http://cgit.freedesktop.org/pulseaudio/pulseaudio/tree/src/modules/alsa/mixer/paths there is dock-mic.conf
(In reply to Kamil Páral from comment #17) > (In reply to Raymond from comment #11) > > (In reply to Kamil Páral from comment #4) > > > Created attachment 115850 [details] > > > alsa-info output > > > > only codec info is not enough for debugging > > > > you have to post the output of alsa-info.sh > > This seems to be the full output when running `alsa-info --output file` and > saying "no" to uploading. What exactly would you like to see in addition? > Thanks. to know whether HP jack is really node 0x15 jack detection kctl of those jacks in alsactl asound.state
(In reply to Raymond from comment #23) > to know whether HP jack is really node 0x15 > > jack detection kctl of those jacks in alsactl asound.state I don't know anything about alsa/pulseaudio and have troubles understanding your instructions. Can you please give me an exact command I should run, or more detailed description of what to look for? Thank you.
> Can you please give me an exact command I should run when you plug and unplug headphone and mic jacks amixer -c 0 contents hdajacksensetest -a http://www.alsa-project.org/db/?f=92f3b8c7105bf307739c9a2cc0e453e1b9494631 does your lifebook has dock station since there is no dock mic ? hda_codec: ALC269: BIOS auto-probing. ALSA hda_codec.c:4895 autoconfig: line_outs=1 (0x15/0x0/0x0/0x0/0x0) type:line ALSA hda_codec.c:4899 speaker_outs=1 (0x14/0x0/0x0/0x0/0x0) ALSA hda_codec.c:4903 hp_outs=1 (0x1a/0x0/0x0/0x0/0x0) ALSA hda_codec.c:4904 mono: mono_out=0x0 ALSA hda_codec.c:4907 dig-out=0x1e/0x0 ALSA hda_codec.c:4908 inputs: ALSA hda_codec.c:4912 Internal Mic=0x12 ALSA hda_codec.c:4912 Mic=0x18 ALSA hda_codec.c:4912 Rear Mic=0x1b
port replicator https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/commit/sound/pci/hda/patch_realtek.c?id=5d9fab2d84963ec598810c54a67332decdd922a8 /* * fujitsu model - * 0x14 = headphone/spdif-out, 0x15 = internal speaker + * 0x14 = headphone/spdif-out, 0x15 = internal speaker, + * 0x1b = port replicator headphone out */ https://git.kernel.org/cgit/linux/kernel/git/tiwai/sound.git/commit/sound/pci/hda/patch_realtek.c?id=24519911673eb5ef3eafcee5d247a52f36347f79 + [ALC269_FIXUP_LIFEBOOK] = { + .type = ALC_FIXUP_PINS, + .v.pins = (const struct alc_pincfg[]) { + { 0x1a, 0x2101103f }, /* dock line-out */ + { 0x1b, 0x23a11040 }, /* dock mic-in */ + { } + }, + .chained = true, + .chain_id = ALC269_FIXUP_QUANTA_MUTE + },
Closing, this is a driver bug, not a PA bug.
Thanks for your work, Raymond and Tanu. I still haven't created the kernel bug, but will get to it soon. Do you still need the output of these commands? (In reply to Raymond from comment #25) > when you plug and unplug headphone and mic jacks > > amixer -c 0 contents > > hdajacksensetest -a > >
(In reply to Kamil Páral from comment #28) > Thanks for your work, Raymond and Tanu. I still haven't created the kernel > bug, but will get to it soon. Do you still need the output of these commands? > > (In reply to Raymond from comment #25) > > when you plug and unplug headphone and mic jacks > > > > amixer -c 0 contents > > > > hdajacksensetest -a At least I don't plan doing anything based on the output of those commands. I don't know about Raymond.
For the record, the ALSA bug has been reported here: https://bugzilla.kernel.org/show_bug.cgi?id=99681
