Bug 91213 - GLSL sine and cosine of argument larger than 4096*pi give wrong results
Summary: GLSL sine and cosine of argument larger than 4096*pi give wrong results
Status: RESOLVED DUPLICATE of bug 89634
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/i965 (show other bugs)
Version: 10.5
Hardware: Other All
: medium normal
Assignee: Ian Romanick
QA Contact: Intel 3D Bugs Mailing List
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2015-07-03 12:59 UTC by Ruslan Kabatsayev
Modified: 2015-07-06 19:48 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments

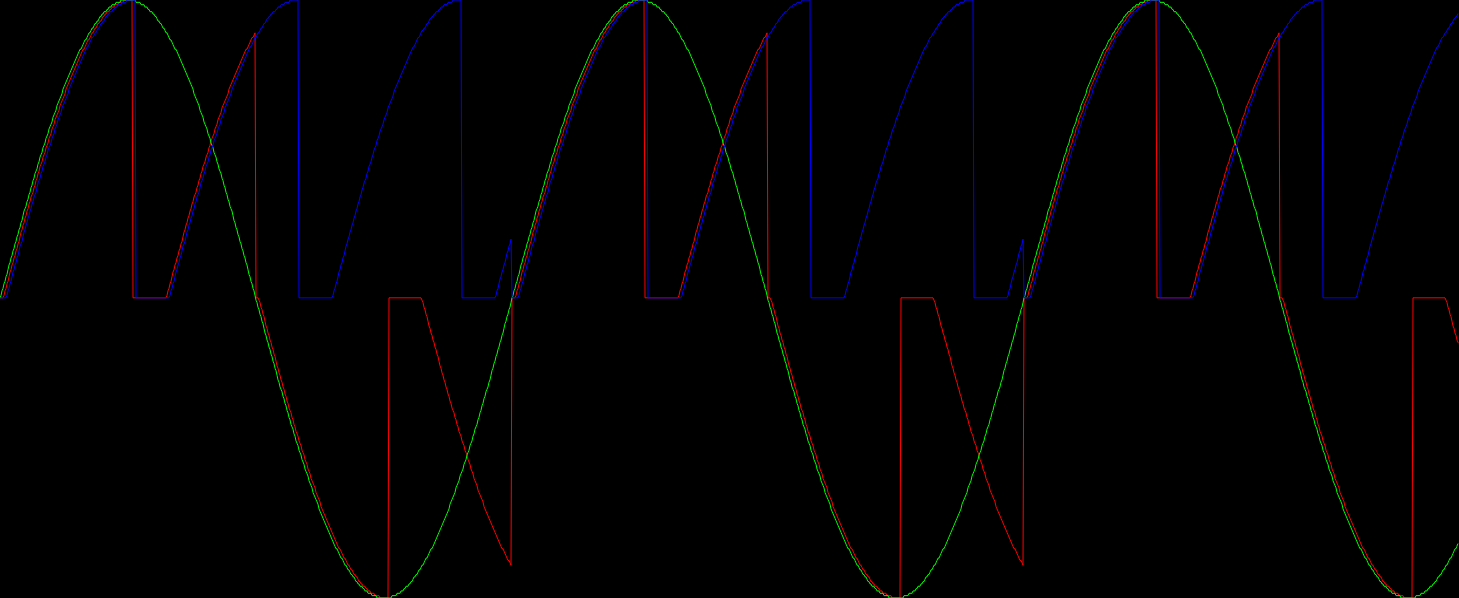

Plot of per-channel values in a scanline of the resulting image (26.00 KB, image/png)
2015-07-03 12:59 UTC, Ruslan Kabatsayev
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Ruslan Kabatsayev 2015-07-03 12:59:41 UTC
Created attachment 116915 [details]
Plot of per-channel values in a scanline of the resulting image

The following fragment shader gives me wrong results for red and blue channels, while the green channel can taken as a reference:

#version 120
float SinGood(float x)
{
    if(x>12866)
        x=mod(x,6.283185307);
    return sin(x);
}
void main()
{
    const float pi=3.14159265;
    gl_FragColor=vec4(0.5+0.5*sin(3.14159265/256*gl_FragCoord.x+4096*pi),
                      0.5+0.5*SinGood(3.14159265/256*gl_FragCoord.x+4096*pi),
                      0.5+0.5*sin(3.14159265/256*gl_FragCoord.x+2*4096*pi),
                      1);
}

I've tested on Intel Corporation Xeon E3-1200 v3 Processor Integrated Graphics Controller (rev 06), as well as on HD Graphics 4600 on Kubuntu 14.04 and LFS.

If I set LIBGL_ALWAYS_SOFTWARE=1, then I get all three channels with identical results (visually in the resulting image and on the channels plot), i.e. the problem only appears when HW acceleration is enabled.
Comment 1 Ruslan Kabatsayev 2015-07-03 21:17:42 UTC
Tested in Windows on a similar HD Graphics 4600 device, and there the result is correct, as with software renderer on Linux. So seems it's not the chip which doesn't work correctly, but the driver/mesa.
Comment 2 Matt Turner 2015-07-05 22:32:21 UTC
(In reply to Ruslan Kabatsayev from comment #1)
> Tested in Windows on a similar HD Graphics 4600 device, and there the result
> is correct, as with software renderer on Linux. So seems it's not the chip
> which doesn't work correctly, but the driver/mesa.

We just use the sin/cos instructions directly. I believe the instructions lose accuracy at large values, and that the Windows driver emits some instructions to do range reduction itself.

Is this just a corner case you noticed, or something that you really want to work?
Comment 3 Ruslan Kabatsayev 2015-07-06 06:49:01 UTC
(In reply to Matt Turner from comment #2)
> We just use the sin/cos instructions directly.
Hm, indeed, just tested with an equivalent ARBfp shader, with the same results.

> Is this just a corner case you noticed, or something that you really want to
> work?

I was using GLSL to compute scattering of a 2D wave and render its density plot. And while downscaling the image I noticed that the results start looking strange starting from some distance to the scatterer, and this only reproduced on intel. And only then I tracked this to the problem with the sin/cos functions implementation.

So I'd like this to work indeed, it was not just some test where I noticed the problem. But OTOH, the GLSL spec (I looked at 1.20) doesn't say (AFAIK) anything about accuracy requirements for built-in functions, nor does it mention range for which the results must be usable. So I'm not sure what's best for Mesa. If you feel this would make the GLSL implementation noticeably slower in general, maybe a GLSL pragma like "mesa_make_functions_correct" to enable fix like in Windows would be a good solution. Or it might be some special setting in ~/.drirc.
Comment 4 Ian Romanick 2015-07-06 19:48:51 UTC
This is a duplicate of bug #89634.  I'm going to post some suggestions there.

*** This bug has been marked as a duplicate of bug 89634 ***
