Bug 91551 - DXTn compressed normal maps produce severe artifacts on all NV5x and NVDx chipsets
Summary: DXTn compressed normal maps produce severe artifacts on all NV5x and NVDx chi...
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/nouveau (show other bugs)
Version: 10.6
Hardware: x86-64 (AMD64) Linux (All)
: medium critical
Assignee: Nouveau Project
QA Contact: Nouveau Project
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2015-08-04 13:44 UTC by Mauro Rossi
Modified: 2015-09-12 15:10 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments

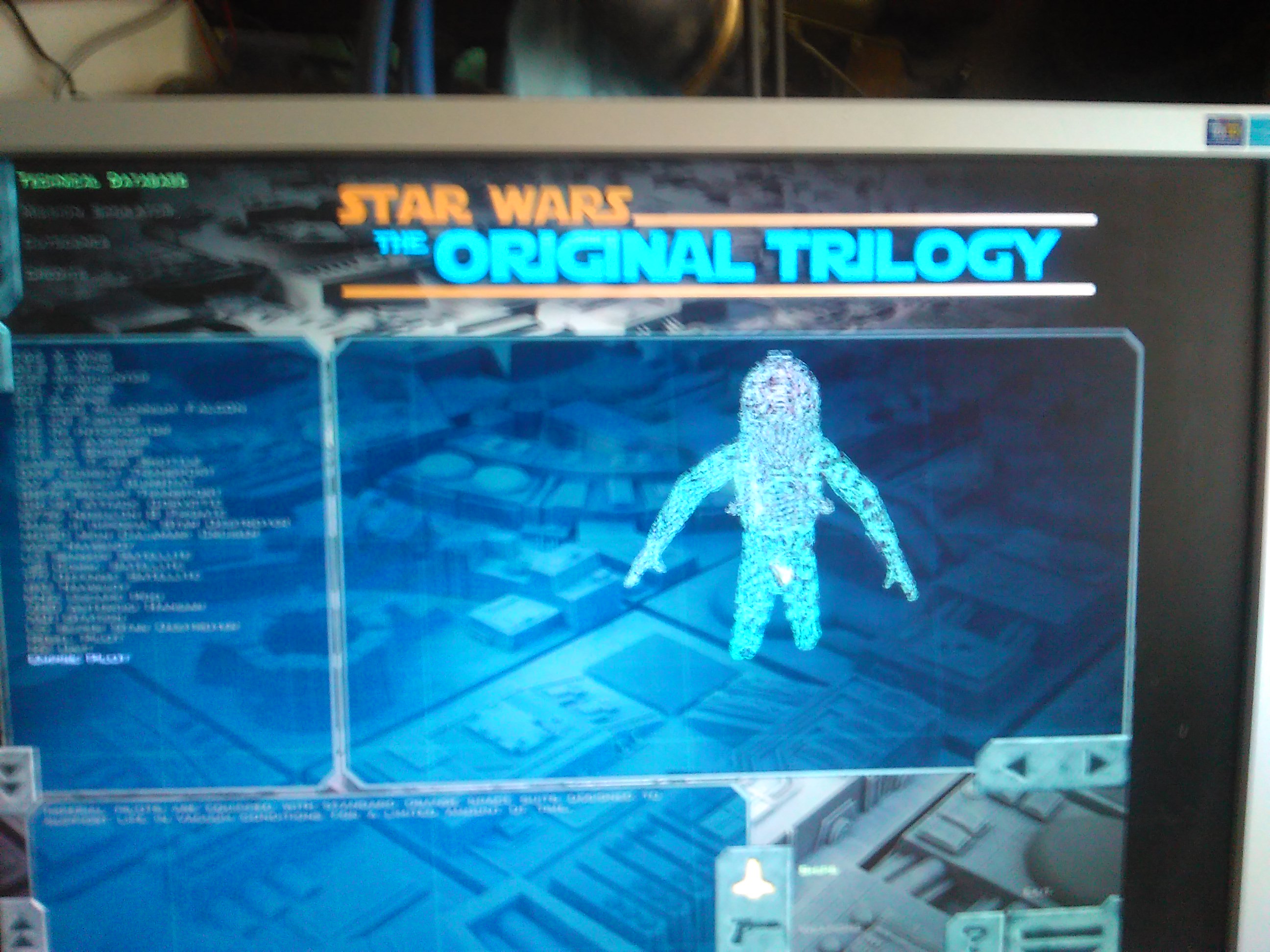

Snapshot of the artifacts with normal map (862.85 KB, image/jpeg)
2015-08-04 13:44 UTC, Mauro Rossi
Details

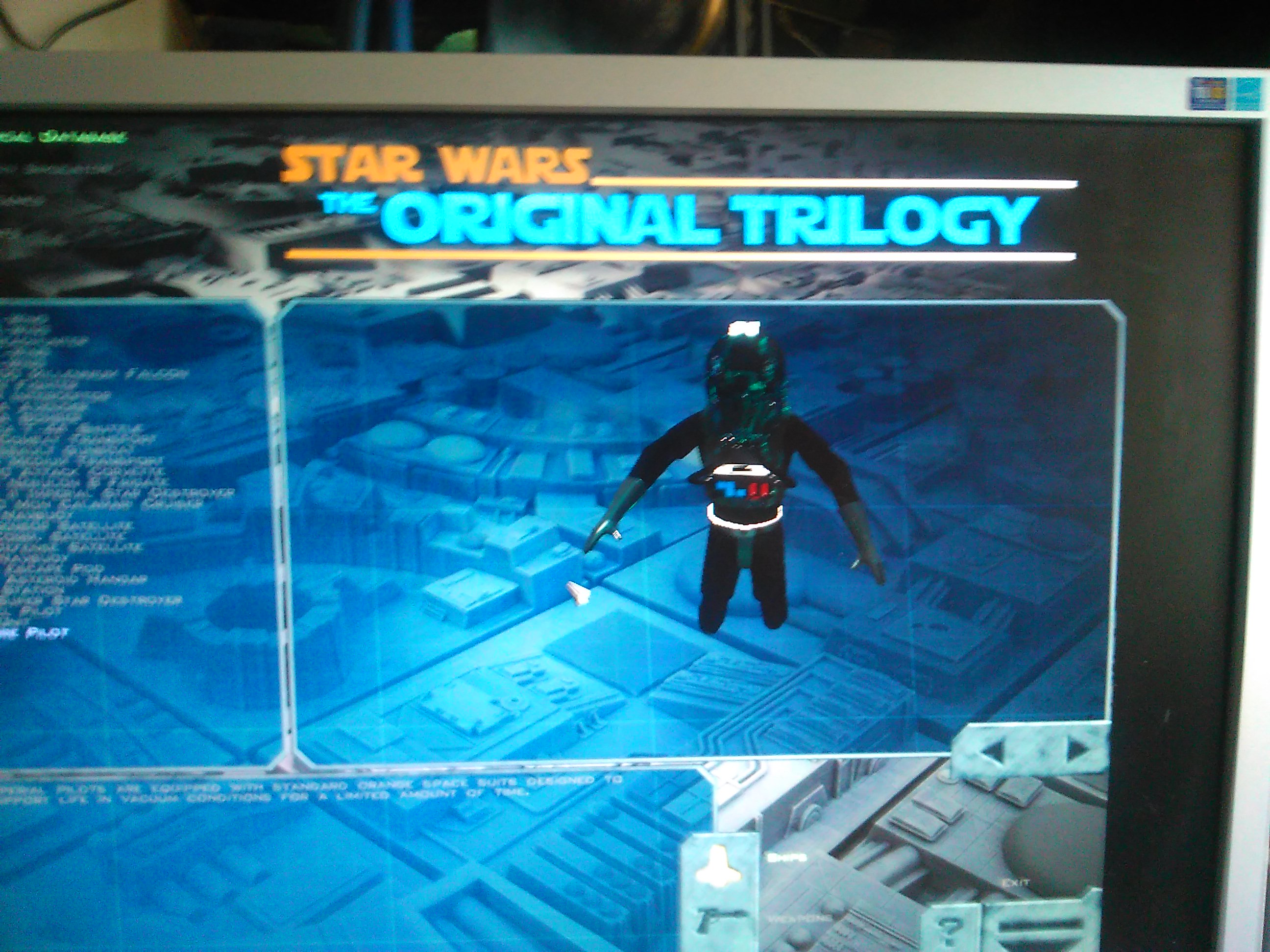

Snapshot with normal maps disabled in wxlauncher for FS2open (967.25 KB, image/jpeg)
2015-08-04 13:47 UTC, Mauro Rossi
Details
glxinfo log (96.61 KB, text/plain)
2015-08-04 13:54 UTC, Mauro Rossi
Details
dmesg extract with 'nouveau E' entries (4.43 KB, text/plain)
2015-08-04 13:56 UTC, Mauro Rossi
Details
Xorg log (48.48 KB, text/plain)
2015-08-04 13:58 UTC, Mauro Rossi
Details
A sample of the DTXn compressed normal map in .dds format (64.12 KB, text/plain)
2015-08-04 14:00 UTC, Mauro Rossi
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Mauro Rossi 2015-08-04 13:44:02 UTC
Created attachment 117508 [details]
Snapshot of the artifacts with normal map

Light blue garbled artifacts are affecting gallium nouveau on FreeSpace2 open source, with Star Wars : Original Trilogy mod.

To Star Wars fans this may be unacceptable :-), so let't try to find clues to the problem

I have checked the .dds normal map's texture compression format and in this mod it's always DXT5

If I disable 'normal maps' in wxLauncher there are no artifacts, but there are also no maps, which are one the beauties of the mod.

Affected chipsets NV6x (GeForce 7025) NV8x (GeForce 8500, 8600), NV9x (GeForce 9600GT, GT120) , NVAx (GeForce 210) and NVDx (GeForce GT610). (cheched mesa with 10.6.x)

Unaffected, meaning normal maps are fine with those: NVCx and NVEx chipsets (checked with mesa 10.6.x and 11.0.0devel git)

NOTE: It's strange that NVDx chipsets are affected, if they rely on nvc0 driver

You can find in the attachment the snapshot of the artifacts with normal maps and  normal maps disabled (no artifacts), plus other log files/extracts.

Mauro
Comment 1 Mauro Rossi 2015-08-04 13:47:26 UTC
Created attachment 117509 [details]
Snapshot with normal maps disabled in wxlauncher for FS2open
Comment 2 Mauro Rossi 2015-08-04 13:54:01 UTC
Created attachment 117510 [details]
glxinfo log
Comment 3 Mauro Rossi 2015-08-04 13:56:58 UTC
Created attachment 117511 [details]
dmesg extract with 'nouveau E' entries

These are related to FS2open process,
but I'm not systematically seeing the 'nouveau E' errors when launching FS2open with normal maps enabled.

It may help to see if it's related or a different problem requiring to fill in a new bug.
Comment 4 Mauro Rossi 2015-08-04 13:58:03 UTC
Created attachment 117512 [details]
Xorg log
Comment 5 Mauro Rossi 2015-08-04 14:00:37 UTC
Created attachment 117513 [details]
A sample of the DTXn compressed normal map in .dds format
Comment 6 Ilia Mirkin 2015-08-05 04:46:36 UTC
Please see if this isn't an instance of the issue in bug 90887. If possible, make an apitrace so that I can reproduce this without working out how to operate your software. If not, please explain how I can reproduce this myself. FTR, I highly doubt that DXT compression has anything to do with it, but... stranger things have happened.
Comment 7 Mauro Rossi 2015-08-08 13:29:08 UTC
Hi,

I've uploaded apitrace at the following shared link:

http://www.mediafire.com/download/949r35rra31rpte/Tie_pilot_Nvidia_GT210_fs2_open_3.7.2.trace.7z

I can see the heartstone artifacts on my Nvidia GT210, but I'm not able to check if the problem is the same

I will test again Freespace2 with Star Wars Original Trilogy mod, when the patch for https://bugs.freedesktop.org/show_bug.cgi?id=90887 will be applied to mesa git,

and report back. Thanks

Mauro
Comment 8 Mauro Rossi 2015-09-06 14:32:27 UTC
Hi,

I tried to apply the two patches proposed by jr, in https://bugs.freedesktop.org/show_bug.cgi?id=90887 thread,

built patched nouveau_dri.so i386 target and checked about the artifacts on FS2open mod.

In my use case the artifacts are still there.

I'll check again with next proposed patches, I only need to playback the apitrace on specific HW

Mauro
Comment 9 Ilia Mirkin 2015-09-10 08:37:26 UTC
As I suspected, nothing to do with compressed textures. Should be at least partially fixed by

commit ce28ca713364dbe83cb3c371ca034bc2c2947616
Author: Ilia Mirkin <imirkin@alum.mit.edu>
Date:   Thu Sep 10 03:55:06 2015 -0400

    nv50/ir: fix emission of 8-byte wide interp instruction

    This can come up if the target register number is > 63, which is fairly
    rare.

    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=91551
    Signed-off-by: Ilia Mirkin <imirkin@alum.mit.edu>
    Cc: "11.0" <mesa-stable@lists.freedesktop.org>

It still doesn't seem to render quite the same as nvc0 and llvmpipe. The lighting on the back of the spinning models is much brighter. Not sure why... those shaders are ENORMOUS by the way.

I thought it might be due to glShadeModel(GL_FLAT) at first, which isn't properly handled, but that's not it -- it only ever calls glShadeModel(GL_SMOOTH) in the trace.
Comment 10 Ilia Mirkin 2015-09-10 08:51:43 UTC
Ah, I suspect the remaining issues are due to the fact that we're encoding things like

119: mad f32 $r75 $r4 2.000000 $r75 (8)

as

e000092d 04000003     add sat f32 $r11 (mul $r4 0x40000000) $r11

Which... might not be *exactly* the same thing. Unfortunately there *is* no encoding for that instruction, the nv50 emitter isn't smart enough not to emit it. Shaders with > 64 regs are sufficiently rare :(

I guess we need to add a post-RA fixup to load these immediates for non-encodable instructions. Of course the question is *where* to load it... ugh. Could try to reserve a special register at RA time for it...
Comment 11 Ilia Mirkin 2015-09-10 09:05:29 UTC
Actually this particular instance of the issue had an easy fix -- we were manually "breaking" it. Oops!

commit 74b86b971f3bf9b0482341b07c1cbc2e520fb1d0
Author: Ilia Mirkin <imirkin@alum.mit.edu>
Date:   Thu Sep 10 05:02:26 2015 -0400

    nv50/ir: don't fold immediate into mad if registers are too high

    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=91551
    Signed-off-by: Ilia Mirkin <imirkin@alum.mit.edu>
    Cc: "11.0" <mesa-stable@lists.freedesktop.org>

Now the spinning model looks exactly as it did on nvc0.
Comment 12 Mauro Rossi 2015-09-10 20:10:10 UTC
Hi,

Checked on 8500GT (NV86), I confirm the models are correctly rendered.

Thank you very much, also on behalf of the SW Original Trilogy mod GNU/Linux community.

Mauro
Comment 13 Ilia Mirkin 2015-09-11 01:09:25 UTC
(In reply to Mauro Rossi from comment #12)
> Hi,
>
> Checked on 8500GT (NV86), I confirm the models are correctly rendered.
>
> Thank you very much, also on behalf of the SW Original Trilogy mod GNU/Linux
> community.
>
> Mauro

By the way, out of your original card list, if there remain issues with nv30 driver (GeForce 7025) or nvc0 (GeForce 610), please file them separately and include traces.
Comment 14 Mauro Rossi 2015-09-12 15:10:56 UTC
Hi Ilia,

nvc0 is not affected,
while I have seen a different problem on integrated GeForce 6150 (NV4C chipset)

Submitting new bug with logs and traces separately.
Thanks

Mauro
