Bug 92306 - GL Excess demo renders incorrectly on nv43
Summary: GL Excess demo renders incorrectly on nv43
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/nouveau (show other bugs)
Version: git
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: Nouveau Project
QA Contact: Nouveau Project
URL:
Whiteboard:
Keywords: regression
Depends on:
Blocks:

Reported: 2015-10-06 00:08 UTC by Andrew Randrianasulu
Modified: 2016-08-31 20:17 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments
X log (45.65 KB, text/plain)
2015-10-06 00:08 UTC, Andrew Randrianasulu
Details
correct software rendering (950.96 KB, image/bmp)
2015-10-06 00:10 UTC, Andrew Randrianasulu
Details
incorrect hw rendering (950.96 KB, image/bmp)
2015-10-06 00:12 UTC, Andrew Randrianasulu
Details
dmesg (48.64 KB, text/plain)
2015-10-06 00:15 UTC, Andrew Randrianasulu
Details
Another type of image corruption (950.96 KB, image/bmp)
2015-10-06 00:18 UTC, Andrew Randrianasulu
Details
apitrace (bz2 compressed) (302.87 KB, application/x-bzip)
2015-10-07 18:31 UTC, Andrew Randrianasulu
Details
dmesg, from glean run, makeCurrent tests (107.63 KB, text/plain)
2015-10-13 04:27 UTC, Andrew Randrianasulu
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Andrew Randrianasulu 2015-10-06 00:08:52 UTC
Created attachment 118688 [details]
X log

I was trying to see if GL Excess demo still works - it does, but only some scenes rendered correctly.

Demo: http://www.glexcess.com/files.htm

Hardware: 01:00.0 VGA compatible controller: NVIDIA Corporation NV43 [GeForce 6600 GT] (rev a2)

Mesa: OpenGL version string: 2.1 Mesa 11.1.0-devel (git-93161be)
drm: commit 8c4a1cbd98bd8d185d489395f33302a17db643a9 ("xf86drm: Fix error handling for drmGetDevices()")
xf86-video-nouveau: commit 1ff13a922535924681b91452235b017e43a4c6f6 ("fix build after glamor removal")
kernel from nouveau/4.3 branch: 4.2.0-rc8-40978-g778613e5
X server - standard 1.14.3 from Slackware 14.1
wine (yes, I know, old - but then same demo works with LIBGL_ALWAYS_SOFTWARE=1, so not only wine's fault. I can upgrade after some time): wine-1.5.25-1-gc2505fd
Comment 1 Andrew Randrianasulu 2015-10-06 00:10:37 UTC

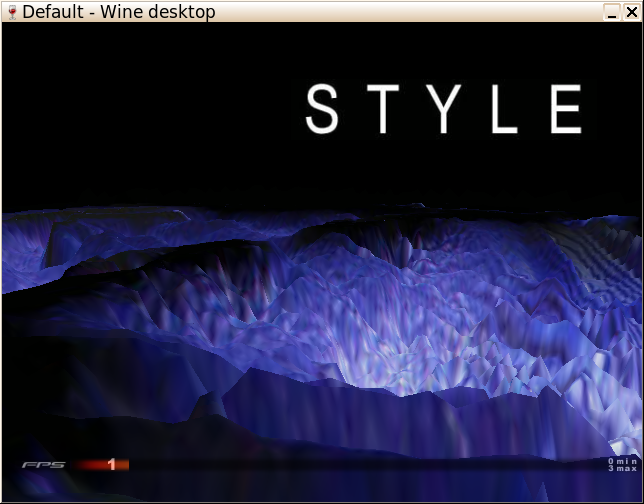

Created attachment 118689 [details]
correct software rendering

It shows some landscape, even if at 1 fps.
Comment 2 Andrew Randrianasulu 2015-10-06 00:12:04 UTC

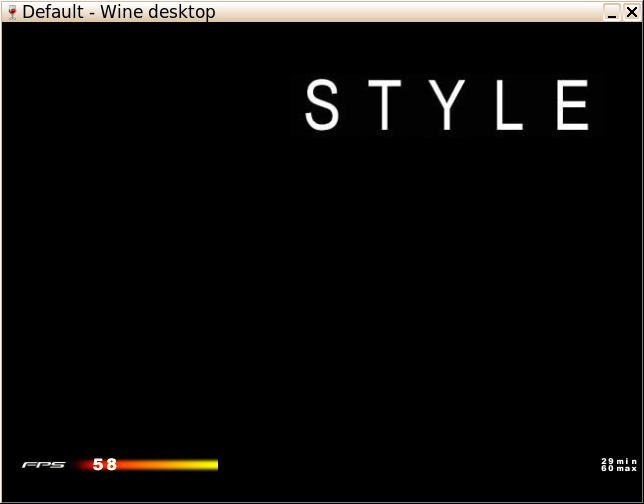

Created attachment 118690 [details]
incorrect hw rendering

with nouveau it only shows text and FPS bar - not landscape
Comment 3 Andrew Randrianasulu 2015-10-06 00:15:31 UTC
Created attachment 118691 [details]
dmesg

I think you can ignore locking-related warnings. But I can retry with 4.3-rc4 mainline, if you prefer (again, will need some time to compile it)

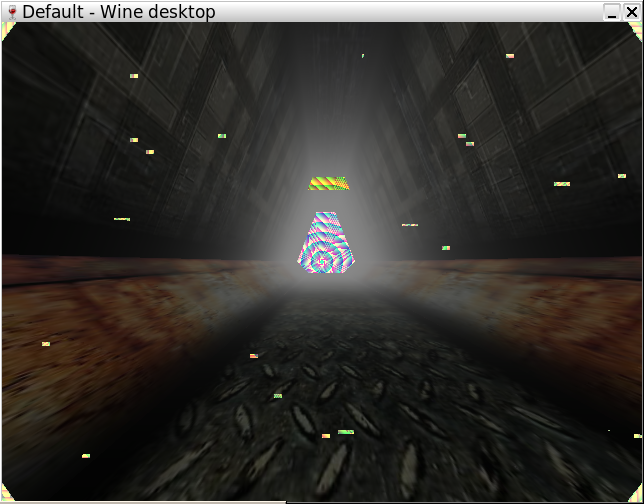

Comment 4 Andrew Randrianasulu 2015-10-06 00:18:57 UTC
Created attachment 118692 [details]
Another type of image corruption

Probably need its own bugreport. It always happen at same place in scene - so, not random. Nearly looks like some garbage instead of (guess) alpha channel of texture?
Comment 5 Andrew Randrianasulu 2015-10-06 08:19:31 UTC
Hm, apparently this is regression - tried few mesa versions - 10.1.6 was OK, but 10.2.9 already broken.

Attempt to disable few new (in 10.2) extensions not fixed this.
"Mesa 10.2.9 implementation error: Trying to disable a permanently enabled extension: GL_ARB_multi_bind" - this one can't be disabled, it seems (commandline used  MESA_EXTENSION_OVERRIDE="-GL_ARB_multi_bind" wine GLExcess.exe)

MESA_EXTENSION_OVERRIDE="-GL_ARB_buffer_storage" wine GLExcess.exe - not resulted in anything.

Apparently those two types of corruption related (no image and parts of scene  filled with rainbow  lines) - at least they both started to appear in 10.2.9
Comment 6 Andrew Randrianasulu 2015-10-07 17:11:38 UTC
Updating wine (to version 1.7.51-staging, from http://www.slackware.com/~alien/slackbuilds/wine/pkg/14.1/) resulted in correctly disabled Vsync, but rendering still broken in the same way.

Moreover, attempt to use latest apitrace (command line:  ~/src/apitrace/apitrace trace /usr/bin/wine GLExcess.exe ) only resulted in illegal instruction (?!)

----quote----

apitrace: loaded into /usr/bin/wine
apitrace: loaded into /usr/bin/wine-preloader
apitrace: loaded into /usr/bin/wineserver
apitrace: loaded into /usr/bin/wine-preloader
fixme:winediag:start_process Wine Staging 1.7.51 is a testing version containing experimental patches.
fixme:winediag:start_process Please report bugs at http://bugs.wine-staging.com (instead of winehq.org).
apitrace: loaded into /usr/bin/wine-preloader
apitrace: loaded into /usr/bin/wine-preloader
apitrace: loaded into /usr/bin/wine-preloader
apitrace: loaded into /usr/bin/wine-preloader
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
apitrace: loaded into /usr/bin/wine-preloader
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
fixme:ole:RemUnknown_QueryInterface No interface for iid {00000019-0000-0000-c000-000000000046}
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
apitrace: loaded into /usr/bin/wine-preloader
bash-4.2$ Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
apitrace: loaded into /usr/bin/wine-preloader
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
apitrace: tracing to /home/guest/.wine/drive_c/Program Files/GL Excess/wine-preloader.trace
apitrace: redirecting dlopen("libGL.so.1", 0x102)
apitrace: redirecting dlopen("libGL.so.1", 0x102)
apitrace: attempting to read configuration file: /home/guest/.config/apitrace/gltrace.conf
wine: Unhandled illegal instruction at address 0xb75957f2 (thread 002a), starting debugger...
apitrace: loaded into /usr/bin/wine-preloader
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Unhandled exception: illegal instruction in 32-bit code (0xb75957f2).
Register dump:
 CS:0073 SS:007b DS:007b ES:007b FS:0033 GS:003b
 EIP:b75957f2 ESP:0033f978 EBP:0033f978 EFLAGS:00210282(  R- --  I S - - - )
 EAX:46240400 EBX:b777ab1c ECX:b777ab1c EDX:b6fdb89d
 ESI:7dffabc0 EDI:00002802
Stack dump:
0x0033f978:  0033f9b8 b74366ab 46240400 00000002
0x0033f988:  00002802 00000000 b778adcc 00001a4f
0x0033f998:  00000004 b777ab1c 7dffabc0 b777ab1c
0x0033f9a8:  0033f9d8 00001a50 b778ad60 7e8f77d0
0x0033f9b8:  0033fa08 7e883727 00000de1 00002802
0x0033f9c8:  46240400 00001a4f cccccccc 7e8f77d0
Backtrace:
=>0 0xb75957f2 (0x0033f978)
  1 0xb74366ab (0x0033f9b8)
  2 0x7e883727 glTexParameterf+0x86() in opengl32 (0x0033fa08)
  3 0x00441a5d in glxsv1.2 (+0x41a5c) (0x0033fa70)
  4 0x00441d01 in glxsv1.2 (+0x41d00) (0x0033fb78)
  5 0x004175f9 in glxsv1.2 (+0x175f8) (0x0033fbd8)
  6 0x0044c0b7 in glxsv1.2 (+0x4c0b6) (0x0033fdd0)
  7 0x004540a3 in glxsv1.2 (+0x540a2) (0x0033fe60)
  8 0x7ed06acc call_process_entry+0xb() in kernel32 (0x0033fe78)
  9 0x7ed07e31 in kernel32 (+0x47e30) (0x0033feb8)
  10 0x7ef91b00 call_thread_func_wrapper+0xb() in ntdll (0x0033fed8)
  11 0x7ef94d1d call_thread_func+0x7c() in ntdll (0x0033ffa8)
  12 0x7ef91ade RtlRaiseException+0x21() in ntdll (0x0033ffc8)
  13 0x7ef65faf in ntdll (+0x45fae) (0x0033ffe8)
  14 0xb720c75d wine_call_on_stack+0x1c() in libwine.so.1 (0x00000000)
  15 0xb720c81b wine_switch_to_stack+0x2a() in libwine.so.1 (0xbfc40d18)
  16 0x7ef6a474 LdrInitializeThunk+0x263() in ntdll (0xbfc40d68)
  17 0x7ed0ea43 __wine_kernel_init+0xa02() in kernel32 (0xbfc41c68)
  18 0x7ef6b45b __wine_process_init+0x19a() in ntdll (0xbfc41cf8)
  19 0xb7209ea8 wine_init+0x2c7() in libwine.so.1 (0xbfc41d58)
  20 0x7bf00fcc main+0x7b() in <wine-loader> (0xbfc421a8)
  21 0xb704c773 __libc_start_main+0xf2() in libc.so.6 (0x00000000)
0xb75957f2: repe (bad)
Modules:
Module  Address                 Debug info      Name (78 modules)
PE        340000-  38f000       Deferred        fmod
PE        400000-  5a7000       Export          glxsv1.2
PE      10000000-10035000       Deferred        glut32
PE      60000000-6005d000       Deferred        ijl15
ELF     7bf00000-7bf03000       Dwarf           <wine-loader>
ELF     7d3a1000-7dacc000       Deferred        nouveau_dri.so
ELF     7ddd0000-7ddd7000       Deferred        libdrm_nouveau.so.2
ELF     7ddd7000-7dde5000       Deferred        libudev.so.0
ELF     7dde5000-7ddef000       Deferred        libxcursor.so.1
ELF     7de21000-7de5a000       Deferred        libfontconfig.so.1
ELF     7de5a000-7de70000       Deferred        libz.so.1
ELF     7de70000-7de9b000       Deferred        libpng14.so.14
ELF     7de9b000-7deac000       Deferred        libbz2.so.1
ELF     7deac000-7df3c000       Deferred        libfreetype.so.6
ELF     7df3c000-7df4b000       Deferred        libxi.so.6
ELF     7df4c000-7df51000       Deferred        libtxc_dxtn.so
ELF     7df6d000-7e002000       Deferred        winex11<elf>
  \-PE  7df80000-7e002000       \               winex11
ELF     7e002000-7e026000       Deferred        imm32<elf>
  \-PE  7e010000-7e026000       \               imm32
ELF     7e026000-7e0aa000       Deferred        rpcrt4<elf>
  \-PE  7e030000-7e0aa000       \               rpcrt4
ELF     7e0aa000-7e1ec000       Deferred        ole32<elf>
  \-PE  7e0c0000-7e1ec000       \               ole32
ELF     7e1ec000-7e29e000       Deferred        msvcrt<elf>
  \-PE  7e200000-7e29e000       \               msvcrt
ELF     7e29e000-7e2c8000       Deferred        msacm32<elf>
  \-PE  7e2a0000-7e2c8000       \               msacm32
ELF     7e2c8000-7e381000       Deferred        winmm<elf>
  \-PE  7e2d0000-7e381000       \               winmm
ELF     7e3b0000-7e3c0000       Deferred        libdrm.so.2
ELF     7e3c0000-7e3c6000       Deferred        libxdmcp.so.6
ELF     7e3c6000-7e3c9000       Deferred        libxau.so.6
ELF     7e3c9000-7e3e9000       Deferred        libxcb.so.1
ELF     7e3e9000-7e3ee000       Deferred        libxxf86vm.so.1
ELF     7e3ee000-7e3f3000       Deferred        libxcb-dri2.so.0
ELF     7e3f3000-7e40a000       Deferred        libxcb-glx.so.0
ELF     7e40a000-7e42f000       Deferred        libglapi.so.0
ELF     7e42f000-7e456000       Deferred        libexpat.so.1
ELF     7e456000-7e472000       Deferred        libgcc_s.so.1
ELF     7e55a000-7e691000       Deferred        libx11.so.6
ELF     7e691000-7e6a3000       Deferred        libxext.so.6
ELF     7e6a3000-7e730000       Deferred        libgl.so.1
ELF     7e730000-7e7a9000       Deferred        libglu.so.1
ELF     7e7ad000-7e7b0000       Deferred        libxcomposite.so.1
ELF     7e7b0000-7e7ba000       Deferred        libxrandr.so.2
ELF     7e7ba000-7e7c4000       Deferred        libxrender.so.1
ELF     7e7c4000-7e7c7000       Deferred        libxinerama.so.1
ELF     7e7c7000-7e7cb000       Deferred        cp1251.so
ELF     7e7cb000-7e7e2000       Deferred        glu32<elf>
  \-PE  7e7d0000-7e7e2000       \               glu32
ELF     7e7e2000-7e900000       Dwarf           opengl32<elf>
  \-PE  7e800000-7e900000       \               opengl32
ELF     7e900000-7e97a000       Deferred        advapi32<elf>
  \-PE  7e910000-7e97a000       \               advapi32
ELF     7e97a000-7ea98000       Deferred        gdi32<elf>
  \-PE  7e990000-7ea98000       \               gdi32
ELF     7ea98000-7ec0d000       Deferred        user32<elf>
  \-PE  7eab0000-7ec0d000       \               user32
ELF     7ec0d000-7ec1a000       Deferred        libnss_files.so.2
ELF     7ec1a000-7ec26000       Deferred        libnss_nis.so.2
ELF     7ec26000-7ec41000       Deferred        libnsl.so.1
ELF     7ec41000-7ec4b000       Deferred        libnss_compat.so.2
ELF     7ec4d000-7ec4f000       Deferred        libx11-xcb.so.1
ELF     7ec4f000-7ec54000       Deferred        libxfixes.so.3
ELF     7ec54000-7ec6d000       Deferred        version<elf>
  \-PE  7ec60000-7ec6d000       \               version
ELF     7eca4000-7ef0e000       Dwarf           kernel32<elf>
  \-PE  7ecc0000-7ef0e000       \               kernel32
ELF     7ef0e000-7f000000       Dwarf           ntdll<elf>
  \-PE  7ef20000-7f000000       \               ntdll
ELF     b6dc0000-b6dc3000       Deferred        libxdamage.so.1
ELF     b6ff1000-b7033000       Deferred        libm.so.6
ELF     b7033000-b71bf000       Dwarf           libc.so.6
ELF     b71bf000-b71c4000       Deferred        libdl.so.2
ELF     b71c4000-b71de000       Deferred        libpthread.so.0
ELF     b7200000-b73c6000       Dwarf           libwine.so.1
ELF     b7793000-b77b6000       Deferred        ld-linux.so.2
Threads:
process  tid      prio (all id:s are in hex)
0000000e services.exe
        00000020    0
        0000001f    0
        00000016    0
        00000012    0
        0000000f    0
00000010 explorer.exe
        00000026    0
        00000025    0
        00000024    0
        00000023    0
        00000011    0
00000014 winedevice.exe
        0000001e    0
        0000001b    0
        0000001a    0
        00000015    0
0000001c plugplay.exe
        00000022    0
        00000021    0
        0000001d    0
00000027 XSconfig.exe
        00000028    0
00000029 (D) C:\Program Files\GL Excess\glxsv1.2.exe
        0000002a    0 <==
System information:
    Wine build: wine-1.7.51 (Staging)
    Platform: i386
    Host system: Linux
    Host version: 4.2.0-i486
apitrace: loaded into /usr/bin/wine-preloader
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
apitrace: loaded into /usr/bin/wine-preloader
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
apitrace: loaded into /usr/bin/konqueror
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
apitrace: loaded into /bin/bash
apitrace: loaded into /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: loaded into /bin/bash
apitrace: loaded into /usr/bin/iceauth
apitrace: unloaded from /usr/bin/iceauth
apitrace: unloaded from /usr/bin/kdeinit
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
kbuildsycoca running...
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/konqueror
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: unloaded from /usr/bin/kdeinit
apitrace: loaded into /bin/bash
apitrace: loaded into /usr/bin/dcopserver_shutdown
apitrace: loaded into /bin/bash
apitrace: loaded into /usr/bin/iceauth
apitrace: unloaded from /usr/bin/iceauth
apitrace: unloaded from /usr/bin/dcopserver_shutdown
apitrace: unloaded from /usr/bin/kdeinit

----quote end-----

Is there way to dump openGL commands via other method? Gallium-specific, even?
Comment 7 Andrew Randrianasulu 2015-10-07 17:14:28 UTC
Older wine reacted the same (illegal instruction), so this is not something added with new wine version.

This machine lacks SSE2, obviously ..may be apitrace silently compiles in some SSE2+ code?

bash-4.2$ cat /proc/cpuinfo
processor       : 0
vendor_id       : GenuineIntel
cpu family      : 6
model           : 11
model name      : Intel(R) Celeron(TM) CPU                1000MHz
stepping        : 1
microcode       : 0x1c
cpu MHz         : 1000.051
cache size      : 256 KB
physical id     : 0
siblings        : 1
core id         : 0
cpu cores       : 1
apicid          : 0
initial apicid  : 0
fdiv_bug        : no
f00f_bug        : no
coma_bug        : no
fpu             : yes
fpu_exception   : yes
cpuid level     : 2
wp              : yes
flags           : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pse36 mmx fxsr sse
bugs            :
bogomips        : 2000.10
clflush size    : 32
cache_alignment : 32
address sizes   : 36 bits physical, 32 bits virtual
power management:
Comment 8 Andrew Randrianasulu 2015-10-07 17:16:10 UTC
apitrace at commit f004530b30a63c08a16d82536858600446b2abf5 ("Date:   Mon Sep 21 11:23:02 2015 +0100
    d3d10state: Dump D3D10 texture formats.")
Comment 9 Andrew Randrianasulu 2015-10-07 18:31:10 UTC
Created attachment 118742 [details]
apitrace (bz2 compressed)

ok, as workaround I run apitrace from another machine (with "Intel(R) Pentium(R) Dual  CPU  T2390  @ 1.86GHz" and infamous  RS600 integrated graphics controller), where it worked.
Comment 10 Andrew Randrianasulu 2015-10-07 19:03:43 UTC
Please use this file instead, attached one was truncated :/

http://s000.tinyupload.com/index.php?file_id=94706413066309920881 (xz compressed, uncompressed trace was ~17 mb)
Comment 11 Andrew Randrianasulu 2015-10-11 06:41:29 UTC
After recompiling mesa

mesa git  commit 93161be9e7150ae5931000627833e714901cf195 -  "i965: Fix intel_miptree_is_fast_clear_capable()"

with this command line
 ./configure --prefix=/usr --disable-dri3 --with-gallium-drivers=nouveau --enable-texture-float --enable-debug --with-dri-drivers=swrast

I got in terminal
----------
bash-4.2$ wine GLExcess.exe
fixme:winediag:start_process Wine Staging 1.7.51 is a testing version containing experimental patches.
fixme:winediag:start_process Please report bugs at http://bugs.wine-staging.com (instead of winehq.org).
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
reading configurations from ~/.fonts.conf is deprecated.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
fixme:ole:RemUnknown_QueryInterface No interface for iid {00000019-0000-0000-c000-000000000046}
fixme:ole:RemUnknown_QueryInterface No interface for iid {00000019-0000-0000-c000-000000000046}
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
bash-4.2$ Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Mismatched color and zeta formats, ignoring zeta.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
Fontconfig warning: "/etc/fonts/conf.d/50-user.conf", line 14: reading configurations from ~/.fonts.conf is deprecated.
kbuildsycoca running...
--------

important part seems to be:
"Mismatched color and zeta formats, ignoring zeta."

I also tried to disable PIPE_CAP_BUFFER_MAP_PERSISTENT_COHERENT , but this not fixed my bug.
Comment 12 Ilia Mirkin 2015-10-11 18:58:50 UTC
(In reply to Andrew Randrianasulu from comment #11)
> "Mismatched color and zeta formats, ignoring zeta."

Yeah, as I suspected... unfortunately there's not a ton you can do besides fixing the issue. The problem is that you can't render to a 32-bit color format (e.g. RGBA8) while using a 16-bit zeta (Z16), and conversely you can't render to a 16-bit color format (e.g. RGB565) while using a 32-bit zeta (Z24S8).

My current solution to this problem is to just not set the zeta buffer and move on with life. This leads to incorrect rendering, but at least no hangs.

The proper solution is to have 2 depth textures that you copy to and fro and set the "right" one for the given color format. Ideally while minimizing the number of copies.
Comment 13 Andrew Randrianasulu 2015-10-13 02:09:29 UTC
(In reply to Ilia Mirkin from comment #12)
> (In reply to Andrew Randrianasulu from comment #11)
> > "Mismatched color and zeta formats, ignoring zeta."
>
> Yeah, as I suspected... unfortunately there's not a ton you can do besides
> fixing the issue. The problem is that you can't render to a 32-bit color
> format (e.g. RGBA8) while using a 16-bit zeta (Z16), and conversely you
> can't render to a 16-bit color format (e.g. RGB565) while using a 32-bit
> zeta (Z24S8).
>
> My current solution to this problem is to just not set the zeta buffer and
> move on with life. This leads to incorrect rendering, but at least no hangs.
>
> The proper solution is to have 2 depth textures that you copy to and fro and
> set the "right" one for the given color format. Ideally while minimizing the
> number of copies.

Hm, but in my case it apparently worked fine... so, may be check is overrestrictive?

I also tried to apply this path on top of mesa version indicated above ((git-93161be)

----patch---
diff --git a/src/gallium/drivers/nouveau/nv30/nv30_state.c b/src/gallium/drivers/nouveau/nv30/nv30_state.c
index fd604c2..cceedfd 100644
--- a/src/gallium/drivers/nouveau/nv30/nv30_state.c
+++ b/src/gallium/drivers/nouveau/nv30/nv30_state.c
@@ -382,7 +382,7 @@ nv30_set_framebuffer_state(struct pipe_context *pipe,
            (util_format_get_blocksize(fb->zsbuf->format) > 2) !=
            (util_format_get_blocksize(fb->cbufs[0]->format) > 2)) {
           nv30->framebuffer.zsbuf = NULL;
-          debug_printf("Mismatched color and zeta formats, ignoring zeta.\n");
+          debug_printf("Mismatched color %d and zeta %d formats, ignoring zeta.\n", fb->cbufs[0]->format, fb->zsbuf->format);
        }
     }
 }
--------end-----

and got this in terminal:
"Mismatched color 1 and zeta 16 formats, ignoring zeta."

This is a bit strange, this demo from ~2002 era, and apparently was  working fine on older nvidia hardware. And on nouveau, until this  commit.  I will retest just for making sure it doesn't flood my dmesg with errors ....
Comment 14 Ilia Mirkin 2015-10-13 02:14:57 UTC
(In reply to Andrew Randrianasulu from comment #13)
> (In reply to Ilia Mirkin from comment #12)
> > (In reply to Andrew Randrianasulu from comment #11)
> > > "Mismatched color and zeta formats, ignoring zeta."
> >
> > Yeah, as I suspected... unfortunately there's not a ton you can do besides
> > fixing the issue. The problem is that you can't render to a 32-bit color
> > format (e.g. RGBA8) while using a 16-bit zeta (Z16), and conversely you
> > can't render to a 16-bit color format (e.g. RGB565) while using a 32-bit
> > zeta (Z24S8).
> >
> > My current solution to this problem is to just not set the zeta buffer and
> > move on with life. This leads to incorrect rendering, but at least no hangs.
> >
> > The proper solution is to have 2 depth textures that you copy to and fro and
> > set the "right" one for the given color format. Ideally while minimizing the
> > number of copies.
>
> Hm, but in my case it apparently worked fine... so, may be check is
> overrestrictive?
>
> I also tried to apply this path on top of mesa version indicated above
> ((git-93161be)
>
> ----patch---
> diff --git a/src/gallium/drivers/nouveau/nv30/nv30_state.c
> b/src/gallium/drivers/nouveau/nv30/nv30_state.c
> index fd604c2..cceedfd 100644
> --- a/src/gallium/drivers/nouveau/nv30/nv30_state.c
> +++ b/src/gallium/drivers/nouveau/nv30/nv30_state.c
> @@ -382,7 +382,7 @@ nv30_set_framebuffer_state(struct pipe_context *pipe,
>             (util_format_get_blocksize(fb->zsbuf->format) > 2) !=
>             (util_format_get_blocksize(fb->cbufs[0]->format) > 2)) {
>            nv30->framebuffer.zsbuf = NULL;
> -          debug_printf("Mismatched color and zeta formats, ignoring
> zeta.\n");
> +          debug_printf("Mismatched color %d and zeta %d formats, ignoring
> zeta.\n", fb->cbufs[0]->format, fb->zsbuf->format);
>         }
>      }
>  }
> --------end-----
>
> and got this in terminal:
> "Mismatched color 1 and zeta 16 formats, ignoring zeta."
>
> This is a bit strange, this demo from ~2002 era, and apparently was  working
> fine on older nvidia hardware. And on nouveau, until this  commit.  I will
> retest just for making sure it doesn't flood my dmesg with errors ....

You should be seeing errors about invalid values in dmesg for 0208 or some similar method. I'm guessing that the zeta buffer is used in such a way that things happen to work out, but the card doesn't really support it.

src/gallium/include/pipe/p_format.h:   PIPE_FORMAT_B8G8R8A8_UNORM          = 1,
src/gallium/include/pipe/p_format.h:   PIPE_FORMAT_Z16_UNORM               = 16,

Not a valid combo, AFAIK.
Comment 15 Andrew Randrianasulu 2015-10-13 02:23:21 UTC
(In reply to Ilia Mirkin from comment #14)
> (In reply to Andrew Randrianasulu from comment #13)
> > (In reply to Ilia Mirkin from comment #12)
> > > (In reply to Andrew Randrianasulu from comment #11)
> > > > "Mismatched color and zeta formats, ignoring zeta."
> > >
> > > Yeah, as I suspected... unfortunately there's not a ton you can do besides
> > > fixing the issue. The problem is that you can't render to a 32-bit color
> > > format (e.g. RGBA8) while using a 16-bit zeta (Z16), and conversely you
> > > can't render to a 16-bit color format (e.g. RGB565) while using a 32-bit
> > > zeta (Z24S8).
> > >
> > > My current solution to this problem is to just not set the zeta buffer and
> > > move on with life. This leads to incorrect rendering, but at least no hangs.
> > >
> > > The proper solution is to have 2 depth textures that you copy to and fro and
> > > set the "right" one for the given color format. Ideally while minimizing the
> > > number of copies.
> >
> > Hm, but in my case it apparently worked fine... so, may be check is
> > overrestrictive?
> >
> > I also tried to apply this path on top of mesa version indicated above
> > ((git-93161be)
> >
> > ----patch---
> > diff --git a/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > b/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > index fd604c2..cceedfd 100644
> > --- a/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > +++ b/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > @@ -382,7 +382,7 @@ nv30_set_framebuffer_state(struct pipe_context *pipe,
> >             (util_format_get_blocksize(fb->zsbuf->format) > 2) !=
> >             (util_format_get_blocksize(fb->cbufs[0]->format) > 2)) {
> >            nv30->framebuffer.zsbuf = NULL;
> > -          debug_printf("Mismatched color and zeta formats, ignoring
> > zeta.\n");
> > +          debug_printf("Mismatched color %d and zeta %d formats, ignoring
> > zeta.\n", fb->cbufs[0]->format, fb->zsbuf->format);
> >         }
> >      }
> >  }
> > --------end-----
> >
> > and got this in terminal:
> > "Mismatched color 1 and zeta 16 formats, ignoring zeta."
> >
> > This is a bit strange, this demo from ~2002 era, and apparently was  working
> > fine on older nvidia hardware. And on nouveau, until this  commit.  I will
> > retest just for making sure it doesn't flood my dmesg with errors ....
>
> You should be seeing errors about invalid values in dmesg for 0208 or some
> similar method. I'm guessing that the zeta buffer is used in such a way that
> things happen to work out, but the card doesn't really support it.
>
> src/gallium/include/pipe/p_format.h:   PIPE_FORMAT_B8G8R8A8_UNORM          =
> 1,
> src/gallium/include/pipe/p_format.h:   PIPE_FORMAT_Z16_UNORM               =
> 16,
>
> Not a valid combo, AFAIK.

just tried to comment  out zbuf disabling, rendering is ok, no errors o.o May be because nv43 uses z-compression?
Comment 16 Andrew Randrianasulu 2015-10-13 04:27:27 UTC
Created attachment 118847 [details]
dmesg, from glean run, makeCurrent tests
Comment 17 Ben Skeggs 2015-10-13 06:29:01 UTC
(In reply to Ilia Mirkin from comment #14)
> (In reply to Andrew Randrianasulu from comment #13)
> > (In reply to Ilia Mirkin from comment #12)
> > > (In reply to Andrew Randrianasulu from comment #11)
> > > > "Mismatched color and zeta formats, ignoring zeta."
> > >
> > > Yeah, as I suspected... unfortunately there's not a ton you can do besides
> > > fixing the issue. The problem is that you can't render to a 32-bit color
> > > format (e.g. RGBA8) while using a 16-bit zeta (Z16), and conversely you
> > > can't render to a 16-bit color format (e.g. RGB565) while using a 32-bit
> > > zeta (Z24S8).
> > >
> > > My current solution to this problem is to just not set the zeta buffer and
> > > move on with life. This leads to incorrect rendering, but at least no hangs.
> > >
> > > The proper solution is to have 2 depth textures that you copy to and fro and
> > > set the "right" one for the given color format. Ideally while minimizing the
> > > number of copies.
> >
> > Hm, but in my case it apparently worked fine... so, may be check is
> > overrestrictive?
> >
> > I also tried to apply this path on top of mesa version indicated above
> > ((git-93161be)
> >
> > ----patch---
> > diff --git a/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > b/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > index fd604c2..cceedfd 100644
> > --- a/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > +++ b/src/gallium/drivers/nouveau/nv30/nv30_state.c
> > @@ -382,7 +382,7 @@ nv30_set_framebuffer_state(struct pipe_context *pipe,
> >             (util_format_get_blocksize(fb->zsbuf->format) > 2) !=
> >             (util_format_get_blocksize(fb->cbufs[0]->format) > 2)) {
> >            nv30->framebuffer.zsbuf = NULL;
> > -          debug_printf("Mismatched color and zeta formats, ignoring
> > zeta.\n");
> > +          debug_printf("Mismatched color %d and zeta %d formats, ignoring
> > zeta.\n", fb->cbufs[0]->format, fb->zsbuf->format);
> >         }
> >      }
> >  }
> > --------end-----
> >
> > and got this in terminal:
> > "Mismatched color 1 and zeta 16 formats, ignoring zeta."
> >
> > This is a bit strange, this demo from ~2002 era, and apparently was  working
> > fine on older nvidia hardware. And on nouveau, until this  commit.  I will
> > retest just for making sure it doesn't flood my dmesg with errors ....
>
> You should be seeing errors about invalid values in dmesg for 0208 or some
> similar method. I'm guessing that the zeta buffer is used in such a way that
> things happen to work out, but the card doesn't really support it.
>
> src/gallium/include/pipe/p_format.h:   PIPE_FORMAT_B8G8R8A8_UNORM          =
> 1,
> src/gallium/include/pipe/p_format.h:   PIPE_FORMAT_Z16_UNORM               =
> 16,
>
> Not a valid combo, AFAIK.

I believe that restriction might only apply to swizzled surfaces.
Comment 18 Andrew Randrianasulu 2016-08-31 20:17:53 UTC
Fixed with mesa git, thanks Ilia!


Use of freedesktop.org services, including Bugzilla, is subject to our Code of Conduct.
