95528 – BioShock Infinite graphical glitches on radeonsi

Bug 95528 - BioShock Infinite graphical glitches on radeonsi

Summary: BioShock Infinite graphical glitches on radeonsi

Status:	RESOLVED FIXED

Alias:	None

Product:	Mesa
Classification:	Unclassified
Component:	Drivers/Gallium/radeonsi (show other bugs)
Version:	git
Hardware:	Other All

Importance:	medium normal
Assignee:	Default DRI bug account
QA Contact:	Default DRI bug account

URL:
Whiteboard:
Keywords:

Depends on:
Blocks:

Reported:	2016-05-22 20:53 UTC by Mike Lothian
Modified:	2016-07-29 07:24 UTC (History)
CC List:	6 users (show)

See Also:
i915 platform:
i915 features:

Attachments
Settings that wouldn't allow the game to start with radeonsi (Page 1) (545.75 KB, image/jpeg) 2016-05-22 20:55 UTC, Mike Lothian	Details
Settings that wouldn't allow the game to start with radeonsi (Page 2) (497.66 KB, image/jpeg) 2016-05-22 20:56 UTC, Mike Lothian	Details
Patch of the revert of D19091 (21.47 KB, text/plain) 2016-06-23 02:22 UTC, Mike Lothian	Details
Trimmed R600_DEBUG=vs,ps output & shader GL calls with LLVM r273782 (185.64 KB, text/plain) 2016-06-25 19:36 UTC, Daniel Scharrer	Details
Trimmed R600_DEBUG=vs,ps output & shader GL calls with LLVM r273782, but with r266378 reverted (185.70 KB, text/plain) 2016-06-25 19:36 UTC, Daniel Scharrer	Details
View All

Description Mike Lothian 2016-05-22 20:53:28 UTC

Hi

I've been having issues starting the game with high settings at 4k resolution on Tonga, at lower settings I'm seeing graphical glitches https://www.youtube.com/watch?v=ZyKjahCamLQ

If I start the game in low settings and turn up the settings the game freezes up (I've also had the same issues with high settings on DiRT)

I'm running agd5f's drm-next-4.8-wip branch, I've also tried with kernel 4.5 & 4.6

The issue goes away if I'm running llvm-3.8 & Mesa 11.2.2 or running llvm-3.8 with Mesa-git, I can't compile Mesa 11.2.2 with llvm-git

This is a prime system Skylake/Tonga - I don't have any issues starting these games on Skylake or see any graphical glitches (of course the game is very slow with these settings)

I think these are the same issues that were spotted on Phoronix too

Once the apitrace is uploaded I'll post the link

Comment 1 Mike Lothian 2016-05-22 20:55:56 UTC

Created attachment 123970 [details]

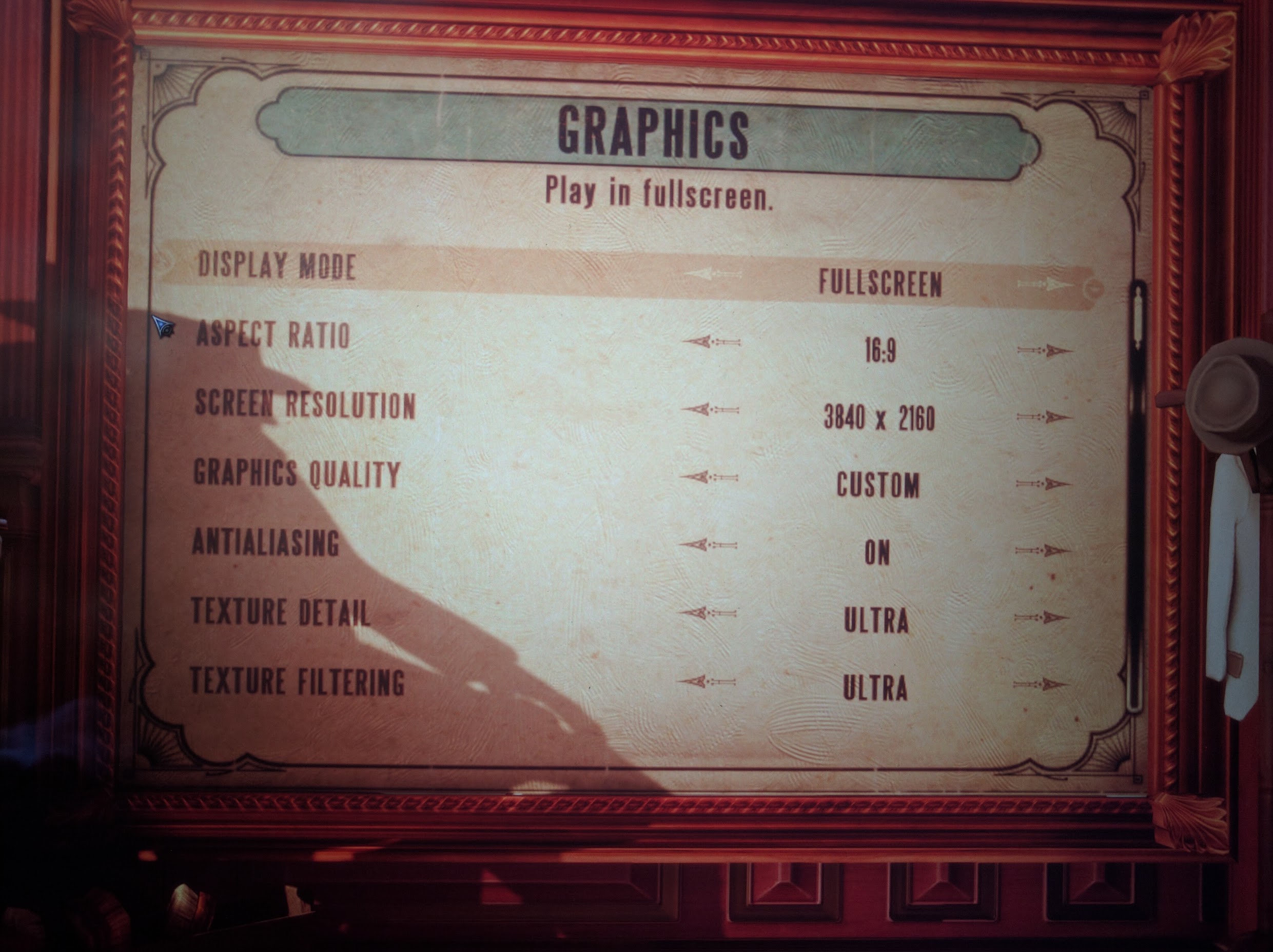

Settings that wouldn't allow the game to start with radeonsi (Page 1)

Comment 2 Mike Lothian 2016-05-22 20:56:27 UTC

Created attachment 123971 [details]
Settings that wouldn't allow the game to start with radeonsi (Page 2)

Comment 3 Mike Lothian 2016-05-22 21:08:40 UTC

To clarify, when the settings are too high, the same starts and plays the intro videos but at the point where the cursor normally appears and the main menu is shown, the screen just remains black. I can switch out of the app but I can't kill the process. The only way to stop it is to restart the machine - the graphics card remains powered

Comment 4 Mike Lothian 2016-05-22 21:09:54 UTC

Trace taken with Apitrace 7.1 can be downloaded from https://drive.google.com/file/d/0BySKFkadlRnpOC04aEJCNGNKeVk/view?usp=sharing

Comment 5 Michel Dänzer 2016-05-24 07:01:48 UTC

If you replay the apitrace, does it produce exactly the same visuals and other symptoms as when playing the game itself? I get what looks like essentially random vertices all over the place, which might indicate that something went wrong when capturing the apitrace. Maybe try setting the environment variable MESA_EXTENSION_OVERRIDE="-GL_ARB_buffer_storage" for capturing the apitrace.

Comment 6 Mike Lothian 2016-05-24 23:41:52 UTC

No it doesn't play correctly when I try and reply it:

fireburn@axion ~/.steam/steam/steamapps/common/BioShock Infinite $ DRI_PRIME=1 apitrace replay bioshock.i386.trace
90247: message: major api error 1: GL_INVALID_ENUM in glTexImage2DMultisample(internalformat=GL_RGB9_E5)
90247 @0 glTexImage2DMultisample(target = GL_TEXTURE_2D_MULTISAMPLE, samples = 2, internalformat = GL_RGB9_E5, width = 32, height = 32, fixedsamplelocations = GL_TRUE)
90247: warning: glGetError(glTexImage2DMultisample) = GL_INVALID_ENUM
error: drawable failed to resize: expected 3840x2160, got 128x128
96564: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 76 LDS: 0 Scratch: 0 Max Waves: 10
96564: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 48 LDS: 0 Scratch: 0 Max Waves: 10
96564: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 84 LDS: 0 Scratch: 0 Max Waves: 10
97093: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 96 LDS: 0 Scratch: 0 Max Waves: 10
97093: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 324 LDS: 0 Scratch: 0 Max Waves: 10
97168: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 8 Code Size: 104 LDS: 0 Scratch: 0 Max Waves: 10
97168: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 84 LDS: 0 Scratch: 0 Max Waves: 10
122187: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 108 LDS: 0 Scratch: 0 Max Waves: 10
122493: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 68 LDS: 0 Scratch: 0 Max Waves: 10
140291: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 32 LDS: 0 Scratch: 0 Max Waves: 10
140404: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1276 LDS: 0 Scratch: 0 Max Waves: 9
140404: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 608 LDS: 0 Scratch: 0 Max Waves: 10
140477: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 780 LDS: 0 Scratch: 0 Max Waves: 10
140528: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1324 LDS: 0 Scratch: 0 Max Waves: 9
140528: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 688 LDS: 0 Scratch: 0 Max Waves: 10
140625: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 48 Code Size: 1536 LDS: 0 Scratch: 0 Max Waves: 5
140625: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 800 LDS: 0 Scratch: 0 Max Waves: 10
140712: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 48 Code Size: 1556 LDS: 0 Scratch: 0 Max Waves: 5
140761: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 48 Code Size: 1556 LDS: 0 Scratch: 0 Max Waves: 5
140761: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 844 LDS: 0 Scratch: 0 Max Waves: 10
140932: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1276 LDS: 0 Scratch: 0 Max Waves: 9
140932: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 976 LDS: 0 Scratch: 0 Max Waves: 10
142120: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 48 Code Size: 1536 LDS: 0 Scratch: 0 Max Waves: 5
142120: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 800 LDS: 0 Scratch: 0 Max Waves: 10
142593: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 48 Code Size: 1512 LDS: 0 Scratch: 0 Max Waves: 5
143799: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1300 LDS: 0 Scratch: 0 Max Waves: 9
143799: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 764 LDS: 0 Scratch: 0 Max Waves: 10
143858: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1300 LDS: 0 Scratch: 0 Max Waves: 9
143858: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 800 LDS: 0 Scratch: 0 Max Waves: 10
143952: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 36 Code Size: 1940 LDS: 0 Scratch: 0 Max Waves: 7
143952: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 848 LDS: 0 Scratch: 0 Max Waves: 10
143984: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1240 LDS: 0 Scratch: 0 Max Waves: 9
143984: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 608 LDS: 0 Scratch: 0 Max Waves: 10
144047: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 808 LDS: 0 Scratch: 0 Max Waves: 10
144119: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 40 Code Size: 2236 LDS: 0 Scratch: 0 Max Waves: 6
144119: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 788 LDS: 0 Scratch: 0 Max Waves: 10
144183: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1300 LDS: 0 Scratch: 0 Max Waves: 9
144183: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 800 LDS: 0 Scratch: 0 Max Waves: 10
144212: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 652 LDS: 0 Scratch: 0 Max Waves: 10
144305: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1324 LDS: 0 Scratch: 0 Max Waves: 9
144305: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 844 LDS: 0 Scratch: 0 Max Waves: 10
144406: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1276 LDS: 0 Scratch: 0 Max Waves: 9
144406: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 804 LDS: 0 Scratch: 0 Max Waves: 10
144461: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1324 LDS: 0 Scratch: 0 Max Waves: 9
144461: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 780 LDS: 0 Scratch: 0 Max Waves: 10
144579: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 608 LDS: 0 Scratch: 0 Max Waves: 10
145058: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 32 Code Size: 1384 LDS: 0 Scratch: 0 Max Waves: 8
145058: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1036 LDS: 0 Scratch: 0 Max Waves: 9
145191: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1300 LDS: 0 Scratch: 0 Max Waves: 9
145297: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1300 LDS: 0 Scratch: 0 Max Waves: 9
145297: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 800 LDS: 0 Scratch: 0 Max Waves: 10
145447: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 844 LDS: 0 Scratch: 0 Max Waves: 10
145563: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 764 LDS: 0 Scratch: 0 Max Waves: 10
146233: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1276 LDS: 0 Scratch: 0 Max Waves: 9
146233: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 888 LDS: 0 Scratch: 0 Max Waves: 10
146321: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1276 LDS: 0 Scratch: 0 Max Waves: 9
146321: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 816 LDS: 0 Scratch: 0 Max Waves: 10
146372: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 644 LDS: 0 Scratch: 0 Max Waves: 10
146545: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 836 LDS: 0 Scratch: 0 Max Waves: 10
146740: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 36 Code Size: 1984 LDS: 0 Scratch: 0 Max Waves: 7
146740: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 24 Code Size: 960 LDS: 0 Scratch: 0 Max Waves: 10
147073: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 32 Code Size: 1396 LDS: 0 Scratch: 0 Max Waves: 8
147192: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 764 LDS: 0 Scratch: 0 Max Waves: 10
147535: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 908 LDS: 0 Scratch: 0 Max Waves: 10
147699: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1228 LDS: 0 Scratch: 0 Max Waves: 9
147699: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 24 Code Size: 648 LDS: 0 Scratch: 0 Max Waves: 10
147753: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1252 LDS: 0 Scratch: 0 Max Waves: 9
147753: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 24 Code Size: 580 LDS: 0 Scratch: 0 Max Waves: 10
147803: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1228 LDS: 0 Scratch: 0 Max Waves: 9
147803: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 556 LDS: 0 Scratch: 0 Max Waves: 10
147856: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1228 LDS: 0 Scratch: 0 Max Waves: 9
147856: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 24 Code Size: 648 LDS: 0 Scratch: 0 Max Waves: 10
147910: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1252 LDS: 0 Scratch: 0 Max Waves: 9
147910: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 24 Code Size: 580 LDS: 0 Scratch: 0 Max Waves: 10
147992: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1276 LDS: 0 Scratch: 0 Max Waves: 9
147992: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 588 LDS: 0 Scratch: 0 Max Waves: 10
148072: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1512 LDS: 0 Scratch: 0 Max Waves: 9
148072: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 472 LDS: 0 Scratch: 0 Max Waves: 10
148321: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1560 LDS: 0 Scratch: 0 Max Waves: 9
148321: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 552 LDS: 0 Scratch: 0 Max Waves: 10
148396: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1536 LDS: 0 Scratch: 0 Max Waves: 9
148396: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 664 LDS: 0 Scratch: 0 Max Waves: 10
148447: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1536 LDS: 0 Scratch: 0 Max Waves: 9
148447: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 508 LDS: 0 Scratch: 0 Max Waves: 10
148528: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 32 Code Size: 1628 LDS: 0 Scratch: 0 Max Waves: 8
148528: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 896 LDS: 0 Scratch: 0 Max Waves: 9
148599: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 72 Code Size: 2476 LDS: 0 Scratch: 0 Max Waves: 3
148599: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 664 LDS: 0 Scratch: 0 Max Waves: 10
148659: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 72 Code Size: 2476 LDS: 0 Scratch: 0 Max Waves: 3
148659: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 24 Code Size: 700 LDS: 0 Scratch: 0 Max Waves: 10
148746: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1560 LDS: 0 Scratch: 0 Max Waves: 9
148746: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 15 Code Size: 552 LDS: 0 Scratch: 0 Max Waves: 10
148809: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1512 LDS: 0 Scratch: 0 Max Waves: 9
148809: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 644 LDS: 0 Scratch: 0 Max Waves: 10
148873: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 40 Code Size: 2236 LDS: 0 Scratch: 0 Max Waves: 6
148873: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 700 LDS: 0 Scratch: 0 Max Waves: 10
148927: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 28 Code Size: 1276 LDS: 0 Scratch: 0 Max Waves: 9
148927: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 16 Code Size: 716 LDS: 0 Scratch: 0 Max Waves: 10
149008: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 36 Code Size: 1620 LDS: 0 Scratch: 0 Max Waves: 7
149008: message: shader compiler issue 2: Shader Stats: SGPRS: 80 VGPRS: 20 Code Size: 820 LDS: 0 Scratch: 0 Max Waves: 10
149131: message: shader compiler issue 2: too many identical messages; ignoring
Rendered 627 frames in 26.0544 secs, average of 24.065 fps

Comment 7 Mike Lothian 2016-05-24 23:43:52 UTC

I tried re-recording with MESA_EXTENSION_OVERRIDE="-GL_ARB_buffer_storage" but where the main menu would normally appear, the screen turned white with small coloured dots

Would you like me to try and record with i965 and replay on radeonsi to see if the same issue still happens?

Comment 8 Jan Ziak (http://atom-symbol.net) 2016-05-30 09:43:34 UTC

R9 390:

- The game has no problems starting at 1080p resolution with any in-game preset setting

- There are graphical glitches (flags and mirrors)

The rendering glitches seem to be purely a LLVM_3.9-related issue.

Comment 9 Vedran Miletić 2016-05-30 18:47:53 UTC

Discussed on #radeon, couldn't reproduce on Tonga:

01:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Tonga XT / Amethyst XT [Radeon R9 380X / R9 M295X] [1002:6938] (rev f1)

Comment 10 Arek Ruśniak 2016-06-07 09:22:10 UTC

(In reply to Jan Ziak from comment #8)
> R9 390:
>
> - The game has no problems starting at 1080p resolution with any in-game
> preset setting
>
> - There are graphical glitches (flags and mirrors)
>
> The rendering glitches seem to be purely a LLVM_3.9-related issue.

Hi, I have the same problem on SI (verde). Should I open new raport?

Problem has started since llvm-r266378

---
r266378 | arsenm | 2016-04-14 23:58:24
AMDGPU: Run SIFoldOperands after PeepholeOptimizer

PeepholeOptimizer cleans up redundant copies, which makes
the operand folding more effective.
---

Comment 11 Vedran Miletić 2016-06-07 16:22:45 UTC

I updated the bug summary. Thanks for providing the info.

Comment 12 Mike Lothian 2016-06-23 02:22:24 UTC

Created attachment 124673 [details]
Patch of the revert of D19091

This patch is the reversion of D19091

Which fixes the issue for me - the graphical glitches are gone

Comment 13 Michel Dänzer 2016-06-23 02:56:12 UTC

Matt, any ideas?

Comment 14 Daniel Scharrer 2016-06-25 19:36:07 UTC

Created attachment 124721 [details]
Trimmed R600_DEBUG=vs,ps output & shader GL calls with LLVM r273782

I could not record an apitrace (game hangs before getting to the main menu, possibly performance related), but I was able to dump the shaders and narrow down (some of) the affected ones.

The game uses two passes to render the flags and banners: The first pass (possibly a z prepass?) uses pipeline=20 in the attached logs (vertex shader=73, program=74; fragment shader=89, program=90).

The second pass is depth-tested against the results of the first, but uses different shaders - pipeline=105 (vertex shader=383 program=384; fragment shader=381, program=382).

With LLVM r266378 reverted, the results of the two passes line up, with current LLVM they do not causing the z-fighting visible in the video linked in the bug description. Even when disabling the depth test in the second pass, there are still visible parts of "white" background so this is a) most likely an issue with one of the vertex shaders and b) not just a depth precision issue. You can also see this by looking closely at the flags in the video - the while (holes punched by the z-prepass) and textured parts sway differently.

Since the game compiles an enormous amount of shaders on startup, the full  R600_DEBUG=cs,vs,tcs,tes,gs,ps output is quite large - I have attached a trimmed output that only contains the two vertex/fragment shader pairs used for the banners. The full logs are available at:
 http://constexpr.org/tmp/bioshockinfinite-bad.log (20 MiB)
 http://constexpr.org/tmp/bioshockinfinite-good.log (21 MiB)

Comment 15 Daniel Scharrer 2016-06-25 19:36:50 UTC

Created attachment 124722 [details]
Trimmed R600_DEBUG=vs,ps output & shader GL calls with LLVM r273782, but with r266378 reverted

Comment 16 Mike Lothian 2016-06-30 15:24:51 UTC

The revert nolong applied cleanly since "CodeGen: Use MachineInstr& in TargetInstrInfo, NFC"

git-svn-id: https://llvm.org/svn/llvm-project/llvm/trunk@274189 91177308-0d34-0410-b5e6-96231b3b80d8

Is there any chance you could revert the original change until a fix can be found for the regression

Comment 17 Matt Arsenault 2016-07-01 00:11:59 UTC

This is going to be a pre-existing bug. Can you narrow it down to a particular shader? I'm not familiar with debugging graphics

Comment 18 Matt Arsenault 2016-07-01 00:15:52 UTC

(In reply to Matt Arsenault from comment #17)
> This is going to be a pre-existing bug. Can you narrow it down to a
> particular shader? I'm not familiar with debugging graphics

I didn't notice the second trimmed set

Comment 19 Mike Lothian 2016-07-04 21:59:36 UTC

D21961 which isn't currently in llvm master fixes the issue for me

Comment 20 Mike Lothian 2016-07-29 07:24:43 UTC

I have a feeling https://reviews.llvm.org/D22032 fixed the issue where I could run the game at Ultra settings, certainly one of the changes in the last two days has fixed it for me

Use of freedesktop.org services, including Bugzilla, is subject to our Code of Conduct. How we collect and use information is described in our Privacy Policy.
