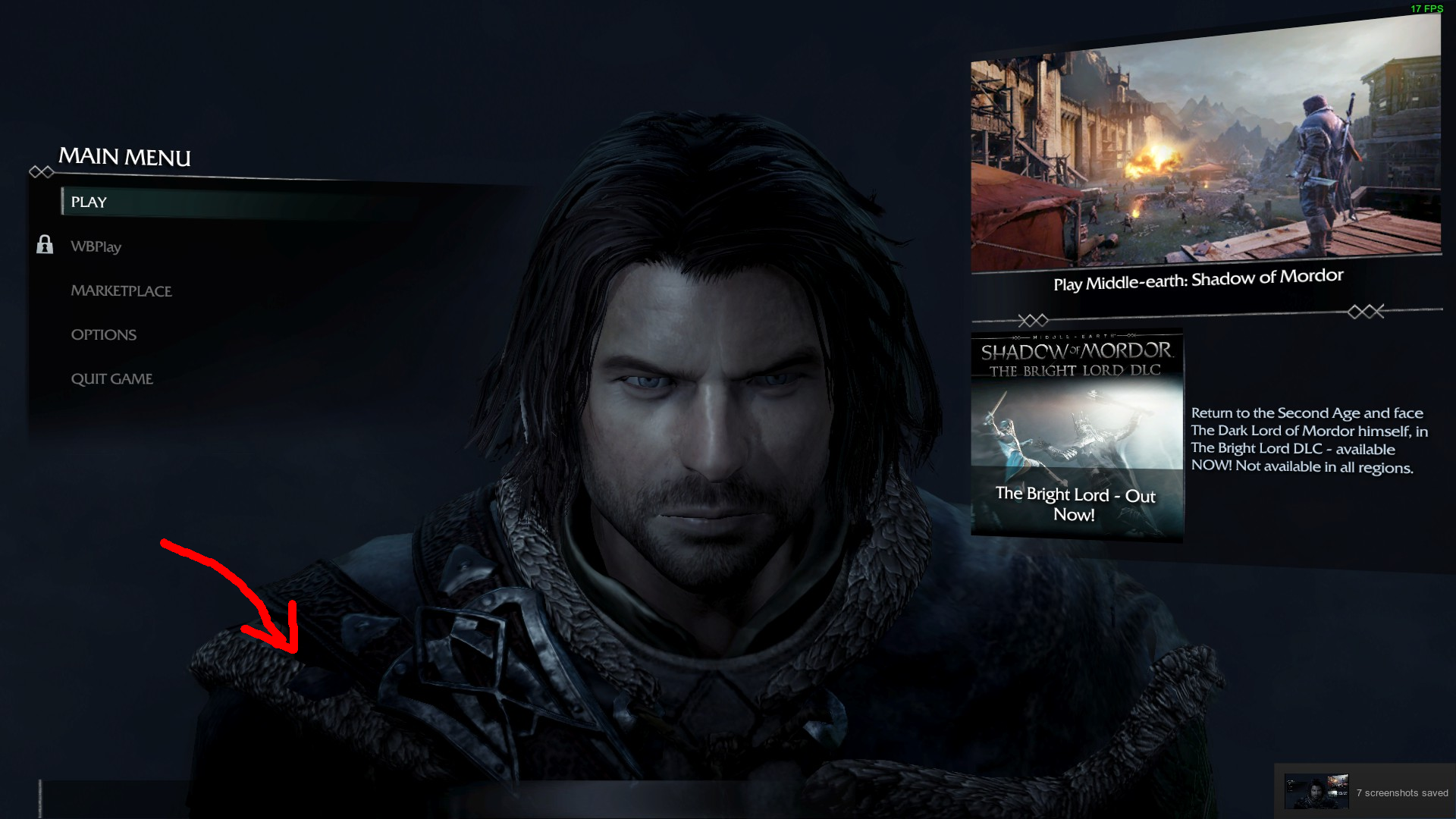

Created attachment 124124 [details] Shadow of Mordor screenshot See the screenshot attached to this bug. GPU: R9 390 OpenGL version string: 4.3 (Core Profile) Mesa 11.3.0-devel (git-8314dd7) $ export MESA_GLSL_VERSION_OVERRIDE=430 This may be related to the off-chip tessellation patches, but the issue doesn't depend on whether tessellation is enabled or disabled.

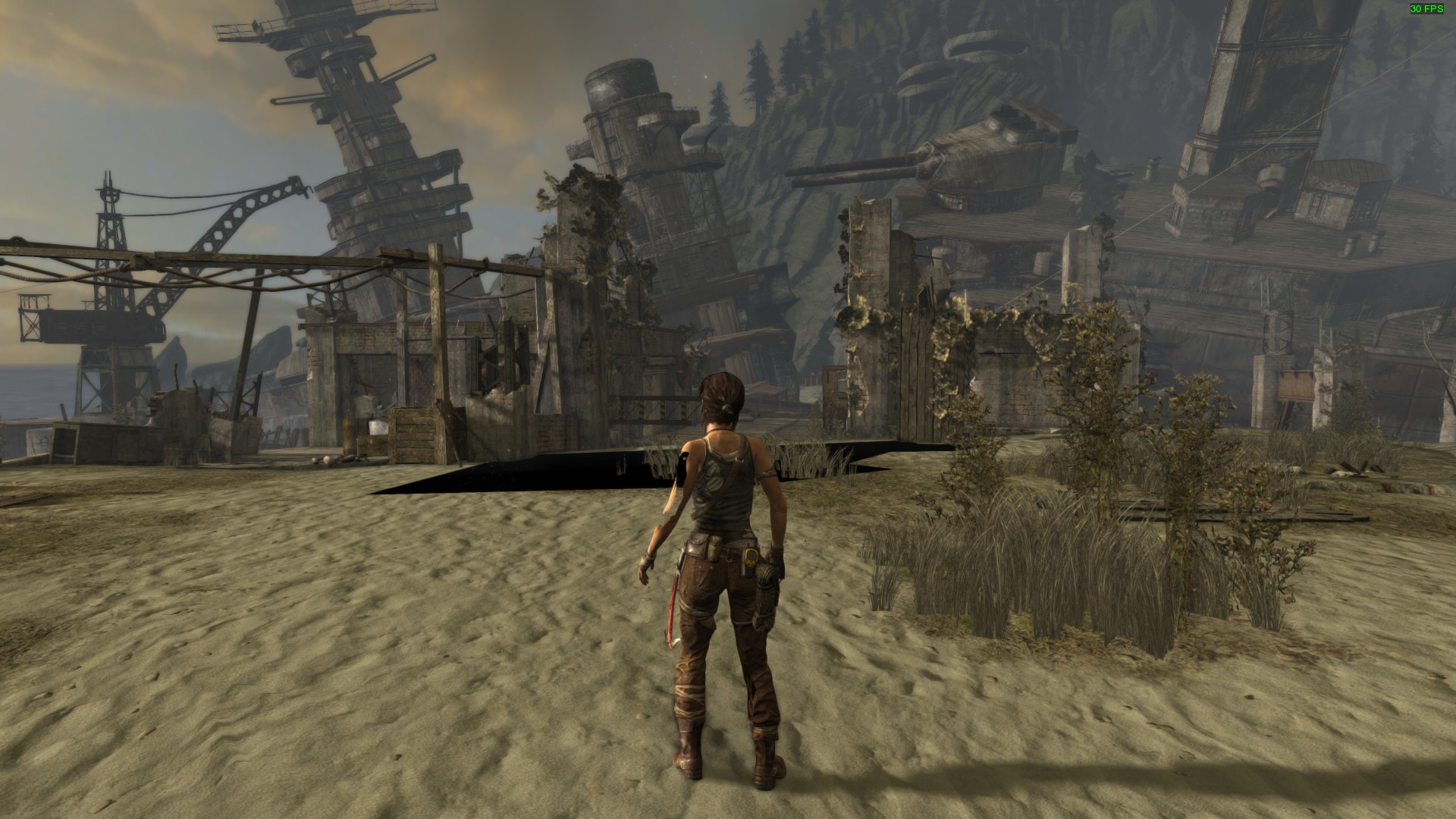

Created attachment 124125 [details] Tomb Raider with tessellation Tomb Raider without tessellation: OK Tomb Raider with tessellation: random flickering
I confirm the bug. It affects tessellation on heaven benchmark 4.0. r9 390.
This affect me too, in a R9 290, radeonsi driver, using padoka PPA with Kubuntu 16.04. When you disable tesselation in those games the problem goes away.
Created attachment 124151 [details] [review] ci-64-tess-blocks.patch Does the attached patch help? If not I would appreciate it if someone could find the first commit that fails (using e.g. bisect). Also, I noticed all reporters use hawaii/grenada pro chips. If anyone with a different chip also has this issue, please let me know.
i can confirm this patches generates 0 issues on TAHITI R9-280 and CAPE VERDE HD7700, so it seems it is specific to hawaii/grenada pro
(In reply to Bas Nieuwenhuizen from comment #4) > Created attachment 124151 [details] [review] [review] > ci-64-tess-blocks.patch > > Does the attached patch help? If not I would appreciate it if someone could > find the first commit that fails (using e.g. bisect). > > Also, I noticed all reporters use hawaii/grenada pro chips. If anyone with a > different chip also has this issue, please let me know. Unfortunately, ci-64-tess-blocks.patch is making the issue more severe. The frequency of "black triangles on screen" in Tomb Raider is higher.

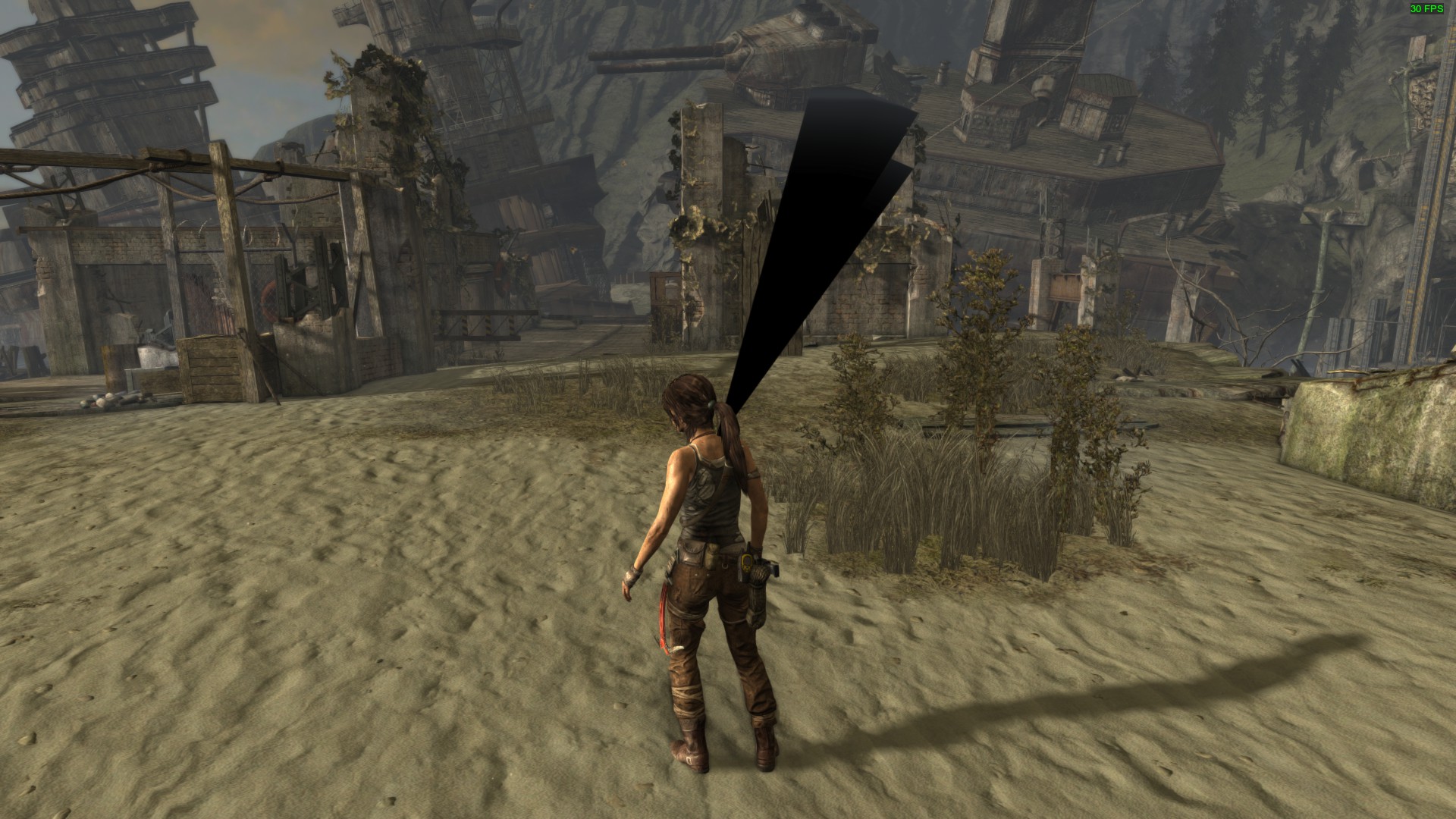

Created attachment 124154 [details] Tomb Raider ci-64-tess-blocks screenshot
(In reply to Bas Nieuwenhuizen from comment #4) > Does the attached patch help? If not I would appreciate it if someone could > find the first commit that fails (using e.g. bisect). Checking out for example f91c85b29b8261ab3f44d292ed2130d4f577d976 and starting Tomb Raider restarts the X server on my machine.
Created attachment 124155 [details] [review] S_03093C_OFFCHIP_BUFFERING(offchip_blocks) if >= CIK This patch fixes the issue on my R9 390. The code is just a guesswork. Maybe it should be (2*offchip_blocks-1) instead?
Passing +1 to S_03093C_OFFCHIP_BUFFERING() explains why changing offchip_blocks from 256 to 64 increases the severity of the issue.
Thanks a lot for finding the cause of the issue. I pushed e9d3246a7a74282fbbf95ed077e3c3b7750c8ddd to git, that patch should fix the issue.
Fixed. Shadow of Mordor renders OK.
