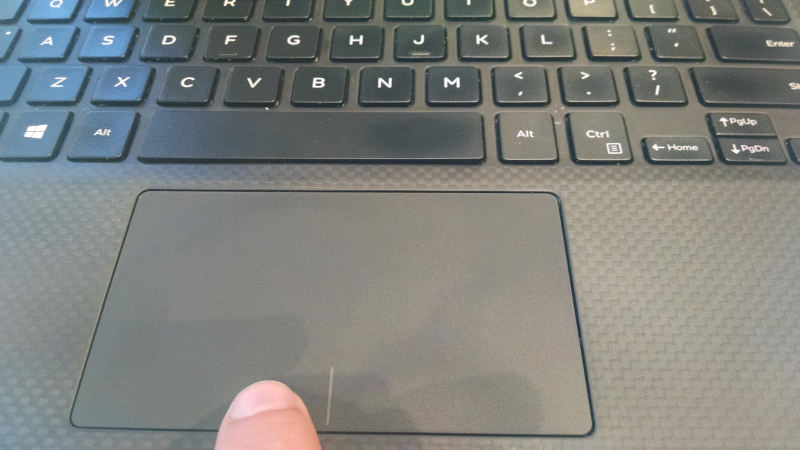

Created attachment 124763 [details] A click that libinput thought was a middle-click Since upgrading to Fedora 24, I've been middle-clicking my accident on a regular basis on my Dell XPS 13 9350. This laptop has a very clearly drawn division between the left-click area and the right-click area. Nonetheless, I can click well to the left of the line and still trigger a middle-click. Please either disable the middle-click area on touchpads that have this type of line or make it so that I actually need to place my finger on the line to trigger middle-click. I've attached a picture of myself allegedly middle-clicking. If this is an issue with a hardware database and not with libinput itself, my apologies -- if you give me a reference to what needs to change, I'll change it and submit a patch.
yeah, that's definitely too big, especially given that there's a line. I'll see what we can do here. while I have you here, can you run the touchpad-edge-detector tool please, may be that the dimensions of the touchpad are out of whack.
Looks okay to me: $ sudo touchpad-edge-detector /dev/input/event11 Touchpad DLL0704:01 06CB:76AE Touchpad on /dev/input/event11 Move one finger around the touchpad to detect the actual edges Kernel says: x [0..1216], y [0..680] Touchpad sends: x [0..1216], y [0..680] -||| ^C Touchpad size as listed by the kernel: 101x56mm Calculate resolution as: x axis: 1216/<width in mm> y axis: 680/<height in mm> Suggested udev rule: # <Laptop model description goes here> evdev:name:DLL0704:01 06CB:76AE Touchpad:dmi:bvnDellInc.:bvr1.4.3:bd06/02/2016:svnDellInc.:pnXPS139350:pvr:rvnDellInc.:rn07TYC2:rvrA00:cvnDellInc.:ct9:cvr:* EVDEV_ABS_00=0:1216:<x resolution> EVDEV_ABS_01=0:680:<y resolution> EVDEV_ABS_35=0:1216:<x resolution> EVDEV_ABS_36=0:680:<y resolution> I got out a caliper, and I measure 105x59 mm, which is reasonably close to what the kernel thinks, too.
Created attachment 124790 [details] [review] 0001-touchpad-reduce-middle-button-size-on-Dell-touchpads.patch Try this one please. I don't have a Dell here so I can't check that the hwdb applies, consider that bit untested. For rebuilding the hwdb after the patch applies see: https://wayland.freedesktop.org/libinput/doc/latest/faq.html#faq_hwdb_changes
ping?
(In reply to Peter Hutterer from comment #3) > Created attachment 124790 [details] [review] [review] > 0001-touchpad-reduce-middle-button-size-on-Dell-touchpads.patch > > Try this one please. I don't have a Dell here so I can't check that the hwdb > applies, consider that bit untested. > > For rebuilding the hwdb after the patch applies see: > https://wayland.freedesktop.org/libinput/doc/latest/faq.html#faq_hwdb_changes Seems to work well, and I have LIBINPUT_MODEL_DELL_TOUCHPAD=1. Sorry for being slow. I discovered that this patch doesn't apply to 1.3.3, and then I was out of town.
https://lists.freedesktop.org/archives/wayland-devel/2016-July/030032.html
commit caf14fab16b2919b657087c80133cf357be84b09 Author: Peter Hutterer <peter.hutterer@who-t.net> Date: Thu Jun 30 10:11:17 2016 +1000 touchpad: reduce middle button size on Dell touchpads to 10mm
