Bug 98168 - [vulkan, radv] Talos rendering glitches on Ultra settings on Tonga
Summary: [vulkan, radv] Talos rendering glitches on Ultra settings on Tonga
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Vulkan/radeon (show other bugs)
Version: git
Hardware: Other All
: medium normal
Assignee: mesa-dev
QA Contact: mesa-dev
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2016-10-08 21:10 UTC by Vedran Miletić
Modified: 2016-10-19 22:00 UTC (History)
0 users

See Also:
i915 platform:
i915 features:

Attachments
Jammer (709.24 KB, image/jpeg)
2016-10-08 21:10 UTC, Vedran Miletić 		Details
Menu (442.50 KB, image/jpeg)
2016-10-08 21:18 UTC, Vedran Miletić 		Details
Colored circles 1 (692.47 KB, image/jpeg)
2016-10-08 21:38 UTC, Vedran Miletić 		Details
Colored circles 2 (715.48 KB, image/jpeg)
2016-10-08 21:38 UTC, Vedran Miletić 		Details
water with 8xaa (1.87 MB, image/png)
2016-10-14 15:58 UTC, Christoph Haag 		Details
View All

Description Vedran Miletić 2016-10-08 21:10:04 UTC
Notice the green dots on the light coming out of the Jammer.

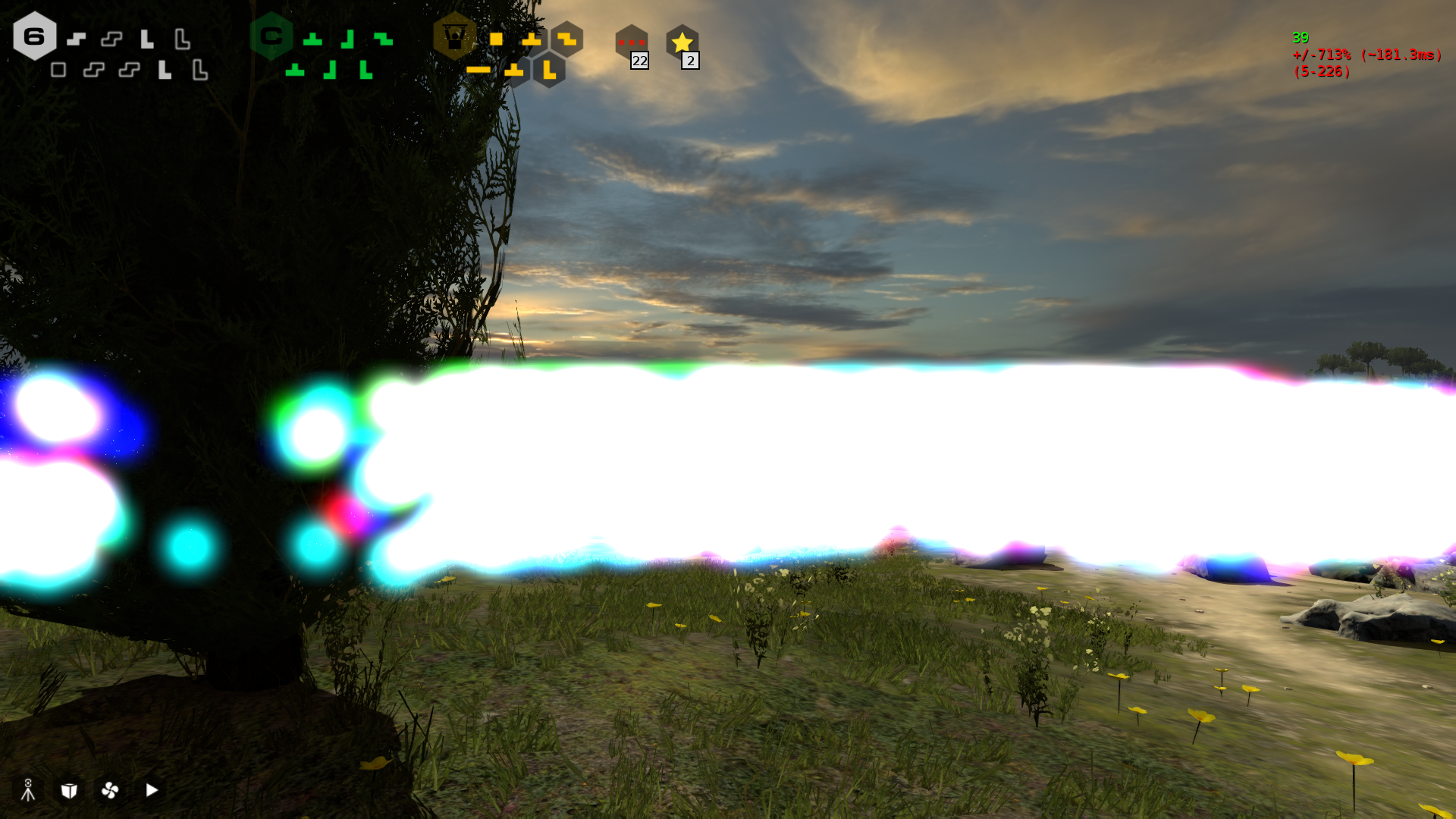

Comment 1 Vedran Miletić 2016-10-08 21:10:57 UTC
Created attachment 127142 [details]
Jammer

Screenshot taken during Benchmark

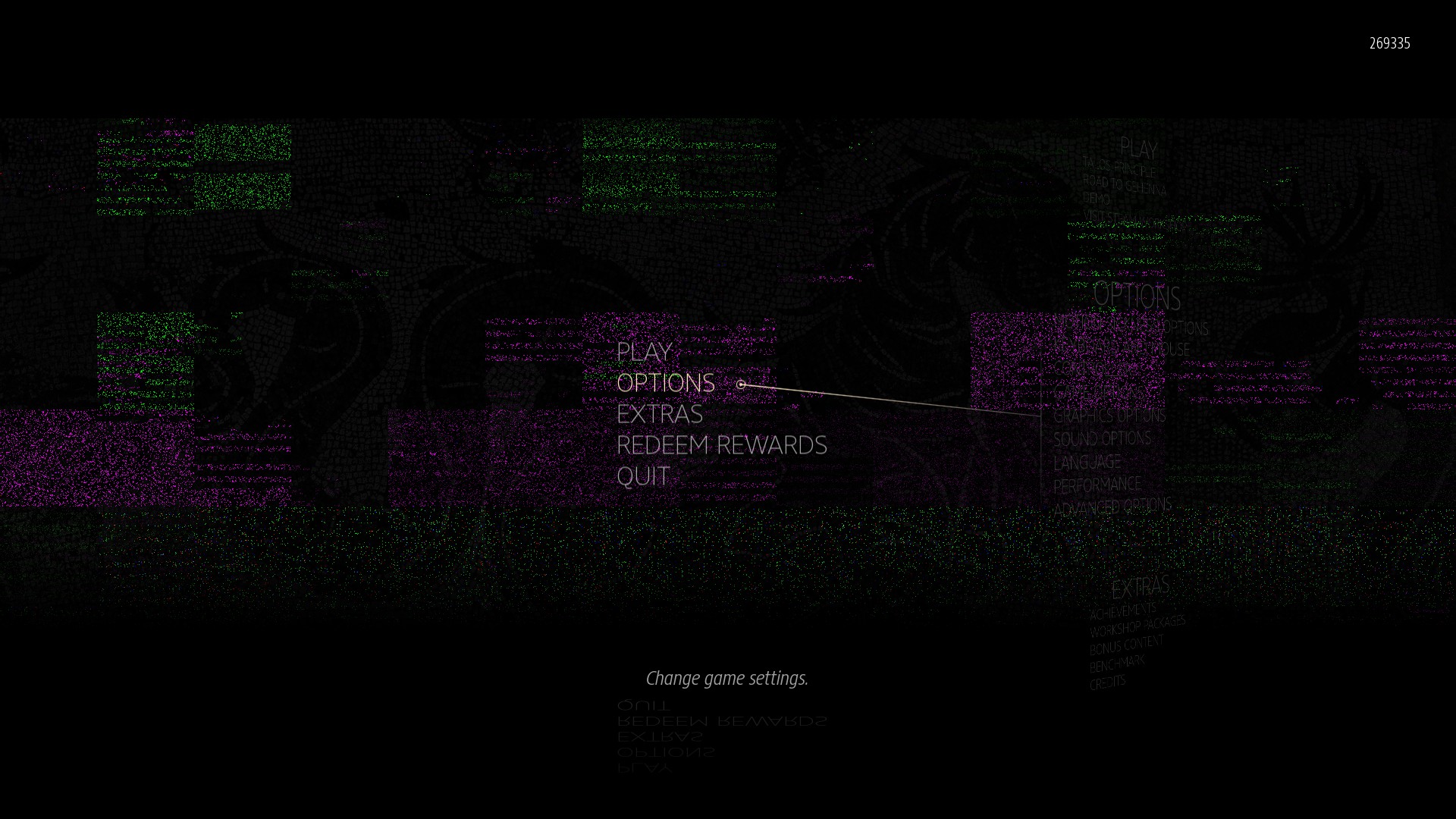

Comment 2 Vedran Miletić 2016-10-08 21:18:37 UTC
Created attachment 127143 [details]
Menu

Glitch in the menu background

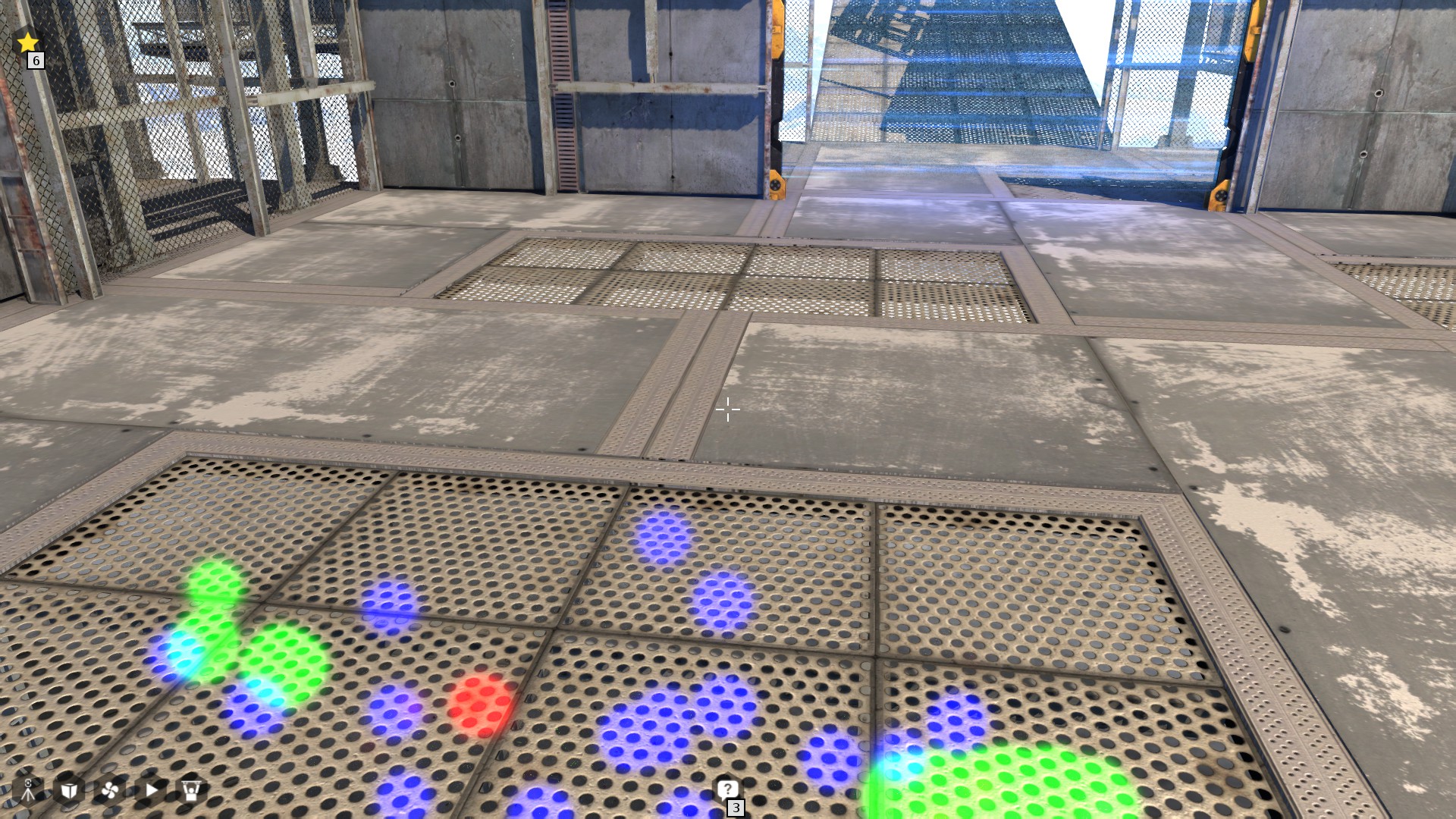

Comment 3 Vedran Miletić 2016-10-08 21:38:29 UTC
Created attachment 127146 [details]
Colored circles 1

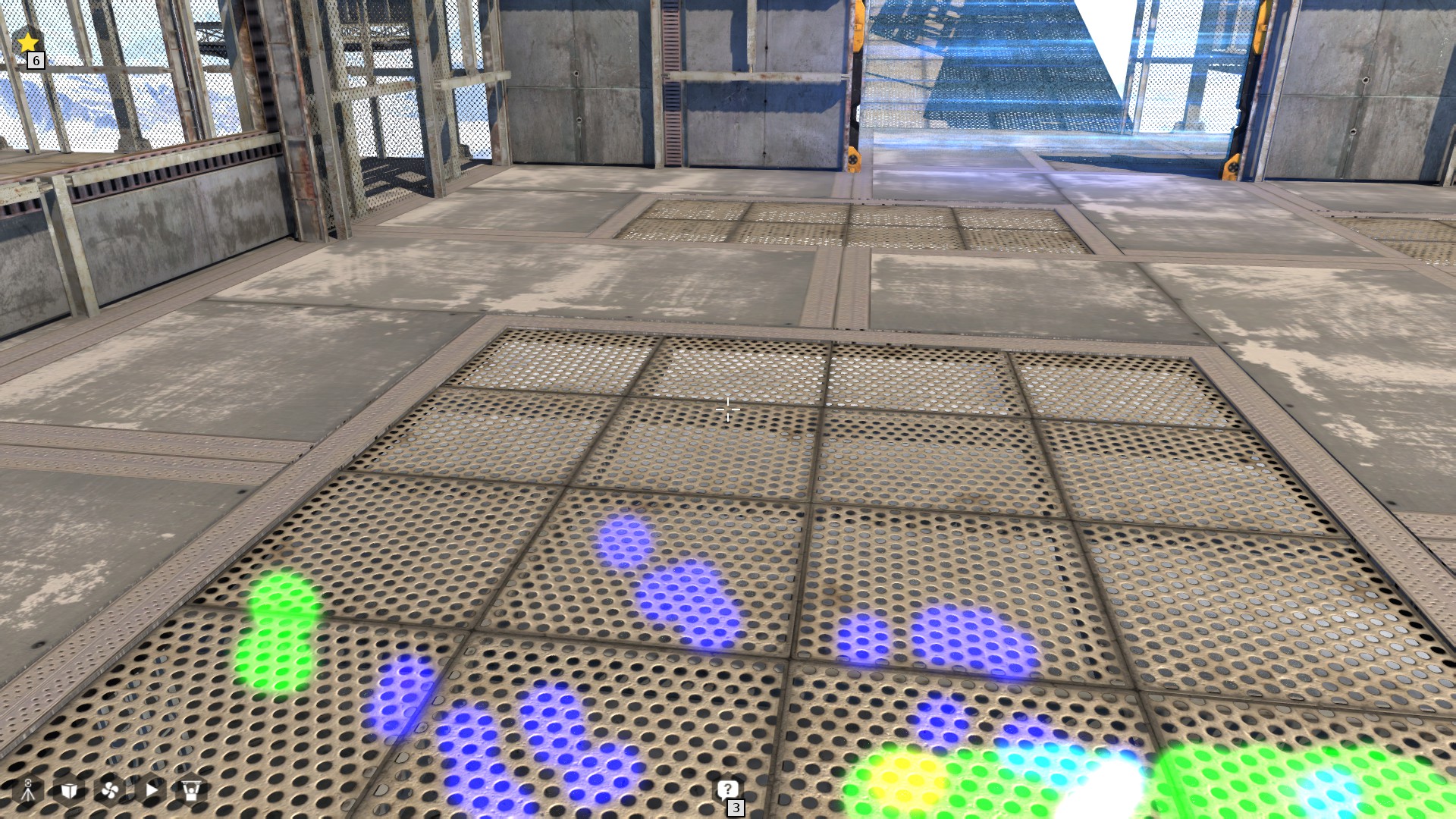

Comment 4 Vedran Miletić 2016-10-08 21:38:47 UTC
Created attachment 127147 [details]
Colored circles 2
Comment 5 Vedran Miletić 2016-10-09 14:20:34 UTC
Also affects RX 480 according to Christoph Haag:
https://youtu.be/GltTu_BA7rc?t=85
https://youtu.be/dS2HLt5BjFY
Comment 6 Christoph Haag 2016-10-14 15:58:47 UTC
Created attachment 127304 [details]
water with 8xaa

(In reply to Vedran Miletić from comment #5)

> https://youtu.be/dS2HLt5BjFY

I believe I recorded this on medium. But I can't remember seeing it when I played again just now. This may already be fixed.


Back to topic: I decided to try some settings and the first one I tried already was the cause: Anti Aliasing.

2x Anti Aliasing looks fine
4x Anti Aliasing causes some of these light blobs to appear, mostly on water
8x Anti Aliasing causes *a lot* of these light blobs to appear, see screenshot
Comment 7 Dave Airlie 2016-10-19 22:00:00 UTC
I think this is fixed now, but I've still got some CTS issues around multisampling.
