Bug 112008 - eDP -> Dual Channel LVDS bridge unable to accept any modelines: Corrupt display!
Summary: eDP -> Dual Channel LVDS bridge unable to accept any modelines: Corrupt display!
Status: NEW
Alias: None
Product: DRI
Classification: Unclassified
Component: DRM/AMDgpu (show other bugs)
Version: DRI git
Hardware: x86-64 (AMD64) Linux (All)
: high major
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2019-10-15 02:52 UTC by Babblebones
Modified: 2019-11-09 15:41 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments
kernel5.3-drm.debug=0xe (159.74 KB, text/plain)
2019-10-15 02:52 UTC, Babblebones
no flags Details
kernel4.17.0-rc3-drm.debug=4 (Good display) (77.57 KB, text/plain)
2019-10-15 02:54 UTC, Babblebones
no flags Details
Screen Output (1.73 MB, image/jpeg)
2019-10-15 03:23 UTC, Babblebones
no flags Details
EDID.bin (128 bytes, application/octet-stream)
2019-10-15 03:25 UTC, Babblebones
no flags Details

Note You need to log in before you can comment on or make changes to this bug.
Description Babblebones 2019-10-15 02:52:25 UTC
Created attachment 145745 [details]
kernel5.3-drm.debug=0xe

At my wits end on this bug. My bisecting have proven useless and I wanted to get some help from you guys. Several reverted regressions reproduce the same behavior along the way and I have spent hours sifting and booting to see where it's at.

The short of it is that the monitor in my HP laptop boots to a 640x480 modeline on mainline kernels newer than 4.17-rc3.

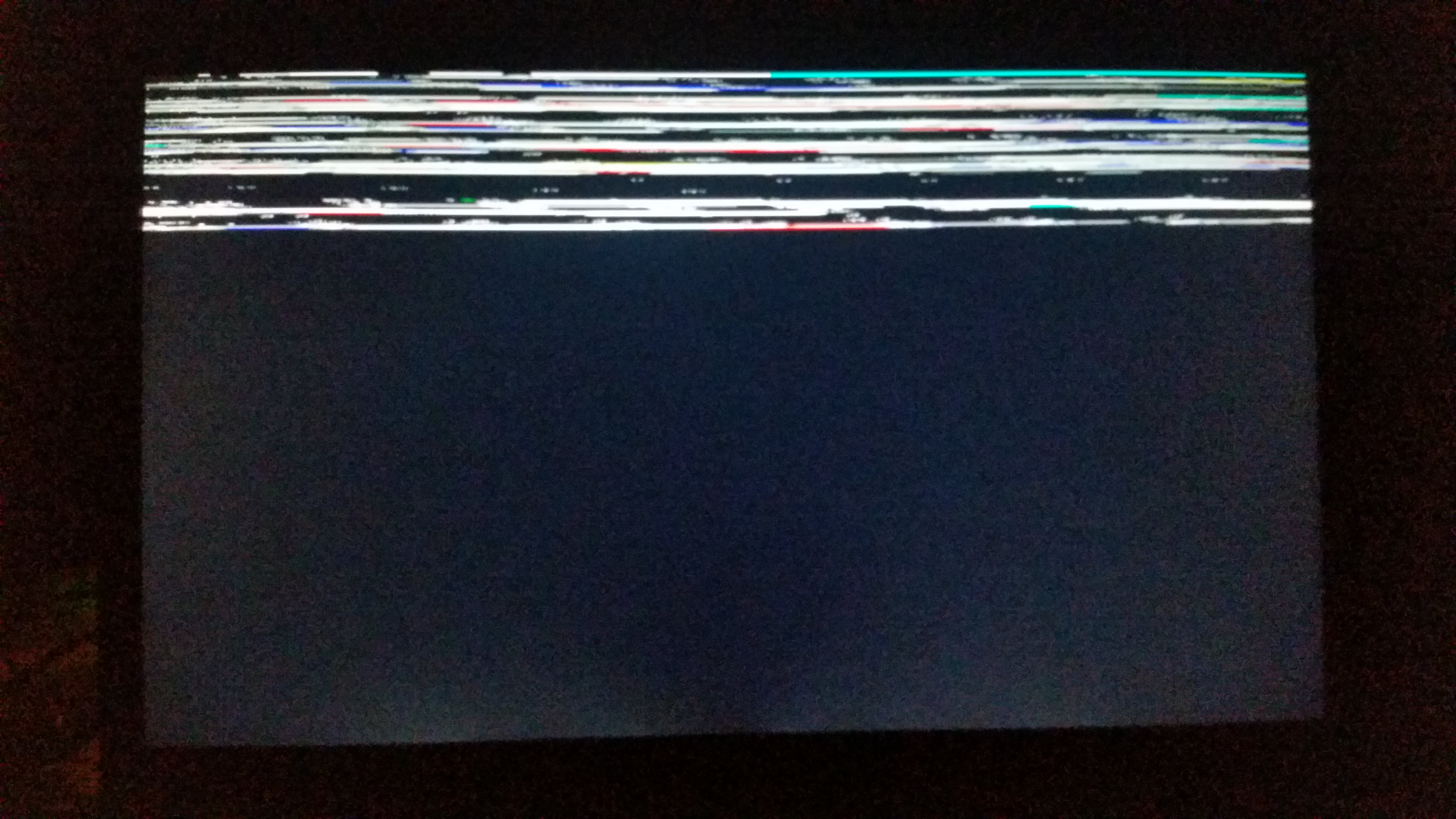

Would not be a colossal problem, as I can just force a working modeline from userspace, if it didn't mean without the modeset the bridge utterly scrambles the display by lining up 640x480 as a wrapping 2D length in the very top of my screen as a jumble of colors.

The issue is GPU independent but is AMD related. Both W7170M and WX7100 affected.
Somewhere after kernel 4.17-rc3 the the rodeo begins.
My dmesg is probably going to be much much more helpful when it comes to debugging and I will GLADLY test any kernel patches if you need more info & detailed kernel/ custom dmesg dumps.

Notable stuff in the dump:

[    4.773991] [drm:amdgpu_vm_init [amdgpu]] VM update mode is SDMA
[    4.774149] [drm:drm_client_modeset_probe]
[    4.774156] [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:59:eDP-1]
[    4.774159] [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:59:eDP-1] status updated from unknown to connected
[    4.774268] [drm:update_stream_scaling_settings [amdgpu]] Destination Rectangle x:0  y:0  width:640  height:480
[    4.774278] [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:59:eDP-1] probed modes :
[    4.774282] [drm:drm_mode_debug_printmodeline] Modeline "640x480": 60 25175 640 656 752 800 480 490 492 525 0x40 0xa
[    4.774284] [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:63:DP-1]
Comment 1 Babblebones 2019-10-15 02:54:43 UTC
Created attachment 145746 [details]
kernel4.17.0-rc3-drm.debug=4 (Good display)
Comment 2 Babblebones 2019-10-15 03:23:28 UTC
Created attachment 145747 [details]
Screen Output
Comment 3 Babblebones 2019-10-15 03:25:24 UTC
Created attachment 145748 [details]
EDID.bin
Comment 4 Alex Deucher 2019-10-15 14:30:49 UTC
Can you use git bisect the issue and find the exact commit that broke it or narrow down when the regression happened?  E.g., working in 4.17-rc3 and broken in 4.17-rc4?
Comment 5 Babblebones 2019-10-15 19:56:59 UTC
(In reply to Alex Deucher from comment #4)
> Can you use git bisect the issue and find the exact commit that broke it or
> narrow down when the regression happened?  E.g., working in 4.17-rc3 and
> broken in 4.17-rc4?

I have two commits that break my EDID reading and cause the exact same issue so far.

bisected the mainline to try and find the issue, trailed into your drm-next git...

The first commit I found that broke my EDID read:
https://cgit.freedesktop.org/~agd5f/linux/commit/?h=amd-staging-drm-next&id=8a61bc085ffab3071c59efcbeff4044c034e7490
Was later reverted.

Followed more commits after this one down a branch and into here...
https://git.kernel.org/pub/scm/linux/kernel/git/tip/tip.git/commit/?h=x86-urgent-for-linus&id=bd4caed47a19f25fe8674344ea06d469c27ac314

Surprisingly, swapping out the memory allocs actually breaks the EDID read in this commit/ branch too. I know for a fact Ubuntu's old kernel 4.18 reverted this specific and the treewide memory allocation change, which worked!? I stopped about here, my head was starting to spin as to why THAT would do anything.

I am ready and able to fork over any binary/parameter/debug dumps to help solve this.
Comment 6 Babblebones 2019-10-21 23:46:18 UTC
This may be useful to you!


[    4.603742] [drm:amdgpu_dm_initialize_drm_device [amdgpu]] amdgpu_dm_connector_init()
[    4.604326] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0000, SideBand Msg: Nop, Op res: OK
[    4.604327] Body: 11
[    4.604699] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0000, SideBand Msg: Nop, Op res: OK
[    4.604699] Body: 11 06 84 00 01 00 00 00 00 00 00 00 00 00 00 00
[    4.604932] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0000, SideBand Msg: Nop, Op res: OK
[    4.604933] Body: 11
[    4.605160] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0200, SideBand Msg: Nop, Op res: OK
[    4.605161] Body: 41
[    4.605393] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0000, SideBand Msg: Nop, Op res: OK
[    4.605394] Body: 11
[    4.605700] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0400, SideBand Msg: Nop, Op res: OK
[    4.605700] Body: 00 00 00 00 00 00 00 00 00
[    4.605933] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0000, SideBand Msg: Nop, Op res: OK
[    4.605933] Body: 11
[    4.606178] [drm:dm_dp_aux_transfer [amdgpu]] Op: Read, addr: 0409, SideBand Msg: Nop, Op res: OK
[    4.606178] Body: 00 00 00
[    4.606218] [drm:dc_conn_log_hex_linux [amdgpu]] 11
[    4.606257] [drm:dc_conn_log_hex_linux [amdgpu]] 06
[    4.606296] [drm:dc_conn_log_hex_linux [amdgpu]] 84
[    4.606334] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606372] [drm:dc_conn_log_hex_linux [amdgpu]] 01
[    4.606410] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606447] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606485] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606522] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606560] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606597] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606635] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606672] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606710] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606748] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606786] [drm:dc_conn_log_hex_linux [amdgpu]] 00
[    4.606825] [drm:retrieve_link_cap [amdgpu]] Rx Caps:
[    4.607189] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.607192] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.607559] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.607561] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.607925] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.607926] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.608290] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.608291] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.608661] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.608662] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.609021] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.609022] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.609381] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.609383] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.609741] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.609742] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.610189] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.610190] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.610549] [drm:dm_dp_aux_transfer [amdgpu]] Op: Write, addr: 0050, SideBand Msg: Nop, Op res: OK
[    4.610550] [drm:drm_dp_i2c_do_msg] I2C nack (result=0, size=0
[    4.610587] [drm:dc_link_detect [amdgpu]] *ERROR* No EDID read.


Kernel 4.19 Gentoo stock

Any idea why dc_conn_log_hex_linux is so short?
Other people's connectors seem to get lots of hex data over the debug drop here mine is nearly completely empty!
Comment 7 Babblebones 2019-11-09 15:41:54 UTC
The EDID seems the have some kind of proprietary tag block inbetween the last and middle detailed modes.

Would this break parsing in more recent kernels? edid-decode seems to say that this is breaks the standard.
