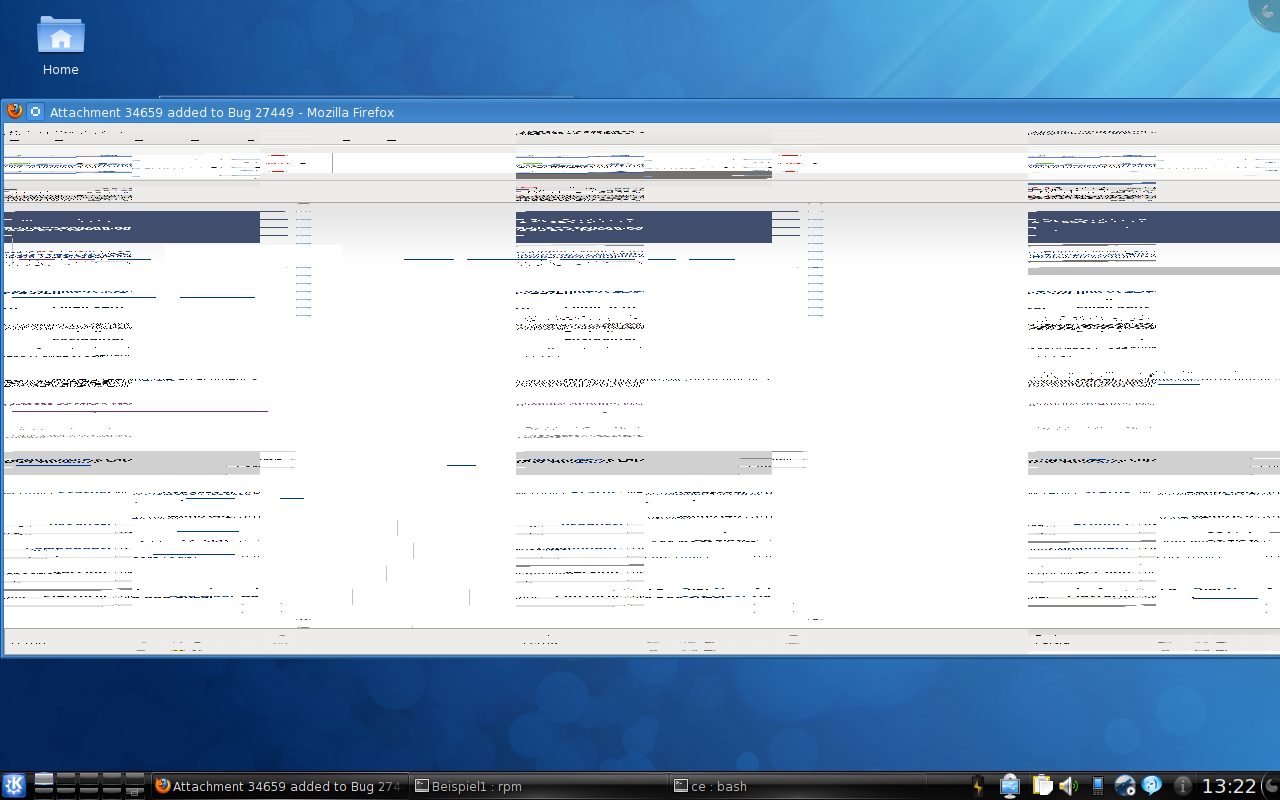

Created attachment 34658 [details] Screenshot Hi, I am running Fedora 12 + updates testing, and self-compiled intel-2.11 on an i945GM. With 2.11, windows larger than 2048 pixels aren't rendered properly. Looks somehow tiling related. (screenshot attached) - Clemens
Created attachment 34659 [details] xorg log

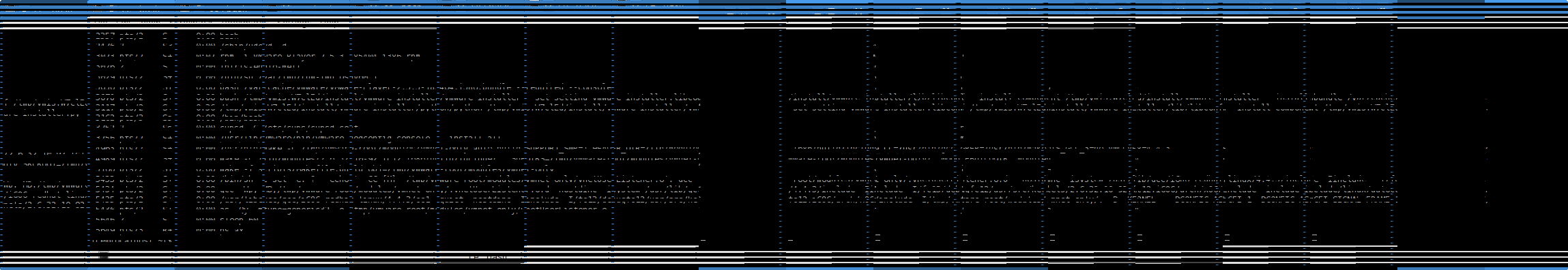

Created attachment 34660 [details] Screenshot

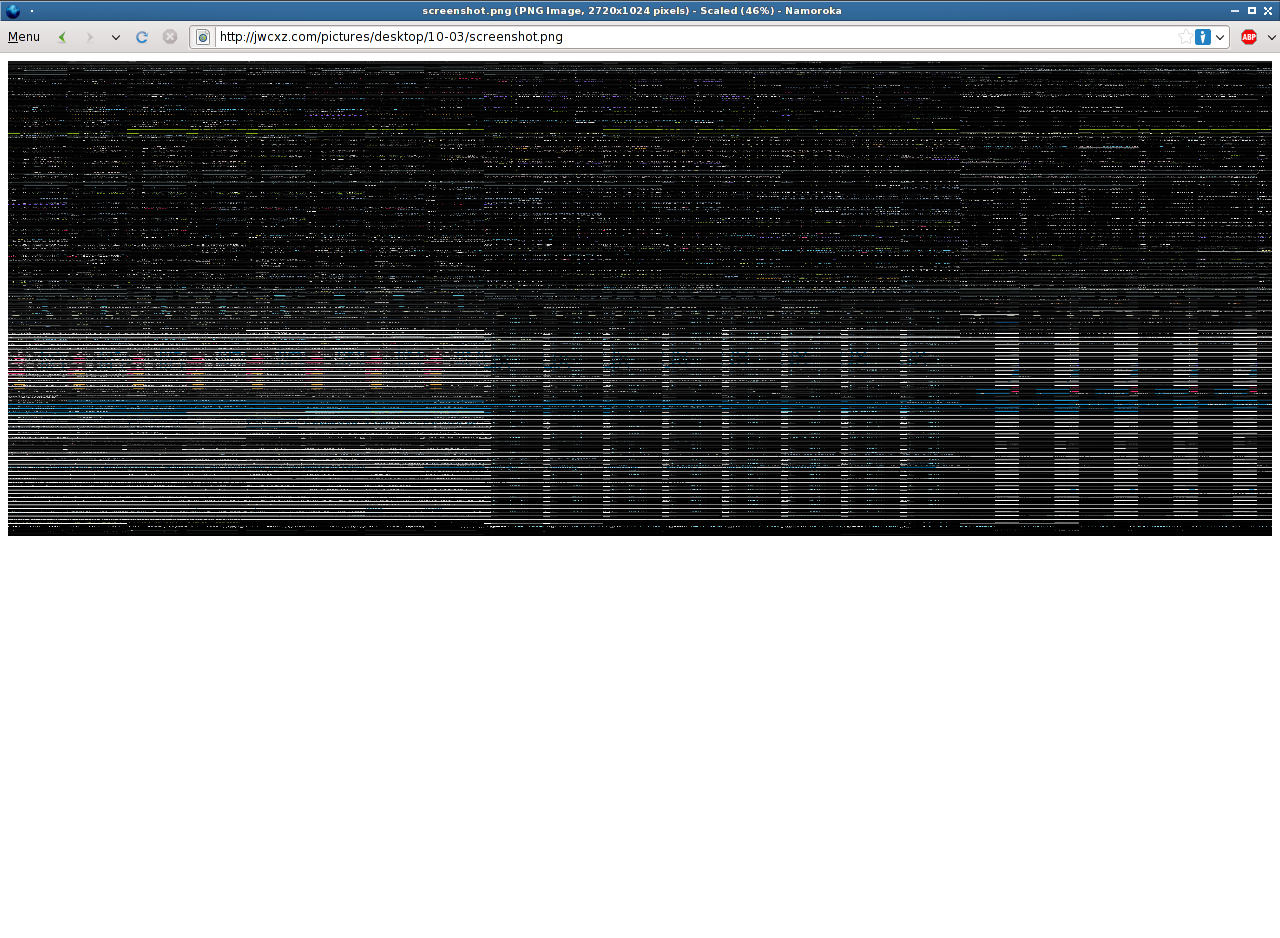

Created attachment 34879 [details] Firefox tries to display huge pixmap This bug also occurs when Firefox tries to show a huge pixmap (so I guess OP is using compiz which has to convert the window into a pixmap too?) Attachment shows image http://jwcxz.com/pictures/desktop/10-03/screenshot.png (2720x1024 pixels)
just for the record, I am nt using a composition-manager. Funny, if I open your screenshot I see garbage when the image is re-sized to browser-window-size, however when viewing it in its original size (simply click on it) everything is fine.
(In reply to comment #4) > just for the record, I am nt using a composition-manager. Huh. Something of KDE doing something funky I guess then. > Funny, if I open your screenshot I see garbage when the image is re-sized to > browser-window-size, however when viewing it in its original size (simply click > on it) everything is fine. Same here.
Created attachment 35023 [details] [review] kernel patch: fix tiling limits This patch fixes the issue on my i945. Please test. Should apply to any reasonable new kernel.
(In reply to comment #6) > Created an attachment (id=35023) [details] > kernel patch: fix tiling limits > > This patch fixes the issue on my i945. Please test. Should apply to any > reasonable new kernel. Thanks, this patch fixes the issue with firefox and large pictures
(In reply to comment #6) > Created an attachment (id=35023) [details] > kernel patch: fix tiling limits > > This patch fixes the issue on my i945. Please test. Should apply to any > reasonable new kernel. Hi Daniel, Thanks for the patch. Want to submit a complete commit with a commit message for this one? -Carl
commit c36a2a6de59e4a141a68b7575de837d3b0bd96b3 Author: Daniel Vetter <daniel.vetter@ffwll.ch> Date: Sat Apr 17 15:12:03 2010 +0200 drm/i915: fix tiling limits for i915 class hw v2 Current code is definitely crap: Largest pitch allowed spills into the TILING_Y bit of the fence registers ... :( I've rewritten the limits check under the assumption that 3rd gen hw has a 3d pitch limit of 8kb (like 2nd gen). This is supported by an otherwise totally misleading XXX comment. This bug mostly resulted in tiling-corrupted pixmaps because the kernel allowed too wide buffers to be tiled. Bug brought to the light by the xf86-video-intel 2.11 release because that unconditionally enabled tiling for pixmaps, relying on the kernel to check things. Tiling for the framebuffer was not affected because the ddx does some additional checks there ensure the buffer is within hw-limits. v2: Instead of computing the value that would be written into the hw fence registers and then checking the limits simply check whether the stride is above the 8kb limit. To better document the hw, add some WARN_ONs in i915_write_fence_reg like I've done for the i830 case (using the right limits). Signed-off-by: Daniel Vetter <daniel.vetter@ffwll.ch> Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=27449 Tested-by: Alexander Lam <lambchop468@gmail.com> Cc: stable@kernel.org Signed-off-by: Eric Anholt <eric@anholt.net>
(In reply to comment #9) > commit c36a2a6de59e4a141a68b7575de837d3b0bd96b3 > Author: Daniel Vetter <daniel.vetter@ffwll.ch> > Date: Sat Apr 17 15:12:03 2010 +0200 > > drm/i915: fix tiling limits for i915 class hw v2 Thanks, Chris. I had looked for a committed fix, but missed this one. -Carl
*** Bug 27608 has been marked as a duplicate of this bug. ***
Its probably another bug, but I see the same sympthoms with linux-2.6.34 + intel-2.11.901
Clemens, do you mind double checking your libraries and uploading a fresh x.log and screenshot? As you probably know, we've had a fair number of tiling bugs across the stack that I want to be certain that we are not chasing an old bug first. Thanks.
Created attachment 36439 [details] fresh xorg log with intel-2.11.901 + linux-2.6.34

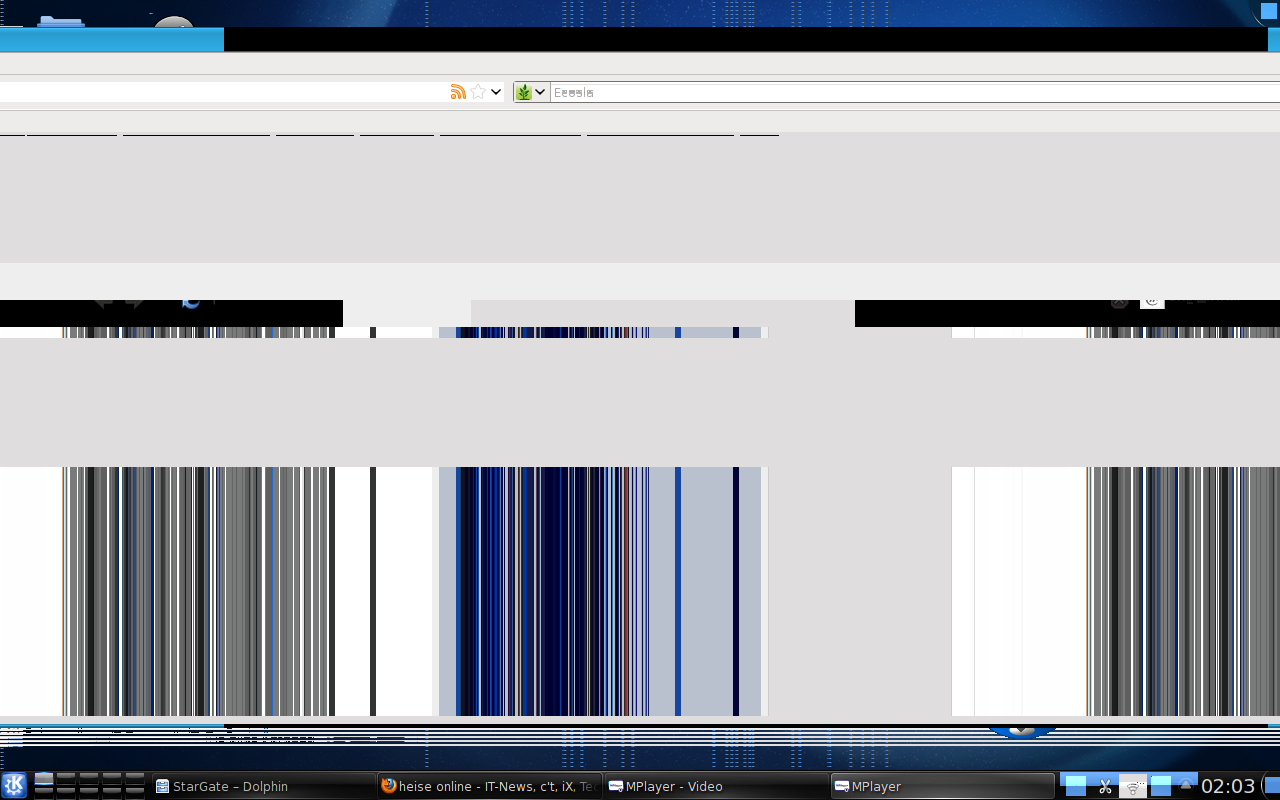

Created attachment 36440 [details] corruption with large window
ok, done. I also see problems when loading huge images in firefox.
(In reply to comment #16) > ok, done. I also see problems when loading huge images in firefox. Definitely a tiling issue and definitely not the same as the original bug. Perhaps even worse since it can be hit in firefox on the LVDS with i945.
(In reply to comment #17) > Definitely a tiling issue and definitely not the same as the original bug. > Perhaps even worse since it can be hit in firefox on the LVDS with i945. I don't know if this changes anything, but FYI, the original bug was hit in "firefox on the LVDS with i945" also.
I want your laptop! :)
I found one possibly tiling related issue: commit 6d33e578de4e23336ac69cc3c5d0935a65d4dda1 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Wed Jun 23 21:28:50 2010 +0100 Limit maximum tiled stride to 8k and untiled to 32k. Tiling on gen 2/3 hardware is only supported for pitches up to 8192 bytes, so above this limit the surface will be untiled and we will no longer have to comply with the power-of-two pitch alignment. So disabling tiling for these too wide surface should ~halve the memory requirement for the full surface. Also the absolute limit for the 2D blitter is 32,768 bytes. The documentation says "up to 32,768 bytes" and my PineView box was malfunction with a surface stride of 32,768 so set the limit to be 32,767. References: Bug 28497 - Graphics corruption after opening a specific website https://bugs.freedesktop.org/show_bug.cgi?id=28497
Another one, in drm: commit 726210f87d558d558022f35bc8c839e798a19f0c Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Thu Jun 24 11:38:00 2010 +0100 intel: Limit tiled pitches to 8192 on pre-i965. Fixes: Bug 28515 - Failed to allocate framebuffer when exceed 2048 width https://bugs.freedesktop.org/show_bug.cgi?id=28515 Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>
Ok, I just tried a 4kx4k virtual desktop on my PineView. Can't say I was impressed. I'll ping this bug when I have it working...
I went back and checked 2.12 with 2.6.35-rc3 and drm.git, that works. So the corruption I was seeing is just in my development tree. Sorry for the noise. I have firefox rendering correctly in a 4kx4k window on i915-class hardware, so unless you can show me otherwise I think this bug can be closed.
