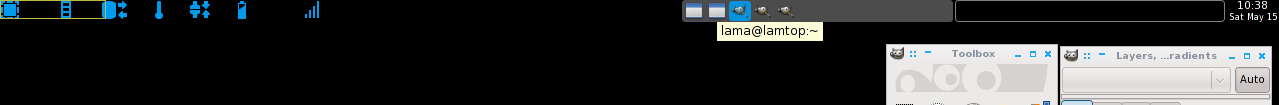

Created attachment 35673 [details] Screenshot: Notice how tint2 & its tooltip is on the right of the screen, but the border for the tooltip is at 0,0. Ignore the icons in the corner, they are part of the wallpaper. I have Tint2's tooltip borders enabled, but they do not draw around the tooltip. They instead end up at the upper left corner of the screen, drawn on top of whatever is there, including windows. To make the stray borders go away I have to force a redraw of the region by eg. moving a window there or making Openbox's root menu pop up there. tint2's tooltip drawing code: http://code.google.com/p/tint2/source/browse/#svn/trunk/src/tooltip Software being tested: Tint2 (http://code.google.com/p/tint2/): Svn r449 xf86-video-intel: commit 58b089febceca1e915607bb723ee658aaa9dbed3 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Sat May 15 09:11:46 2010 +0100 uxa: Avoid using blits when with PictFilterConvolution References: Bug 28098 Compiz renders shadows wrong, garbage line of pixels along left and top edge of windows https://bugs.freedesktop.org/show_bug.cgi?id=28098 Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk> I bisected xf86-video-intel down to: commit cb887cfc670bf63993bd313ff33927afb8198eae Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Fri Mar 26 09:59:51 2010 +0000 uxa: solid rects The cost of performing relocations outweigh the advantages of using the blitter for solids with lots of rectangles. References: Bug 22127 - [UXA] 50% performance regression for XRenderFillRectangles https://bugs.freedesktop.org/show_bug.cgi?id=22127 By using the 3D pipeline we improve our performance by around 4x on i945, measured by the jxbench microbenchmark, and a factor of 10x by short-cutting to the 3D pipeline for blended rectangles. [text omitted]
I've pushed: commit 524fd2dd0da8f69d4c3f5aebe3a345fe34af609d Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Sat May 15 18:23:21 2010 +0100 uxa: Apply clip for solid rectangles. References: Bug 28120 - Tint2's tooltip borders end up at 0,0 and do not disappear https://bugs.freedesktop.org/show_bug.cgi?id=28120 which is the only things that stands as being different between miCompositeRects() calling CompositePicture() and uxa_solid_rects() calling uxa_screen->composite() directly. Please test.
(In reply to comment #1) > I've pushed: > > commit 524fd2dd0da8f69d4c3f5aebe3a345fe34af609d > Author: Chris Wilson <chris@chris-wilson.co.uk> > Date: Sat May 15 18:23:21 2010 +0100 > > uxa: Apply clip for solid rectangles. > I tested both up to this commit and the current one ( 89f43f69a9c854fb2b82538a8938002675ca19e4) Results are the same for both: Good News: The border doesn't get drawn at 0,0 anymore. Bad News: The whole tooltip is a black box. Also, my terminal (urxvt) now has a few drawing issues (the filled-in cursor doesn't show, and a few other random issues)

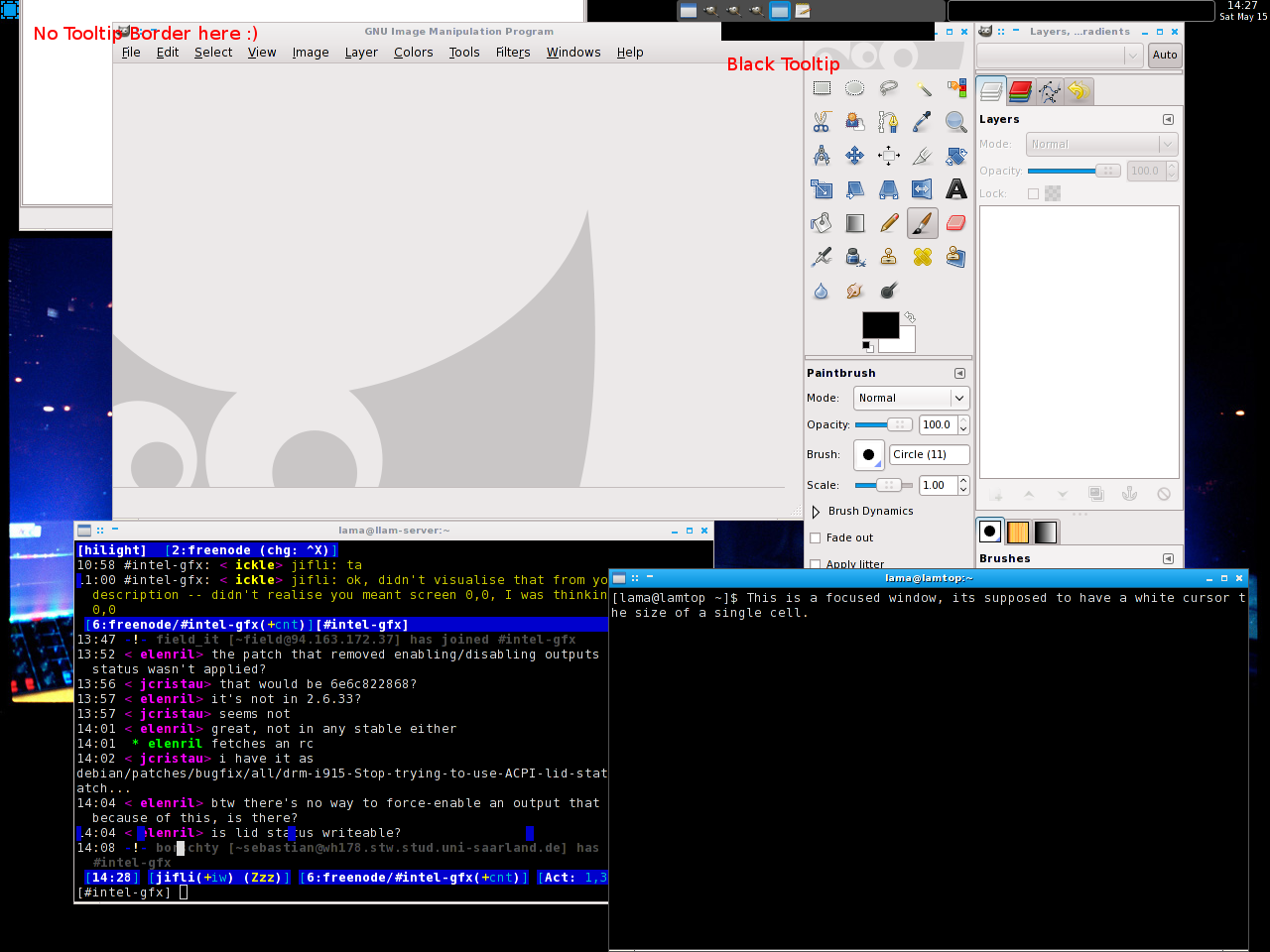

Created attachment 35678 [details] Screenshot 2
Created attachment 35838 [details] Composited tooltip I retested with today's xf86-video-intel ( 9d8ac271404ff219c3d40ae8f829e8b76ac7c359) Nothing new to report with non-composited desktop. However, I was in the mood to fire up compiz, and this is what happened (attachment). urxvt still looks the same.
*** Bug 28236 has been marked as a duplicate of this bug. ***
commit b645ec83e0d86f2247b8338ceab60b9502516e70 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Tue May 25 09:49:20 2010 +0100 uxa: Apply the drawable offset to the solid rects Fixes: Bug 28120 - Tint2's tooltip borders end up at 0,0 and do not disappear https://bugs.freedesktop.org/show_bug.cgi?id=28120 Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>
Thank you, the tooltips are working perfectly. However, urxvt is still not drawing correctly. I still have the same issues with that as before. Here is a testcase: urxvt -fn "xft:sans-6" -depth 32 Even though I am using 32 bits, I am not running a compositing window manager (using openbox).
I can confirm that urxvt corruption persists with -depth 32, but it appears to be working fine without this option. Furthermore, if I run xcompmgr, then corruption persists regardless of the -depth setting.
commit 03bbb4c896ef3cd275312b413a2c85d9f499c032 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Wed May 26 10:16:36 2010 +0100 uxa: Perform manual damage for CompositeRects [xserver-1.8] The damage layer doesn't wrap CompositeRects, so we need to manually append the damaged region ourselves. This works for miCompsiteRects since that translates the call into multiple invocations of either PolyFillRectangle or Composite, which themselves cause damage. Fixes: Bug 28120 - Tint2's tooltip borders end up at 0,0 and do not disappear https://bugs.freedesktop.org/show_bug.cgi?id=28120 Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>
