Running software: kernel 2.6.36-rc3 mesa - commit d8a36620089e72d431ae853ec168f193f3376782 Author: Ian Romanick <ian.d.romanick@intel.com> Date: Fri Sep 10 13:10:26 2010 -0700 mesa: Remove unused Emit flags from gl_shader_compiler_options libdrm - commit b04515c5d6c95f573457a94267b855cceb639105 Author: Benjamin Herrenschmidt <benh@kernel.crashing.org> Date: Fri Aug 6 13:55:11 2010 +1000 libdrm: Fix PCI domain domain support xf86-video-ati - commit bdd41fecdb19c83c6c7b793016b61d38065dcd13 Author: Alex Deucher <alexdeucher@gmail.com> Date: Fri Aug 20 01:17:13 2010 -0400 evergreen: set encoder type to DVI for HDMI Xserver: 1.9.0 self-build with gcc (GCC) 4.4.4 Hw: 01:00.0 VGA compatible controller: ATI Technologies Inc RV280 [Radeon 9200 SE] (rev 01) (prog-if 00 [VGA controller]) Subsystem: Hightech Information System Ltd. Excalibur 9200SE VIVO 128M Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 64 (2000ns min), Cache Line Size: 32 bytes Interrupt: pin A routed to IRQ 16 Region 0: Memory at d0000000 (32-bit, prefetchable) [size=128M] Region 1: I/O ports at c800 [size=256] Region 2: Memory at dfef0000 (32-bit, non-prefetchable) [size=64K] Expansion ROM at dfec0000 [disabled] [size=128K] Capabilities: [58] AGP version 2.0 Status: RQ=80 Iso- ArqSz=0 Cal=0 SBA+ ITACoh- GART64- HTrans- 64bit- FW+ AGP3- Rate=x1,x2,x4 Command: RQ=32 ArqSz=0 Cal=0 SBA+ AGP+ GART64- 64bit- FW- Rate=x4 I'll add logs and screenshot. For me it looks like only very negative bias resulted in image displayed, everything else just looks like heavily corrupted mipmaps of texture. Probably bug in _mesa_meta_GenerateMipmap(), may be due to driver setting something wrong

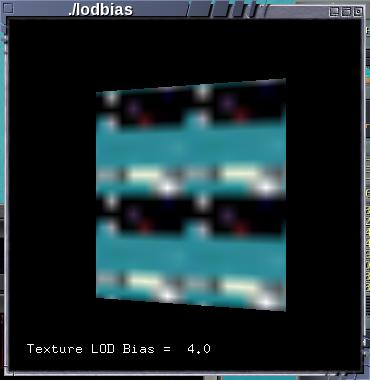

Created attachment 38636 [details] Screenshot of corruption
Created attachment 38637 [details] X log
Created attachment 38638 [details] Piglit data (bz2 compressed)
From quick look at piglit's summary: bugs 13/15 -------- fdo20701 fail Returncode: 1 Errors: Mesa: Mesa 7.9-devel DEBUG build Sep 11 2010 06:16:40 Output: init:104: framebuffer status = 0x8cdd ------ then fdo25614-genmipmap fail ------- Returncode: 1 Errors: Mesa: Mesa 7.9-devel DEBUG build Sep 11 2010 06:16:40 Output: Probe at (0,0) Expected: 0.000000 1.000000 0.000000 1.000000 Observed: 0.501961 0.501961 0.501961 0.501961 Probe at (0,0) Expected: 0.000000 1.000000 0.000000 1.000000 Observed: 0.000000 0.000000 0.000000 0.000000 Probe at (0,0) Expected: 0.000000 1.000000 0.000000 1.000000 Observed: 0.000000 0.000000 0.000000 0.000000 Probe at (0,0) Expected: 0.000000 1.000000 0.000000 1.000000 Observed: 0.000000 0.000000 0.000000 0.000000 Probe at (0,0) Expected: 0.000000 1.000000 0.000000 1.000000 Observed: 0.000000 0.000000 0.000000 0.000000
Created attachment 38677 [details] RADEON_DEBUG=tex ./lodbias
Still broken, as of mesa version up to: commit 4e27e935ca670d0cb1748e40a46a2357d4331a6f Author: Dave Airlie <airlied@redhat.com> Date: Fri Sep 24 12:36:08 2010 +1000 r600g: drop index_offset parameter to index buffer translate. r600 doesn't need this as we always have working index bias using kernel 2.6.36-rc5.
This works OK today :). Just checked with my radeon 9250 and git mesa 10.2.
