Bug 31771 - r600g: sauerbraten missing gun (r600c works)
Summary: r600g: sauerbraten missing gun (r600c works)
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Gallium/r600 (show other bugs)
Version: git
Hardware: Other All
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2010-11-19 10:37 UTC by Török Edwin
Modified: 2011-01-07 10:35 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments
~/.sauerbraten/config.cfg (11.27 KB, application/octet-stream)
2010-11-19 10:37 UTC, Török Edwin
Details
~/.sauerbraten/init.cfg (254 bytes, application/octet-stream)
2010-11-19 10:37 UTC, Török Edwin
Details

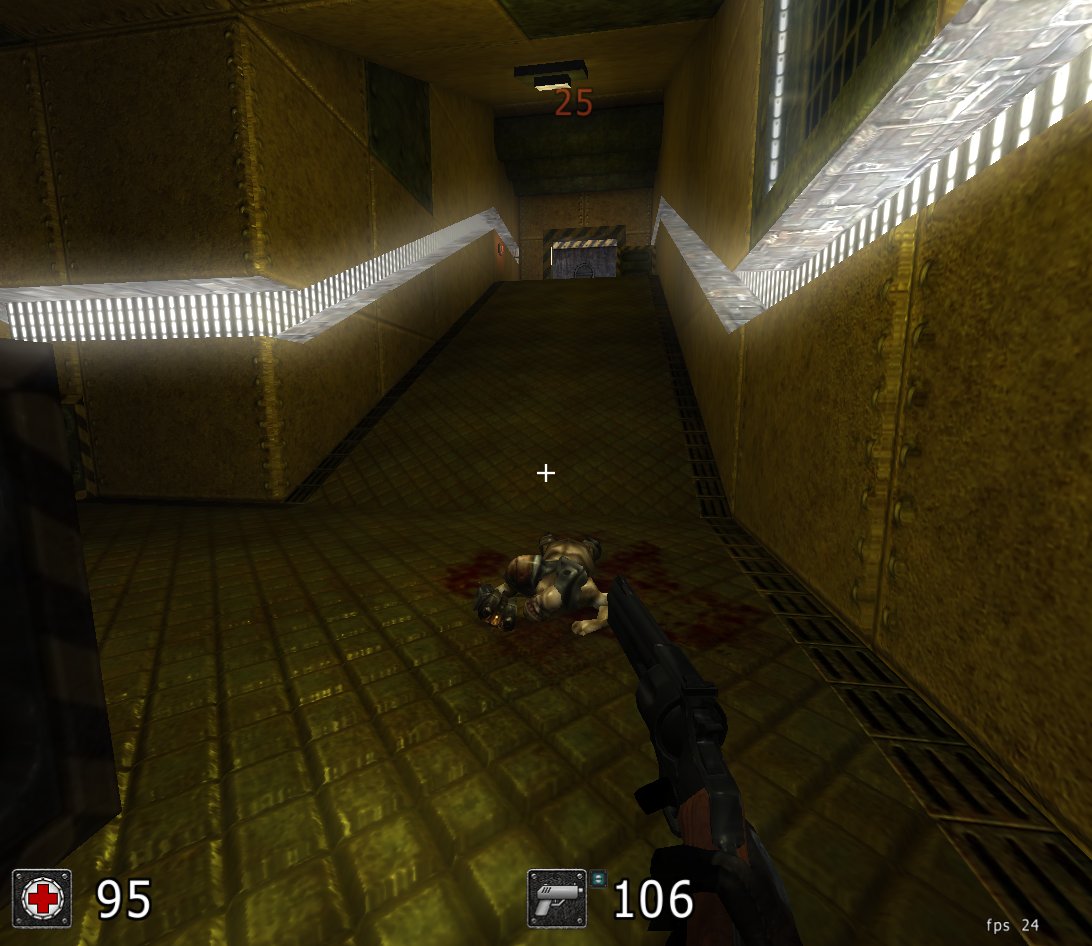

r600c screenshot (good) (143.46 KB, image/jpeg)
2010-11-19 10:40 UTC, Török Edwin
Details

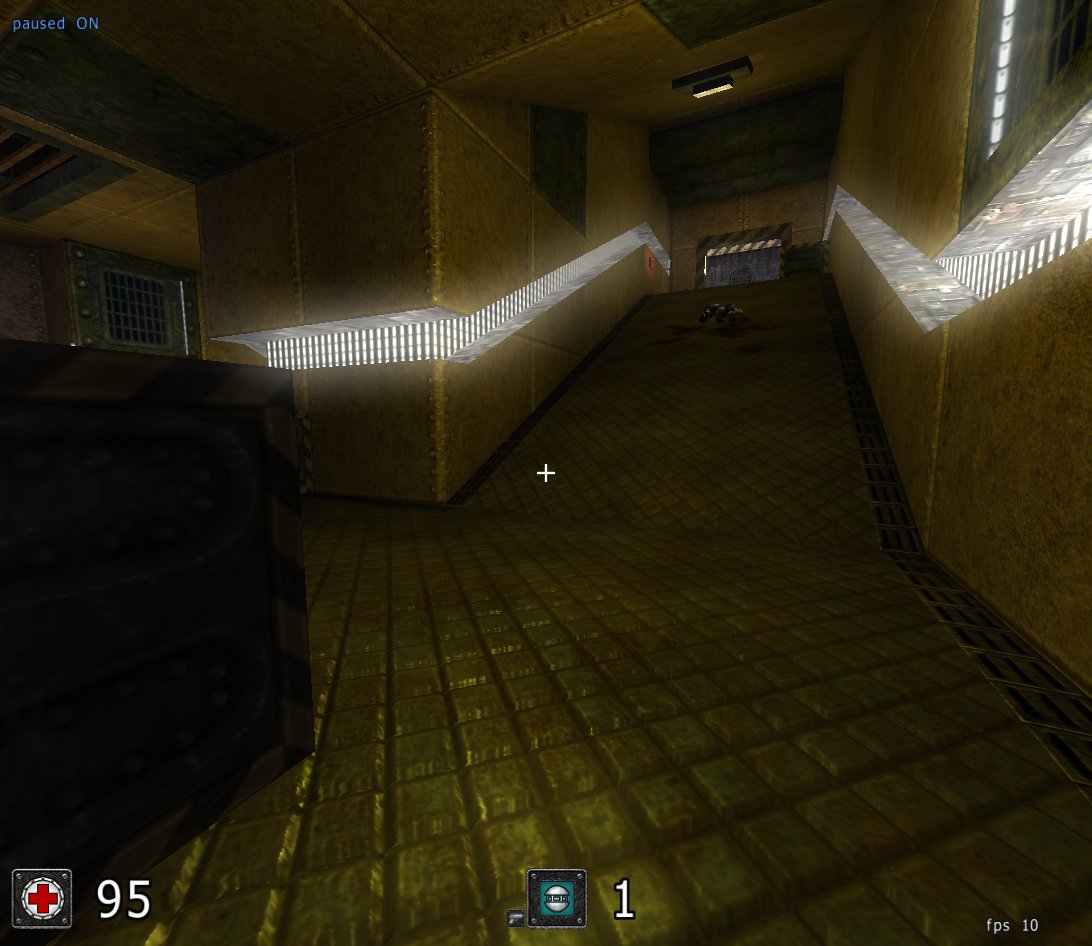

r600g screenshot (bad) (121.94 KB, image/jpeg)
2010-11-19 10:40 UTC, Török Edwin
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Török Edwin 2010-11-19 10:37:34 UTC
Created attachment 40411 [details]
~/.sauerbraten/config.cfg

Similar bug to https://bugs.freedesktop.org/show_bug.cgi?id=31667 , but this time in an open-source game.
See attached screenshots: r600g shows no gun, r600c does.

To reproduce:
1. Copy the .cfg attached to this bug to ~/.sauerbraten
2. Run sauerbraten (version 0.0.20100728.dfsg-2 if you're using Debian)
3. Campaign -> Start Level 9
4. Wait till it loads
5. You should see a gun, instead you just see the targeting reticule

Sauerbraten says:
LIBGL_DRIVERS_PATH=$HOME/mesa/lib/gallium sauerbraten
Using home directory: /home/edwin/.sauerbraten
init: sdl
init: net
init: game
init: video: mode
init: video: misc
init: gl
Renderer: Gallium 0.4 on AMD RV730 (X.Org)
Driver: 2.1 Mesa 7.10-devel
Rendering using the OpenGL assembly/GLSL shader path.
init: console
init: gl: effects
init: world
init: sound
init: cfg
init: mainloop
read map packages/base/lost.ogz (0.5 seconds)
game mode is SP

This is with latest mesa git, commit 185d862cd8cd0a56dd86daa01d9c692ff4abfb54:
OpenGL renderer string: Gallium 0.4 on AMD RV730
OpenGL version string: 2.1 Mesa 7.10-devel
OpenGL shading language version string: 1.20
Comment 1 Török Edwin 2010-11-19 10:37:58 UTC
Created attachment 40412 [details]
~/.sauerbraten/init.cfg
Comment 2 Török Edwin 2010-11-19 10:40:05 UTC
Created attachment 40413 [details]
r600c screenshot (good)
Comment 3 Török Edwin 2010-11-19 10:40:55 UTC
Created attachment 40414 [details]
r600g screenshot (bad)
Comment 4 Alex Deucher 2010-11-19 12:08:18 UTC
This is probably a duplicate of bug 31613
Comment 5 Török Edwin 2010-11-19 13:00:26 UTC
(In reply to comment #4)
> This is probably a duplicate of bug 31613

Tried reverting that commit, it didn't help.
Comment 6 Tilman Sauerbeck 2011-01-07 10:35:27 UTC
Fixed by

commit 97e2aa31c6e735d5f6bd1d67a4dd8da2605aedc8
Author: Henri Verbeet <hverbeet@gmail.com>
Date:   Fri Jan 7 17:06:11 2011 +0100

    r600g: Split ALU clauses based on used constant cache lines.
