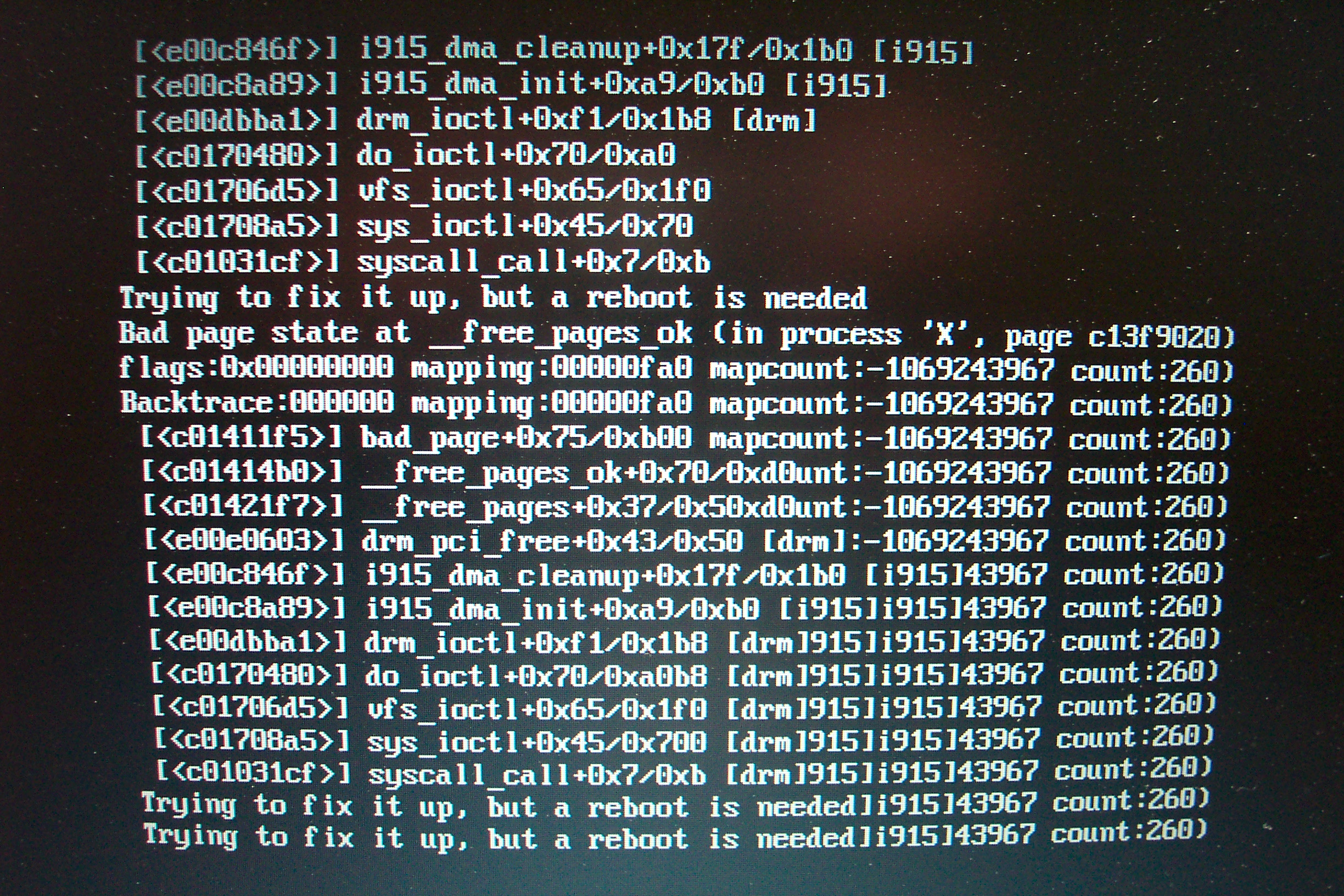

Created attachment 2625 [details]
Picture of error

now using gcc 3.4, xorg 6.8.99.5 (from portage) and 20050513 dri-driver. Now I
can let the install.sh-script install the kernel modules without disturbing
anything, but my computer still hangs when I try to stop/restart X.

I use sarge with a 2.6.12-rc4 Kernel to get my i915GMm-HFS AOpen Motherboard
successfully working for dri/drm/agpgart (onboard graphiccard):

Linux agpgart interface v0.101 (c) Dave Jones
agpgart: Detected an Intel 915GM Chipset.
agpgart: Detected 764K stolen memory.
agpgart: AGP aperture is 256M @ 0xc0000000
[drm] Initialized drm 1.0.0 20040925
ACPI: PCI Interrupt 0000:00:02.0[A] -> GSI 16 (level, low) -> IRQ 16
[drm] Initialized i915 1.1.0 20040405 on minor 0: Intel Corporation Mobile
915GM/GMS/910GML Express Graphics Controller

The standard XFree86 4.3.0.dfsg.1-1 is configured by /etc/X11/XF86Config-4
...
Section "Device"
        Identifier       "myMoth"
        Driver "i810"
        Option "DRI"
EndSection
...

/var/log/XFree86.0.log shows:
...
(II) I810(0): [drm] installed DRM signal handler
(II) I810(0): [DRI] installation complete
(II) I810(0): direct rendering: Enabled
...
also some warnings
(WW) I810(0): Bad V_BIOS checksum
(II) I810(0): Primary V_BIOS segment is: 0xc000

But now when I do a 'glxinfo' I get "direct rendering: No"
??? This really confused me.

And how do I get 3d-Hardware-Support to play QuakeIII with full-speed?
Mesa is installed:
$ dpkg -l  | grep mesa
ii  xlibmesa-gl    4.3.0.dfsg.1-1 Mesa 3D graphics library [XFree86]
ii  xlibmesa-gl-de 4.3.0.dfsg.1-1 Mesa 3D graphics library development files
ii  xlibmesa-glu   4.3.0.dfsg.1-1 Mesa OpenGL utility library [XFree86]
ii  xlibmesa-glu-d 4.3.0.dfsg.1-1 Mesa OpenGL utility library development file


It would be great if someone out there could help me.

PS: $( dmesg ) shows a
"mtrr: base(0xc0020000) is not aligned on a size(0x180000) boundary"
is that due to my gfx-card?

(In reply to comment #3)
> I use sarge with a 2.6.12-rc4 Kernel to get my i915GMm-HFS AOpen Motherboard
> successfully working for dri/drm/agpgart (onboard graphiccard):
>
> Linux agpgart interface v0.101 (c) Dave Jones
> agpgart: Detected an Intel 915GM Chipset.
> agpgart: Detected 764K stolen memory.
> agpgart: AGP aperture is 256M @ 0xc0000000
> [drm] Initialized drm 1.0.0 20040925
> ACPI: PCI Interrupt 0000:00:02.0[A] -> GSI 16 (level, low) -> IRQ 16
> [drm] Initialized i915 1.1.0 20040405 on minor 0: Intel Corporation Mobile
> 915GM/GMS/910GML Express Graphics Controller
>
> The standard XFree86 4.3.0.dfsg.1-1 is configured by /etc/X11/XF86Config-4


That is a very old release of X, you might do better with xorg-6.8.2.

> ...
> Section "Device"
>         Identifier       "myMoth"
>         Driver "i810"
>         Option "DRI"
> EndSection
> ...
>
> /var/log/XFree86.0.log shows:
> ...
> (II) I810(0): [drm] installed DRM signal handler
> (II) I810(0): [DRI] installation complete
> (II) I810(0): direct rendering: Enabled
> ...
> also some warnings
> (WW) I810(0): Bad V_BIOS checksum
> (II) I810(0): Primary V_BIOS segment is: 0xc000
>
> But now when I do a 'glxinfo' I get "direct rendering: No"
> ??? This really confused me.

Try: export LIBGL_DEBUG=1

>
> And how do I get 3d-Hardware-Support to play QuakeIII with full-speed?
> Mesa is installed:
> $ dpkg -l  | grep mesa
> ii  xlibmesa-gl    4.3.0.dfsg.1-1 Mesa 3D graphics library [XFree86]
> ii  xlibmesa-gl-de 4.3.0.dfsg.1-1 Mesa 3D graphics library development files
> ii  xlibmesa-glu   4.3.0.dfsg.1-1 Mesa OpenGL utility library [XFree86]
> ii  xlibmesa-glu-d 4.3.0.dfsg.1-1 Mesa OpenGL utility library development file
>
>
> It would be great if someone out there could help me.
>
> PS: $( dmesg ) shows a
> "mtrr: base(0xc0020000) is not aligned on a size(0x180000) boundary"
> is that due to my gfx-card?
Yes, it will be for the write-combining for the video memory, it shouldn't be
the problem.

Hi,

just coming from a "Descent 3"-Session on my AOpen i915GMm-HFS Board. I have no
crash wehn I logout or do something else. AFAIK it's stable.

I use a 2.6.12-rc4 Kernel because of the newest implemented DRM, agpgart,
intel_agp and i915 modules. They initialize and work as described above.

Then I installed as described in http://dri.freedesktop.org/wiki/Building X.Org
and DRI from CVS. For DRI I just copied the Mesa/lib/i915_dri.so to
/usr/X11R6/lib/modules/dri. To get DRI compiled I can't set the include-path to
the kernel's DRM directory because of some differences in the drm.h file. So I
also grabbed the drm-cvs to let DRI use these includefiles.
That's all.

For some games I get glitches (very slow animation), e.g. shooting in Soldier Of
Fortune.

$ glxgears
libGL warning: 3D driver claims to not support visual 0x22
libGL warning: 3D driver claims to not support visual 0x23
libGL warning: 3D driver claims to not support visual 0x26
libGL warning: 3D driver claims to not support visual 0x27
6458 frames in 5.0 seconds = 1291.525 FPS
6356 frames in 5.0 seconds = 1271.038 FPS
6354 frames in 5.0 seconds = 1270.744 FPS
6358 frames in 5.0 seconds = 1271.442 FPS

libGL is a new which was built by Xorg I think:
/usr/X11R6/lib/libGL.so.1.2

A strange thing is, that before glxinfo or glxgears is running this message is
printed out (by I don't know):
libGL warning: 3D driver claims to not support visual 0x22
libGL warning: 3D driver claims to not support visual 0x23
libGL warning: 3D driver claims to not support visual 0x26
libGL warning: 3D driver claims to not support visual 0x27

$ glxinfo
name of display: :0.0
display: :0  screen: 0
direct rendering: Yes
server glx vendor string: SGI
server glx version string: 1.2
server glx extensions:
    GLX_ARB_multisample, GLX_EXT_visual_info, GLX_EXT_visual_rating,
    GLX_EXT_import_context, GLX_OML_swap_method, GLX_SGI_make_current_read,
    GLX_SGIS_multisample, GLX_SGIX_fbconfig
client glx vendor string: SGI
client glx version string: 1.4
client glx extensions:
    GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory,
    GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method,
    GLX_OML_sync_control, GLX_SGI_make_current_read, GLX_SGI_swap_control,
    GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig,
    GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group
GLX extensions:
    GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory,
    GLX_OML_swap_method, GLX_SGI_make_current_read, GLX_SGIS_multisample,
    GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group
OpenGL vendor string: Tungsten Graphics, Inc
OpenGL renderer string: Mesa DRI Intel(R) 915GM 20041217 x86/MMX/SSE2
OpenGL version string: 1.3 Mesa 6.3
OpenGL extensions:
    GL_ARB_depth_texture, GL_ARB_fragment_program, GL_ARB_imaging,
    GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_point_parameters,
    GL_ARB_shadow, GL_ARB_texture_border_clamp, GL_ARB_texture_compression,
    GL_ARB_texture_cube_map, GL_ARB_texture_env_add,
    GL_ARB_texture_env_combine, GL_ARB_texture_env_dot3,
    GL_ARB_texture_mirrored_repeat, GL_ARB_texture_rectangle,
    GL_ARB_transpose_matrix, GL_ARB_vertex_buffer_object,
    GL_ARB_vertex_program, GL_ARB_window_pos, GL_EXT_abgr, GL_EXT_bgra,
    GL_EXT_blend_color, GL_EXT_blend_equation_separate,
    GL_EXT_blend_func_separate, GL_EXT_blend_minmax, GL_EXT_blend_subtract,
    GL_EXT_clip_volume_hint, GL_EXT_cull_vertex, GL_EXT_compiled_vertex_array,
    GL_EXT_convolution, GL_EXT_copy_texture, GL_EXT_draw_range_elements,
    GL_EXT_fog_coord, GL_EXT_histogram, GL_EXT_multi_draw_arrays,
    GL_EXT_packed_pixels, GL_EXT_point_parameters, GL_EXT_polygon_offset,
    GL_EXT_rescale_normal, GL_EXT_secondary_color,
    GL_EXT_separate_specular_color, GL_EXT_shadow_funcs, GL_EXT_stencil_wrap,
    GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D,
    GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add,
    GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3,
    GL_EXT_texture_filter_anisotropic, GL_EXT_texture_lod_bias,
    GL_EXT_texture_object, GL_EXT_texture_rectangle, GL_EXT_vertex_array,
    GL_3DFX_texture_compression_FXT1, GL_APPLE_client_storage,
    GL_APPLE_packed_pixels, GL_ATI_blend_equation_separate,
    GL_IBM_rasterpos_clip, GL_IBM_texture_mirrored_repeat,
    GL_INGR_blend_func_separate, GL_MESA_pack_invert, GL_MESA_ycbcr_texture,
    GL_MESA_window_pos, GL_NV_blend_square, GL_NV_light_max_exponent,
    GL_NV_texture_rectangle, GL_NV_texgen_reflection, GL_NV_vertex_program,
    GL_NV_vertex_program1_1, GL_OES_read_format, GL_SGI_color_matrix,
    GL_SGI_color_table, GL_SGIS_generate_mipmap, GL_SGIS_texture_border_clamp,
    GL_SGIS_texture_edge_clamp, GL_SGIS_texture_lod, GL_SGIX_depth_texture,
    GL_SUN_multi_draw_arrays

   visual  x  bf lv rg d st colorbuffer ax dp st accumbuffer  ms  cav
 id dep cl sp sz l  ci b ro  r  g  b  a bf th cl  r  g  b  a ns b eat
----------------------------------------------------------------------
0x22 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x23 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x24 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x25 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x26 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x27 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x28 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x29 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow


Maybe this info will help for developing and testing. And maybe there is someone
out there who can tell me what's up with this libGL warnings.

When I start quake3, the intro isn't shown - there is just a black screen. When
I start a more difficult level with I think more OpenGL-Effects, quake3 crashes.

For me it seems that this issue is caused by the mentioned warnings:
libGL warning: 3D driver claims to not support visual 0x22
libGL warning: 3D driver claims to not support visual 0x23
libGL warning: 3D driver claims to not support visual 0x26
libGL warning: 3D driver claims to not support visual 0x27

You can safely ignore the "3D driver claims to not support visual" messages.
I'll try to clean those up today.

*** Bug 3351 has been marked as a duplicate of this bug. ***

Created attachment 2731 [details]
errors/oops logs

The same problem observed in ALT Linux Sisyphus with kernel 2.6.11.10 and DRI
CVS snapshot from 2005-05-13.  Kernel message log is attached.

Created attachment 2732 [details] [review]
CVS change which seems to introduce the problem

Seems that the problem was introduced by this CVS commit:

date: 2005-04-26 05:19:11 +0000;  author: anholt
Convert BSD code to mostly use bus_dma, the dma abstraction for dealing with
IOMMUs and such.  There is one usage of the forbidden vtophys() left in
drm_scatter.c which will be fixed up soon.  This required a KPI change for
drm_pci_alloc/free() to return/use a drm_dma_handle_t that keeps track of
os-specific bits, rather than just passing around the vaddr/busaddr/size.

Submitted by:	Tonnerre Lombard (partially)
Tested on:	FreeBSD: Rage128 AGP/PCI
		Linux:	Savage4 AGP/PCI

	/cvs/dri/drm/bsd-core/ati_pcigart.c	1.10
	/cvs/dri/drm/bsd-core/drmP.h		1.56
	/cvs/dri/drm/bsd-core/drm_bufs.c	1.35
	/cvs/dri/drm/bsd-core/drm_dma.c 	1.35
	/cvs/dri/drm/bsd-core/drm_pci.c 	1.6
	/cvs/dri/drm/bsd-core/drm_scatter.c	1.11
	/cvs/dri/drm/linux-core/drmP.h		1.142
	/cvs/dri/drm/linux-core/drm_bufs.c	1.55
	/cvs/dri/drm/linux-core/drm_drv.c	1.112
	/cvs/dri/drm/linux-core/drm_pci.c	1.8
	/cvs/dri/drm/linux-core/drm_vm.c	1.51
	/cvs/dri/drm/shared-core/i915_dma.c	1.20
	/cvs/dri/drm/shared-core/i915_drv.h	1.11
	/cvs/dri/drm/shared-core/mach64_dma.c	1.11
	/cvs/dri/drm/shared-core/mach64_drv.h	1.7

After reverting that patch (attached) X.org shutdown completes normally - no
error messages or oopses.

Created attachment 2733 [details] [review]
patch to fix drm_pci_alloc() so that subsequent drm_pci_free() works

Seems that the problem is that the drm_pci_alloc() implementation for Linux
forgot to set the dmah->size field in the new drm_dma_handle_t structure.
Because of this, subsequent drm_pci_free() passed bogus size to
pci_free_consistent(), which was leading to lots of "Bad page state" messages,
and subsequently to massive memory corruption resulting in a hang.

Most drivers do not use drm_pci_alloc() and drm_pci_free(), therefore they were
not hit by this problem.  Of course, the DRM core for Linux uses
drm_pci_free(), but it does not pass the drm_dma_handle_t structure from
drm_pci_alloc() to it - instead it fills that structure directly, setting
->size correctly and thus avoiding the bug.

This patch should fix the problem; unfortunately, I cannot get it tested on the
problematic hardware until Monday.

Created attachment 2734 [details] [review]
patch to fix memory leaks in the PCI consistent memory handling code

Apparently the patch mentioned in comment #10, in addition to breaking the i915
driver on Linux, also introduced a memory leak into the PCI consistent memory
handling code for Linux.  There are two problems:

1. drm_pci_alloc() allocates new drm_dma_handle_t structure, but drm_pci_free()
does not free it - this leads to a memory leak in drivers which use
drm_pci_alloc() and drm_pci_free().  (The BSD implementation of drm_pci_free()
_does_ free the drm_dma_handle_t structure passed to it.)

2. drm_addmap() calls drm_pci_alloc(), but does not save the pointer to the
created drm_dma_handle_t structure - instead, it takes the virtual and bus
addresses from it and stores just them; the drm_dma_handle_t structure is
leaked.

The attached patch attempts to fix these problems.

The solution to the first problem is obvious: drm_pci_free() must free the
structure passed to it, so that the Linux and BSD implementation behave in the
same way.  The second problem, however, is worse - the code has calls like

			drm_pci_free(dev, &dmah);

which would obviously break if drm_pci_free() will free its argument.

The real problem is that the Linux DRM core does not have an OS-specific
drm_local_map_t - therefore there is no place to store the drm_dma_handle_t
pointer from drm_pci_alloc() to pass it to drm_pci_free() later.  Introducing
real drm_local_map_t to the Linux DRM core will need major changes, therefore
my patch uses a somewhat hackish approach:

1) drm_addmap() just calls kfree(dmah) on the drm_dma_handle_t pointer from
drm_pci_alloc() to avoid leaking that memory.

2) A new function - __drm_pci_free() - is introduced; this function works just
like drm_pci_free(), but does not free the drm_dma_handle_t structure passed to
it.  This function is used instead of drm_pci_free() in places where the
drm_dma_handle_t structure is constructed on the stack.  Only the DRM core has
such code, therefore __drm_pci_free() does not need to be exported.

This patch is only compile tested now, like the previous one.

Initial testing (aka starting up a session and then stopping it) of your
patches shows success for me. I don't see any unusual memory leaks or any such
stuff.

The first patch fixed the bug for me.

Committed.  Thanks for cleaning up after my mess :/
