With mesa 7.11~0-2 from Debian experimental I have missing characters in text display of freedroidrpg 0.14.1-1 on my ThinkPad T520 with SandyBridge graphics. I attach a screen shot. It doesn´t matter whether I play the game in full screen or not. I see nothing obvious in dmesg, syslog, ~/.xsession-errors or Xorg log. When I downgrade to 7.10.3-3 all characters are shown. Packages in use (now with 7.10 mesa again): martin@merkaba:~> apt-show-versions | egrep "(xserver-xorg-core|mesa|drm)" libdrm-intel1/sid uptodate 2.4.25-3 libdrm-radeon1/sid uptodate 2.4.25-3 libdrm2/sid uptodate 2.4.25-3 libgl1-mesa-dev/sid uptodate 7.10.3-3 libgl1-mesa-dri/sid uptodate 7.10.3-3 libgl1-mesa-glx/sid uptodate 7.10.3-3 libglu1-mesa/sid uptodate 7.10.3-3 libglu1-mesa-dev/sid uptodate 7.10.3-3 mesa-common-dev/sid uptodate 7.10.3-3 mesa-utils/sid uptodate 8.0.1-2 xserver-xorg-core/sid uptodate 2:1.10.2-2 martin@merkaba:~> lspci -nn | grep VGA 00:02.0 VGA compatible controller [0300]: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller [8086:0126] (rev 09) Kernel in use: martin@merkaba:~> cat /proc/version Linux version 3.0.0-rc4-amd64 (Debian 3.0.0~rc4-1~experimental.1) (maks@debian.org) (gcc version 4.4.6 (Debian 4.4.6-6) ) #1 SMP Tue Jun 21 13:22:03 UTC 2011 (which fixes freezes in supertuxkart 0.7 played fullscreen all 10-15 seconds that I still had with 3.0.0-rc3, Debian changelog hinted at that - yeah and thanks ;) Graphics in use: martin@merkaba:~> lspci -nn | grep VGA 00:02.0 VGA compatible controller [0300]: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller [8086:0126] (rev 09)

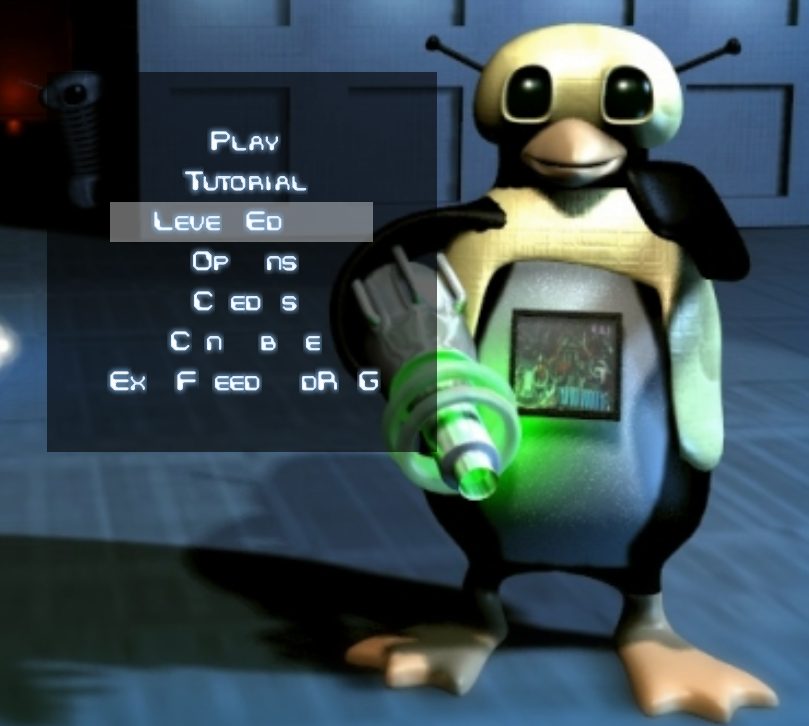

Created attachment 48382 [details] screenshot showing those missing characters
Adding the link to Debian bug #631516 as URL for this bug report (http://bugs.debian.org/631516).
Said debian package is: * New upstream snapshot, from the master branch (up to 2fe39b46e7). (wanted to add debian bug link in that moment too, but you did already, Cyril;-).
commit a5a36d9b158a317daa1cf10a6b6ed2bed6b22750 Author: Eric Anholt <eric@anholt.net> Date: Fri Jun 10 20:19:01 2011 -0700 i965: Don't try to continue space before the start of a VBO. This loop is trying to see if all the buffers to be uploaded happen to be the same increment from the start of the 3DSTATE_VERTEX_BUFFERS currently loaded in the hardware. However, we might be at a smaller offset than the previous set of VERTEX_BUFFERS, so we can't reuse because that packet made the first entry be its starting offset (you can't access outside the given bounds). Fixes piglit ARB_vertex_buffer_object/elements-negative-offset.
(correcting component)
According to module list it is i915, not i965. Thanks to the Debian maintainer Cyril I will be getting an mesa package with just this commit cherry-picked soon and test the fix then.
Changed back to i965 to have it assigned to Chris Wilson again. Sorry for noise.
I give up to understand bugzilla. Now its i915 and Chris Wilson set manually.
(In reply to comment #6) > According to module list it is i915, not i965. just curious what's the module name for i915? The Mesa DRI driver for SNB should be i965. There's a kernel module named i915.
Well I do have two apparently different drivers: merkaba:~> ls -l $(dpkg -L libgl1-mesa-dri | grep i9) -rw-r--r-- 1 root root 3449304 19. Jun 17:47 /usr/lib/x86_64-linux-gnu/dri/i915_dri.so -rw-r--r-- 1 root root 3678488 19. Jun 17:47 /usr/lib/x86_64-linux-gnu/dri/i965_dri.so Anyway, I leave that to the experts now to decide ;).
Sorry I forgot: i915 is the module name according to lsmod.
Fix confirmed. All characters of the text are visible again. I didn´t get any higher framerate due to SNB tough. But the framerate raised when upgrading from 3.0.0-rc3 to 3.0.0-rc4 with mesa 7.10 still back then from about 18-20 maximum to 28-30 maximum at 1400x1050.
Thanks for fixing the bug!
Just for the record, as the backtrace in bug #38898 shows, its really i965 being involved here.
