linux 3.8-rc6    3.7.4 had it also

also corruption in 2D apps (seamonkey)

Created attachment 74238 [details]
screen shot Xonotic

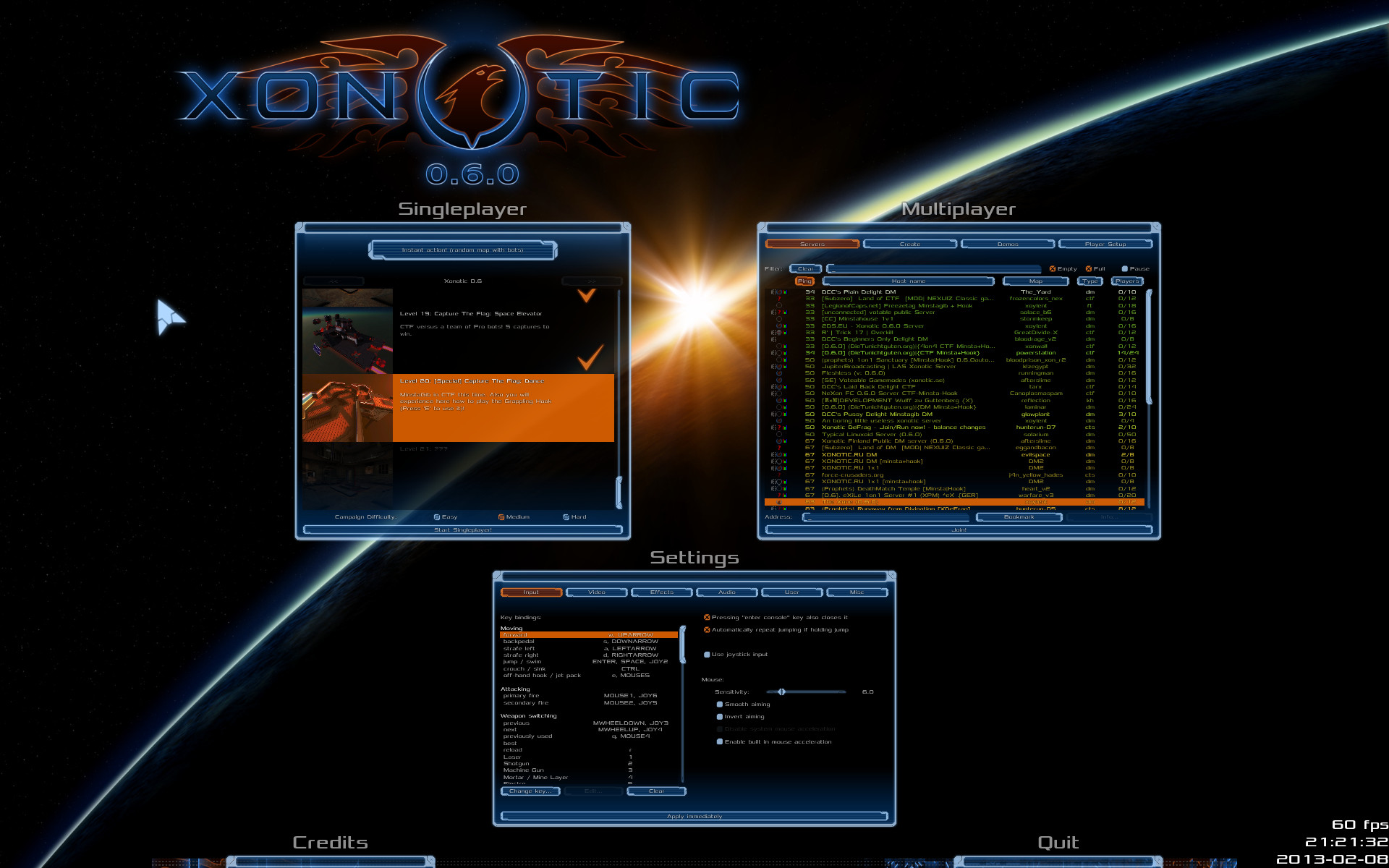

Created attachment 74239 [details]
screen shot Xonotic

(In reply to comment #1)
> linux 3.8-rc6    3.7.4 had it also

325422c49449acdd8df1eb2ca8ed81f7696c38cc (r600g: add async for staging buffer upload v2) only takes affect on 3.8 kernels.  Previous kernels didn't support the DMA rings.  So if you are seeing the same issue on multiple kernels, it's either something else or you are seeing two issues.  It may be the same issue as bug 58042.

Tested it again to be sure

Linux borgir 3.7.6 does NOT have the problem, pardon the mistake.

And what GPU is this ? Because here it works ...

OpenGL renderer string: Gallium 0.4 on AMD RV730

(In reply to comment #0)
> bisected to this commit
>
> 325422c49449acdd8df1eb2ca8ed81f7696c38cc is the first bad commit
> commit 325422c49449acdd8df1eb2ca8ed81f7696c38cc
> Author: Jerome Glisse <jglisse@redhat.com>
> Date:   Mon Jan 7 17:45:59 2013 -0500
>
>     r600g: add async for staging buffer upload v2
>
>     v2: Add virtual address to dma src/dst offset for cayman
>
>     Signed-off-by: Jerome Glisse <jglisse@redhat.com>
>
> :040000 040000 4ef6e784f3acb7f21da0c5e1923810c78917d16d
> 55f0ce7d9793ce04d392fc7943059545053a9d79 M	src

Looks correct to me on rv790.

I get nothing like the corruption in the screens, for me it's just the band at the bottom of the screen and it's not always there (but seems to be reliable first test after boot from power off).

I tested a couple of cycles with mesa reset just before this commit and couldn't see the problem. With mesa on this commit I can see it.

Kernel is drm-fixes.

Yes for me this effect varies also

if I open , say a browser with a complex webpage, and then start xonotic again the text may be garbled the 2nd start

its as if video memory or some caches get corrupted

Created attachment 74300 [details] [review]
Fix

Can you check if that patch fix it for you ?

still has the problem with that patch

noticed this in dmesg:


radeon 0000:01:00.0: DMA copy src buffer too small (4295180288 18382848)
[drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream !
radeon 0000:01:00.0: DMA copy src buffer too small (1032192 1024000)
[drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream !

Created attachment 74303 [details] [review]
Fix v2

This v2 avoid the kernel message. Weird you still have issue i don't here with this patch.

Try also applying the patch of https://bugs.freedesktop.org/show_bug.cgi?id=60034

fix v2 ( 3.8.0-rc6 x86_64)

radeon 0000:01:00.0: DMA copy src buffer too small (7516413696 18382848)
[drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream !



still the xonotic garbage, though it does not happen with every try, best test 3x

just applied
> Try also applying the patch of https://bugs.freedesktop.org/show_bug.cgi?id=60034


same problem still

though it started 3x well, then when I open my browser with some pages, and retry, the corruption in xonotic is back again..

radeon 0000:01:00.0: DMA copy src buffer too small (3221445120 18382848)
[drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream !

Created attachment 74306 [details]
corruption after patches

looks a bit different, also xonotic seems to start more often right (without corruption) than wrong with the patches applied

https://bugs.freedesktop.org/attachment.cgi?id=74306

(In reply to comment #18)
> https://bugs.freedesktop.org/attachment.cgi?id=74306

I've tried quite hard on both 64 bit and 32 bit setups and with both patches applied can no longer get any corruption.

One thing I did notice is that there is a slight difference between running the sdl and glx versions, in that the sdl has a few strange chars in console - but it's the same with llvmpipe.

Are you running glx or sdl?

Can you get any corruption if you run it with the env

LIBGL_ALWAYS_SOFTWARE=1

xonotic-linux64-glx

LIBGL_ALWAYS_SOFTWARE=1  starts correctly 5x in a row

Paul do you have an up to date kernel, there are have been change to dma portion of kernel in 3.8 serie. Without my patch i got the corruption but with it i can't get any here.

Especially you should not have kernel message with my patch

just retested

linux
3.8.0-rc6

fresh mesa tree (74a17a764dc2ad20d9d6f56afee963b23b597132  today) , with  Fix v2 (1.59 KB, patch) 2013-02-06 20:44 UTC, Jerome Glisse


xonotic-linux64-glx  (0.6):
Corruption at first start


dmesg error:
radeon 0000:01:00.0: DMA copy src buffer too small (343597592584 18382848)
[drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream !




Everything works OK with linux 3.7.6

Do you have multiscreen ? What is your screen resolution ?

1920 * 1200  LOW detail

~ > xrandr
Screen 0: minimum 320 x 200, current 1920 x 1200, maximum 8192 x 8192
HDMI-0 disconnected (normal left inverted right x axis y axis)
VGA-0 disconnected (normal left inverted right x axis y axis)
DVI-0 connected 1920x1200+0+0 (normal left inverted right x axis y axis) 519mm x 324mm
   1920x1200      60.0*+
   1920x1080      60.0
   1600x1200      60.0
   1680x1050      59.9
   1680x945       60.0
   1400x1050      59.9
   1600x900       60.0
   1280x1024      60.0
   1440x900       59.9
   1280x960       60.0
   1366x768       60.0
   1360x768       60.0
   1280x800       59.9
   1280x768       60.0
   1024x768       60.0
   1024x576       60.0
   800x600        60.3
   848x480        60.0
   640x480        60.0
   720x400        70.1

Created attachment 74381 [details] [review]
Kernel fix

Ok try this kernel patch without and with the mesa patch. This one should definitely fix the issue.

(In reply to comment #27)
> Created attachment 74381 [details] [review] [review]
> Kernel fix
>
> Ok try this kernel patch without and with the mesa patch. This one should
> definitely fix the issue.

Won't apply against 3.8-rc6 or drm fixes for me.

3.8-rc6 Here neither, only chunk 1 with 25x lines fuz

Created attachment 74433 [details] [review]
Kernel fix

This one apply against Linus master

3.8-rc6

your latest kernel patch applied well.



with fix v2 all corruption seems gone.  on ~10 startups




without fix v2 I still see dynamic corruption at the bottom of screen

Created attachment 74451 [details]
xonotic with kernel without v2 patch 3.8-rc6

i've seen no more dmesg errors

(In reply to comment #30)
> Created attachment 74433 [details] [review] [review]
> Kernel fix
>
> This one apply against Linus master

Like Paul, I need the mesa patch as well to get rid of the junk at the bottom of the screen.

I guess my screen was too small to show the issue this patch fixes, but I've tried it and can't find anything that regresses.

Mesa fix pushed, kernel fix queued for Linus inclusion

It doesn't apply correctly on kernel 3.8.0

(In reply to comment #36)
> It doesn't apply correctly on kernel 3.8.0

The kernel patch is already upstream in 3.8.0.
