Bug 74863 - [r600g] HyperZ broken on RV770 and CYPRESS (Left 4 Dead 2 trees corruption) bisected!
[r600g] HyperZ broken on RV770 and CYPRESS (Left 4 Dead 2 trees corruption) b...
Status: RESOLVED FIXED
Product: Mesa
Classification: Unclassified
Component: Drivers/Gallium/r600
git
x86-64 (AMD64) Linux (All)
: medium normal
Assigned To: Default DRI bug account
:
Depends on:
Blocks: 75112
  Show dependency treegraph

Reported: 2014-02-11 22:54 UTC by Benjamin Bellec
Modified: 2014-09-03 09:51 UTC (History)
2 users (show)

See Also:


Attachments
tree correctly rendered (542.58 KB, image/jpeg)
2014-02-11 22:54 UTC, Benjamin Bellec
Details
tree not correctly rendered one second later in the same scene (663.12 KB, image/jpeg)
2014-02-11 22:55 UTC, Benjamin Bellec
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Benjamin Bellec 2014-02-11 22:54:26 UTC

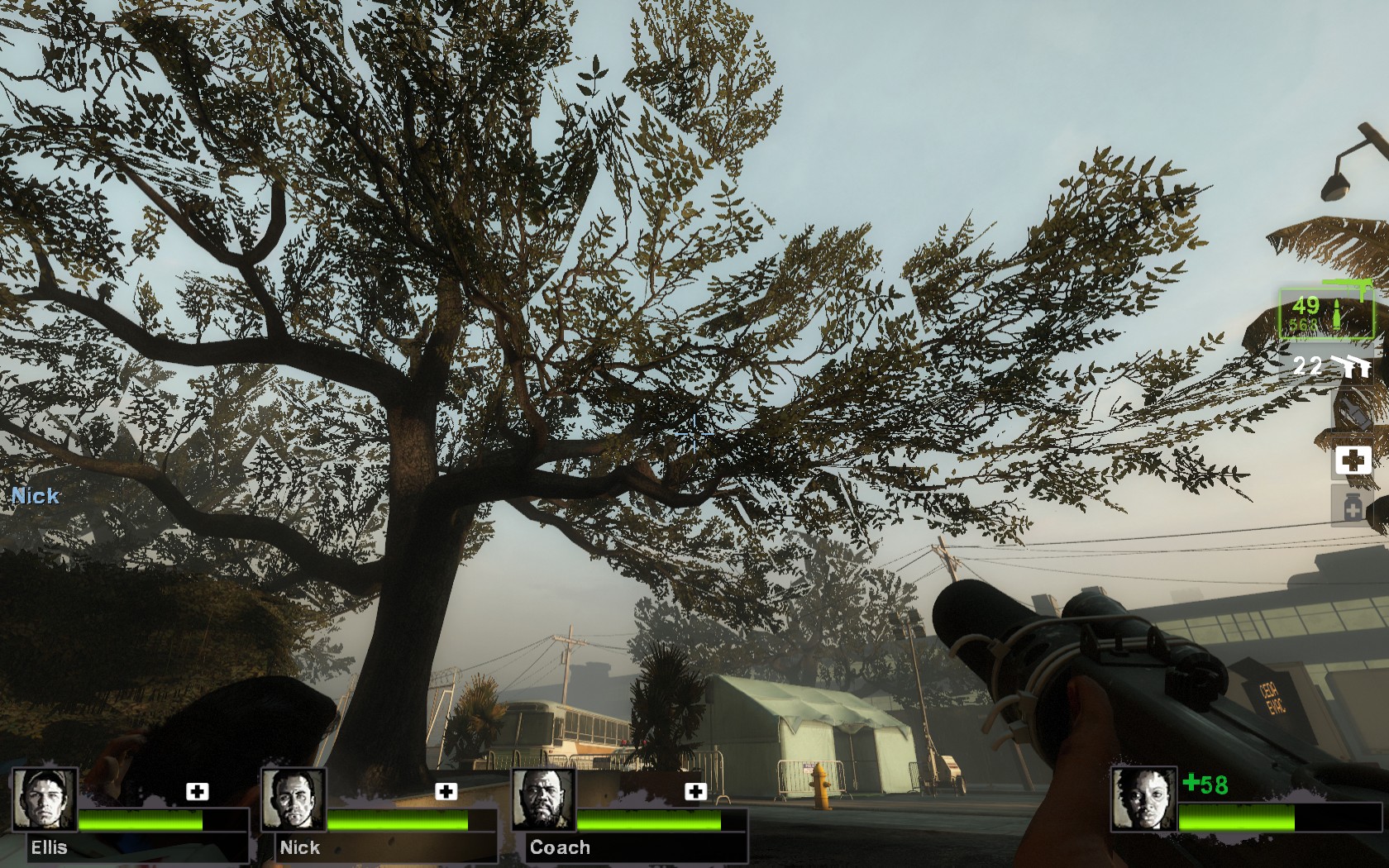

Created attachment 93888 [details]
tree correctly rendered

Probably the same issue than:
https://bugs.freedesktop.org/show_bug.cgi?id=74803

Trees in Left 4 Dead 2 have some rendering issue when you move, so in fact they looks like to blink. See the screenshots attached.

This hits my RV770 (HD4850) and CYPRESS (HD5850).

When R600_DEBUG=nohyperz is set, there is no problem.
R600_DEBUG=nosb doesn't fix.

First bad commit is:
r600g: defer shader variant selection and depending state updates
commit a144bc29b5bb8322a54308603c5d0a8467448164
Signed-off-by: Vadim Girlin <vadimgirlin@gmail.com>
Signed-off-by: Dave Airlie <airlied@redhat.com>
Reviewed-by: Alex Deucher <alexander.deucher@amd.com>

Note that the bug happens in L4D2 only when the option "Effects details" in the graphic options of the game is set to Medium or High, but not when set to Low.
Comment 1 Benjamin Bellec 2014-02-11 22:55:28 UTC

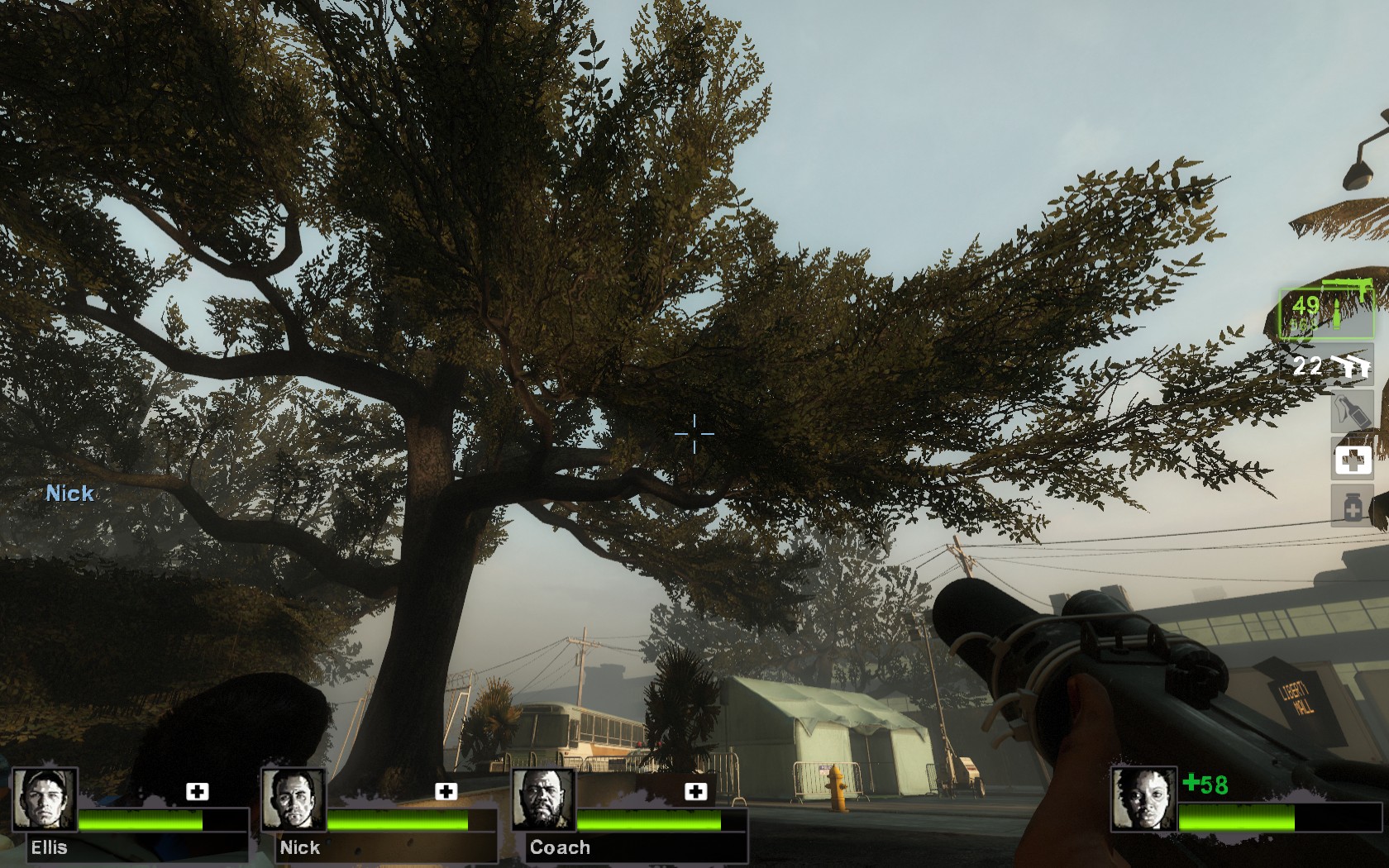

Created attachment 93889 [details]
tree not correctly rendered one second later in the same scene
Comment 2 Benjamin Bellec 2014-02-11 23:00:08 UTC
I forgot to mention that I compiled mesa with:

./autogen.sh --with-gallium-drivers=r600 --with-dri-drivers= --enable-texture-float --disable-dri3 --disable-r600-llvm-compiler --disable-gallium-llvm --enable-32-bit CFLAGS="-O2 -m32" CXXFLAGS="-O2 -m32" --libdir=/usr/lib


The screenshots have been taken in the level "Dead Center" stage "2 - Street".
Comment 3 Marek Olšák 2014-09-01 20:36:49 UTC
Is this fixed with current Mesa git?

If not, could you please make and upload a trace file using apitrace:

https://github.com/apitrace/apitrace

Thanks.
Comment 4 Benjamin Bellec 2014-09-01 23:23:36 UTC
Problem still persists with current master (git-e8f8353). Tested on Evergreen.

The apitrace can be downloaded here :
https://drive.google.com/file/d/0B7D2Y0QXFND2bUlVc1JyMHZKVWc
(364 MB, md5sum 3e80394465612a7f29aced09ea02bd78)
Comment 5 smoki 2014-09-02 00:06:59 UTC
(In reply to comment #4)
> Problem still persists with current master (git-e8f8353). Tested on
> Evergreen.
>
> The apitrace can be downloaded here :
> https://drive.google.com/file/d/0B7D2Y0QXFND2bUlVc1JyMHZKVWc
> (364 MB, md5sum 3e80394465612a7f29aced09ea02bd78)

 Just as info... can not reproduce it on radeonsi with this apitrace, seems like r600 only issue :).
Comment 6 Benjamin Bellec 2014-09-02 10:12:56 UTC
This is also not fixed on RV770.
Comment 7 Marek Olšák 2014-09-03 09:51:19 UTC
Fixed by 8abdc3c4a9c81e359d5dc1694253b05dd5562c95. Closing.
