Bug 80584 - XCOM: Enemy Unknown incorrect hair rendering
Summary: XCOM: Enemy Unknown incorrect hair rendering
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Gallium/radeonsi (show other bugs)
Version: 10.1
Hardware: x86-64 (AMD64) Linux (All)
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks: 77449
  Show dependency treegraph

Reported: 2014-06-27 08:30 UTC by Ryan Williams
Modified: 2015-01-08 02:36 UTC (History)
3 users (show)

See Also:
i915 platform:
i915 features:


Attachments
XCOM: Enemy Unknown Screenshot 1 (887.89 KB, text/plain)
2014-06-27 08:30 UTC, Ryan Williams
Details
XCOM: Enemy Unknown Screenshot 2 (477.77 KB, text/plain)
2014-06-27 08:32 UTC, Ryan Williams
Details
XCOM: Enemy Unknown Screenshot 1 (887.89 KB, image/png)
2014-06-27 08:34 UTC, Ryan Williams
Details
XCOM: Enemy Unknown Screenshot 2 (477.77 KB, image/png)
2014-06-27 08:34 UTC, Ryan Williams
Details
Another variant of incorrectly rendered hair (503.75 KB, image/png)
2014-07-27 11:36 UTC, Kai
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Ryan Williams 2014-06-27 08:30:20 UTC

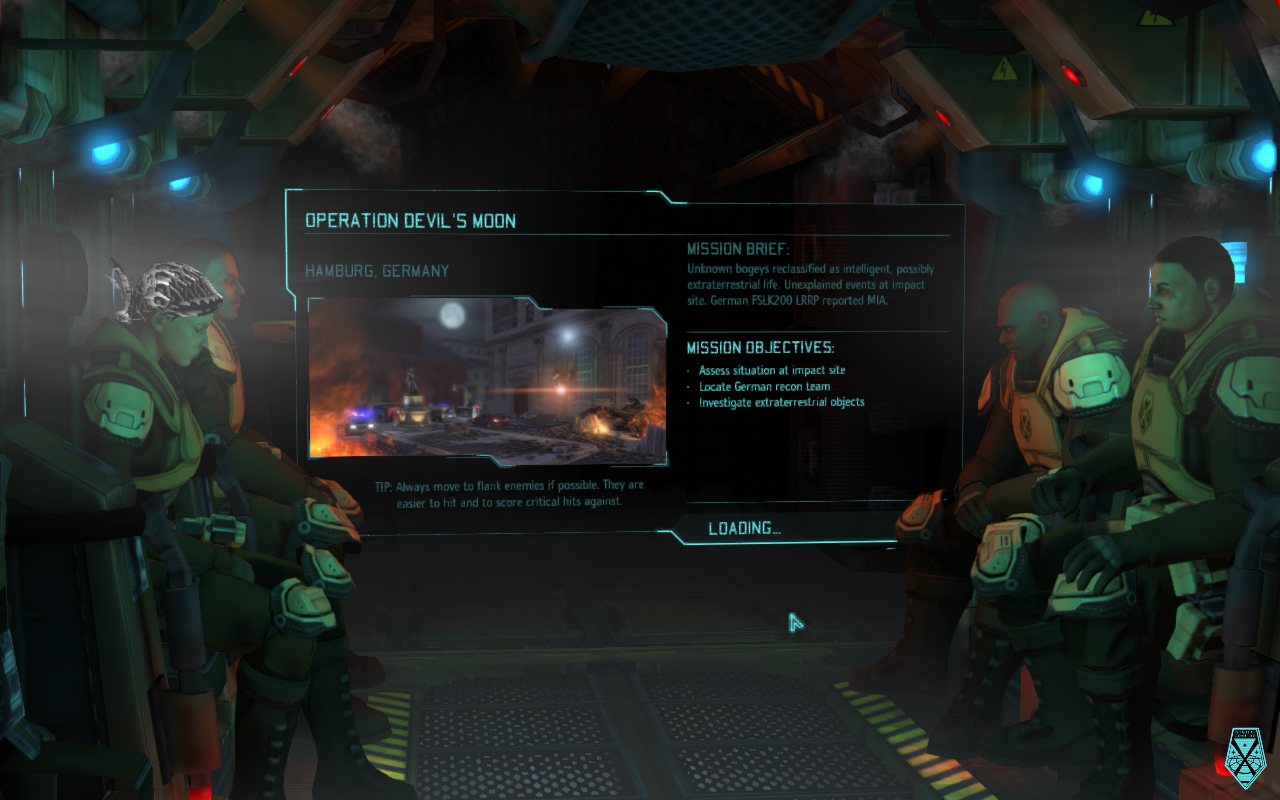

Created attachment 101846 [details]
XCOM: Enemy Unknown Screenshot 1

Hair on certain characters in XCOM: Enemy Unknown does not look correct. See the attached screenshots. This occurs on both Mesa 10.1.3 + LLVM 3.4 and Mesa git + LLVM 3.4.2 via Oibaf PPA, Ubuntu 14.04.
Comment 1 Ryan Williams 2014-06-27 08:32:11 UTC

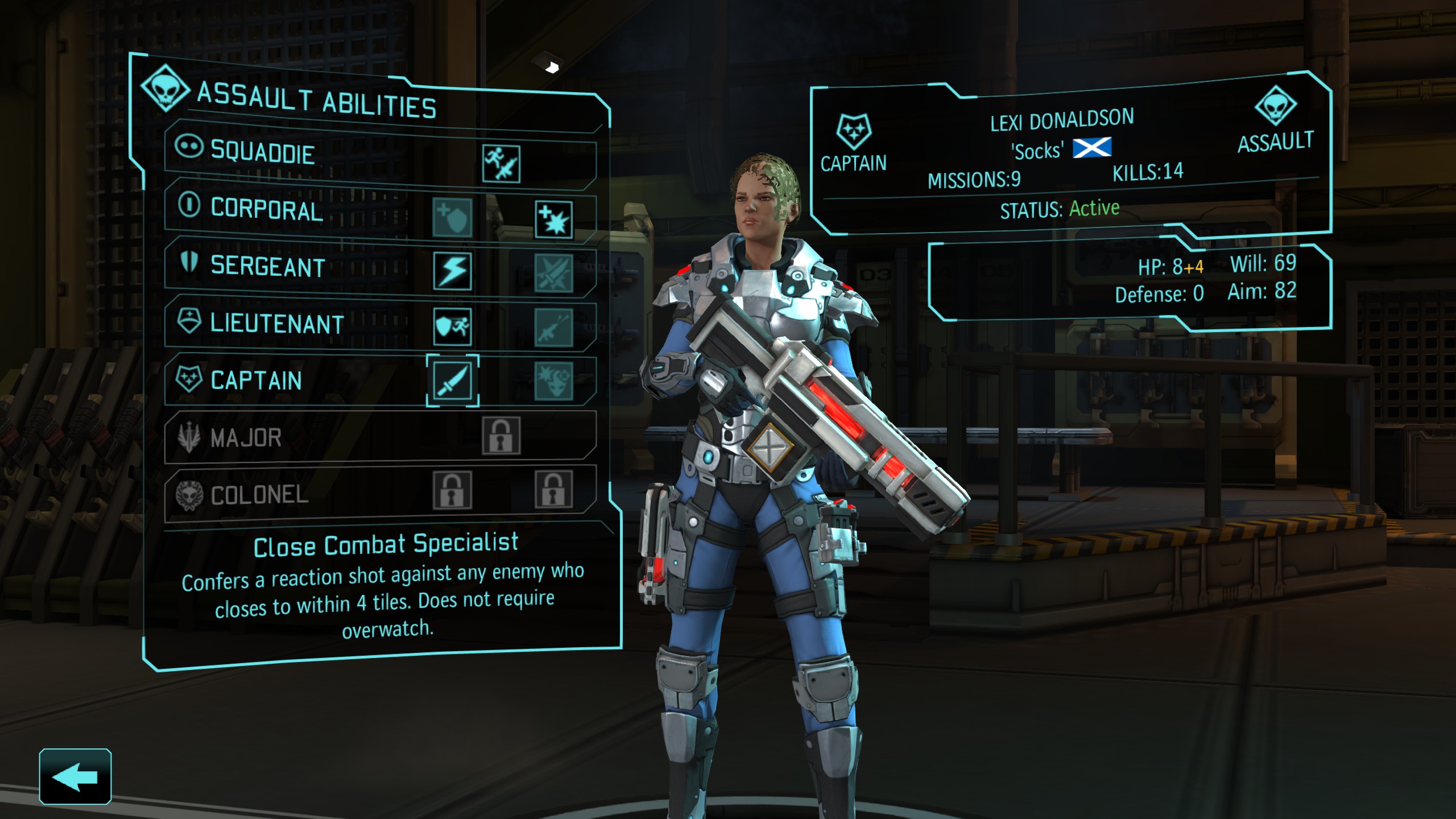

Created attachment 101847 [details]
XCOM: Enemy Unknown Screenshot 2
Comment 2 Ryan Williams 2014-06-27 08:34:02 UTC
Created attachment 101848 [details]
XCOM: Enemy Unknown Screenshot 1
Comment 3 Ryan Williams 2014-06-27 08:34:38 UTC
Created attachment 101849 [details]
XCOM: Enemy Unknown Screenshot 2
Comment 4 Kai 2014-07-27 11:36:31 UTC
Created attachment 103534 [details]
Another variant of incorrectly rendered hair

I'm seeing the same with radeonsi on a Hawaii. As you can see from the attached image, it looks a bit different from what the initial reporter saw.

The stack I'm using is:
GPU: Hawaii PRO [Radeon R9 290] (ChipID = 0x67b1)
Linux: Git:~agdf5/linux:drm-next-3.17-wip (calls itself 3.16-rc4?)
libdrm: Git:master/libdrm-2.4.55 + patch from http://lists.freedesktop.org/archives/dri-devel/2014-July/064743.html
LLVM: 3.5 RC1
libclc: Git:master/0ec7437d9c
Mesa: Git:master/74e100affc + some patches from Marek to fix Hawaii ("radeonsi: fix CMASK and HTILE calculations for Hawaii"; "gallium/util: add a helper for calculating primitive count from vertex count"; "radeonsi: fix a hang with instancing on Hawaii"; "radeonsi: fix a hang with streamout on Hawaii"; "winsys/radeon: fix vram_size overflow with Hawaii"; "radeonsi: fix occlusion queries on Hawaii"; "r600g, radeonsi: switch all occurences of array_size to util_max_layer") and can be found on mesa-dev.
DDX: 1:7.4.0-2 + Patch from http://people.freedesktop.org/~agd5f/0001-radeon-enable-hawaii-accel-conditionally.patch
X: 2:1.16.0-1 (1.16.0)
Comment 5 Daniel Exner 2014-12-13 13:00:18 UTC
I can confirm this for PITCAIRN as well.

Card: VGA compatible controller: Advanced Micro Devices [AMD] nee ATI Pitcairn
      Subsystem: Micro-Star International Co., Ltd. Device 3036

Kernel: 3.18.0-rc7
libdrm: 2.4.58
mesa: git-gc97cbd7
llvm: 3.5
Comment 6 Daniel Exner 2014-12-17 08:18:57 UTC
I think this may be due to missing GL_ARB_tessellation_shader extension.

Mesa lists this as Status "started" but no driver implementation yet.

I'll try to evaluate the status of this and see if I can verify that its indeed this missing extension.

(That would also mean that XCOM is in fact OpenGL)
Comment 7 Daniel Exner 2014-12-17 08:20:36 UTC
OpenGL 4.0... Why can't I edit even my own comments!?
Comment 8 Daniel Exner 2014-12-20 18:10:22 UTC
I just tried the game with an Intel GPU and Mesa: Hair rendering is correct. So this is in fact something broken in radeonsi.
Comment 9 Daniel Exner 2015-01-07 22:39:55 UTC
With llvm SVN Rev 225358 and mesa from git ge28f9d0 as of today hair is rendered correctly on R270X :)

Can anyone of the other reporters confirm this?
Comment 10 Michel Dänzer 2015-01-08 02:36:14 UTC
The hair in L4D2 looks fine as well now, so let's assume this is fixed.
