Bug 82991 - Inverted bumpmap in webgl applications
Summary: Inverted bumpmap in webgl applications
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/i965 (show other bugs)
Version: 10.2
Hardware: All Linux (All)
: medium major
Assignee: Andrés Gómez García
QA Contact: Intel 3D Bugs Mailing List
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2014-08-23 14:38 UTC by FERLET Patrice
Modified: 2014-12-17 11:24 UTC (History)
2 users (show)

See Also:
i915 platform:
i915 features:


Attachments
glxinfo outuput (16.64 KB, text/plain)
2014-08-23 14:38 UTC, FERLET Patrice
Details
glxinfo on mesa 10.2.5 version (16.88 KB, text/plain)
2014-08-28 12:19 UTC, FERLET Patrice
Details
Sample simple application using three.js (87.73 KB, application/x-compressed)
2014-11-04 12:48 UTC, Andrés Gómez García
Details
Screenshot of the attached application rendered with swrast on GNU/Linux (72.45 KB, image/jpeg)
2014-11-04 12:50 UTC, Andrés Gómez García
Details
Screenshot of the attached application rendered with i965 on GNU/Linux (72.24 KB, image/jpeg)
2014-11-04 12:52 UTC, Andrés Gómez García
Details
Trace execution file from the sample application using apitrace (357.23 KB, application/x-gzip)
2014-11-04 13:02 UTC, Andrés Gómez García
Details

Note You need to log in before you can comment on or make changes to this bug.
Description FERLET Patrice 2014-08-23 14:38:52 UTC
Created attachment 105161 [details]
glxinfo outuput

Trying some examples with THREE.js library in Firefox and Chrome/Chromium, Linux based system with intel graphic cards shows inverted bumpmap.

You can see the example here:
https://github.com/mrdoob/three.js/issues/4157

It seeme that the problem appears long time ago (2013 for this issue).

I'm not sure about my driver version. I send you glxinfo output from my Fedora 20 installed on lenovo b590 laptop.
Comment 1 FERLET Patrice 2014-08-23 14:59:40 UTC
The example game is here:

http://jeromeetienne.github.io/marbletable2/
Comment 2 Ian Romanick 2014-08-23 17:43:45 UTC
We've come a long way since Mesa 10.1.5.  Can you try with one of the 10.2 stable releases?  10.2.6 is the most recent.
Comment 3 FERLET Patrice 2014-08-28 12:16:51 UTC
Same with 10.2 version. Installed from kwizart testing repository.

The bump-map on chrome and firefox webgl examples (as my own projects) are inverted.

OpenGL version string: 3.0 Mesa 10.2.5
Comment 4 FERLET Patrice 2014-08-28 12:19:11 UTC
Created attachment 105383 [details]
glxinfo on mesa 10.2.5 version

This is the glxinfo64 output with mesa 10.2.5 version
Comment 5 Andrés Gómez García 2014-11-04 12:39:00 UTC
Just now checked with mesa master branch and it is still reproducible.

I will take a look to this.
Comment 6 Andrés Gómez García 2014-11-04 12:48:01 UTC
Created attachment 108887 [details]
Sample simple application using three.js

To use this app you will need a local http server due to security restrictions for JS to access local files.

In a GNU/Linux box, something like this should work:

$ tar xzpf fd82991-test.tar.gz
$ cd fd82991-test
$ python3 -m http.server &
$ xdg-open http://localhost:8000/fd82991-test.html &
Comment 7 Andrés Gómez García 2014-11-04 12:50:10 UTC

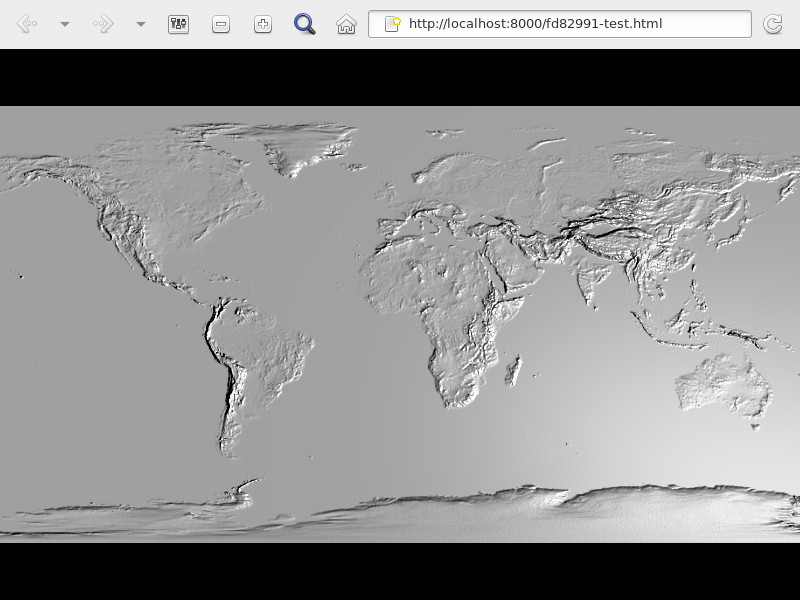

Created attachment 108888 [details]
Screenshot of the attached application rendered with swrast on GNU/Linux

The same result can be obtained using the nouveau driver or the NVidia propritary one for GNU/Linux
Comment 8 Andrés Gómez García 2014-11-04 12:52:34 UTC

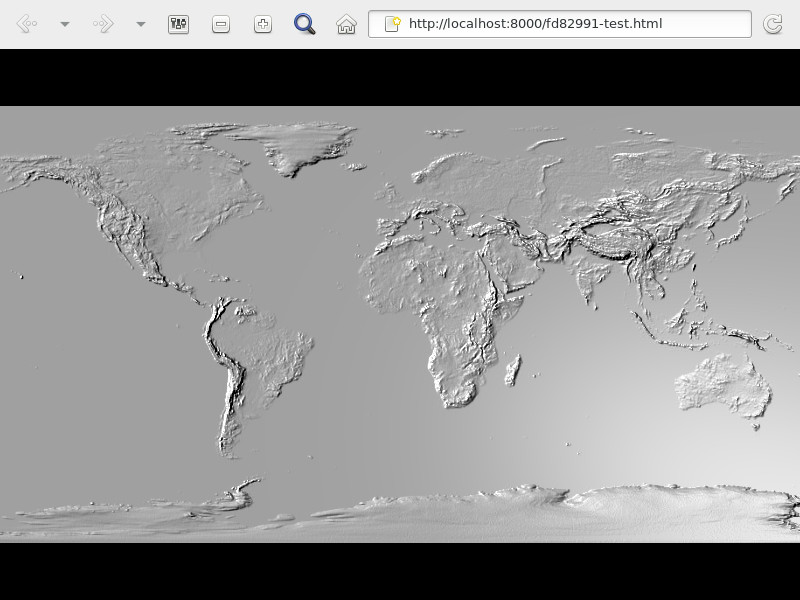

Created attachment 108889 [details]
Screenshot of the attached application rendered with i965 on GNU/Linux

This screenshot shows how the bumpmap is inverted when using the i965 driver
Comment 9 Andrés Gómez García 2014-11-04 13:02:27 UTC
Created attachment 108890 [details]
Trace execution file from the sample application using apitrace

This trace was created running the attached sample application with the apitrace  in WebKitGTK+'s MiniBrowser. Something like:

$ LD_PRELOAD=<path_to>/apitrace/wrappers/glxtrace.so <path_to>/MiniBrowser http://localhost:8000/fd82991-test.html &
Comment 10 Andrés Gómez García 2014-12-12 16:22:05 UTC
Proposed piglit patch which exposes this bug sent at:
http://lists.freedesktop.org/archives/piglit/2014-December/013648.html

Proposed patch for fixing this bug sent at:
http://lists.freedesktop.org/archives/mesa-dev/2014-December/072543.html
Comment 11 Ian Romanick 2014-12-17 05:16:52 UTC
*** Bug 87391 has been marked as a duplicate of this bug. ***
Comment 12 Andrés Gómez García 2014-12-17 11:24:41 UTC
This has been resolved, so closing.

There is a follow up at bug 87407.
