Bug 27529 - [rs690m] Graphics corruption with ati x1200
[rs690m] Graphics corruption with ati x1200
Status: RESOLVED FIXED
Product: xorg
Classification: Unclassified
Component: Driver/Radeon
7.5 (2009.10)
x86 (IA32) Linux (All)
: high major
Assigned To: xf86-video-ati maintainers
Xorg Project Team
: regression
: 25469 27782 (view as bug list)
Depends on:
Blocks:
  Show dependency treegraph

Reported: 2010-04-07 20:19 UTC by Bryce Harrington
Modified: 2011-03-07 10:38 UTC (History)
9 users (show)

See Also:
i915 platform:
i915 features:


Attachments
XorgConf.txt (223 bytes, text/plain)
2010-04-07 20:20 UTC, Bryce Harrington
no flags Details
XorgLog.txt (29.84 KB, text/plain)
2010-04-07 20:20 UTC, Bryce Harrington
no flags Details
CurrentDmesg.txt (1.27 KB, text/plain)
2010-04-07 20:20 UTC, Bryce Harrington
no flags Details
BootDmesg.txt (41.15 KB, text/plain)
2010-04-07 20:21 UTC, Bryce Harrington
no flags Details
2010-04-07 20:21 UTC, Bryce Harrington
no flags Details
2010-04-07 20:22 UTC, Bryce Harrington
no flags Details
2010-04-07 20:22 UTC, Bryce Harrington
no flags Details
force dma32 (502 bytes, patch)
2010-04-16 09:47 UTC, Alex Deucher
no flags Details | Splinter Review
possible fix (1.60 KB, patch)
2010-06-12 08:49 UTC, Alex Deucher
no flags Details | Splinter Review
Screenshot of a part of my corrupted screen. (261.96 KB, image/png)
2010-08-17 08:40 UTC, steckdenis
no flags Details
My corrupted dual head setup. (418.04 KB, image/png)
2010-08-17 08:43 UTC, steckdenis
no flags Details

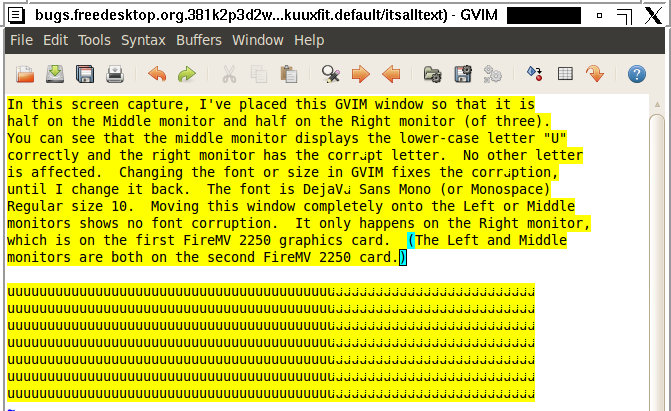

GVIM glyph corruption on only one of three Xinerama displays (80.90 KB, image/png)
2010-09-02 08:08 UTC, Ian! D. Allen
no flags Details

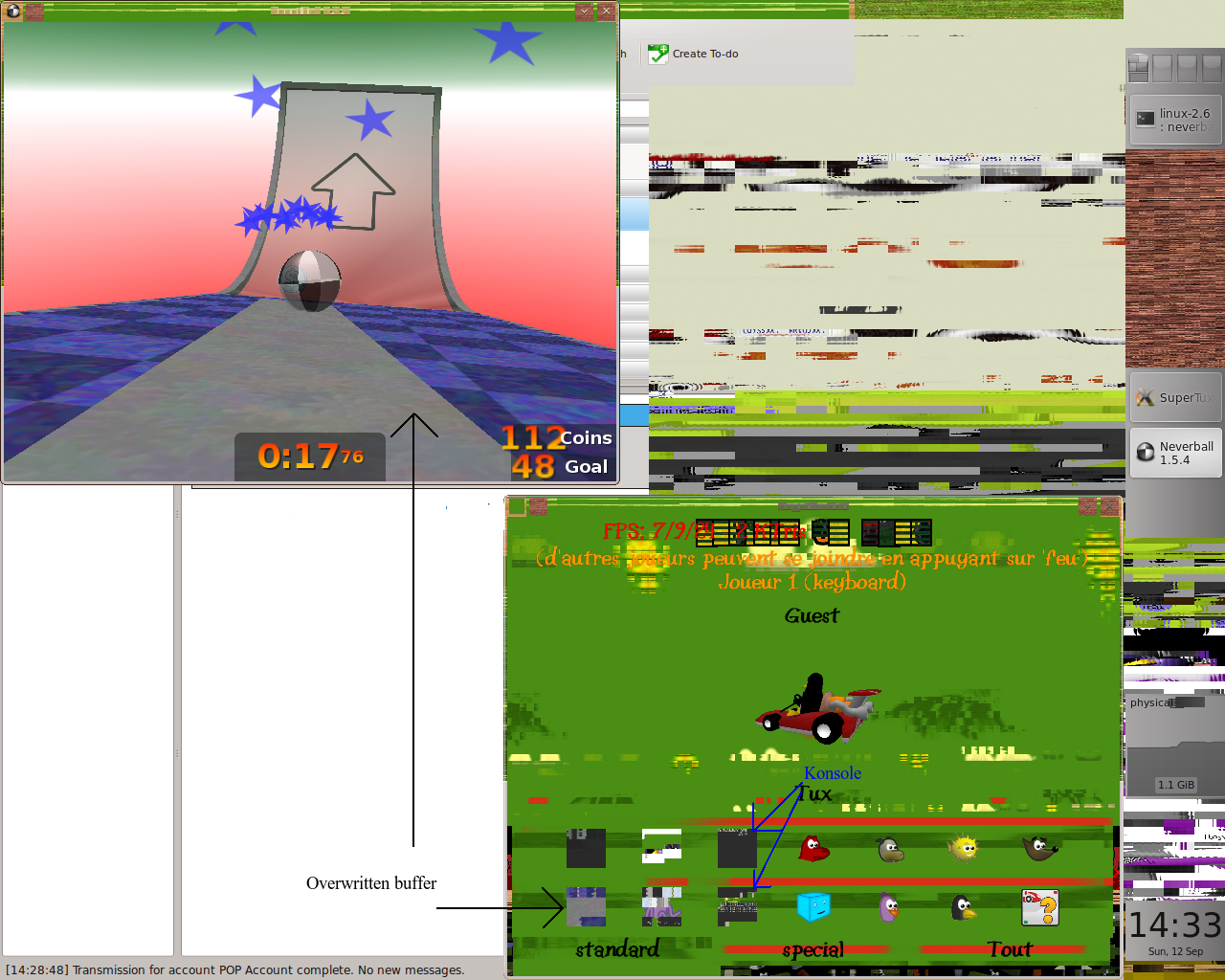

Screenshot of 2 3D programs corrupting each other (643.03 KB, image/png)
2010-09-12 06:00 UTC, steckdenis
no flags Details

Note You need to log in before you can comment on or make changes to this bug.
Description Bryce Harrington 2010-04-07 20:19:00 UTC
Forwarding this bug from Ubuntu reporter Brian Visel:
http://bugs.launchpad.net/ubuntu/+source/xserver-xorg-video-ati/+bug/556782

[Problem]
Graphics corruption with KMS enabled

[Original Description]
I can't see things right now to report the bug, but I wanted to run ubuntu-bugs xorg while there was a curruption present.  i'll fill out this bug more completely later.



First: I've upgraded from 9.10 to 10.04 beta. My system updates are current.
  I have a radeon rs690m (x1200)

This is the problem I ran into:
  * Small, horizontal white lines that appear a bit like static. Not very noticeable, and not present currently.
  * Medium and large horizontal lines / areas of corruption.
    * Stripes are often screen-wide
    * Stripes can be scrolled, e.g., in Firefox or Nautilus.
    * Refresh of graphical object clears up corruption -- E.g., a mouseover of a link or highlighting an icon
  * Mouse Pointer gets corrupted at some points, until refreshed (e.g., when the cursor changes from pointer to question mark, or to a hand, or from hand to arrow, etc.).
    * Corruption occurs regardless of whether or not Desktop Effects are enabled (important later)
      * Corruption might only occur after desktop effects *have* been enabled during this run.
  * Some fonts become corrupted. If they do, the letters corrupted stay corrupt. I.e., if "k" gets corrupted, and I type "k" elsewhere in the same font, that too will be corrupted.

It would be really nice to fix this before the release of Lucid -- I can't imagine what would happen with all the rs690 users out there. Not that there are a lot, but, there are enough.

Workaround (sort of):
In /etc/modprobe.d/radeon-kms.conf, I set:
 options radeon modeset=0

Why just "sort of"?
  * Logging into the (only) account created when the system was 9.10 fails, at best booting me back to the login screen.
  * Logging into an account created since the system has been upgraded to 10.04 works fine, desktop effects and all, no graphics glitches.
  * Logging into the 9.10-made account with desktop effects disabled works fine.
  * Enabling desktop effects once logged in makes the system visually unusable -- cannot switch to console, graphical screen black except for mouse, but the system is still running. I can ctrl-alt-delete from a 'text' console, although there is no text -- it just shows what was last in the graphics buffer (a black screen with the mouse pointer present).

Note that although there were glitches graphically, desktop effects or not, the system worked with desktop effects enabled when kms was enabled.

I think there are probably two problems here:
1) KMS causing or making visible some kind of horrible memory badness that I don't understand
2) Desktop Effects config in 9.10 can be set to a state that doesn't play nicely in 10.04 with KMS disabled.

Any further information I will be happy to provide. I have a workable system, I can just transfer everything over to a new account on my system, but I want to make sure others aren't affected problematically -- and it would be nice just to use my old account.

-Brian

Note: Included screenshots are *screenshots*, not photos. The actual images in memory are corrupt.


DistroRelease: Ubuntu 10.04
Package: xorg 1:7.5+3ubuntu1
ProcVersionSignature: Ubuntu 2.6.32-19.28-generic 2.6.32.10+drm33.1
Uname: Linux 2.6.32-19-generic i686
Architecture: i386
Date: Tue Apr  6 12:58:29 2010
DkmsStatus: Error: [Errno 2] No such file or directory
InstallationMedia: Ubuntu 9.10 "Karmic Koala" - Release i386 (20091028.5)
MachineType: Gateway LT31
ProcCmdLine: BOOT_IMAGE=/vmlinuz-2.6.32-19-generic root=UUID=617a7a50-d35f-4b03-8bf1-f91ec024381b ro quiet splash
ProcEnviron:
 LANG=en_US.utf8SourcePackage: xorg
dmi.bios.date: 06/18/2009
dmi.bios.vendor: Phoenix Technologies LTD
dmi.bios.version: v1.3201
dmi.board.name: SJM11-YK
dmi.board.vendor: Gateway
dmi.board.version: Not Applicable
dmi.chassis.type: 10
dmi.chassis.vendor: Gateway
dmi.chassis.version: N/A
dmi.modalias: dmi:bvnPhoenixTechnologiesLTD:bvrv1.3201:bd06/18/2009:svnGateway:pnLT31:pvrNotApplicable:rvnGateway:rnSJM11-YK:rvrNotApplicable:cvnGateway:ct10:cvrN/A:
dmi.product.name: LT31
dmi.product.version: Not Applicable
dmi.sys.vendor: Gateway
system: codename:           lucid
 architecture:       i686
 kernel:             2.6.32-19-generic
Comment 1 Bryce Harrington 2010-04-07 20:20:18 UTC
Created attachment 34782 [details]
XorgConf.txt
Comment 2 Bryce Harrington 2010-04-07 20:20:36 UTC
Created attachment 34783 [details]
XorgLog.txt
Comment 3 Bryce Harrington 2010-04-07 20:20:56 UTC
Created attachment 34784 [details]
CurrentDmesg.txt
Comment 4 Bryce Harrington 2010-04-07 20:21:33 UTC
Created attachment 34785 [details]
BootDmesg.txt
Comment 5 Bryce Harrington 2010-04-07 20:21:49 UTC
Created attachment 34786 [details]
Comment 6 Bryce Harrington 2010-04-07 20:22:10 UTC
Created attachment 34787 [details]
Comment 7 Bryce Harrington 2010-04-07 20:22:31 UTC
Created attachment 34788 [details]
Comment 8 Brian 2010-04-12 12:01:27 UTC
Subscribed to this bug, as I am the original poster of the bug on launchpad.  Let me know if you think I can help.

-Brian
Comment 9 Adam Hooper 2010-04-13 08:07:40 UTC
+1 from me.

For me, KMS doesn't change anything: the bug happens whatever the KMS settings.

Also, desktop-effects only changes the speed at which the bug hits me.

A quick way to reproduce the bug on my computer: open a big web page in Google Chrome (or Chromium) and scroll up and down quickly and repeatedly. Or, in Firefox, play on a website that does animated resizing.

Oddly, if I manage to keep using my system for a while after it goes all garbled without rebooting (most of the corruption is relegated to glyphs, so changing font sizes helps), it will eventually limp back into a state which is almost usable. (As I'm posting this, for example, only the "6"s and "[" in "Bug 27529 - [rs690m]" are garbled. Half an hour ago, almost every glyph was garbled.)

Oh, and not to pester, but this bug is _horrible_ and I don't know of a workaround. Any hints?
Comment 10 Brian 2010-04-13 12:17:20 UTC
> [...] desktop-effects only changes the speed at which the bug hits me.

That may be true for me, also.  I was having some issues with desktop effects disabled, but I was thinking I'd had them enabled previously.  ..but, that would have been a different login session..  ..anywho.  If it needs to be checked, I can reboot without the workaround.

> A quick way to reproduce the bug on my computer: open a big web page in Google
> Chrome (or Chromium) and scroll up and down quickly and repeatedly. Or, in
> Firefox, play on a website that does animated resizing.

Scrolling up and down quickly and repeatedly in Firefox causes a lot of garble for me, as well.

> Oh, and not to pester, but this bug is _horrible_ and I don't know of a
> workaround. Any hints?

The only one I know is in the bug description, about halfway down.  It's short, so you may have missed it.
Comment 11 Adam Hooper 2010-04-15 22:29:59 UTC
Phew. Yup, the workaround works for me.

Thanks!
Comment 12 Alex Deucher 2010-04-16 09:47:41 UTC
Created attachment 35099 [details] [review]
force dma32

Does this drm patch help?
Comment 13 Alex Deucher 2010-04-26 08:49:40 UTC
*** Bug 27782 has been marked as a duplicate of this bug. ***
Comment 14 Alex Deucher 2010-05-05 07:48:45 UTC
*** Bug 25469 has been marked as a duplicate of this bug. ***
Comment 15 Jason 2010-05-05 21:54:42 UTC
Alex how do I apply this patch. I tried to find radeon_device.c but I don't see a file anywhere. Do I need to download the source and compile the driver? If that is a case is there any chance the newer releases will be patched? I can always hold off on updating my distro even though the new boot times are nice.

Thanks,
Jason
Comment 16 Alex Deucher 2010-05-05 21:59:06 UTC
(In reply to comment #15)
> Alex how do I apply this patch. I tried to find radeon_device.c but I don't see
> a file anywhere. Do I need to download the source and compile the driver? If
> that is a case is there any chance the newer releases will be patched? I can
> always hold off on updating my distro even though the new boot times are nice.

You need the kernel source.  You need to apply the patch and rebuild the drm module if you use the source to your current kernel, or the whole kernel if you use a vanilla or git kernel tree.  The patch is not likely to be upstreamed.  It's just a test patch; if it helps, I'll code up a proper fix.
Comment 17 Todd Merrill 2010-05-06 09:55:43 UTC
Alex,

Unfortunately, your patch didn't help here.  I'm running kernel 2.6.32.12, libdrm git, mesa 7.8 git, and xf86-video-ati git.

As I mentioned in bug 25469, I get corruption with UMS as well, at least when using xf86-video-ati 6.13.0 (or previous development versions). I have not been able to reproduce it while running 6.12.x.
Comment 18 Todd Merrill 2010-05-06 10:18:41 UTC
I have not been able to reproduce it while running 6.12.x on the same stack that is...
Comment 19 Alex Deucher 2010-05-06 10:22:19 UTC
(In reply to comment #18)
> I have not been able to reproduce it while running 6.12.x on the same stack
> that is...

6.12.x doesn't support kms, so make sure you disable kms when using 6.12.x or you will likely end up with sw rendering or hangs, etc.
Comment 20 Todd Merrill 2010-05-06 10:34:31 UTC
(In reply to comment #19)
> 6.12.x doesn't support kms, so make sure you disable kms when using 6.12.x or
> you will likely end up with sw rendering or hangs, etc.

I know, I have direct rendering in both KMS and UMS cases.  I guess I'm just trying to say that this is not a KMS-only problem.
Comment 21 steckdenis 2010-06-12 03:02:49 UTC
Hello,

I found a quick hack that seems to fix the problem (on my Packard Bell DOT M/A, AMD Athlon 64 L110, ATI Radeon X1270 (rs690m)).

It's very simple and works for the kernel 2.6.34 and 2.6.35-rc2 :

* Open drivers/gpu/drm/radeon/rs690.c
* Find the line that contains "bool sideport = false;", line 236 for 2.6.34
* Change "false" to "true"
* Recompile you kernel, on simply the radeon module : make drivers/gpu/drm/radeon/radeon.ko
* Install
* Enjoy

Now I have a question : why not using "radeon_atombios_sideport_present(rdev)", or even "rdev->mc.igp_sideport_enabled" if already available ?

Cheers.
Comment 22 Alex Deucher 2010-06-12 08:49:12 UTC
Created attachment 36236 [details] [review]
possible fix

(In reply to comment #21)
> Now I have a question : why not using "radeon_atombios_sideport_present(rdev)",
> or even "rdev->mc.igp_sideport_enabled" if already available ?

It was just a bug in the code.  The bandwidth code was added before the code to detect if sideport was present or not.
Comment 23 Todd Merrill 2010-06-12 12:39:04 UTC
(In reply to comment #21)
> I found a quick hack that seems to fix the problem (on my Packard Bell DOT M/A,
> AMD Athlon 64 L110, ATI Radeon X1270 (rs690m)).
>
> It's very simple and works for the kernel 2.6.34 and 2.6.35-rc2 :
>
> * Open drivers/gpu/drm/radeon/rs690.c
> * Find the line that contains "bool sideport = false;", line 236 for 2.6.34
> * Change "false" to "true"
> * Recompile you kernel, on simply the radeon module : make
> drivers/gpu/drm/radeon/radeon.ko
> * Install
> * Enjoy

I tried this with kernel 2.6.32.15 (it wouldn't compile with Alex's patch), and it didn't help.  I'm planning to test this with kernel 2.6.33 and possibly 2.6.34 in the near future.

I'm using a Gateway LT31, which is essentially the same machine.
Comment 24 steckdenis 2010-08-17 08:40:20 UTC
Created attachment 37917 [details]
Screenshot of a part of my corrupted screen.

Hello,

The problem is still here. The fix I proposed only delays it one hour or more.

It is possible to trigger the corruption by playing a game that allocates many GL objects. I used Plee the Bear, a 2D OpenGL-based game that uses many textures. It loads about 60 megabytes in the video memory.

When the game is loading, my screen is filled with garbage from top to bottom, in one second or two. It is progressive, and comes across my two screens (one on the top or the other), without any distinction. It is mainly brown or dark green, the colors used in Plee the Bear.

I attached a screenshot of a part of my screen. I see it as garbage in KSnapshot, dolphin and Chromium, but as my video memory is corrupted, I cannot garantee that this screenshot is as I see it. It normally shows a part of a Konsole window, and a part of the one of Plee the Bear.

The problem arise also with other games, like Neverball, when I play it many minutes, but Plee the Bear allocates so many GL textures that it triggers the bug way faster.

I have 256Mb of shared video memory (RAM), and 128Mb of sideport memory. I use an ATI Radeon X1270 (RS690M). I use Linux 2.6.35.1 (but it does the same with the 2.6.36 kernel, before the -rc1 tag, but after the two merges of DRM), mesa Git as of today, libdrm Git, Xorg 1.8 (the latest 1.8.x rc, the one packaged by ArchLinux testing), xf86-video-ati 6.13.1. I used the Gallium r300g driver, but the bug is also here with r300c.

Cheers.

(oh, and as I was posting this comment, I scrolled another web page. My top screen, the one without Chromium, was filled with white and small black pixels. There is no particular pattern, but I can see the garbage layed out in small 64x64 squares. The scroll was very slow, but the web page looked nice. Screenshot coming if I can).
Comment 25 steckdenis 2010-08-17 08:43:19 UTC
Created attachment 37918 [details]
My corrupted dual head setup.

I add that my mouse is occasionally replaced by a 64x64 white square, filled with the same pattern as my top screen.
Comment 26 Ian! D. Allen 2010-09-02 08:05:40 UTC
Ubuntu 10.4 user with a pair of ATI FireMV 2250 cards (RV516 chip)
running Xinerama across three monitors (one monitor output is unused)
using radeon driver on an AMD-64.

Over time, single characters in Firefox get mangled.  Typing those
characters into text boxes also shows the mangling.  Changing the Firefox
font size up or down (CTRL-plus, CTRL-minus) restores the characters
at the new size; setting the font back to the original size (CTRL-zero)
returns the mangling again.  Sometimes the characters disappear entirely.
Restarting Firefox didn't help until I added "Option "AccelMethod" "XAA"
to my xorg.conf file; now, restarting Firefox clears the font problem.
(It didn't before - I had to restart the X server.)

I didn't have any font problems when I ran a single FireMV 2250 with
an Nvidia card for the third monitor, but that was on a previous kernel
as well.  It's the dual 2250 (on the new kernel) that is now misbehaving.

Downloading the xorg-edgers radeon driver 6.13.99 didn't help.

From my Xorg.0.log (full log below):

    X.Org X Server 1.7.6
    Release Date: 2010-03-17
    X Protocol Version 11, Revision 0
    Build Operating System: Linux 2.6.24-27-server x86_64 Ubuntu
    Current Operating System: Linux idallen-oak.home.idallen.ca
       2.6.32-24-generic #42-Ubuntu SMP Fri Aug 20 14:21:58 UTC 2010 x86_64
    Kernel command line: BOOT_IMAGE=/vmlinuz-2.6.32-24-generic
       root=UUID=dc727a13-5170-4697-aad8-849090d05426 ro text
    Build Date: 21 July 2010  01:03:39PM
    xorg-server 2:1.7.6-2ubuntu7.3 (For technical support please see
       http://www.ubuntu.com/support)
    Current version of pixman: 0.16.4
    (II) Loading /usr/lib/xorg/modules/drivers/radeon_drv.so
    (II) Module radeon: vendor="X.Org Foundation"
       compiled for 1.7.6, module version = 6.13.99
       Module class: X.Org Video Driver
       ABI class: X.Org Video Driver, version 6.0

xorg.conf:

The "AccelMethod" "XAA" were added to try to get rid of the font corruption.
It didn't eliminate it, but it might have made it go away with a Firefox
restart, whereas restarting Firefox previously didn't help.

Section "ServerLayout"
	Identifier   "Ian"
	Screen       "Screen Right" 0 0
	Screen       "Screen Middle"  LeftOf "Screen Right"
	Screen       "Screen Left"  LeftOf "Screen Middle"
	Option       "Xinerama"
EndSection

Section "Screen"
	Identifier "Screen Right"
	Device     "Device Right"
	# this isn't absolutely necessary but it helps window placement
	SubSection "Display"
		Virtual 1600 1200
	EndSubSection
EndSection

Section "Screen"
	Identifier "Screen Middle"
	Device     "Device Middle"
	# this isn't absolutely necessary but it helps window placement
	SubSection "Display"
		Virtual 1600 1200
	EndSubSection
EndSection

Section "Screen"
	Identifier "Screen Left"
	Device     "Device Left"
	# this isn't absolutely necessary but it helps window placement
	SubSection "Display"
		Virtual 1600 1200
	EndSubSection
EndSection

Section "Device"
	Identifier  "Device Right"
	Driver      "radeon"
	VendorName  "ATI Technologies Inc"
	BoardName   "FireMV 2250"
	BusID       "PCI:5:0:0"
	Option	    "ZaphodHeads" "DVI-0"
	Option "AccelMethod" "XAA"
	Screen	    0
EndSection

Section "Device"
	Identifier  "Device Middle"
	Driver      "radeon"
	VendorName  "ATI Technologies Inc"
	BoardName   "FireMV 2250"
	BusID       "PCI:5:0:0"
	Option	    "ZaphodHeads" "DVI-1"
	Option "AccelMethod" "XAA"
	Screen	    1
EndSection

Section "Device"
	Identifier  "Device Left"
	Driver      "radeon"
	VendorName  "ATI Technologies Inc"
	BoardName   "FireMV 2250"
	BusID       "PCI:4:0:0"
	Option	    "ZaphodHeads" "DVI-2"
	Option "AccelMethod" "XAA"
	Screen	    0
EndSection

Section "Device"
	Identifier  "Device Unused"
	Driver      "radeon"
	VendorName  "ATI Technologies Inc"
	BoardName   "FireMV 2250"
	BusID       "PCI:4:0:0"
	Option	    "ZaphodHeads" "DVI-3"
	Option "AccelMethod" "XAA"
	Screen	    1
EndSection


/var/log/Xorg.0.log

X.Org X Server 1.7.6
Release Date: 2010-03-17
X Protocol Version 11, Revision 0
Build Operating System: Linux 2.6.24-27-server x86_64 Ubuntu
Current Operating System: Linux idallen-oak.home.idallen.ca 2.6.32-24-generic #42-Ubuntu SMP Fri Aug 20 14:21:58 UTC 2010 x86_64
Kernel command line: BOOT_IMAGE=/vmlinuz-2.6.32-24-generic root=UUID=dc727a13-5170-4697-aad8-849090d05426 ro text
Build Date: 21 July 2010  01:03:39PM
xorg-server 2:1.7.6-2ubuntu7.3 (For technical support please see http://www.ubuntu.com/support)
Current version of pixman: 0.16.4
	Before reporting problems, check http://wiki.x.org
	to make sure that you have the latest version.
Markers: (--) probed, (**) from config file, (==) default setting,
	(++) from command line, (!!) notice, (II) informational,
	(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
(==) Log file: "/var/log/Xorg.0.log", Time: Wed Sep  1 20:05:29 2010
(==) Using config file: "/etc/X11/xorg.conf"
(==) Using config directory: "/usr/lib/X11/xorg.conf.d"
(==) ServerLayout "Ian"
(**) |-->Screen "Screen Right" (0)
(**) |   |-->Monitor "<default monitor>"
(**) |   |-->Device "Device Right"
(==) No monitor specified for screen "Screen Right".
	Using a default monitor configuration.
(**) |-->Screen "Screen Middle" (1)
(**) |   |-->Monitor "<default monitor>"
(**) |   |-->Device "Device Middle"
(==) No monitor specified for screen "Screen Middle".
	Using a default monitor configuration.
(**) |-->Screen "Screen Left" (2)
(**) |   |-->Monitor "<default monitor>"
(**) |   |-->Device "Device Left"
(==) No monitor specified for screen "Screen Left".
	Using a default monitor configuration.
(**) Option "Xinerama"
(==) Automatically adding devices
(==) Automatically enabling devices
(**) Xinerama: enabled
(WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist.
	Entry deleted from font path.
(==) FontPath set to:
	/usr/share/fonts/X11/misc,
	/usr/share/fonts/X11/100dpi/:unscaled,
	/usr/share/fonts/X11/75dpi/:unscaled,
	/usr/share/fonts/X11/Type1,
	/usr/share/fonts/X11/100dpi,
	/usr/share/fonts/X11/75dpi,
	/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType,
	built-ins
(==) ModulePath set to "/usr/lib/xorg/extra-modules,/usr/lib/xorg/modules"
(II) The server relies on udev to provide the list of input devices.
	If no devices become available, reconfigure udev or disable AutoAddDevices.
(II) Loader magic: 0x7ca300
(II) Module ABI versions:
	X.Org ANSI C Emulation: 0.4
	X.Org Video Driver: 6.0
	X.Org XInput driver : 7.0
	X.Org Server Extension : 2.0
(--) using VT number 7

(--) PCI: (0:4:0:0) 1002:719b:1002:0602 ATI Technologies Inc FireMV 2250 rev 0, Mem @ 0xc0000000/268435456, 0xfbee0000/65536, I/O @ 0x0000d000/256, BIOS @ 0x????????/131072
(--) PCI: (0:4:0:1) 1002:71bb:1002:0603 ATI Technologies Inc FireMV 2250 (Secondary) rev 0, Mem @ 0xfbef0000/65536
(--) PCI:*(0:5:0:0) 1002:719b:1002:0602 ATI Technologies Inc FireMV 2250 rev 0, Mem @ 0xd0000000/268435456, 0xfbfe0000/65536, I/O @ 0x0000e000/256, BIOS @ 0x????????/131072
(--) PCI: (0:5:0:1) 1002:71bb:1002:0603 ATI Technologies Inc FireMV 2250 (Secondary) rev 0, Mem @ 0xfbff0000/65536
(II) Open ACPI successful (/var/run/acpid.socket)
(II) LoadModule: "extmod"
(II) Loading /usr/lib/xorg/modules/extensions/libextmod.so
(II) Module extmod: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 1.0.0
	Module class: X.Org Server Extension
	ABI class: X.Org Server Extension, version 2.0
(II) Loading extension MIT-SCREEN-SAVER
(II) Loading extension XFree86-VidModeExtension
(II) Loading extension XFree86-DGA
(II) Loading extension DPMS
(II) Loading extension XVideo
(II) Loading extension XVideo-MotionCompensation
(II) Loading extension X-Resource
(II) LoadModule: "dbe"
(II) Loading /usr/lib/xorg/modules/extensions/libdbe.so
(II) Module dbe: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 1.0.0
	Module class: X.Org Server Extension
	ABI class: X.Org Server Extension, version 2.0
(II) Loading extension DOUBLE-BUFFER
(II) LoadModule: "glx"
(II) Loading /usr/lib/xorg/extra-modules/libglx.so
(II) Module glx: vendor="NVIDIA Corporation"
	compiled for 4.0.2, module version = 1.0.0
	Module class: X.Org Server Extension
(II) NVIDIA GLX Module  195.36.24  Thu Apr 22 19:52:00 PDT 2010
(II) Loading extension GLX
(II) LoadModule: "record"
(II) Loading /usr/lib/xorg/modules/extensions/librecord.so
(II) Module record: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 1.13.0
	Module class: X.Org Server Extension
	ABI class: X.Org Server Extension, version 2.0
(II) Loading extension RECORD
(II) LoadModule: "dri"
(II) Loading /usr/lib/xorg/modules/extensions/libdri.so
(II) Module dri: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 1.0.0
	ABI class: X.Org Server Extension, version 2.0
(II) Loading extension XFree86-DRI
(II) LoadModule: "dri2"
(II) Loading /usr/lib/xorg/modules/extensions/libdri2.so
(II) Module dri2: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 1.1.0
	ABI class: X.Org Server Extension, version 2.0
(II) Loading extension DRI2
(II) LoadModule: "radeon"
(II) Loading /usr/lib/xorg/modules/drivers/radeon_drv.so
(II) Module radeon: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 6.13.99
	Module class: X.Org Video Driver
	ABI class: X.Org Video Driver, version 6.0
(II) RADEON: Driver for ATI Radeon chipsets:
	ATI Radeon Mobility X600 (M24) 3150 (PCIE), ATI FireMV 2400 (PCI),
	ATI Radeon Mobility X300 (M24) 3152 (PCIE),
	ATI FireGL M24 GL 3154 (PCIE), ATI FireMV 2400 3155 (PCI),
	ATI Radeon X600 (RV380) 3E50 (PCIE),
	ATI FireGL V3200 (RV380) 3E54 (PCIE), ATI Radeon IGP320 (A3) 4136,
	ATI Radeon IGP330/340/350 (A4) 4137, ATI Radeon 9500 AD (AGP),
	ATI Radeon 9500 AE (AGP), ATI Radeon 9600TX AF (AGP),
	ATI FireGL Z1 AG (AGP), ATI Radeon 9800SE AH (AGP),
	ATI Radeon 9800 AI (AGP), ATI Radeon 9800 AJ (AGP),
	ATI FireGL X2 AK (AGP), ATI Radeon 9600 AP (AGP),
	ATI Radeon 9600SE AQ (AGP), ATI Radeon 9600XT AR (AGP),
	ATI Radeon 9600 AS (AGP), ATI FireGL T2 AT (AGP), ATI Radeon 9650,
	ATI FireGL RV360 AV (AGP), ATI Radeon 7000 IGP (A4+) 4237,
	ATI Radeon 8500 AIW BB (AGP), ATI Radeon 8500 AIW BC (AGP),
	ATI Radeon IGP320M (U1) 4336, ATI Radeon IGP330M/340M/350M (U2) 4337,
	ATI Radeon Mobility 7000 IGP 4437, ATI Radeon 9000/PRO If (AGP/PCI),
	ATI Radeon 9000 Ig (AGP/PCI), ATI Radeon X800 (R420) JH (AGP),
	ATI Radeon X800PRO (R420) JI (AGP),
	ATI Radeon X800SE (R420) JJ (AGP), ATI Radeon X800 (R420) JK (AGP),
	ATI Radeon X800 (R420) JL (AGP), ATI FireGL X3 (R420) JM (AGP),
	ATI Radeon Mobility 9800 (M18) JN (AGP),
	ATI Radeon X800 SE (R420) (AGP), ATI Radeon X800XT (R420) JP (AGP),
	ATI Radeon X800 VE (R420) JT (AGP), ATI Radeon X850 (R480) (AGP),
	ATI Radeon X850 XT (R480) (AGP), ATI Radeon X850 SE (R480) (AGP),
	ATI Radeon X850 PRO (R480) (AGP), ATI Radeon X850 XT PE (R480) (AGP),
	ATI Radeon Mobility M7 LW (AGP),
	ATI Mobility FireGL 7800 M7 LX (AGP),
	ATI Radeon Mobility M6 LY (AGP), ATI Radeon Mobility M6 LZ (AGP),
	ATI FireGL Mobility 9000 (M9) Ld (AGP),
	ATI Radeon Mobility 9000 (M9) Lf (AGP),
	ATI Radeon Mobility 9000 (M9) Lg (AGP), ATI Radeon 9700 Pro ND (AGP),
	ATI Radeon 9700/9500Pro NE (AGP), ATI Radeon 9600TX NF (AGP),
	ATI FireGL X1 NG (AGP), ATI Radeon 9800PRO NH (AGP),
	ATI Radeon 9800 NI (AGP), ATI FireGL X2 NK (AGP),
	ATI Radeon 9800XT NJ (AGP),
	ATI Radeon Mobility 9600/9700 (M10/M11) NP (AGP),
	ATI Radeon Mobility 9600 (M10) NQ (AGP),
	ATI Radeon Mobility 9600 (M11) NR (AGP),
	ATI Radeon Mobility 9600 (M10) NS (AGP),
	ATI FireGL Mobility T2 (M10) NT (AGP),
	ATI FireGL Mobility T2e (M11) NV (AGP), ATI Radeon QD (AGP),
	ATI Radeon QE (AGP), ATI Radeon QF (AGP), ATI Radeon QG (AGP),
	ATI FireGL 8700/8800 QH (AGP), ATI Radeon 8500 QL (AGP),
	ATI Radeon 9100 QM (AGP), ATI Radeon 7500 QW (AGP/PCI),
	ATI Radeon 7500 QX (AGP/PCI), ATI Radeon VE/7000 QY (AGP/PCI),
	ATI Radeon VE/7000 QZ (AGP/PCI), ATI ES1000 515E (PCI),
	ATI Radeon Mobility X300 (M22) 5460 (PCIE),
	ATI Radeon Mobility X600 SE (M24C) 5462 (PCIE),
	ATI FireGL M22 GL 5464 (PCIE), ATI Radeon X800 (R423) UH (PCIE),
	ATI Radeon X800PRO (R423) UI (PCIE),
	ATI Radeon X800LE (R423) UJ (PCIE),
	ATI Radeon X800SE (R423) UK (PCIE),
	ATI Radeon X800 XTP (R430) (PCIE), ATI Radeon X800 XL (R430) (PCIE),
	ATI Radeon X800 SE (R430) (PCIE), ATI Radeon X800 (R430) (PCIE),
	ATI FireGL V7100 (R423) (PCIE), ATI FireGL V5100 (R423) UQ (PCIE),
	ATI FireGL unknown (R423) UR (PCIE),
	ATI FireGL unknown (R423) UT (PCIE),
	ATI Mobility FireGL V5000 (M26) (PCIE),
	ATI Mobility FireGL V5000 (M26) (PCIE),
	ATI Mobility Radeon X700 XL (M26) (PCIE),
	ATI Mobility Radeon X700 (M26) (PCIE),
	ATI Mobility Radeon X700 (M26) (PCIE),
	ATI Radeon X550XTX 5657 (PCIE), ATI Radeon 9100 IGP (A5) 5834,
	ATI Radeon Mobility 9100 IGP (U3) 5835,
	ATI Radeon XPRESS 200 5954 (PCIE),
	ATI Radeon XPRESS 200M 5955 (PCIE), ATI Radeon 9250 5960 (AGP),
	ATI Radeon 9200 5961 (AGP), ATI Radeon 9200 5962 (AGP),
	ATI Radeon 9200SE 5964 (AGP), ATI FireMV 2200 (PCI),
	ATI ES1000 5969 (PCI), ATI Radeon XPRESS 200 5974 (PCIE),
	ATI Radeon XPRESS 200M 5975 (PCIE),
	ATI Radeon XPRESS 200 5A41 (PCIE),
	ATI Radeon XPRESS 200M 5A42 (PCIE),
	ATI Radeon XPRESS 200 5A61 (PCIE),
	ATI Radeon XPRESS 200M 5A62 (PCIE),
	ATI Radeon X300 (RV370) 5B60 (PCIE),
	ATI Radeon X600 (RV370) 5B62 (PCIE),
	ATI Radeon X550 (RV370) 5B63 (PCIE),
	ATI FireGL V3100 (RV370) 5B64 (PCIE),
	ATI FireMV 2200 PCIE (RV370) 5B65 (PCIE),
	ATI Radeon Mobility 9200 (M9+) 5C61 (AGP),
	ATI Radeon Mobility 9200 (M9+) 5C63 (AGP),
	ATI Mobility Radeon X800 XT (M28) (PCIE),
	ATI Mobility FireGL V5100 (M28) (PCIE),
	ATI Mobility Radeon X800 (M28) (PCIE), ATI Radeon X850 5D4C (PCIE),
	ATI Radeon X850 XT PE (R480) (PCIE),
	ATI Radeon X850 SE (R480) (PCIE), ATI Radeon X850 PRO (R480) (PCIE),
	ATI unknown Radeon / FireGL (R480) 5D50 (PCIE),
	ATI Radeon X850 XT (R480) (PCIE),
	ATI Radeon X800XT (R423) 5D57 (PCIE),
	ATI FireGL V5000 (RV410) (PCIE), ATI Radeon X700 XT (RV410) (PCIE),
	ATI Radeon X700 PRO (RV410) (PCIE),
	ATI Radeon X700 SE (RV410) (PCIE), ATI Radeon X700 (RV410) (PCIE),
	ATI Radeon X700 SE (RV410) (PCIE), ATI Radeon X1800,
	ATI Mobility Radeon X1800 XT, ATI Mobility Radeon X1800,
	ATI Mobility FireGL V7200, ATI FireGL V7200, ATI FireGL V5300,
	ATI Mobility FireGL V7100, ATI Radeon X1800, ATI Radeon X1800,
	ATI Radeon X1800, ATI Radeon X1800, ATI Radeon X1800,
	ATI FireGL V7300, ATI FireGL V7350, ATI Radeon X1600, ATI RV505,
	ATI Radeon X1300/X1550, ATI Radeon X1550, ATI M54-GL,
	ATI Mobility Radeon X1400, ATI Radeon X1300/X1550,
	ATI Radeon X1550 64-bit, ATI Mobility Radeon X1300,
	ATI Mobility Radeon X1300, ATI Mobility Radeon X1300,
	ATI Mobility Radeon X1300, ATI Radeon X1300, ATI Radeon X1300,
	ATI RV505, ATI RV505, ATI FireGL V3300, ATI FireGL V3350,
	ATI Radeon X1300, ATI Radeon X1550 64-bit, ATI Radeon X1300/X1550,
	ATI Radeon X1600, ATI Radeon X1300/X1550, ATI Mobility Radeon X1450,
	ATI Radeon X1300/X1550, ATI Mobility Radeon X2300,
	ATI Mobility Radeon X2300, ATI Mobility Radeon X1350,
	ATI Mobility Radeon X1350, ATI Mobility Radeon X1450,
	ATI Radeon X1300, ATI Radeon X1550, ATI Mobility Radeon X1350,
	ATI FireMV 2250, ATI Radeon X1550 64-bit, ATI Radeon X1600,
	ATI Radeon X1650, ATI Radeon X1600, ATI Radeon X1600,
	ATI Mobility FireGL V5200, ATI Mobility Radeon X1600,
	ATI Radeon X1650, ATI Radeon X1650, ATI Radeon X1600,
	ATI Radeon X1300 XT/X1600 Pro, ATI FireGL V3400,
	ATI Mobility FireGL V5250, ATI Mobility Radeon X1700,
	ATI Mobility Radeon X1700 XT, ATI FireGL V5200,
	ATI Mobility Radeon X1700, ATI Radeon X2300HD,
	ATI Mobility Radeon HD 2300, ATI Mobility Radeon HD 2300,
	ATI Radeon X1950, ATI Radeon X1900, ATI Radeon X1950,
	ATI Radeon X1900, ATI Radeon X1900, ATI Radeon X1900,
	ATI Radeon X1900, ATI Radeon X1900, ATI Radeon X1900,
	ATI Radeon X1900, ATI Radeon X1900, ATI Radeon X1900,
	ATI AMD Stream Processor, ATI Radeon X1900, ATI Radeon X1950,
	ATI RV560, ATI RV560, ATI Mobility Radeon X1900, ATI RV560,
	ATI Radeon X1950 GT, ATI RV570, ATI RV570, ATI FireGL V7400,
	ATI RV560, ATI Radeon X1650, ATI Radeon X1650, ATI RV560,
	ATI Radeon 9100 PRO IGP 7834, ATI Radeon Mobility 9200 IGP 7835,
	ATI Radeon X1200, ATI Radeon X1200, ATI Radeon X1200,
	ATI Radeon X1200, ATI Radeon X1200, ATI RS740, ATI RS740M, ATI RS740,
	ATI RS740M, ATI Radeon HD 2900 XT, ATI Radeon HD 2900 XT,
	ATI Radeon HD 2900 XT, ATI Radeon HD 2900 Pro, ATI Radeon HD 2900 GT,
	ATI FireGL V8650, ATI FireGL V8600, ATI FireGL V7600,
	ATI Radeon 4800 Series, ATI Radeon HD 4870 x2,
	ATI Radeon 4800 Series, ATI Radeon HD 4850 x2,
	ATI FirePro V8750 (FireGL), ATI FirePro V7760 (FireGL),
	ATI Mobility RADEON HD 4850, ATI Mobility RADEON HD 4850 X2,
	ATI Radeon 4800 Series, ATI FirePro RV770, AMD FireStream 9270,
	AMD FireStream 9250, ATI FirePro V8700 (FireGL),
	ATI Mobility RADEON HD 4870, ATI Mobility RADEON M98,
	ATI Mobility RADEON HD 4870, ATI Radeon 4800 Series,
	ATI Radeon 4800 Series, ATI FirePro M7750, ATI M98, ATI M98, ATI M98,
	ATI Mobility Radeon HD 4650, ATI Radeon RV730 (AGP),
	ATI Mobility Radeon HD 4670, ATI FirePro M5750,
	ATI Mobility Radeon HD 4670, ATI Radeon RV730 (AGP),
	ATI RV730XT [Radeon HD 4670], ATI RADEON E4600,
	ATI Radeon HD 4600 Series, ATI RV730 PRO [Radeon HD 4650],
	ATI FirePro V7750 (FireGL), ATI FirePro V5700 (FireGL),
	ATI FirePro V3750 (FireGL), ATI Mobility Radeon HD 4830,
	ATI Mobility Radeon HD 4850, ATI FirePro M7740, ATI RV740,
	ATI Radeon HD 4770, ATI Radeon HD 4700 Series, ATI Radeon HD 4770,
	ATI FirePro M5750, ATI RV610, ATI Radeon HD 2400 XT,
	ATI Radeon HD 2400 Pro, ATI Radeon HD 2400 PRO AGP, ATI FireGL V4000,
	ATI RV610, ATI Radeon HD 2350, ATI Mobility Radeon HD 2400 XT,
	ATI Mobility Radeon HD 2400, ATI RADEON E2400, ATI RV610,
	ATI FireMV 2260, ATI RV670, ATI Radeon HD3870,
	ATI Mobility Radeon HD 3850, ATI Radeon HD3850,
	ATI Mobility Radeon HD 3850 X2, ATI RV670,
	ATI Mobility Radeon HD 3870, ATI Mobility Radeon HD 3870 X2,
	ATI Radeon HD3870 X2, ATI FireGL V7700, ATI Radeon HD3850,
	ATI Radeon HD3690, AMD Firestream 9170, ATI Radeon HD 4550,
	ATI Radeon RV710, ATI Radeon RV710, ATI Radeon RV710,
	ATI Radeon HD 4350, ATI Mobility Radeon 4300 Series,
	ATI Mobility Radeon 4500 Series, ATI Mobility Radeon 4500 Series,
	ATI FirePro RG220, ATI Mobility Radeon 4330, ATI RV630,
	ATI Mobility Radeon HD 2600, ATI Mobility Radeon HD 2600 XT,
	ATI Radeon HD 2600 XT AGP, ATI Radeon HD 2600 Pro AGP,
	ATI Radeon HD 2600 XT, ATI Radeon HD 2600 Pro, ATI Gemini RV630,
	ATI Gemini Mobility Radeon HD 2600 XT, ATI FireGL V5600,
	ATI FireGL V3600, ATI Radeon HD 2600 LE,
	ATI Mobility FireGL Graphics Processor, ATI Radeon HD 3470,
	ATI Mobility Radeon HD 3430, ATI Mobility Radeon HD 3400 Series,
	ATI Radeon HD 3450, ATI Radeon HD 3450, ATI Radeon HD 3430,
	ATI Radeon HD 3450, ATI FirePro V3700, ATI FireMV 2450,
	ATI FireMV 2260, ATI FireMV 2260, ATI Radeon HD 3600 Series,
	ATI Radeon HD 3650 AGP, ATI Radeon HD 3600 PRO,
	ATI Radeon HD 3600 XT, ATI Radeon HD 3600 PRO,
	ATI Mobility Radeon HD 3650, ATI Mobility Radeon HD 3670,
	ATI Mobility FireGL V5700, ATI Mobility FireGL V5725,
	ATI Radeon HD 3200 Graphics, ATI Radeon 3100 Graphics,
	ATI Radeon HD 3200 Graphics, ATI Radeon 3100 Graphics,
	ATI Radeon HD 3300 Graphics, ATI Radeon HD 3200 Graphics,
	ATI Radeon 3000 Graphics, ATI Radeon HD 4200, ATI Radeon 4100,
	ATI Mobility Radeon HD 4200, ATI Mobility Radeon 4100,
	ATI Radeon HD 4290, ATI Radeon HD 4290, CYPRESS,
	ATI FirePro (FireGL) Graphics Adapter,
	ATI FirePro (FireGL) Graphics Adapter,
	ATI FirePro (FireGL) Graphics Adapter, AMD Firestream 9370,
	AMD Firestream 9350, ATI Radeon HD 5800 Series,
	ATI Radeon HD 5800 Series, ATI Radeon HD 5800 Series,
	ATI Radeon HD 5900 Series, ATI Radeon HD 5900 Series,
	ATI Mobility Radeon HD 5800 Series,
	ATI Mobility Radeon HD 5800 Series,
	ATI FirePro (FireGL) Graphics Adapter,
	ATI FirePro (FireGL) Graphics Adapter,
	ATI Mobility Radeon HD 5800 Series, ATI Radeon HD 5700 Series,
	ATI Radeon HD 5700 Series, ATI Radeon HD 5700 Series,
	ATI Mobility Radeon HD 5000 Series,
	ATI Mobility Radeon HD 5000 Series, ATI Mobility Radeon HD 5570,
	ATI FirePro (FireGL) Graphics Adapter,
	ATI FirePro (FireGL) Graphics Adapter, ATI Radeon HD 5670,
	ATI Radeon HD 5570, ATI Radeon HD 5500 Series, REDWOOD,
	ATI Mobility Radeon HD 5000 Series,
	ATI Mobility Radeon HD 5000 Series, ATI Mobility Radeon Graphics,
	ATI Mobility Radeon Graphics, CEDAR,
	ATI FirePro (FireGL) Graphics Adapter,
	ATI FirePro (FireGL) Graphics Adapter, ATI FirePro 2270, CEDAR,
	ATI Radeon HD 5450, CEDAR
(II) Primary Device is: PCI 05@00:00:0
(II) [KMS] Kernel modesetting enabled.
(II) [KMS] Kernel modesetting enabled.
(II) [KMS] Kernel modesetting enabled.
(==) RADEON(0): Depth 24, (--) framebuffer bpp 32
(II) RADEON(0): Pixel depth = 24 bits stored in 4 bytes (32 bpp pixmaps)
(==) RADEON(0): Default visual is TrueColor
(**) RADEON(0): Option "AccelMethod" "XAA"
(**) RADEON(0): Option "ZaphodHeads" "DVI-0"
(==) RADEON(0): RGB weight 888
(II) RADEON(0): Using 8 bits per RGB (8 bit DAC)
(--) RADEON(0): Chipset: "ATI FireMV 2250" (ChipID = 0x719b)
(II) RADEON(0): PCIE card detected
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 9, (OK)
drmOpenByBusid: Searching for BusID pci:0000:05:00.0
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 9, (OK)
drmOpenByBusid: drmOpenMinor returns 9
drmOpenByBusid: drmGetBusid reports pci:0000:05:00.0
(II) RADEON(0): KMS Color Tiling: enabled
(II) RADEON(0): Output DVI-0 has no monitor section
(II) RADEON(0): EDID for output DVI-0
(II) RADEON(0): Manufacturer: DEL  Model: a021  Serial#: 825308499
(II) RADEON(0): Year: 2006  Week: 13
(II) RADEON(0): EDID Version: 1.3
(II) RADEON(0): Digital Display Input
(II) RADEON(0): Max Image Size [cm]: horiz.: 41  vert.: 31
(II) RADEON(0): Gamma: 2.20
(II) RADEON(0): DPMS capabilities: StandBy Suspend Off
(II) RADEON(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4
(II) RADEON(0): Default color space is primary color space
(II) RADEON(0): First detailed timing is preferred mode
(II) RADEON(0): redX: 0.640 redY: 0.330   greenX: 0.300 greenY: 0.600
(II) RADEON(0): blueX: 0.150 blueY: 0.060   whiteX: 0.312 whiteY: 0.329
(II) RADEON(0): Supported established timings:
(II) RADEON(0): 720x400@70Hz
(II) RADEON(0): 640x480@60Hz
(II) RADEON(0): 640x480@75Hz
(II) RADEON(0): 800x600@60Hz
(II) RADEON(0): 800x600@75Hz
(II) RADEON(0): 1024x768@60Hz
(II) RADEON(0): 1024x768@75Hz
(II) RADEON(0): 1280x1024@75Hz
(II) RADEON(0): Manufacturer's mask: 0
(II) RADEON(0): Supported standard timings:
(II) RADEON(0): #0: hsize: 1280  vsize 1024  refresh: 60  vid: 32897
(II) RADEON(0): #1: hsize: 1600  vsize 1200  refresh: 60  vid: 16553
(II) RADEON(0): #2: hsize: 1152  vsize 864  refresh: 75  vid: 20337
(II) RADEON(0): Supported detailed timing:
(II) RADEON(0): clock: 162.0 MHz   Image Size:  367 x 275 mm
(II) RADEON(0): h_active: 1600  h_sync: 1664  h_sync_end 1856 h_blank_end 2160 h_border: 0
(II) RADEON(0): v_active: 1200  v_sync: 1201  v_sync_end 1204 v_blanking: 1250 v_border: 0
(II) RADEON(0): Serial No: C953663V115S
(II) RADEON(0): Monitor name: DELL 2007FP
(II) RADEON(0): Ranges: V min: 56 V max: 76 Hz, H min: 30 H max: 83 kHz, PixClock max 170 MHz
(II) RADEON(0): EDID (in hex):
(II) RADEON(0): 	00ffffffffffff0010ac21a053353131
(II) RADEON(0): 	0d10010380291f78eeee91a3544c9926
(II) RADEON(0): 	0f5054a54b008180a940714f01010101
(II) RADEON(0): 	010101010101483f403062b0324040c0
(II) RADEON(0): 	13006f131100001e000000ff00433935
(II) RADEON(0): 	3336363356313135530a000000fc0044
(II) RADEON(0): 	454c4c203230303746500a20000000fd
(II) RADEON(0): 	00384c1e5311000a20202020202000da
(II) RADEON(0): EDID vendor "DEL", prod id 40993
(II) RADEON(0): Using EDID range info for horizontal sync
(II) RADEON(0): Using EDID range info for vertical refresh
(II) RADEON(0): Printing DDC gathered Modelines:
(II) RADEON(0): Modeline "1600x1200"x0.0  162.00  1600 1664 1856 2160  1200 1201 1204 1250 +hsync +vsync (75.0 kHz)
(II) RADEON(0): Modeline "800x600"x0.0   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(0): Modeline "640x480"x0.0   31.50  640 656 720 840  480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(0): Modeline "640x480"x0.0   25.18  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(0): Modeline "720x400"x0.0   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(0): Modeline "1280x1024"x0.0  135.00  1280 1296 1440 1688  1024 1025 1028 1066 +hsync +vsync (80.0 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0   78.75  1024 1040 1136 1312  768 769 772 800 +hsync +vsync (60.0 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(0): Modeline "800x600"x0.0   49.50  800 816 896 1056  600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(0): Modeline "1280x1024"x0.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz)
(II) RADEON(0): Modeline "1152x864"x0.0  108.00  1152 1216 1344 1600  864 865 868 900 +hsync +vsync (67.5 kHz)
(II) RADEON(0): Printing probed modes for output DVI-0
(II) RADEON(0): Modeline "1600x1200"x60.0  162.00  1600 1664 1856 2160  1200 1201 1204 1250 +hsync +vsync (75.0 kHz)
(II) RADEON(0): Modeline "1280x1024"x75.0  135.00  1280 1296 1440 1688  1024 1025 1028 1066 +hsync +vsync (80.0 kHz)
(II) RADEON(0): Modeline "1280x1024"x60.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz)
(II) RADEON(0): Modeline "1152x864"x75.0  108.00  1152 1216 1344 1600  864 865 868 900 +hsync +vsync (67.5 kHz)
(II) RADEON(0): Modeline "1024x768"x75.1   78.80  1024 1040 1136 1312  768 769 772 800 +hsync +vsync (60.1 kHz)
(II) RADEON(0): Modeline "1024x768"x60.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(0): Modeline "800x600"x75.0   49.50  800 816 896 1056  600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(0): Modeline "800x600"x60.3   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(0): Modeline "640x480"x75.0   31.50  640 656 720 840  480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(0): Modeline "640x480"x60.0   25.20  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(0): Modeline "720x400"x70.1   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(0): Output DVI-0 connected
(II) RADEON(0): Using exact sizes for initial modes
(II) RADEON(0): Output DVI-0 using initial mode 1600x1200
(II) RADEON(0): Using default gamma of (1.0, 1.0, 1.0) unless otherwise stated.
(II) RADEON(0): mem size init: gart size :1fdff000 vram size: s:10000000 visible:f86d000
(II) RADEON(0): EXA: Driver will allow EXA pixmaps in VRAM
(**) RADEON(0): Display dimensions: (410, 310) mm
(**) RADEON(0): DPI set to (99, 98)
(II) Loading sub module "fb"
(II) LoadModule: "fb"
(II) Loading /usr/lib/xorg/modules/libfb.so
(II) Module fb: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 1.0.0
	ABI class: X.Org ANSI C Emulation, version 0.4
(II) Loading sub module "ramdac"
(II) LoadModule: "ramdac"
(II) Module "ramdac" already built-in
(II) Loading sub module "exa"
(II) LoadModule: "exa"
(II) Loading /usr/lib/xorg/modules/libexa.so
(II) Module exa: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 2.5.0
	ABI class: X.Org Video Driver, version 6.0
(==) RADEON(1): Depth 24, (--) framebuffer bpp 32
(II) RADEON(1): Pixel depth = 24 bits stored in 4 bytes (32 bpp pixmaps)
(==) RADEON(1): Default visual is TrueColor
(**) RADEON(1): Option "AccelMethod" "XAA"
(**) RADEON(1): Option "ZaphodHeads" "DVI-1"
(==) RADEON(1): RGB weight 888
(II) RADEON(1): Using 8 bits per RGB (8 bit DAC)
(--) RADEON(1): Chipset: "ATI FireMV 2250" (ChipID = 0x719b)
(II) RADEON(1): PCIE card detected
(EE) RADEON(1):  reusing fd for second head
(II) RADEON(1): KMS Color Tiling: enabled
(II) RADEON(1): Output DVI-1 has no monitor section
(II) RADEON(1): EDID for output DVI-1
(II) RADEON(1): Manufacturer: DEL  Model: a021  Serial#: 827803219
(II) RADEON(1): Year: 2006  Week: 13
(II) RADEON(1): EDID Version: 1.3
(II) RADEON(1): Digital Display Input
(II) RADEON(1): Max Image Size [cm]: horiz.: 41  vert.: 31
(II) RADEON(1): Gamma: 2.20
(II) RADEON(1): DPMS capabilities: StandBy Suspend Off
(II) RADEON(1): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4
(II) RADEON(1): Default color space is primary color space
(II) RADEON(1): First detailed timing is preferred mode
(II) RADEON(1): redX: 0.640 redY: 0.330   greenX: 0.300 greenY: 0.600
(II) RADEON(1): blueX: 0.150 blueY: 0.060   whiteX: 0.312 whiteY: 0.329
(II) RADEON(1): Supported established timings:
(II) RADEON(1): 720x400@70Hz
(II) RADEON(1): 640x480@60Hz
(II) RADEON(1): 640x480@75Hz
(II) RADEON(1): 800x600@60Hz
(II) RADEON(1): 800x600@75Hz
(II) RADEON(1): 1024x768@60Hz
(II) RADEON(1): 1024x768@75Hz
(II) RADEON(1): 1280x1024@75Hz
(II) RADEON(1): Manufacturer's mask: 0
(II) RADEON(1): Supported standard timings:
(II) RADEON(1): #0: hsize: 1280  vsize 1024  refresh: 60  vid: 32897
(II) RADEON(1): #1: hsize: 1600  vsize 1200  refresh: 60  vid: 16553
(II) RADEON(1): #2: hsize: 1152  vsize 864  refresh: 75  vid: 20337
(II) RADEON(1): Supported detailed timing:
(II) RADEON(1): clock: 162.0 MHz   Image Size:  367 x 275 mm
(II) RADEON(1): h_active: 1600  h_sync: 1664  h_sync_end 1856 h_blank_end 2160 h_border: 0
(II) RADEON(1): v_active: 1200  v_sync: 1201  v_sync_end 1204 v_blanking: 1250 v_border: 0
(II) RADEON(1): Serial No: C953663R1WFS
(II) RADEON(1): Monitor name: DELL 2007FP
(II) RADEON(1): Ranges: V min: 56 V max: 76 Hz, H min: 30 H max: 83 kHz, PixClock max 170 MHz
(II) RADEON(1): EDID (in hex):
(II) RADEON(1): 	00ffffffffffff0010ac21a053465731
(II) RADEON(1): 	0d10010380291f78eeee91a3544c9926
(II) RADEON(1): 	0f5054a54b008180a940714f01010101
(II) RADEON(1): 	010101010101483f403062b0324040c0
(II) RADEON(1): 	13006f131100001e000000ff00433935
(II) RADEON(1): 	3336363352315746530a000000fc0044
(II) RADEON(1): 	454c4c203230303746500a20000000fd
(II) RADEON(1): 	00384c1e5311000a2020202020200070
(II) RADEON(1): EDID vendor "DEL", prod id 40993
(II) RADEON(1): Using EDID range info for horizontal sync
(II) RADEON(1): Using EDID range info for vertical refresh
(II) RADEON(1): Printing DDC gathered Modelines:
(II) RADEON(1): Modeline "1600x1200"x0.0  162.00  1600 1664 1856 2160  1200 1201 1204 1250 +hsync +vsync (75.0 kHz)
(II) RADEON(1): Modeline "800x600"x0.0   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(1): Modeline "640x480"x0.0   31.50  640 656 720 840  480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(1): Modeline "640x480"x0.0   25.18  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(1): Modeline "720x400"x0.0   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(1): Modeline "1280x1024"x0.0  135.00  1280 1296 1440 1688  1024 1025 1028 1066 +hsync +vsync (80.0 kHz)
(II) RADEON(1): Modeline "1024x768"x0.0   78.75  1024 1040 1136 1312  768 769 772 800 +hsync +vsync (60.0 kHz)
(II) RADEON(1): Modeline "1024x768"x0.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(1): Modeline "800x600"x0.0   49.50  800 816 896 1056  600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(1): Modeline "1280x1024"x0.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz)
(II) RADEON(1): Modeline "1152x864"x0.0  108.00  1152 1216 1344 1600  864 865 868 900 +hsync +vsync (67.5 kHz)
(II) RADEON(1): Printing probed modes for output DVI-1
(II) RADEON(1): Modeline "1600x1200"x60.0  162.00  1600 1664 1856 2160  1200 1201 1204 1250 +hsync +vsync (75.0 kHz)
(II) RADEON(1): Modeline "1280x1024"x75.0  135.00  1280 1296 1440 1688  1024 1025 1028 1066 +hsync +vsync (80.0 kHz)
(II) RADEON(1): Modeline "1280x1024"x60.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz)
(II) RADEON(1): Modeline "1152x864"x75.0  108.00  1152 1216 1344 1600  864 865 868 900 +hsync +vsync (67.5 kHz)
(II) RADEON(1): Modeline "1024x768"x75.1   78.80  1024 1040 1136 1312  768 769 772 800 +hsync +vsync (60.1 kHz)
(II) RADEON(1): Modeline "1024x768"x60.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(1): Modeline "800x600"x75.0   49.50  800 816 896 1056  600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(1): Modeline "800x600"x60.3   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(1): Modeline "640x480"x75.0   31.50  640 656 720 840  480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(1): Modeline "640x480"x60.0   25.20  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(1): Modeline "720x400"x70.1   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(1): Output DVI-1 connected
(II) RADEON(1): Using exact sizes for initial modes
(II) RADEON(1): Output DVI-1 using initial mode 1600x1200
(II) RADEON(1): Using default gamma of (1.0, 1.0, 1.0) unless otherwise stated.
(II) RADEON(1): mem size init: gart size :1fdff000 vram size: s:10000000 visible:f86d000
(II) RADEON(1): EXA: Driver will allow EXA pixmaps in VRAM
(**) RADEON(1): Display dimensions: (410, 310) mm
(**) RADEON(1): DPI set to (99, 98)
(II) Loading sub module "fb"
(II) LoadModule: "fb"
(II) Reloading /usr/lib/xorg/modules/libfb.so
(II) Loading sub module "ramdac"
(II) LoadModule: "ramdac"
(II) Module "ramdac" already built-in
(II) Loading sub module "exa"
(II) LoadModule: "exa"
(II) Reloading /usr/lib/xorg/modules/libexa.so
(==) RADEON(2): Depth 24, (--) framebuffer bpp 32
(II) RADEON(2): Pixel depth = 24 bits stored in 4 bytes (32 bpp pixmaps)
(==) RADEON(2): Default visual is TrueColor
(**) RADEON(2): Option "AccelMethod" "XAA"
(**) RADEON(2): Option "ZaphodHeads" "DVI-2"
(==) RADEON(2): RGB weight 888
(II) RADEON(2): Using 8 bits per RGB (8 bit DAC)
(--) RADEON(2): Chipset: "ATI FireMV 2250" (ChipID = 0x719b)
(II) RADEON(2): PCIE card detected
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 10, (OK)
drmOpenByBusid: Searching for BusID pci:0000:04:00.0
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 10, (OK)
drmOpenByBusid: drmOpenMinor returns 10
drmOpenByBusid: drmGetBusid reports pci:0000:05:00.0
drmOpenDevice: node name is /dev/dri/card1
drmOpenDevice: open result is 10, (OK)
drmOpenByBusid: drmOpenMinor returns 10
drmOpenByBusid: drmGetBusid reports pci:0000:04:00.0
(II) RADEON(2): KMS Color Tiling: enabled
(II) RADEON(2): Output DVI-2 has no monitor section
(II) RADEON(2): Output S-video-1 has no monitor section
(II) RADEON(2): Output DVI-3 has no monitor section
(II) RADEON(2): EDID for output DVI-2
(II) RADEON(2): Manufacturer: DEL  Model: a021  Serial#: 842216787
(II) RADEON(2): Year: 2006  Week: 13
(II) RADEON(2): EDID Version: 1.3
(II) RADEON(2): Digital Display Input
(II) RADEON(2): Max Image Size [cm]: horiz.: 41  vert.: 31
(II) RADEON(2): Gamma: 2.20
(II) RADEON(2): DPMS capabilities: StandBy Suspend Off
(II) RADEON(2): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4
(II) RADEON(2): Default color space is primary color space
(II) RADEON(2): First detailed timing is preferred mode
(II) RADEON(2): redX: 0.640 redY: 0.330   greenX: 0.300 greenY: 0.600
(II) RADEON(2): blueX: 0.150 blueY: 0.060   whiteX: 0.312 whiteY: 0.329
(II) RADEON(2): Supported established timings:
(II) RADEON(2): 720x400@70Hz
(II) RADEON(2): 640x480@60Hz
(II) RADEON(2): 640x480@75Hz
(II) RADEON(2): 800x600@60Hz
(II) RADEON(2): 800x600@75Hz
(II) RADEON(2): 1024x768@60Hz
(II) RADEON(2): 1024x768@75Hz
(II) RADEON(2): 1280x1024@75Hz
(II) RADEON(2): Manufacturer's mask: 0
(II) RADEON(2): Supported standard timings:
(II) RADEON(2): #0: hsize: 1280  vsize 1024  refresh: 60  vid: 32897
(II) RADEON(2): #1: hsize: 1600  vsize 1200  refresh: 60  vid: 16553
(II) RADEON(2): #2: hsize: 1152  vsize 864  refresh: 75  vid: 20337
(II) RADEON(2): Supported detailed timing:
(II) RADEON(2): clock: 162.0 MHz   Image Size:  367 x 275 mm
(II) RADEON(2): h_active: 1600  h_sync: 1664  h_sync_end 1856 h_blank_end 2160 h_border: 0
(II) RADEON(2): v_active: 1200  v_sync: 1201  v_sync_end 1204 v_blanking: 1250 v_border: 0
(II) RADEON(2): Serial No: C953663R235S
(II) RADEON(2): Monitor name: DELL 2007FP
(II) RADEON(2): Ranges: V min: 56 V max: 76 Hz, H min: 30 H max: 83 kHz, PixClock max 170 MHz
(II) RADEON(2): EDID (in hex):
(II) RADEON(2): 	00ffffffffffff0010ac21a053353332
(II) RADEON(2): 	0d10010380291f78eeee91a3544c9926
(II) RADEON(2): 	0f5054a54b008180a940714f01010101
(II) RADEON(2): 	010101010101483f403062b0324040c0
(II) RADEON(2): 	13006f131100001e000000ff00433935
(II) RADEON(2): 	3336363352323335530a000000fc0044
(II) RADEON(2): 	454c4c203230303746500a20000000fd
(II) RADEON(2): 	00384c1e5311000a20202020202000d8
(II) RADEON(2): EDID vendor "DEL", prod id 40993
(II) RADEON(2): Using EDID range info for horizontal sync
(II) RADEON(2): Using EDID range info for vertical refresh
(II) RADEON(2): Printing DDC gathered Modelines:
(II) RADEON(2): Modeline "1600x1200"x0.0  162.00  1600 1664 1856 2160  1200 1201 1204 1250 +hsync +vsync (75.0 kHz)
(II) RADEON(2): Modeline "800x600"x0.0   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(2): Modeline "640x480"x0.0   31.50  640 656 720 840  480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(2): Modeline "640x480"x0.0   25.18  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(2): Modeline "720x400"x0.0   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(2): Modeline "1280x1024"x0.0  135.00  1280 1296 1440 1688  1024 1025 1028 1066 +hsync +vsync (80.0 kHz)
(II) RADEON(2): Modeline "1024x768"x0.0   78.75  1024 1040 1136 1312  768 769 772 800 +hsync +vsync (60.0 kHz)
(II) RADEON(2): Modeline "1024x768"x0.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(2): Modeline "800x600"x0.0   49.50  800 816 896 1056  600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(2): Modeline "1280x1024"x0.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz)
(II) RADEON(2): Modeline "1152x864"x0.0  108.00  1152 1216 1344 1600  864 865 868 900 +hsync +vsync (67.5 kHz)
(II) RADEON(2): Printing probed modes for output DVI-2
(II) RADEON(2): Modeline "1600x1200"x60.0  162.00  1600 1664 1856 2160  1200 1201 1204 1250 +hsync +vsync (75.0 kHz)
(II) RADEON(2): Modeline "1280x1024"x75.0  135.00  1280 1296 1440 1688  1024 1025 1028 1066 +hsync +vsync (80.0 kHz)
(II) RADEON(2): Modeline "1280x1024"x60.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz)
(II) RADEON(2): Modeline "1152x864"x75.0  108.00  1152 1216 1344 1600  864 865 868 900 +hsync +vsync (67.5 kHz)
(II) RADEON(2): Modeline "1024x768"x75.1   78.80  1024 1040 1136 1312  768 769 772 800 +hsync +vsync (60.1 kHz)
(II) RADEON(2): Modeline "1024x768"x60.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(2): Modeline "800x600"x75.0   49.50  800 816 896 1056  600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(2): Modeline "800x600"x60.3   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(2): Modeline "640x480"x75.0   31.50  640 656 720 840  480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(2): Modeline "640x480"x60.0   25.20  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(2): Modeline "720x400"x70.1   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(2): EDID for output S-video-1
(II) RADEON(2): EDID for output DVI-3
(II) RADEON(2): Output DVI-2 connected
(II) RADEON(2): Output S-video-1 disconnected
(II) RADEON(2): Output DVI-3 disconnected
(II) RADEON(2): Using exact sizes for initial modes
(II) RADEON(2): Output DVI-2 using initial mode 1600x1200
(II) RADEON(2): Using default gamma of (1.0, 1.0, 1.0) unless otherwise stated.
(II) RADEON(2): mem size init: gart size :1fdff000 vram size: s:10000000 visible:f86d000
(II) RADEON(2): EXA: Driver will allow EXA pixmaps in VRAM
(**) RADEON(2): Display dimensions: (410, 310) mm
(**) RADEON(2): DPI set to (99, 98)
(II) Loading sub module "fb"
(II) LoadModule: "fb"
(II) Reloading /usr/lib/xorg/modules/libfb.so
(II) Loading sub module "ramdac"
(II) LoadModule: "ramdac"
(II) Module "ramdac" already built-in
(II) Loading sub module "exa"
(II) LoadModule: "exa"
(II) Reloading /usr/lib/xorg/modules/libexa.so
(--) Depth 24 pixmap format is 32 bpp
(II) RADEON(0): [DRI2] Setup complete
(II) RADEON(0): Front buffer size: 7500K
(II) RADEON(0): VRAM usage limit set to 222199K
(==) RADEON(0): Backing store disabled
(II) RADEON(0): Direct rendering enabled
(II) RADEON(0): Render acceleration enabled for R300/R400/R500 type cards.
(II) RADEON(0): Setting EXA maxPitchBytes
(II) EXA(0): Driver allocated offscreen pixmaps
(II) EXA(0): Driver registered support for the following operations:
(II)         Solid
(II)         Copy
(II)         Composite (RENDER acceleration)
(II)         UploadToScreen
(II)         DownloadFromScreen
(II) RADEON(0): Acceleration enabled
(==) RADEON(0): DPMS enabled
(==) RADEON(0): Silken mouse enabled
(II) RADEON(0): Set up textured video
(II) RADEON(0): RandR 1.2 enabled, ignore the following RandR disabled message.
(--) RandR disabled
(II) RADEON(1): [DRI2] Setup complete
(II) RADEON(1): Front buffer size: 7500K
(II) RADEON(1): VRAM usage limit set to 222199K
(==) RADEON(1): Backing store disabled
(II) RADEON(1): Direct rendering enabled
(II) RADEON(1): Render acceleration enabled for R300/R400/R500 type cards.
(II) RADEON(1): Setting EXA maxPitchBytes
(II) EXA(1): Driver allocated offscreen pixmaps
(II) EXA(1): Driver registered support for the following operations:
(II)         Solid
(II)         Copy
(II)         Composite (RENDER acceleration)
(II)         UploadToScreen
(II)         DownloadFromScreen
(II) RADEON(1): Acceleration enabled
(==) RADEON(1): DPMS enabled
(==) RADEON(1): Silken mouse enabled
(II) RADEON(1): Set up textured video
(II) RADEON(1): RandR 1.2 enabled, ignore the following RandR disabled message.
(--) RandR disabled
(II) RADEON(2): [DRI2] Setup complete
(II) RADEON(2): Front buffer size: 7500K
(II) RADEON(2): VRAM usage limit set to 222199K
(==) RADEON(2): Backing store disabled
(II) RADEON(2): Direct rendering enabled
(II) RADEON(2): Render acceleration enabled for R300/R400/R500 type cards.
(II) RADEON(2): Setting EXA maxPitchBytes
(II) EXA(2): Driver allocated offscreen pixmaps
(II) EXA(2): Driver registered support for the following operations:
(II)         Solid
(II)         Copy
(II)         Composite (RENDER acceleration)
(II)         UploadToScreen
(II)         DownloadFromScreen
(II) RADEON(2): Acceleration enabled
(==) RADEON(2): DPMS enabled
(==) RADEON(2): Silken mouse enabled
(II) RADEON(2): Set up textured video
(II) RADEON(2): RandR 1.2 enabled, ignore the following RandR disabled message.
(--) RandR disabled
(II) Initializing built-in extension Generic Event Extension
(II) Initializing built-in extension SHAPE
(II) Initializing built-in extension MIT-SHM
(II) Initializing built-in extension XInputExtension
(II) Initializing built-in extension XTEST
(II) Initializing built-in extension BIG-REQUESTS
(II) Initializing built-in extension SYNC
(II) Initializing built-in extension XKEYBOARD
(II) Initializing built-in extension XC-MISC
(II) Initializing built-in extension SECURITY
(II) Initializing built-in extension XINERAMA
(II) Initializing built-in extension XFIXES
(II) Initializing built-in extension RENDER
(II) Initializing built-in extension RANDR
(II) Initializing built-in extension COMPOSITE
(II) Initializing built-in extension DAMAGE
(EE) Failed to initialize GLX extension (Compatible NVIDIA X driver not found)
(II) XKB: reuse xkmfile /var/lib/xkb/server-B20D7FC79C7F597315E3E501AEF10E0D866E8E92.xkm
(II) config/udev: Adding input device Power Button (/dev/input/event1)
(**) Power Button: Applying InputClass "evdev keyboard catchall"
(II) LoadModule: "evdev"
(II) Loading /usr/lib/xorg/modules/input/evdev_drv.so
(II) Module evdev: vendor="X.Org Foundation"
	compiled for 1.7.6, module version = 2.3.2
	Module class: X.Org XInput Driver
	ABI class: X.Org XInput driver, version 7.0
(**) Power Button: always reports core events
(**) Power Button: Device: "/dev/input/event1"
(II) Power Button: Found keys
(II) Power Button: Configuring as keyboard
(II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD)
(**) Option "xkb_rules" "evdev"
(**) Option "xkb_model" "pc105"
(**) Option "xkb_layout" "us"
(II) config/udev: Adding input device Power Button (/dev/input/event0)
(**) Power Button: Applying InputClass "evdev keyboard catchall"
(**) Power Button: always reports core events
(**) Power Button: Device: "/dev/input/event0"
(II) Power Button: Found keys
(II) Power Button: Configuring as keyboard
(II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD)
(**) Option "xkb_rules" "evdev"
(**) Option "xkb_model" "pc105"
(**) Option "xkb_layout" "us"
(II) config/udev: Adding input device Microsoft Microsoft 3-Button Mouse with IntelliEye(TM) (/dev/input/event4)
(**) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): Applying InputClass "evdev pointer catchall"
(**) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): always reports core events
(**) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): Device: "/dev/input/event4"
(II) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): Found 3 mouse buttons
(II) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): Found scroll wheel(s)
(II) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): Found relative axes
(II) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): Found x and y relative axes
(II) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): Configuring as mouse
(**) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): YAxisMapping: buttons 4 and 5
(**) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200
(II) XINPUT: Adding extended input device "Microsoft Microsoft 3-Button Mouse with IntelliEye(TM)" (type: MOUSE)
(II) Microsoft Microsoft 3-Button Mouse with IntelliEye(TM): initialized for relative axes.
(II) config/udev: Adding input device Microsoft Microsoft 3-Button Mouse with IntelliEye(TM) (/dev/input/mouse1)
(II) No input driver/identifier specified (ignoring)
(II) config/udev: Adding input device HDA Digital PCBeep (/dev/input/event5)
(II) No input driver/identifier specified (ignoring)
(II) config/udev: Adding input device AT Translated Set 2 keyboard (/dev/input/event3)
(**) AT Translated Set 2 keyboard: Applying InputClass "evdev keyboard catchall"
(**) AT Translated Set 2 keyboard: always reports core events
(**) AT Translated Set 2 keyboard: Device: "/dev/input/event3"
(II) AT Translated Set 2 keyboard: Found keys
(II) AT Translated Set 2 keyboard: Configuring as keyboard
(II) XINPUT: Adding extended input device "AT Translated Set 2 keyboard" (type: KEYBOARD)
(**) Option "xkb_rules" "evdev"
(**) Option "xkb_model" "pc105"
(**) Option "xkb_layout" "us"
(II) config/udev: Adding input device Macintosh mouse button emulation (/dev/input/event2)
(**) Macintosh mouse button emulation: Applying InputClass "evdev pointer catchall"
(**) Macintosh mouse button emulation: always reports core events
(**) Macintosh mouse button emulation: Device: "/dev/input/event2"
(II) Macintosh mouse button emulation: Found 3 mouse buttons
(II) Macintosh mouse button emulation: Found relative axes
(II) Macintosh mouse button emulation: Found x and y relative axes
(II) Macintosh mouse button emulation: Configuring as mouse
(**) Macintosh mouse button emulation: YAxisMapping: buttons 4 and 5
(**) Macintosh mouse button emulation: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200
(II) XINPUT: Adding extended input device "Macintosh mouse button emulation" (type: MOUSE)
(II) Macintosh mouse button emulation: initialized for relative axes.
(II) config/udev: Adding input device Macintosh mouse button emulation (/dev/input/mouse0)
(II) No input driver/identifier specified (ignoring)
Comment 27 Ian! D. Allen 2010-09-02 08:06:50 UTC
I'm now seeing font glyph corruption in a GVIM window as well as Firefox.
See the attached image.
Comment 28 Ian! D. Allen 2010-09-02 08:08:57 UTC
Created attachment 38385 [details]
GVIM glyph corruption on only one of three Xinerama displays

In this screen capture, I've placed this GVIM window so that it is
half on the Middle monitor and half on the Right monitor (of three).
You can see that the middle monitor displays the lower-case letter "U"
correctly and the right monitor has the corrupt letter.  No other letter
is affected.  Changing the font or size in GVIM fixes the corruption,
until I change it back.  The font is DejaVu Sans Mono (or Monospace)
Regular size 10.  Moving this window completely onto the Left or Middle
monitors shows no font corruption.  It only happens on the Right monitor,
which is on the first FireMV 2250 graphics card.  (The Left and Middle
monitors are both on the second FireMV 2250 card.)
Comment 29 steckdenis 2010-09-12 06:00:10 UTC
Created attachment 38645 [details]
Screenshot of 2 3D programs corrupting each other

Hello,

Here is a screenshot of Neverball corrupting Super Tux Kart. It's also possible to have STK corrupting Neverball by launching STK after Neverball. The last launched program corrupts the previously launched ones.

It seems there is a bug in the memory management, but I don't know if it's always there, RS690-specific, or triggered by the Sideport memory.

I looked at the source code (radeon module in Linux 2.6.36-rc3) but didn't found anything interesting. I looked in TTM and GEM code, but I don't know if TTM is used on an IGP card.

I use Mesa Git (as of today), Linux 2.6.36-rc3, libdrm Aug 26, XServer 1.9 and xf86-video-ati 6.13.1.

Regards.
Comment 30 Brian 2010-10-09 14:08:48 UTC
Is there anything else that is needed for this bug, or any way that we can help?
Comment 31 d4ddi0 2010-12-08 09:07:27 UTC
I have been experiencing this issue on Gateway LT31 with opensuse.
Switched to gentoo (kde) with git head driver, but the issue remained.

I switched from kde to xfce and the issue seemed to go away (Makes it look like a KWin problem)


With the update to kde 4.5.4, I have tried KDE again, and this issue seems to be gone for me on gentoo, using either classic or gallium driver.

Good news!
Comment 32 shomi 2010-12-09 19:15:22 UTC
I too am using a Gateway LT31 netbook,
I would like to add a point worth mentioning, on ubuntu 9.10 there where no corruptions whatsoever !
What has changed that made our graphic cards loose their minds ?

On a fresh install of maverik (10.10) my second screen would show moving lines and all messed up stuff + screw up the laptops screen.
I updated to 2.6.37-020637rc5-generic and now the second screen works with no problems.
The screen corruptions still exists.
Comment 33 d4ddi0 2010-12-10 07:30:34 UTC
After a few days of perfect operation I have seen a new example of corruption:
playing "The Ur-Quan Masters", which uses an openGL backed SDL drawing context.

This is with gentoo ~amd64 (xorg-server 1.9.2.902) (mesa 7.8.2), gallium ati driver from git, libsdl 1.2.13, and uqm 0.6.2.
Running xfce/xfwm window manager.

Steps to Reproduce:
Start uqm
(settings resolution 1024x768, either fullscreen or windowed)
Corruption is evident in the main menu as some of the menu entries are garbled.
Select Super Melee for even more spectacular garblement in the ship selection screen.

I could not reproduce this with classic mesa.
Comment 34 Dave Airlie 2010-12-11 22:15:22 UTC
if anyone is using r300g on rs690 and seeing texture problems you can try

http://people.freedesktop.org/~airlied/scratch/0001-r300g-hack-for-rs690-tiling-alignment-issues.patch

got a bit more cleanup todo next week.
Comment 35 Jerome Glisse 2011-03-07 10:38:36 UTC
Closing this bug, if you have 3d issue please open a new bug against 3d driver and first test with lastest git.
